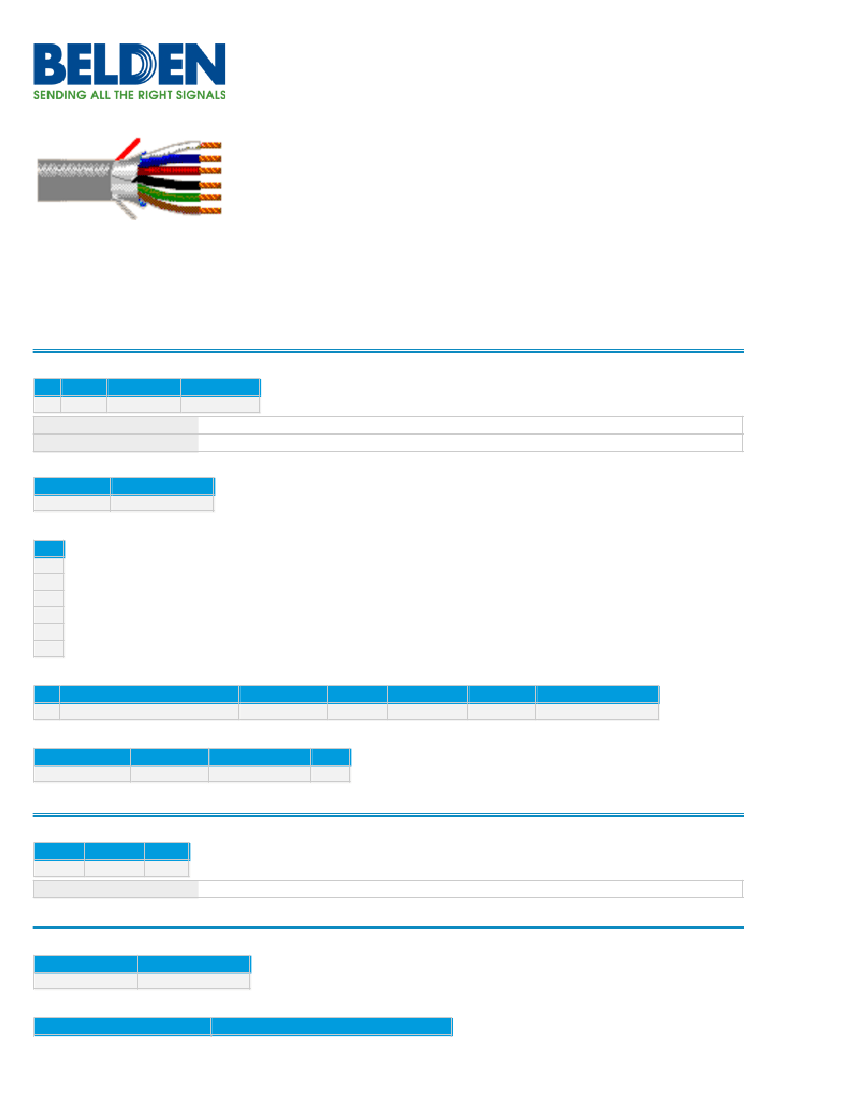

Part Number:
5504FE
Security & Sound, #22-6c, BC, Shielded, CMR
Product Description
Security & Sound Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding
22
7x30
Material
No. of Conductors
BC - Bare Copper 6
6
22 AWG
Conductor Count:
Conductor Size:
Insulation
Material
Nominal Wall Thickness
PP - Polypropylene 0.008 in
Color Chart
Color
Black
Red
White
Green
Brown
Blue
Outer Shield Material
Type
Material
Material Trade Name Coverage [%] Drainwire Material
100 %
Drainwire AWG Drainwire Construction n x D
Solid mm
Tape Aluminum Foil-Polyester Tape w/Shorting Fold Beldfoil®
Outer Jacket Material
Material
TC - Tinned Copper 24
Nominal Diameter Nominal Wall Thickness Ripcord
0.017 in
Yes
PVC - Polyvinyl Chloride 0.172 in
Construction and Dimensions
Cabling
Lay Length Lay Direction
2.75 in
Print Legend:
Left Hand
Twists
4.4 twist/ft
NEW GENERATION(R) BY BELDEN-M 5504FE CMR 75C 6C22 SHIELDED (UL) E108998 OR C(UL) CMG (2 FT., 7 DIGIT SEQUENTIAL) FEET
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
16.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
15.3 Ohm/1000ft
22.5 pF/ft
Shielding:
Current
Element
40.5 pF/ft
Foil(s) or Copper Tape(s)
Max. Recommended Current [A]
10C Temperature Rise 2 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300V RMS
Temperature Range
UL Temp Rating:
Operating Temp Range:
75°C
-20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight:
Max Recommended Pulling Tension:
Min Bend Radius/Minor Axis:
27.2 lbs/1000ft
60.1 lbs
1.625 in
Standards
NEC Articles:
CEC/C(UL) Specification:
CPR Euroclass:
800
CMG
Eca
Applicable Environmental and Other Programs
EU Directive Compliance:
EU CE Mark:
EU Directive 2003/11/EC (BFR)
Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable):
MII Order #39 (China RoHS):
Yes
Yes
Suitability
Suitability - Indoor:
Yes
Flammability, LS0H, Toxicity Testing
UL Flammability:
CSA Flammability:
UL1666 Riser
FT4
Plenum/Non-Plenum
Plenum (Y/N):
Plenum Number:
No
6504FE
Part Number
Variants
Item #
5504FE.00305
5504FE 0081000
5504FE 008C500
Color
Chrome
Gray
Gray
C
Footnote
5504FE 008U1000 Gray
5504FE 008U500
Footnote:
Gray
C - CRATE REEL PUT-UP.
