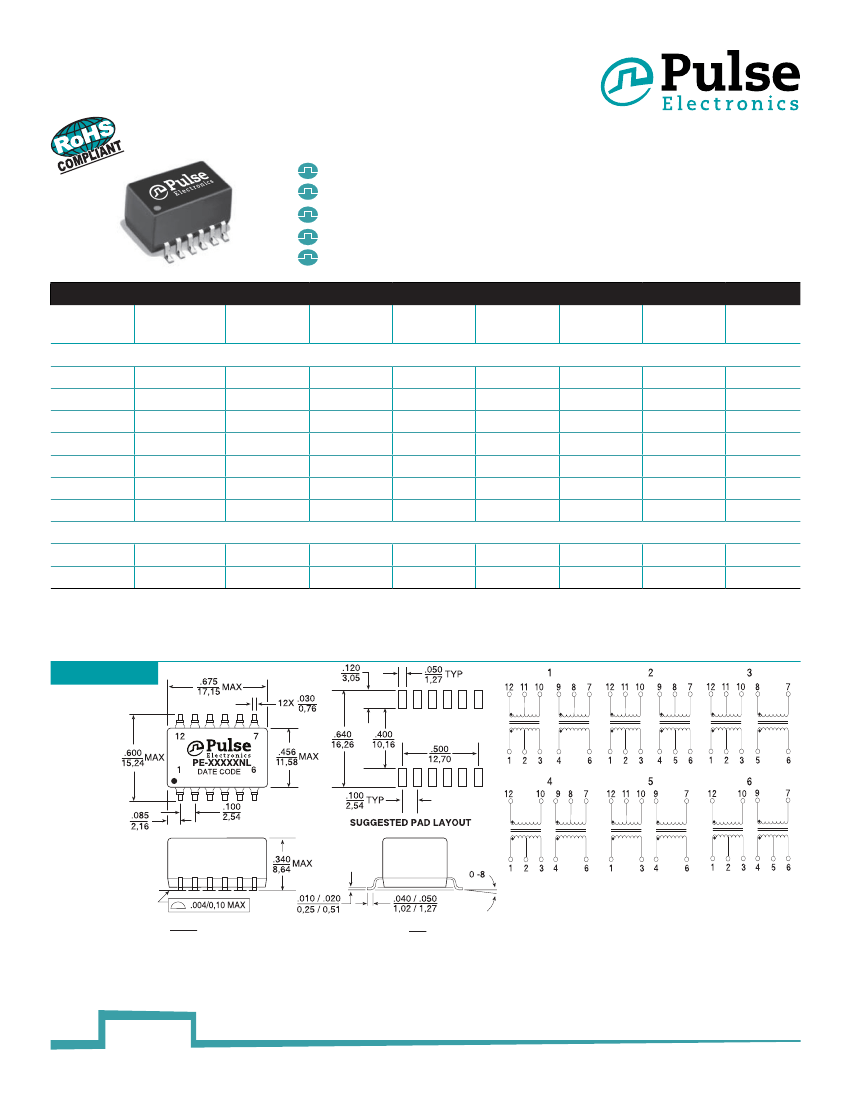

T1/Cept/ISDN-PRI Transformers
Dual Surface Mount, 1500 Vrms, Extended & Standard
Temperature Range
RoHS peak reflow temperature rating: 245½C
Dual SMT package contains transmit and receive transformers
Models matched to leading transceiver ICs
Isolation voltage: 1500 Vrms
UL recognized
Electrical Specifications @ 25°C
LL
C w/w
RoHS-6 Compliant
Turns Ratio
B
OCL @ 25½C
DCR Pri
Part Number
(Pri:Sec
±2%)
(mH MIN)
(μH MAX)
(pF MAX)
(Ω MAX)
Extended Temperature Range Models
1
- Operating Temperature -40½C to +85½C
PE-68841NL
PE-68822NL
PE-68826NL
PE-68828NL
PE-68874NL
PE-68877NL
PE-68884NL
PE-68864NL
A
E
DCR Sec
(Ω MAX)
1.70 & 1.70
2.00 & 1.70
1.10 & 1.70
1.00 & 1.00
1.40 & 1.40
1.00 & 1.80
1.40 & 1.40
1.20 & 0.70
1.00 & 1.00
Package/
Schematic
AN/2
AN/1
AN/4
AN/2
AN/2
AN/2
AN/2
AN/3
AN/5
Primary
Pin
12-10, 4-6
12-10, 4-6
12-10, 4-6
1-3, 4-6
1-3, 4-6
1-3, 4-6
1-3, 4-6
1-3, 5-6
12-10, 9-7
1CT:2CT & 1CT:2CT
1CT:2CT & 1:1.36CT
1:1/1.26 & 1:2CT
1CT:1CT & 1CT:1CT
1CT:1.15CT & 1CT:1.15CT
1CT:1CT & 1CT:2CT
1CT:1.36CT & 1CT:1.36CT
1CT:2CT & 1:1
1:1/1.26 & 1:1/1.26
1.20 & 1.20
1.60 & 1.60
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.50 & 1.50
0.80 & 0.80
1.00 & 0.80
0.80 & 0.80
0.80 & 0.80
0.80 & 0.80
0.80 & 0.80
0.80 & 0.80
0.30-0.55 & 0.80
0.40 & 0.40
50 & 50
60 & 55
50 & 60
50 & 50
50 & 50
50 & 50
50 & 50
30 & 30
45 & 35
1.00 & 1.00
1.70 & 1.70
1.00 & 1.00
1.00 & 1.00
1.20 & 1.20
1.00 & 1.00
1.20 & 1.20
0.70 & 0.70
0.80 & 0.80
Standard Temperature Range Models - Operating Temperature 0½C to +70½C
PE-68836NL
E
Notes:
To order Tape & Reel packaging, add a “T” suffix to the part number (i.e. PE-68864NL becomes PE-68864NLT).
See Page 7 and 8 for Table Notes.
Mechanical
AN
Schematics
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are
±
.010
0,25
Weight
.......................4.0 grams
Tape & Reel
..................250/reel
Tube
..............................30/tube
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
T608.W(5/17)
pulseelectronics.com

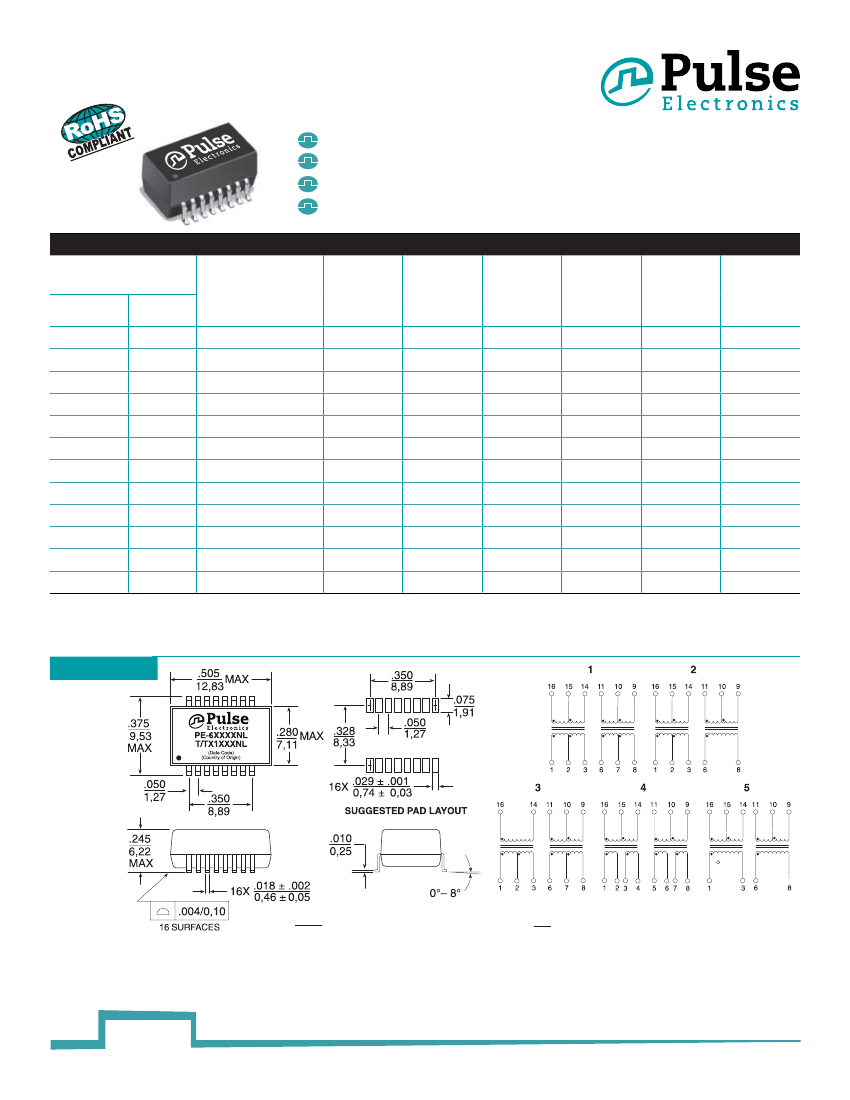

T1/Cept/ISDN-PRI Transformers
Dual Surface Mount, 1500 Vrms, Small Package
RoHS peak reflow temperature rating: 245½C
Dual SMT package contains transmit and receive transformers
Models matched to leading transceiver ICs
UL recognized (some parts pending approval)
Electrical Specifications @ 25½C
RoHS-6 Compliant
Part Number
STD Temp
PE-65861NL
-
PE-65870NL
PE-68678NL
PE-68786NL
T1023NL
T1021NL
T1137NL
-
-
-
-
EXT Temp
T1090NL
T1076NL
-
T1094NL
-
-
-
TX1287NL
T1146NL
TX1188NL
TX1089NL
TX1467NL
Turns Ratio
B
(Pri:Sec
±5%)
1CT:2CT & 1CT:2CT
1:1.15CT & 1CT:
2
CT
1CT:1.15CT & 1CT:1.15CT
1CT:1CT & 1CT:2CT
1CT:1.4CT & 1CT:1.41CT
1CT:1.4CT & 1CT:1.41CT
2CT:1/1.26CT & 2CT:1/1.26
1CT:2.42CT & 1CT:2.42CT
1:2/2.4 & 1CT:2CT
1CT:2CT & 1CT:2CT
1CT:1CT & 1CT:1CT
1CT:1CT & 1CT:2CT
OCL
(mH MIN)
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.00 & 1.00
1.00 & 1.00
1.50 & 1.50
1.20 & 1.20
1.00 & 1.00
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
C w/w
(pF MAX)
30 & 30
30 & 30
30 & 30
30 & 30
30 & 30
30 & 30
40 & 40
25 & 25
35 & 35
30 & 30
30 & 30
30 & 30
LL
(μH MAX)
.60 & .60
.60 & .60
.60 & .60
.60 & .60
.60 & .60
.60 & .60
.50 & .50
.60 & .60
1.00 & 1.00
.60 & .60
.80 & .80
.80 & .80
DCR Pri
(Ω MAX)
0.70 & 0.70
0.70 & 0.70
0.70 & 0.70
0.70 & 0.70
0.70 & 0.70
0.70 & 0.70
0.70 & 0.70
0.70 & 0.70
0.80 & 0.80
0.70 & 0.70
0.70 & 0.70
1.00 & 1.00
Package/
Schematic
BH/1
BH/2
BH/1
BH/1
BH/1
BH/1
BH/1
BH/1
BH/4
BH/1
BH/1
BH/3
Primary
Pins
16-14, 6-8
16-14, 6-8
1-3, 6-8
16-14, 6-8
16-14, 11-9
1-3, 11-9
1-3, 11-9
1-3, 6-8
1-3, 6-8
1-3, 6-8
1-3, 6-8
16-14, 11-9
Notes:
Standard (STD) operating temperature range is 0C to 70C. Extended (EXT) operating temperature range is -40C to +85C.
See pages 7 and 8 for table notes.
Mechanicals
BH
Schematics
Inches
Dimensions:
mm
.010
Unless otherwise specified, all tolerances are
±
0,25
Weight
.........................1.0 grams
Tape & Reel
...................600/reel
Tube
...............................40/tube
USA 858 674 8100
2
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
T608.W(5/17)
pulseelectronics.com

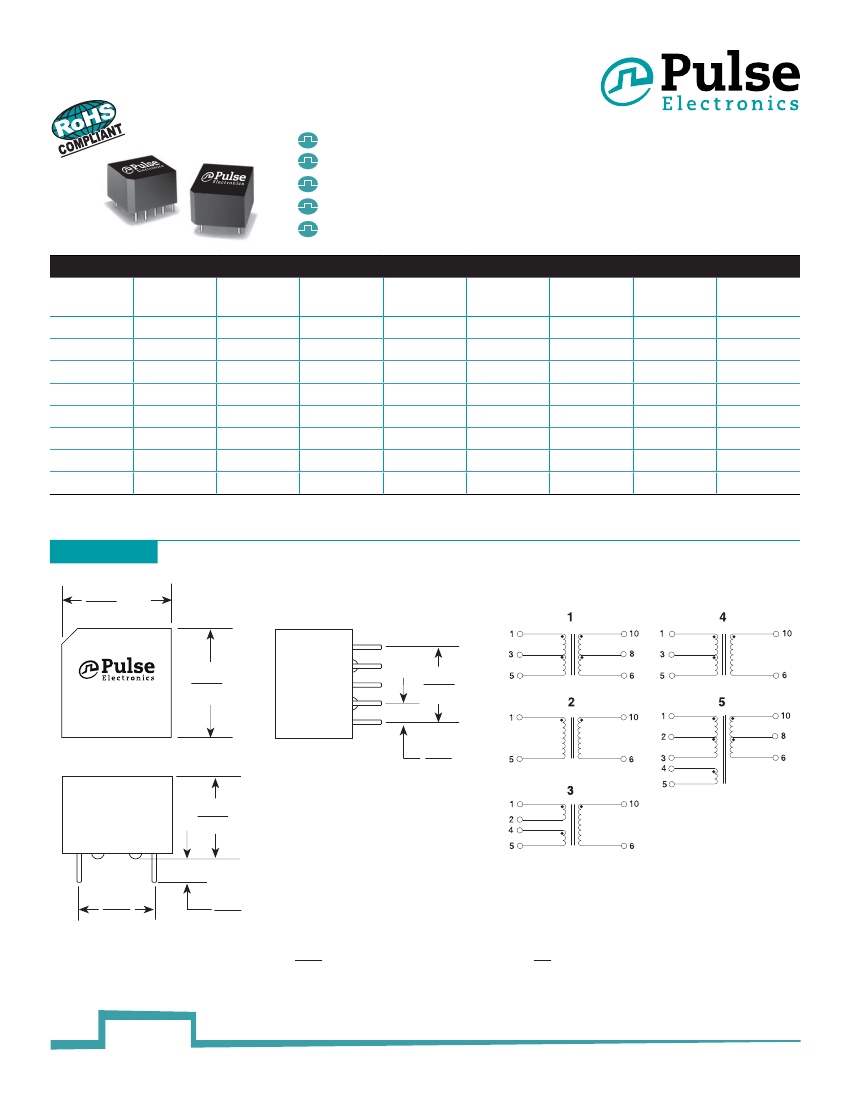

T1/Cept/ISDN-PRI Transformers
Single Reinforced Insulation, 3 kVrms
RoHS peak reflow temperature rating: 245½C
Dual SMT package contains transmit and receive transformers
Models matched to leading transceiver ICs
Isolation voltage: 1500 Vrms
UL recognized
B
RoHS-6 Compliant
Part Number
PE-65830NL
PE-65832NL
PE-65833NL
A
PE-65834NL
PE-65835NL
PE-65838NL
PE-65839NL
E
PE-68646NL
E
Turns Ratio
(Pri:Sec
±5%)
1.27CS:1
1:1.36CT
1CT:2CT
1:1
1CT:2CT
1:1.14CT
1:1/1.26
1:1.58/2
Electrical Specifications @ 25½C - Operating Temperature 0½C to 70½C (Unless Otherwise Noted)
B
OCL C
w/w L
L
DCR Pri
DCR Sec
(mH MIN)
.800
1.20
1.20
1.20
1.20
1.50
1.50
1.50
(pF MAX)
15
35
20
20
15
30
35
20
(μH MAX)
0.70
0.60
0.30-0.55
0.50
0.80
1.00
0.60
0.70
(Ω MAX)
0.50
0.70
0.50
0.50
0.70
0.70
0.70
0.70
(Ω MAX)
0.35
0.90
0.90
0.50
1.10
0.90
1.10
1.20
Package/
Schematic
IS/3
IS/4
IS/1
IS/2
IS/1
IS/4
IS/4
IS/4
Primary
Pins
1-5
10-6
1-5
1-5
1-5
10-6
10-6
10-6
or table notes.
Mechanical
IS
.560
MAX
14,22
1
10
2
9
3
PE-XXXXXNL
8
4
7
DATE CODE
6
5
Schematics
.560 MAX
14,22
.400
10,20
.400 MAX
10,20
Notes:
Leads are 22 AWG solderable.
Unused pins not provided.
.100 TYP
2,54
.400
10,20
.130
3,30
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are
±
.010
0,25
Weight
..........................4 grams
Tube
...............................35/tube
USA 858 674 8100
3
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
T608.W(5/17)
pulseelectronics.com

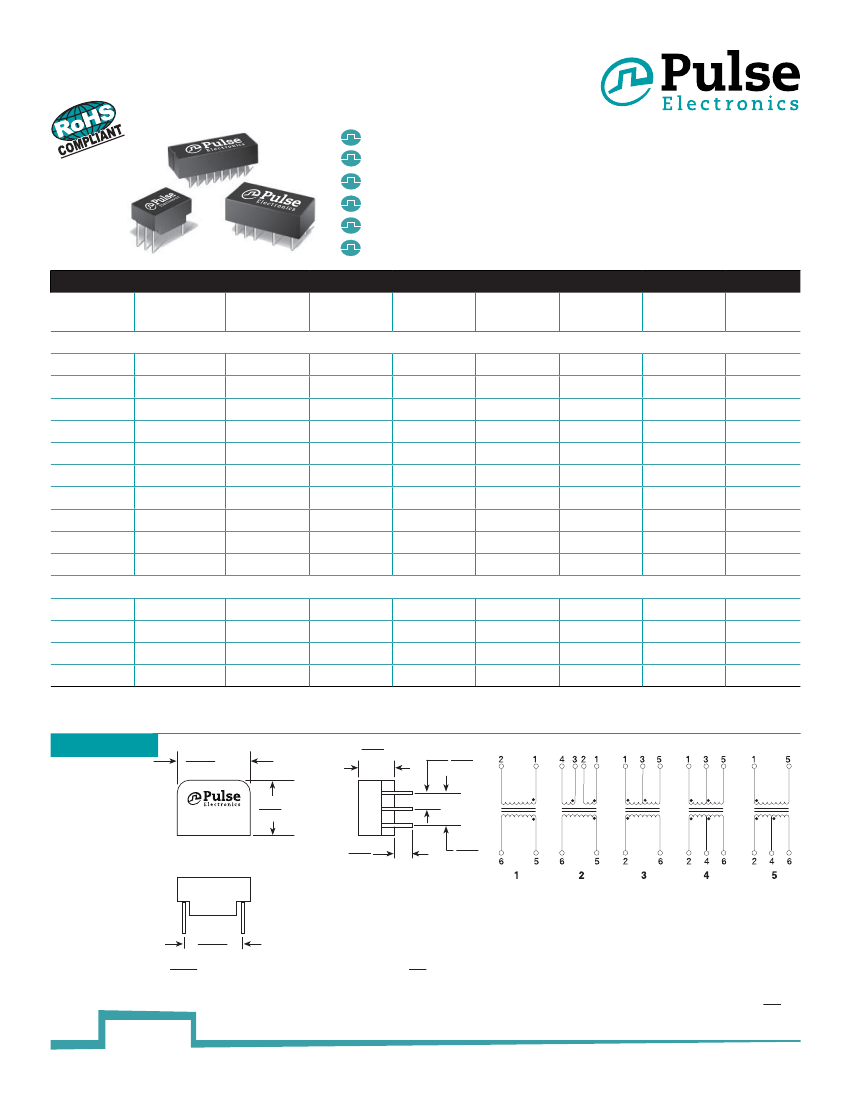

T1/Cept/ISDN-PRI Transformers
Single Through Hole, 1500Vrms
RoHS peak reflow temperature rating: 245½C
Extended and standard temperature range
Dual and single through hole models available
Models matched to leading transceiver ICs
UL recognized
Isolation Voltage: 1500 Vrms MIN
RoHS-6 Compliant
Part Number
PE-64931NL
PE-64934NL
PE-64936NL
PE-64937NL
PE-65351NL
PE-65363NL
PE-65388NL
PE-65389NL
PE-65415NL
PE-68644NL
PE-65770NL
PE-65771NL
PE-65778NL
TX1252NL
E
E
Turns Ratio
B
(Pri:Sec
±2%)
1:1:1 (1:2CS)
1:1w
1CT:1
1:1.36
1:2CT
1:4CT
1:1.15CT
1:1/1.26
1CT:2CT
1CT:1
1:1.15CT
1CT:2CT
1CT:1CT
1CT:1
OCL @ 25½C
(mH MIN)
1.20
1.20
1.20
1.20
1.20
0.50
1.50
1.50
1.20
0.70
1.50
1.20
1.20
1.20
Electrical Specifications @ 25°C
C w/w
LL
DCR Pri
(pF MAX)
(μH MAX)
(Ω MAX)
25
25
25
35
40
35
40
30
20
40
50
40
40
0.50
0.50
0.80
0.80
0.50
1.00
0.60
0.40
0.50
0.70
0.80
0.60
1.00
1.00
0.70
0.70
0.70
0.70
0.70
0.70
0.70
0.70
0.70
0.20
0.90
1.00
1.00
1.00
DCR Sec
(Ω MAX)
0.70 & 0.70
0.70
0.70
0.80
1.30
1.50
0.90
0.90
1.20
0.80
1.00
2.00
1.00
1.00
Package/
Schematic
HC/2
HC/1
HC/3
HC/1
HC/3
HC/5
HC/3
HC/3
HC/4
HC/3
HC/3
HC/4
HC/4
HC/3
Primary
Pins
1-2
1-2
1-5
5-6
2-6
1-5
2-6
2-6
1-5
1-5
2-6
2-6
1-5
1-5
Standard Temperature Range Single Transformers - Operating Temperature 0½C to +70½C
Extended Temperature Range Single Transformer - Operating Temperature -40½C to +85½C
ages 7 and 8 for Table Notes.
Mechanical
HC
5
3
1
Schematic
.100
2,54
.500
MAX
12,70
6
.250 MAX
6,35
.350
MAX
8,89
.130
3,30
PE-6XXXXNL
4
Date Code
2
Notes:
Leads are 24 AWG solderable.
Unused pins not provided.
.200
5,08
Dimensions:
USA 858 674 8100
4
Germany 49 7032 7806 0
Inches
mm
.400
10,16
Unless otherwise specified, all tolerances are
±
Singapore 65 6287 8998
.010
0,25
Weight
.......................2 grams
Tube
...........................60/tube
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3
.010
4356768
0,25
T608.W(5/17)
pulseelectronics.com
T1/Cept/ISDN-PRI Transformers
Dual Through Hole, 1500 Vrms
RoHS-6 Compliant
Part Number
PE-64952NL
PE-65565NL
Turns Ratio
B
(Pri:Sec
±5%)
1:2CT & 1:1.36
1:1.15CT & 1:2CT
OCL @ 25½C
(mH MIN)
1.20 & 1.20
1.50 & 1.20
Electrical Specifications @ 25°C
C w/w
LL
DCR Pri
(pF MAX)
(μH MAX)
(Ω MAX)
35 & 35
35 & 40
0.50 & 0.80
0.60 & 0.50
0.80 & 0.80
0.70 & 0.70
DCR Sec
(Ω MAX)
1.20 & 1.00
1.10 & 1.30
Package/
Schematic
HD/2
TD/1
Primary
Pins
14-12, 5-7
14-12, 5-7
Standard Temperature Range Single Transformers - Operating Temperature 0½C to +70½C
.800
20,32 MAX
1.00
See Pages 7 and 8 for Table Notes.
TYP
2,54
TD DUAL
14 13 12 11 10 9 8
PE-XXXXXNL
.385
.800 CODE
9,80 MAX
DATE
MAX
20,32
1 2 3 4 5 6 7
14 13 12 11 10 9 8
PE-XXXXXNL
.385 MAX
9,80
DATE CODE
1 2 3 4 5 6 7
Mechanicals
.300
7,62
.130
.300 3,30
7,62
.130
3,30
1.00
TYP
2,54
.290 MAX
7,37
.290
7,37 MAX
Weight
.......................2.6 grams
Tube
..............................25/tube
HD DUAL
.800
20,32 MAX
Inches
mm
.010
Unless otherwise specified, all tolerances are
±
0,25
3,30
.290 MAX
7,37
Dimensions:
1.00 TYP
2,54
14 13 12 11 10 9 8
3,30
.290
MAX
PE-XXXXXNL
.300
.385
7,37
.800 CODE
7,62
9,80 MAX
DATE
20,32 MAX5 6 7
1 2 3 4
.130
14 13 12 11 10 9 8
PE-XXXXXNL
.300 3,30
.250
.385
MAX
MAX
7,62
6,35
9,80
DATE CODE
1 2 3 4 5 6 7
Inches
Dimensions:
Weight
.......................2.3 grams
.130
mm
.010
Tube
..............................25/tube
3,30
Unless otherwise specified, all tolerances are
±
.250
0,25
6,35 MAX
1.00 TYP
2,54
Schematics
1.00
MAX
25,40
PE-XXXXXNL
.385
MAX
DATE
9,80
1.00 CODE
MAX
1 25,40
8
16
9
Note:
Leads are 24 AWG solderable.
PE-XXXXXNL
.290
.385
MAX
7,37 MAX
DATE CODE
9,80
1
8
pulseelectronics.com
5
16
9
.300
7,62
.130
.300 3,30
7,62
.130
3,30
1.00
TYP
2,54
1.00
TYP
2,54
T608.W(5/17)
Note:
Leads are 24 AWG solderable.
.290
7,37 MAX
京公网安备 11010802033920号
EEWORLD
