SP1008R-272K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SP1008R-272K

SP1008R-272K: DescriptionFixed Inductors 2.7uH 0.47ohms 492mA 10%; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SP1008R-272K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SP1008R-272K	-	-	View	Buy Now

SP1008R-272K Overview

Fixed Inductors 2.7uH 0.47ohms 492mA 10%

SP1008R-272K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1008
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1008
structure	Rectangular
core material	FERRITE
DC Resistance	0.482 Ω
Nominal inductance(L)	2.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.41 mm
Package length	2.92 mm
Package form	SMT
Package width	2.66 mm
method of packing	TR, 13 Inch
Maximum rated current	0.485 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES

SP1008R

SP1008

TI )

RA A

T (m

EN UM

RR IM

CU AX

AN )

ST S

SI HM

RE M (O

DC MU

(µ

CE kHz

AN 0

CT 10

DU @

IN 0%

±1

-271K

-331K

-391K

-471K

-561K

-681K

-821K

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

-123K

-153K

-183K

-223K

-273K

-333K

-393K

-473K

-563K

-683K

-823K

-104K

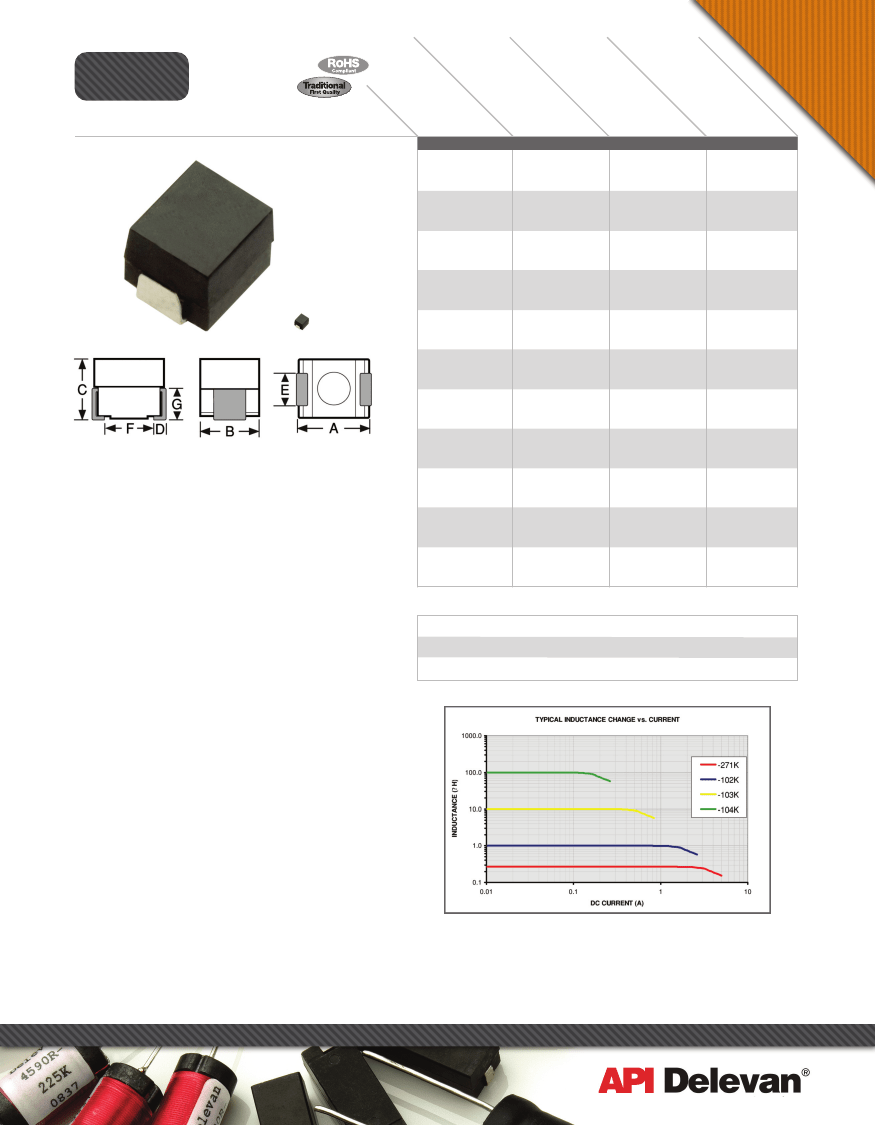

Shielded Surface Mount Power Inductors

Actual Size

Physical Parameters

Inches

Millimeters

0.095 to 0.115

2.41 to 2.92

0.085 to 0.105

2.16 to 2.66

0.0755 to 0.095

1.91 to 2.41

0.010 to 0.030

0.26 tp 0.76

0.040 to 0.060

1.02 to 1.52

0.060 (Ref. only)

1.52 (Ref. only)

0.045 (Ref. only)

1.14 (Ref. only)

Dimensions "A" and "C" are over terminals.

Operating Temperature Range

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Inductance

Measured at 1V with no DC current

Incremental Current

The current at which the inductance

will be decreased by a maximum of 5% from its initial 0

ADC value.

Marking

Delevan; dash number followed by SP;

date code (YYWWL). Note: An R before the date code

indicates a RoHS component.

Example: SP1008-104K

DELEVAN

104SP

0925A

Packaging

Tape & reel (8mm): 7" reel, 2000 pieces

max.; 13" reel, 7000 pieces max.

Coupling 5% Typical (Ref. M83446, 1mm spacing)

Made In the U.S.A.

SERIES SP1008 FERRITE CORE

0.270

0.099

0.330

0.108

0.390

0.118

0.470

0.128

0.560

0.147

0.680

0.157

0.820

0.167

1.00

0.228

1.20

0.252

1.50

0.288

1.80

0.392

2.20

0.437

2.70

0.482

3.30

0.527

3.90

0.739

4.70

0.817

5.60

0.895

6.80

1.43

8.20

1.54

10.0

1.70

12.0

1.87

15.0

2.10

18.0

2.88

22.0

4.02

27.0

4.50

33.0

4.90

39.0

5.30

47.0

5.90

56.0

6.40

68.0

9.00

82.0

9.90

100

10.9

1070

1030

980

941

878

850

824

705

671

627

538

509

485

465

392

372

356

282

271

258

246

232

198

168

159

152

146

139

133

112

107

102

Optional Tolerances: J = 5% H = 3% G = 2%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

3/2018

SP1008R-272K Related Products

	SP1008R-272K	SP1008R-823K	SP1008R-562K	SP1008R-332K	CC4-12701ACSTGHTS	SP1008R-473K	SP1008R-104K	SP1008R-103K	SP1008R-123K	SP1008R-822K
Description	Fixed Inductors 2.7uH 0.47ohms 492mA 10%	Fixed Inductors 82uH 9.4ohms 110mA 10%	Fixed Inductors 5.6uH 0.86ohms 362mA 10%	Fixed Inductors 3.3uH 0.5ohms 477mA 10%	Fixed Resistor, Thin Film, 0.175W, 12700ohm, 100V, 0.05% +/-Tol, -50,50ppm/Cel, 0510,	Fixed Inductors 47uH 5.5ohms 143mA 10%	Fixed Inductors 100uH 10.3ohms 105mA 10%	Fixed Inductors 10uH 1.6ohms 265mA 10%	Fixed Inductors 12uH 1.8ohms 253mA 10%	Fixed Inductors 8.2uH 1.5ohms 280mA 10%
Tolerance	10%	10 %	10%	10%	0.05%	10%	10 %	10%	10%	10%
Is it lead-free?	Lead free	-	Lead free	Lead free	-	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to
package instruction	1008	-	1008	1008	-	1008	-	1008	1008	1008
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
uppercase and lowercase codes	1008	-	1008	1008	-	1008	-	1008	1008	1008
structure	Rectangular	-	Rectangular	Rectangular	Rectangular	Rectangular	-	Rectangular	Rectangular	Rectangular
core material	FERRITE	-	FERRITE	FERRITE	-	FERRITE	-	FERRITE	FERRITE	FERRITE
DC Resistance	0.482 Ω	-	0.895 Ω	0.527 Ω	-	5.9 Ω	-	1.7 Ω	1.87 Ω	1.54 Ω
Nominal inductance(L)	2.7 µH	-	5.6 µH	3.3 µH	-	47 µH	-	10 µH	12 µH	8.2 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1	-	e1	e1	-	e1	-	e1	e1	e1
Number of functions	1	-	1	1	-	1	-	1	1	1
Number of terminals	2	-	2	2	2	2	-	2	2	2
Maximum operating temperature	125 °C	-	125 °C	125 °C	150 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Package height	2.41 mm	-	2.41 mm	2.41 mm	0.254 mm	2.41 mm	-	2.41 mm	2.41 mm	2.41 mm
Package length	2.92 mm	-	2.92 mm	2.92 mm	1.27 mm	2.92 mm	-	2.92 mm	2.92 mm	2.92 mm
Package form	SMT	-	SMT	SMT	SMT	SMT	-	SMT	SMT	SMT
Package width	2.66 mm	-	2.66 mm	2.66 mm	2.54 mm	2.66 mm	-	2.66 mm	2.66 mm	2.66 mm
method of packing	TR, 13 Inch	-	TR, 13 Inch	TR, 13 Inch	TR	TR, 13 Inch	-	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Maximum rated current	0.485 A	-	0.356 A	0.465 A	-	0.139 A	-	0.258 A	0.246 A	0.271 A
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	-	YES	-	YES	YES	YES
surface mount	YES	-	YES	YES	YES	YES	-	YES	YES	YES
Terminal surface	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	-	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	-	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	-	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	J BEND	-	J BEND	J BEND	ONE SURFACE	J BEND	-	J BEND	J BEND	J BEND
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	-	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz
Base Number Matches	1	-	1	1	-	1	-	1	1	1
