ECS-143-20-7S-TR datasheet, PDF

Datasheet> All Categories > Passive components> ECS-143-20-7S-TR

ECS-143-20-7S-TR: DescriptionCrystals CRYSTAL 14.31818MHz; CategoryPassive components; File Size211KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

ECS-143-20-7S-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ECS-143-20-7S-TR	-	-	View	Buy Now

ECS-143-20-7S-TR Overview

Crystals CRYSTAL 14.31818MHz

ECS-143-20-7S-TR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ECS
Product Category	Crystals
RoHS	No -; RoHS Version Available
Termination Style	SMD/SMT
Load Capacitance	20 pF
Frequency	14.31818 MHz
Tolerance	30 PPM
Frequency Stability	50 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Length	12.5 mm
Width	4.6 mm
Height	3.7 mm
Packaging	Cut Tape
Packaging	Reel
Product	Crystals
Type	SMD Quartz Crystal
ESR	40 Ohms
Mounting Style	SMD/SMT
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

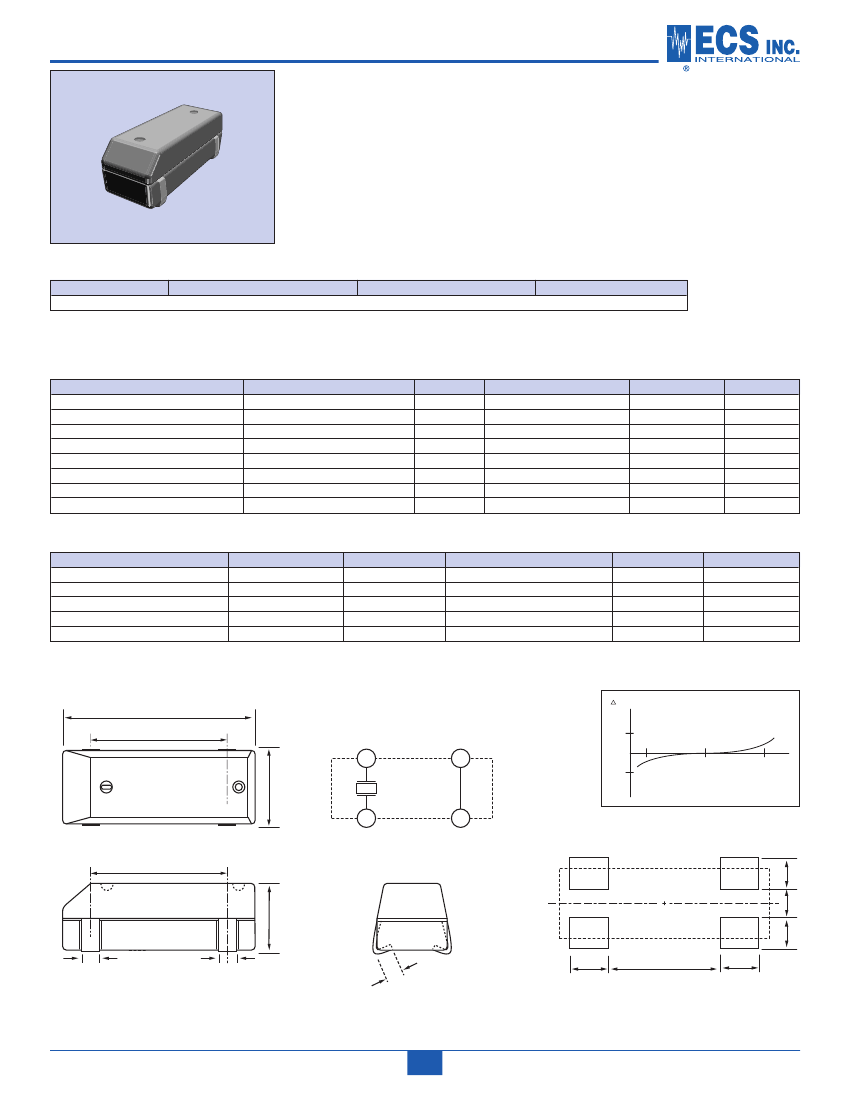

ECX-3S

SMD QUARTZ CRYSTAL

This wide frequency range SMD quartz

crystal is an excellent choice for surface

mount applications. The ruggedized

molded package is made from the same

thermoplastic that is industry standard

for integrated circuits.

FEATURES

• Low profile

• Industry standard footprint

• High temperature seal capabilities

• Excellent shock resistance

• Excellent environmental characteristics

• Tape and Reel (1000 pcs)

PART NUMBERING GUIDE

“EXAMPLE”

ECS

–

FREQUENCY (16.0000 MHz)

160

–

LOAD CAPACITANCE*

–

PACKAGE TYPE

* Load capacitance (xx=xx pF, S= series resonance)

Note: See Product Selection Guide for additional options.

OPERATING CONDITIONS/ELECTRICAL CHARACTERISTICS

PARAMETERS

FREQUENCY RANGE

SHUNT CAPACITANCE

LOAD CAPACITANCE

DRIVE LEVEL

CALIBRATION TOLERANCE

FREQUENCY STABILITY

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

CONDITIONS

(Customer Specified)

3.50 ~ 70.00MHz

@ 25˚C

∆f/f

OPR

STG

MINIMUM

3.57

-30

-50

-10

-40

TYPICAL

MAXIMUM

70.00

7.0

Series

100

+30

+50

+70

+85

UNITS

MHz

µW

PPM

˚C

20.0 standard

EQUIVALENT SERIES RESISTANCE / MODE OF OSCILLATION

FREQUENCY RANGE (MHz)

3.570 ~ 3.999

4.000 ~ 4.999

5.000 ~ 5.999

6.000 ~ 6.999

7.000 ~ 8.999

MODE

Fundamental

MAX ESR

Ω

250

150

120

100

FREQUENCY RANGE (MHz)

9.000 ~ 12.999

13.000 ~ 19.999

20.000 ~ 30.000

30.000 ~ 70.000

MODE

Fundamental

3rd O/T

MAX ESR

Ω

100

PACKAGE DIMENSIONS (mm)

12.5 Max.

9.4

- 30

PPM

f/f

+ 30

- 10

TEMP.(˚C)

4.6 Max.

Figure 3) Frequency vs Temperature Curve

9.4

Figure 2) Internal Connections - Top view

1.8

3.7 Max.

0.8

1.8

7.6

1.8

Figure 1) ECX-3S - Top, Side and End views

(1.0

)

Figure 4) ECX-3S Land Pattern - Bottom view

ECS, INC. INTERNATIONAL

1105 S. RIDGEVIEW, OLATHE, KS 66062 • 913-782-7787 • 800-237-1041 • FAX 913-782-6991 • WWW.ECSXTAL.COM

SMD CRYSTALS

1.8

1.7
