ZFAS-2000 datasheet, PDF - EEWORLD Datasheet

ZFAS-2000: DescriptionElectronic Attenuators/Switches; CategoryWireless rf/communication Radio frequency and microwave; File Size100KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

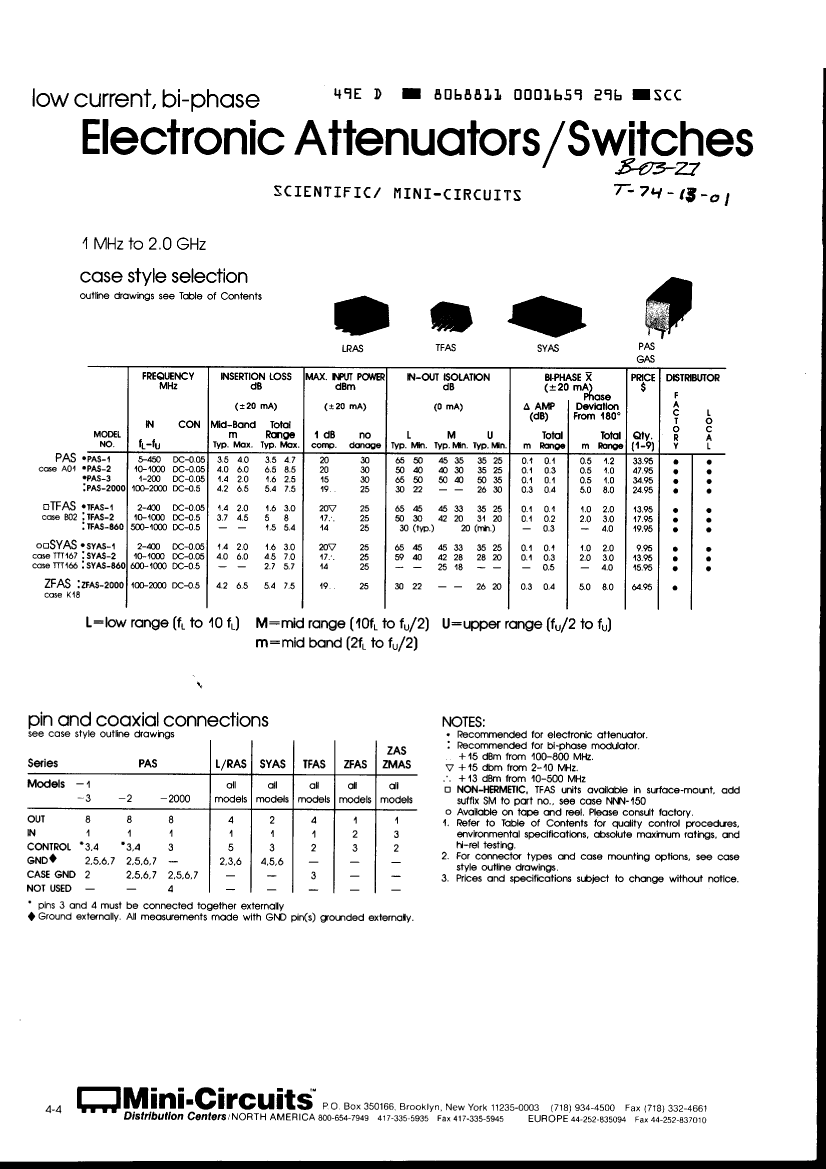

ZFAS-2000 Overview

Electronic Attenuators/Switches

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknow
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	25.05 dBm
Maximum insertion loss	7.5 dB
JESD-609 code	e0
Maximum operating frequency	2000 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPST
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	4.7

	ZFAS-2000	SYAS-2	SYAS-860	SYAS-1	TFAS-860
Description	Electronic Attenuators/Switches	Electronic Attenuators/Switches	Electronic Attenuators/Switches	Electronic Attenuators/Switches	Electronic Attenuators/Switches
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknow	_compli	unknow	unknow	unknow
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT	MODULE
JESD-609 code	e0	e0	e0	e0	e0
RF/Microwave Device Types	SPST	SPST	SPST	SPST	SPST
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-
Maximum input power (CW)	25.05 dBm	25 dBm	25 dBm	25 dBm	-
Maximum insertion loss	7.5 dB	7 dB	5.7 dB	3 dB	-
Maximum operating frequency	2000 MHz	1000 MHz	1000 MHz	400 MHz	-
Minimum operating frequency	100 MHz	10 MHz	600 MHz	2 MHz	-
Maximum operating temperature	100 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C	-
Maximum voltage standing wave ratio	4.7	4.2	4.3	7.7	-
package instruction	-	CASE TTT167, 6 PIN	LCC6/8,.37X.5,175	LCC6/8,.37X.5,175	-
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Number of terminals	-	6	6	6	-
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Encapsulate equivalent code	-	LCC6/8,.37X.5,175	LCC6/8,.37X.5,175	LCC6/8,.37X.5,175	-
surface mount	-	YES	YES	YES	-
