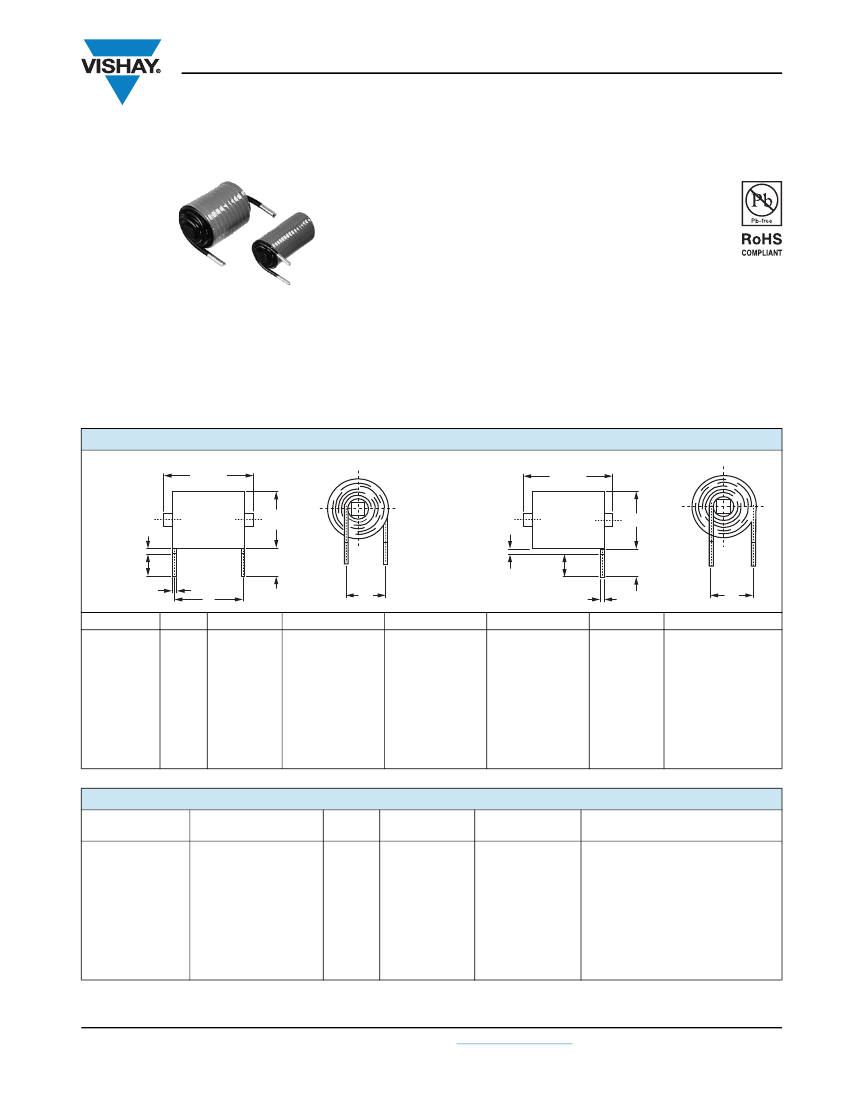

IHV
Vishay Dale
Filter Inductors, High Current, Radial Leaded
FEATURES
• Printed circuit mounting
• Pre-tinned leads
• Protected by polyolefin tubing - flame retardant
UL type VW-1 per MIL-I-23053/5, class 3
requirements
ELECTRICAL SPECIFICATIONS
Inductance:
Measured at 1.0 V with no DC current
Incremental Current:
2500 V
RMS
between winding and
outer circumference to within 0.250" [6.35 mm] of the
insulation sleeve edge
Operating Temperature:
- 55 °C to + 125 °C (no load),
- 55 °C to + 75 °C (at full rated current)
• Compliant to RoHS Directive 2002/95/EC
MECHANICAL SPECIFICATIONS
Terminals:
Extensions of the winding, solder coated
Core Material:
Iron laminations
Encapsulant:
Polyolefin tubing
DIMENSIONS
in inches [millimeters]
Style 1
A Max.
Style 2
A Max.
B
0.125 [3.18]
Max.
Tinned
E Dia.
0.750 [19.0]
0.500 [12.70]
D
C
0.125 [3.18]
Max.
Tinned
B
0.750 [19.0]
0.500 [12.70]
C
E Dia.
MODEL
IHV-15-500
IHV-20-200
IHV-28-60
IHV-30-150
IHV-40-39
IHV-45-92
IHV-50-50
IHV-60-24
STYLE
1
2
2
2
2
2
1
2
A (MAX.)
2.45 [62.23]
2.45 [62.23]
2.45 [62.23]
2.45 [62.23]
2.45 [62.23]
2.55 [64.77]
2.55 [64.77]
2.45 [62.23]
B ± 0.050 [± 1.27]
1.45 [36.83]
1.45 [36.83]
1.02 [25.91]
1.65 [41.91]
1.15 [29.21]
1.92 [48.77]
1.57 [39.88]
1.27 [32.26]
C ± 0.062 [± 1.57]
0.980 [24.89]
0.980 [24.89]
0.770 [19.56]
1.080 [27.43]
0.820 [20.83]
1.210 [30.73]
1.050 [26.67]
0.890 [22.61]
D ± 0.062 [± 1.57]
1.95 [49.53]
-
-
-
-
-
2.10 [53.34]
-
E (DIA.)
0.082 [2.08]
0.102 [2.59]
0.102 [2.59]
0.129 [3.28]
0.129 [3.28]
0.162 [4.11]
0.162 [4.11]
0.162 [4.11]
TYPICAL WEIGHT (g)
305
310
160
470
210
650
420
270
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
IHV-15-500
IHV-20-200
IHV-28-60
IHV-30-150
IHV-40-39
IHV-45-92
IHV-50-50
IHV-60-24
IND. AT 1 kHz
(μH)
(1)
500
200
60
150
39
92
50
24
TOL.
(%)
± 10
± 10
± 10
± 10
± 10
± 10
± 10
± 10
SRF MIN.
(MHz)
0.8
1.2
1.9
2.1
2.5
2.9
3.1
5.7
DCR MAX.
()
0.0500
0.0210
0.0085
0.0130
0.0048
0.0075
0.0045
0.0025
RATED DC CURRENT
(mA)
15 000
20 000
28 000
30 000
40 000
45 000
50 000
60 000
Note
(1)
Will not change more than ± 10 % at rated current
Document Number: 34022
Revision: 04-Feb-11
