TG07-0206NSRL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> TG07-0206NSRL

TG07-0206NSRL: DescriptionAudio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:2 Gullwing; CategoryPassive components; File Size623KB，2 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

TG07-0206NSRL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TG07-0206NSRL	-	-	View	Buy Now

TG07-0206NSRL Overview

Audio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:2 Gullwing

TG07-0206NSRL Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	HALO Electronics
Product Category	Audio Transformers / Signal Transformers
RoHS	Details
Termination Style	SMD/SMT
Frequency Range	-
Inductance	19 uH
Primary Impedance	-
Secondary Impedance	-
Isolation Voltage	1.5 kV
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Number of Channels	Single
Product	WAN
Type	Module
Application	T3/DS3/E3/STS-1 Interface
Package / Case	SMD-6
Length	8.13 mm
Width	7.11 mm
Height	5.08 mm
Packaging	Tube
Current Rating	-
Maximum DC Current	-
Maximum DC Resistance	-
Power Rating	-
Primary Resistance	-
Secondary Resistance	-
Shielding	Shielded
Factory Pack Quantity	62

Preview

Download Datasheet

View All

T3/DS3/E3/STS-1 Isolation Modules

SMD Single Line

Conflict

FREE

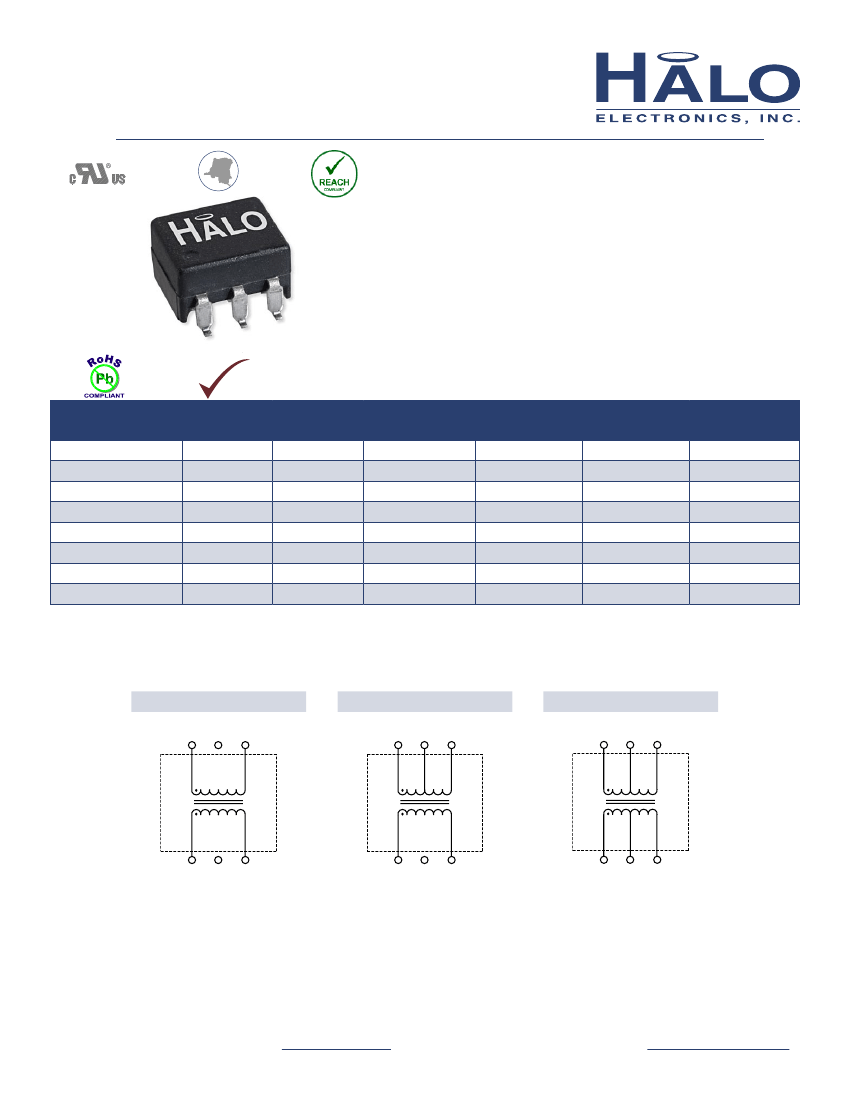

Product Features:

This standard series of Isolation Modules to meet

the return loss requirements of G.703 for T3, DS3,

E3 and STS-1 applications.

UL/EN60950 recognized.

Non-standard devices are also available. Please

contact your local HALO Representative.

Isolation: 1,500 Vrms

RoHS

Compliant

Part Number

TG01-0406NSLF

TG04-0406NSLF

TG07-0206NSLF

TG23-0206NSLF

TG01-0456NSLF

TG04-0456NSLF

TG07-0356NSLF

TG23-0356NSLF

Schematic

PRI Pins

1-3

Turns Ratio ±2%

PRI : SEC

1:1

1CT:1CT

1:2CT

1:2.42CT

1:1

1CT:1CT

1:2CT

1:2.42CT

PRI OCL

(µH Min.)

(µH Max.)

0.12

0.06

0.08

0.12

Temp.

Range

0 to +70°C

-40 to +85°C

Note: LF suffix is RoHS and PB-Free Compliant. RL suffix parts are RoHS compliant (exception 7a, expected to expire

July 2016)

Schematic A

Schematic B

Schematic C

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com

TG07-0206NSRL Related Products

	TG07-0206NSRL	TG01-0406NSRL	TG23-0356NSRL	TG23-0356NSRLTR	TG23-0206NSRL	TG04-0406NSRL	TG07-0356NSRL	TG01-0456NSRL
Description	Audio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:2 Gullwing	Audio Transformers / Signal Transformers T3/E3/DS3/STS-1 6P ISO MOD SMD Single	Audio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:2 Gullwing	Audio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:2 Gullwing	Audio Transformers / Signal Transformers T3/E3/DS3/STS-1 6P ISO MOD SMD Single	Audio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:1 Gullwing	Audio Transformers / Signal Transformers T3/DS3/E3/STS-1 SMD 1-Port 1:2 Gullwing	Audio Transformers / Signal Transformers T3/E3/DS3/STS-1 SMD ISO MOD GWing Single
Product Attribute	Attribute Value	-	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	HALO Electronics	-	-	HALO Electronics	HALO Electronics	HALO Electronics	HALO Electronics	HALO Electronics
Product Category	Audio Transformers / Signal Transformers	-	-	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers
RoHS	Details	-	-	Details	Details	Details	Details	Details
Termination Style	SMD/SMT	-	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Inductance	19 uH	-	-	35 uH	19 uH	40 uH	35 uH	45 uH
Isolation Voltage	1.5 kV	-	-	1.5 kV	1.5 kV	1.5 kV	1.5 kV	1.5 kV
Minimum Operating Temperature	0 C	-	-	- 40 C	0 C	0 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 70 C	-	-	+ 85 C	+ 70 C	+ 70 C	+ 85 C	+ 85 C
Number of Channels	Single	-	-	Single	Single	Single	Single	Single
Product	WAN	-	-	WAN	WAN	WAN	WAN	WAN
Type	Module	-	-	Module	Module	Module	Module	Module
Application	T3/DS3/E3/STS-1 Interface	-	-	T3/DS3/E3/STS-1 Interface	T3/DS3/E3/STS-1 Interface	T3/DS3/E3/STS-1 Interface	T3/DS3/E3/STS-1 Interface	T3/DS3/E3/STS-1 Interface
Package / Case	SMD-6	-	-	SMD-6	SMD-6	SMD-6	SMD-6	SMD-6
Length	8.13 mm	-	-	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm
Width	7.11 mm	-	-	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm
Height	5.08 mm	-	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Packaging	Tube	-	-	Reel	Tube	Tube	Tube	Tube
Shielding	Shielded	-	-	Shielded	Shielded	Shielded	Shielded	Shielded
Factory Pack Quantity	62	-	-	1000	62	62	62	62
