DFE252008C-4R7M=P2

Description
Fixed Inductors 4.7uH 438mOhms1.1A +/-20% 2.5x2.0x0.8mm
CategoryPassive components
File Size3MB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

DFE252008C-4R7M=P2 Online Shopping

Suppliers Part Number Price MOQ In stock
DFE252008C-4R7M=P2 - - View Buy Now

DFE252008C-4R7M=P2 Overview

Fixed Inductors 4.7uH 438mOhms1.1A +/-20% 2.5x2.0x0.8mm

DFE252008C-4R7M=P2 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMurata
Product CategoryFixed Inductors
RoHSDetails
Termination StyleSMD/SMT
ShieldingShielded
Inductance4.7 uH
Tolerance20 %
Maximum DC Current1.1 A
Maximum DC Resistance438 mOhms
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Test Frequency1 MHz
Termination-
Mounting StylePCB Mount
Package / Case2520
Length2.5 mm
Width2 mm
Height0.8 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
Core MaterialIron Powder
ProductFixed Inductors
Factory Pack Quantity3000
Unit Weight0.000635 oz

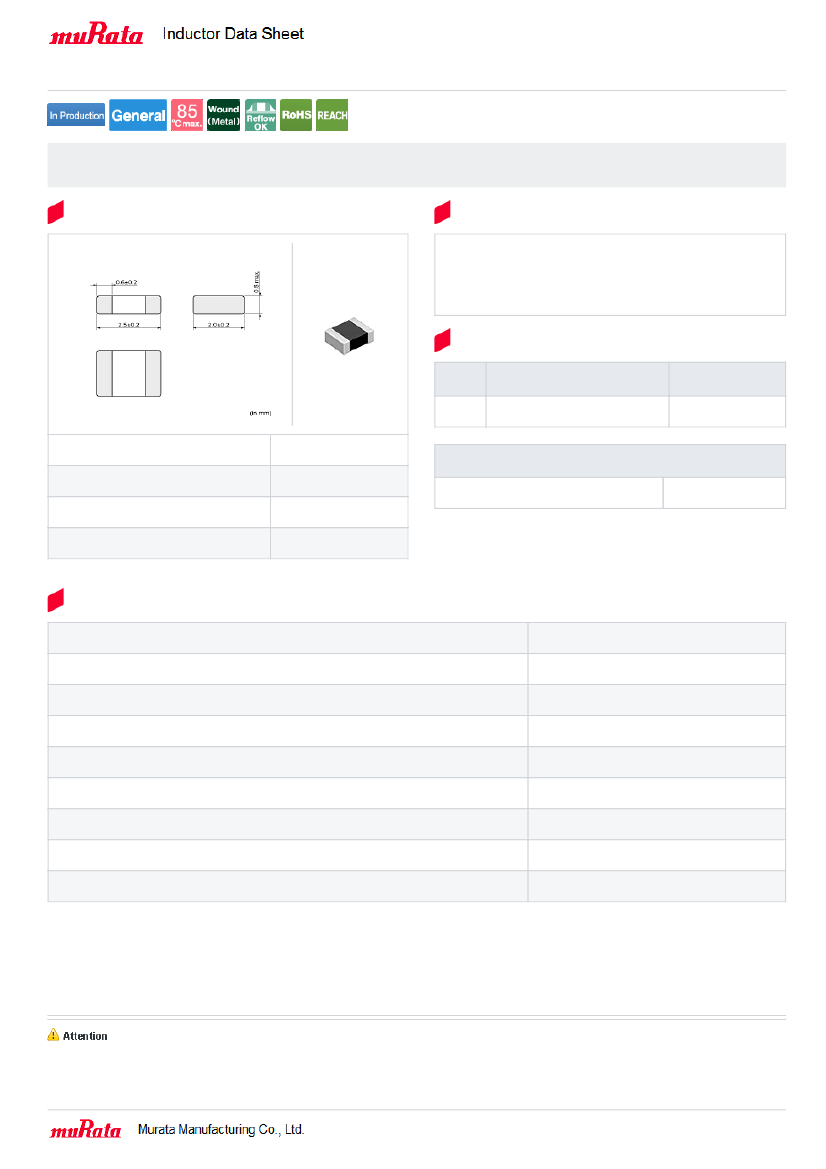

DFE252008C-4R7M#
< List of part numbers with package codes >
“#” indicates a package specification code.
DFE252008C-4R7M=P2
Shape
Notes
Rated current (Isat) is specified when the decrease of the initial
inductance value at 30%. (The ambient reference temperature is 20℃.)
Rated current (Itemp) is specified when temperature of inductor the is
raised 40℃ by DC current. (The ambient reference temperature is 20℃.)
References
Packaging
code
=P2
Specifications
φ180mm
Embossed taping
Minimum quantity
3000
L size
W size
T size
Size code in inch (mm)
2.5 ±0.2mm
2.0 ±0.2mm
0.8 mm
1008 (2520)
Mass (Typ.)
1 piece
0.0184g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Operating temperature range (Self-temperature rise is included)
Class of magnetic shield
Absolute maximum voltage
Series
4.7µH ±20%
1MHz
1100mA
650mA
0.438Ω
-40〜85℃
Metal Alloy
20V DC
DFE252008C
1 of 2

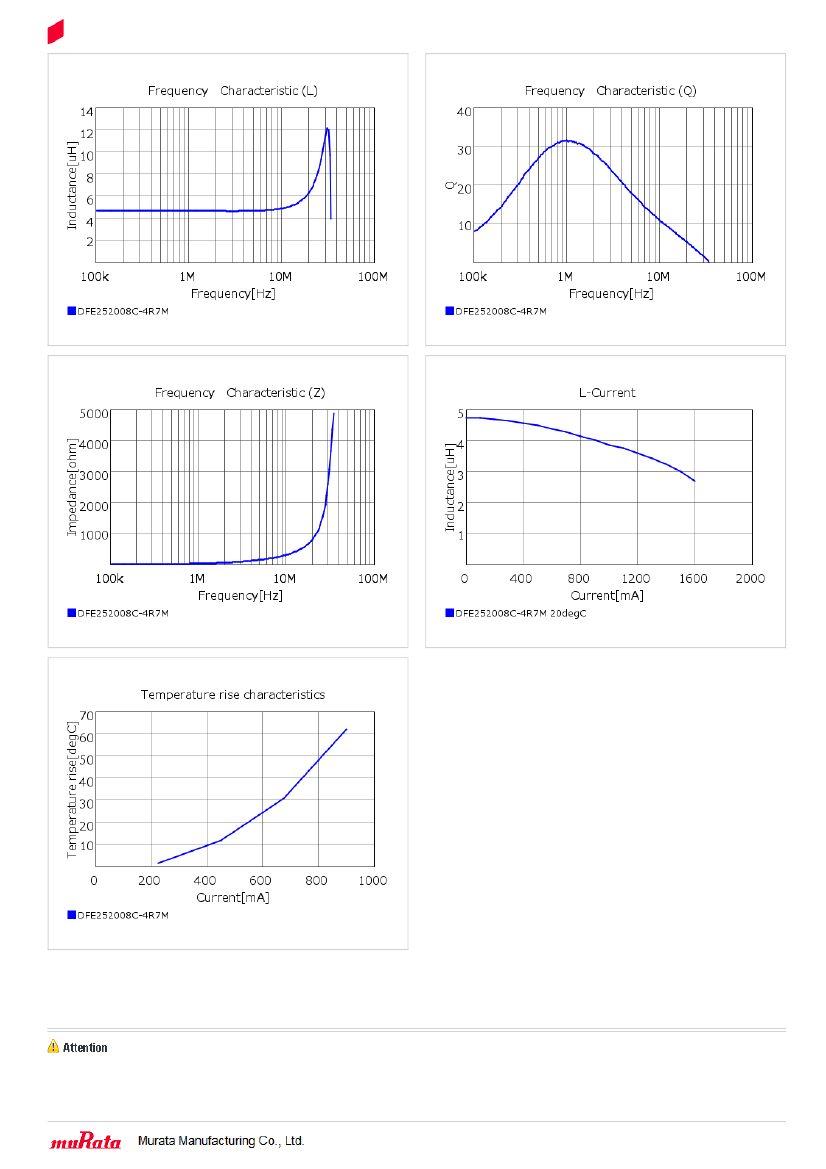

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/05/20
