S-13L41AF datasheet, PDF - EEWORLD Datasheet

S-13L41AF: DescriptionMicrocontroller, 4-Bit, MROM, 0.5MHz, CMOS, PDSO20, 1.27 MM PITCH, SOP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size378KB，7 Pages; ManufacturerABLIC

Download Datasheet Parametric View All

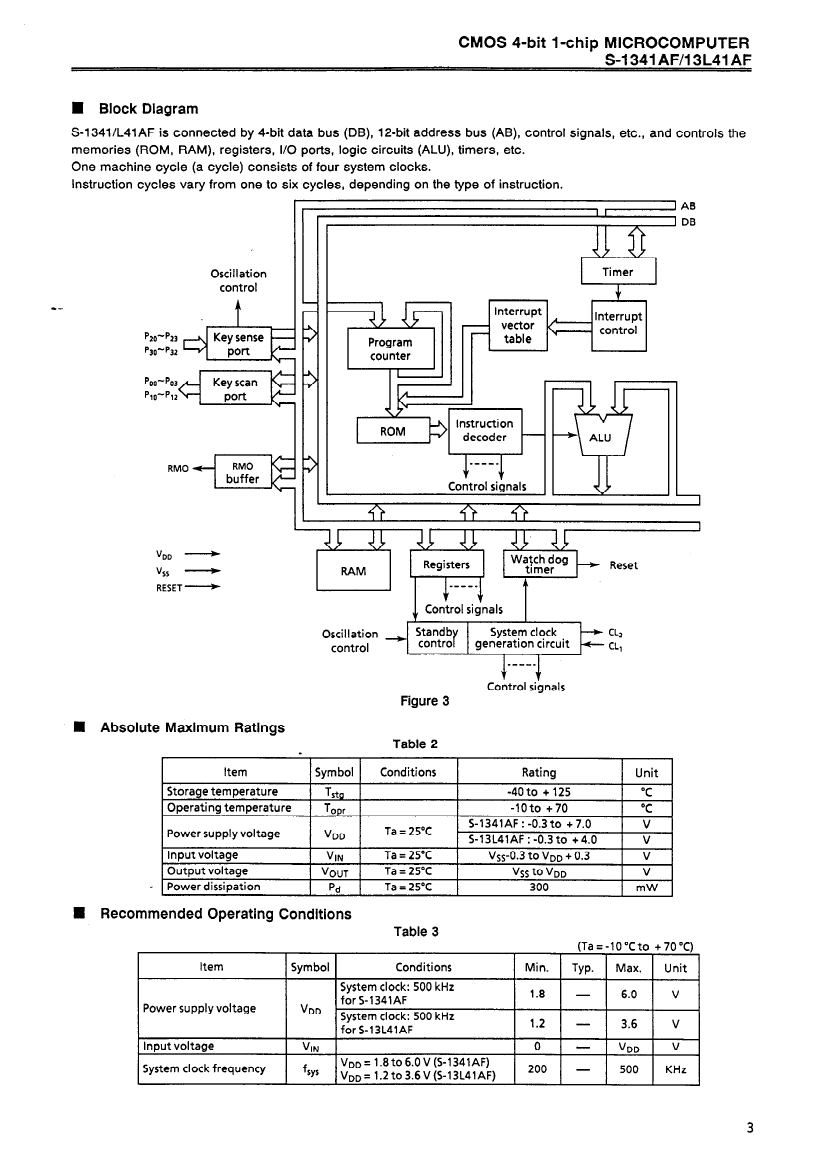

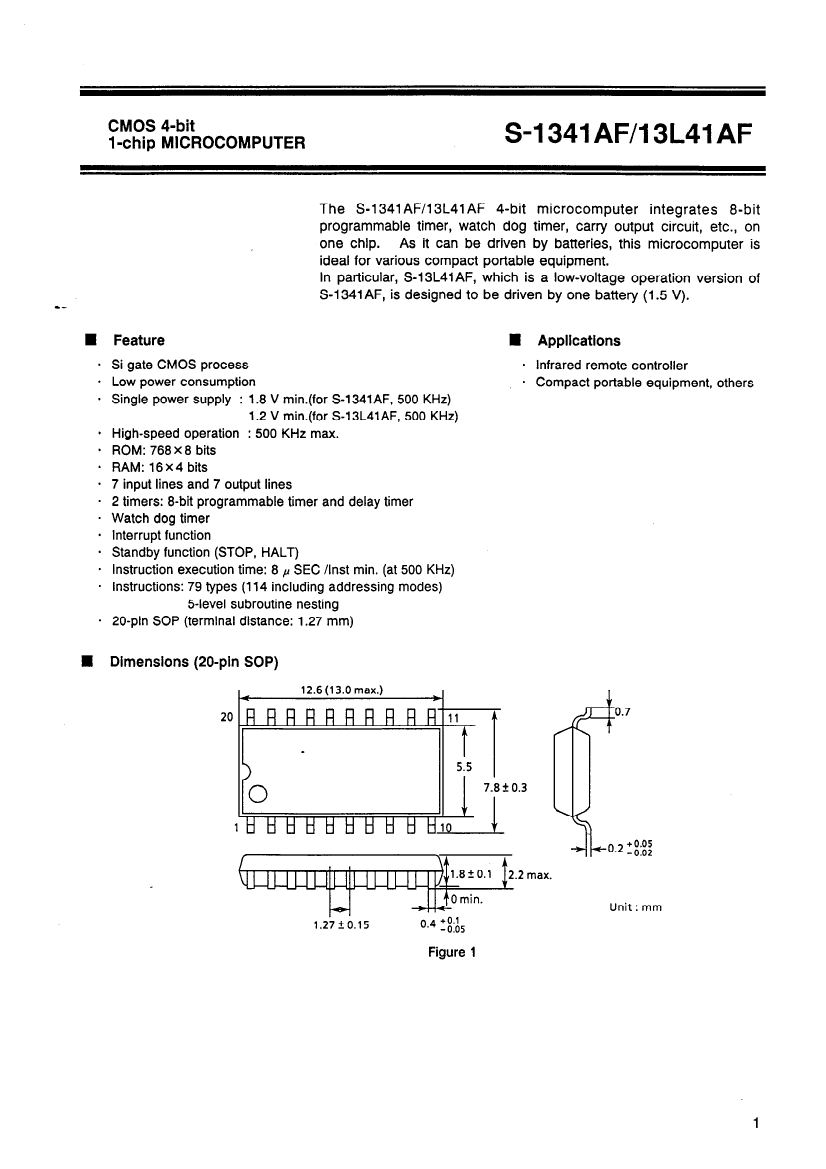

S-13L41AF Overview

Microcontroller, 4-Bit, MROM, 0.5MHz, CMOS, PDSO20, 1.27 MM PITCH, SOP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP20,.3

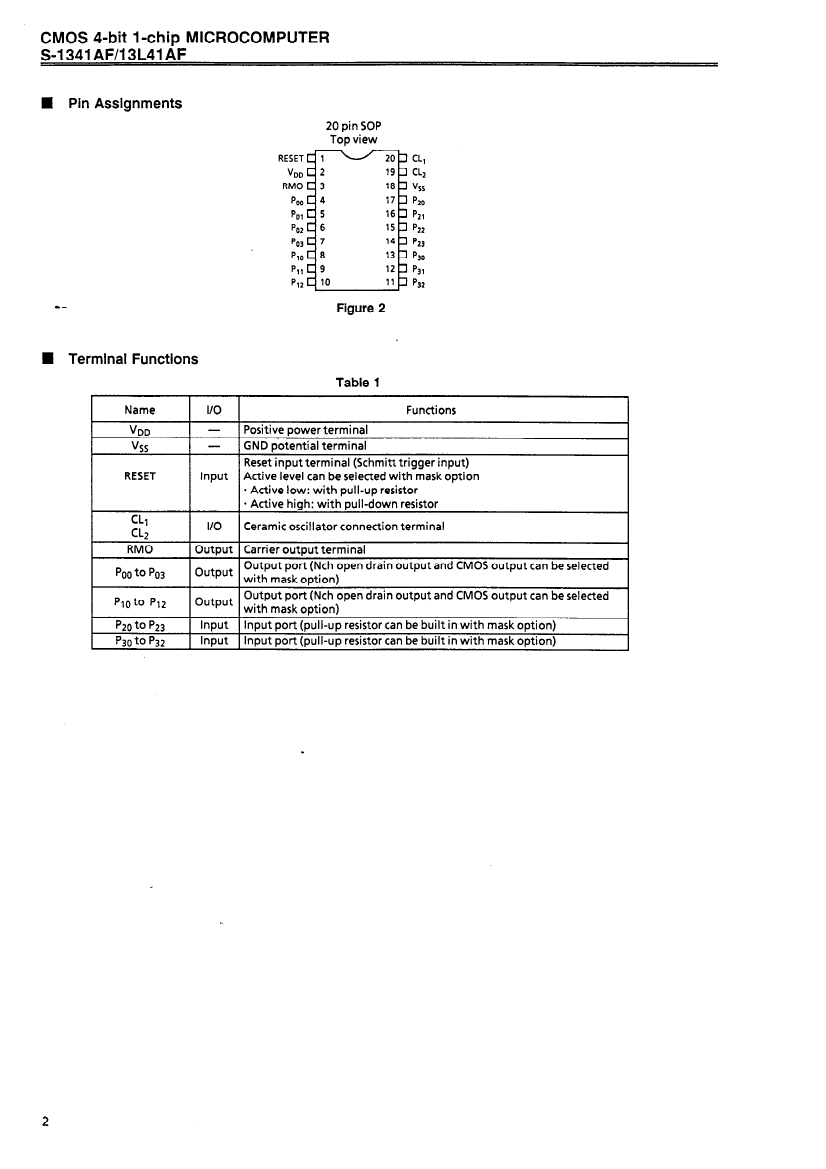

Contacts	20
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	0.5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.6 mm
Number of I/O lines	14
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

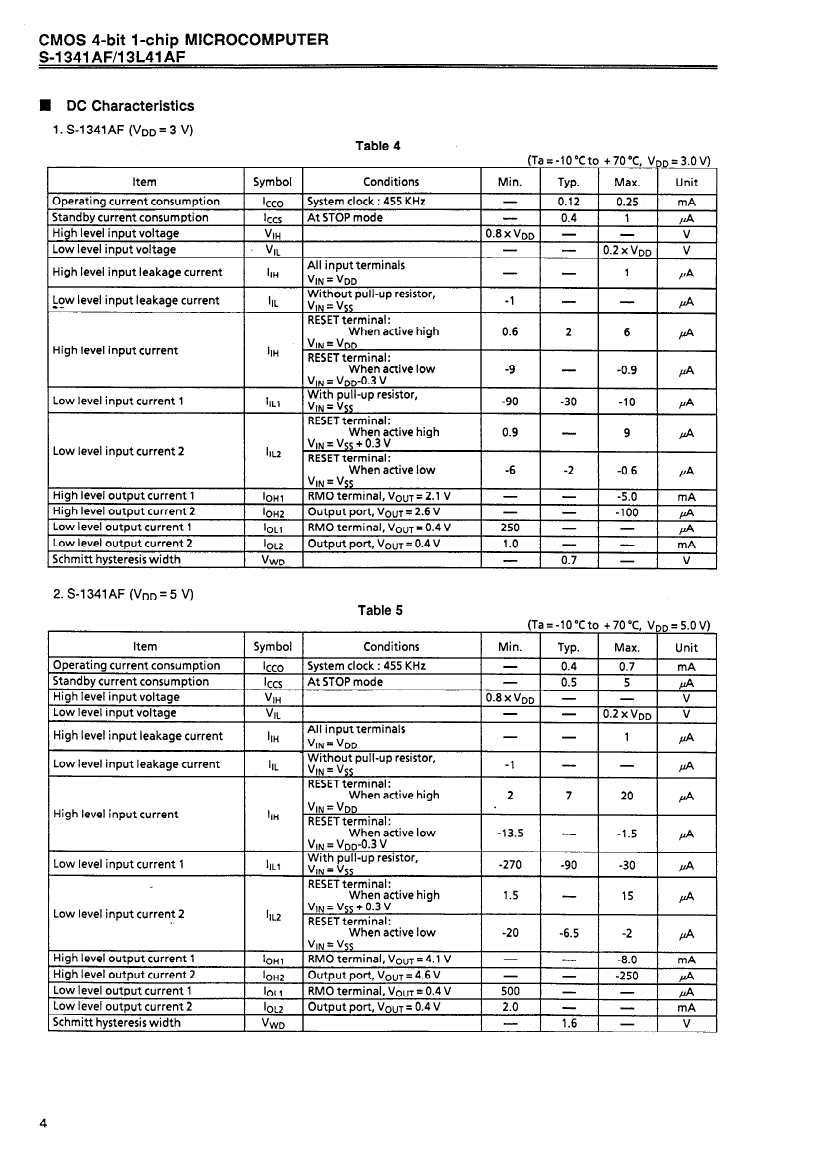

power supply	1.5/3 V
Certification status	Not Qualified
RAM (bytes)	8
rom(word)	768
ROM programmability	MROM
Maximum seat height	2.2 mm
speed	0.5 MHz
Maximum slew rate	0.4 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	1.2 V
Nominal supply voltage	1.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
