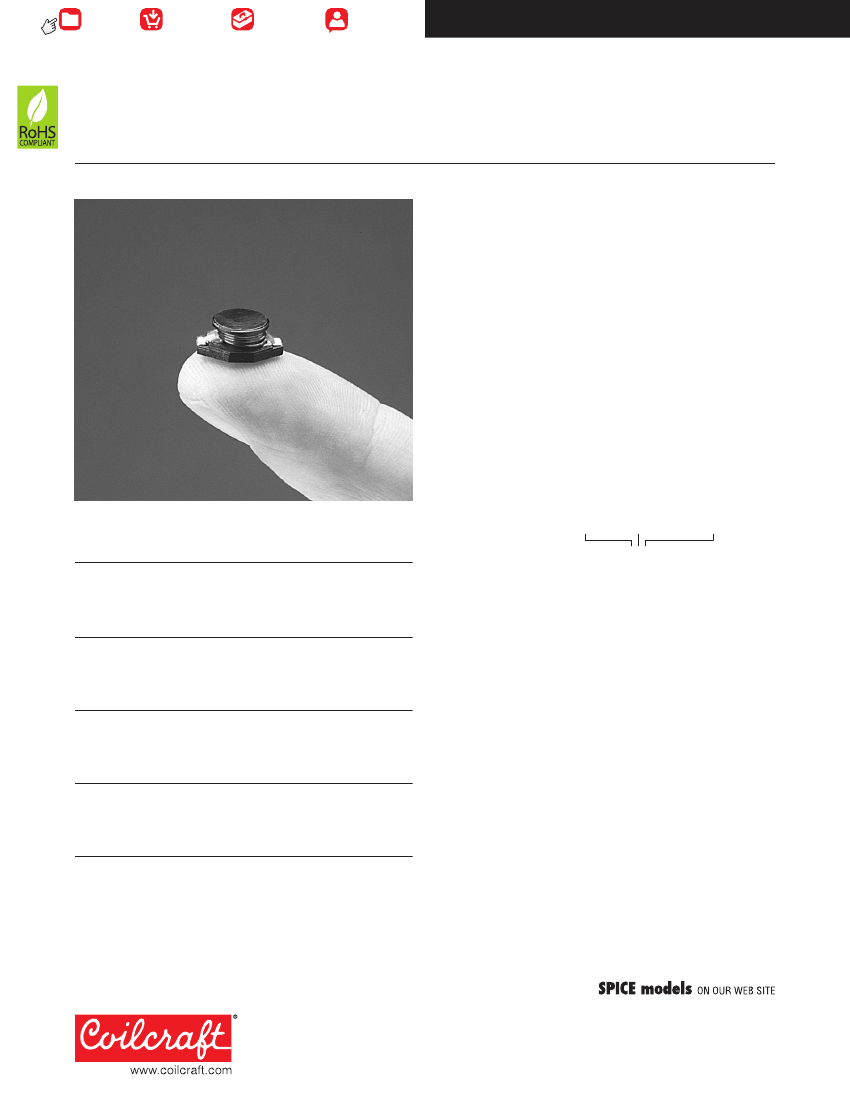

Document 179-1
SMT Power Inductors–DO3316P Series
• High energy storage and very low resistance
• High inductance values are perfect for EL driver applications.
Designer’s Kit C378
contains 3 of each 20% part
Core material
Ferrite
Terminations
RoHS compliant electroplated gold (<50 µin) over nickel
over phos bronze. Other terminations available at additional cost.
Weight
0.92 – 1.23 g
Ambient temperature
–40°C to +85°C with
Irms
current
Maximum part temperature
+125°C (ambient + temp rise)
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000 per 13″ reel Plastic tape: 24 mm wide,
0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part
number
1
DCR
SRF
L
2
Percent max
typ
4
Isat
5
Irms
6
3
(Ohms) (MHz) (A)
(µH)
tol
(A)
20
20
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
20,10
0.009
0.010
0.012
0.015
0.018
0.027
0.038
0.046
0.085
0.10
0.14
0.20
0.28
0.40
0.61
1.02
1.27
2.02
3.00
4.49
8.97
100
90
80
65
45
38
30
27
19
15
12
10
9
6
5
4.5
3.5
2.5
2.0
1.7
1.1
9.0
8.0
7.0
6.4
5.4
4.6
3.8
3.0
2.3
2.0
1.6
1.4
1.2
1.0
0.80
0.60
0.50
0.40
0.30
0.29
0.19
6.8
6.4
6.1
5.4
4.8
4.4
3.9
3.1
2.7
2.1
1.8
1.5
1.3
1.0
0.80
0.60
0.50
0.40
0.30
0.27
0.17
1. When ordering, specify
tolerance, termination
and
packaging
codes:
DO3316P-105MLD
DO3316P-102ML_ 1.0
DO3316P-152ML_ 1.5
DO3316P-222_L_
2.2
DO3316P-332_L_
3.3
DO3316P-472_L_
4.7
DO3316P-682_L_
6.8
DO3316P-103_L_ 10
DO3316P-153_L_ 15
DO3316P-223_L_ 22
DO3316P-333_L_ 33
DO3316P-473_L_ 47
DO3316P-683_L_ 68
DO3316P-104_L_ 100
DO3316P-154_L_ 150
DO3316P-224_L_ 220
DO3316P-334_L_ 330
DO3316P-474_L_ 470
DO3316P-684_L_ 680
DO3316P-105_L_ 1000
DO3316P-155_L_ 1500
DO3316P-335_L_ 3300
Tolerance:
M
= 20%,
K
= 10% (Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant gold over nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR
meter or equivalent.
3. Tolerances in bold are stocked for immediate shipment.
4. SRF >13 MHz measured using Agilent/HP 8753D network analyzer;
<13 MHz using Agilent/HP 4192A.
5. DC current at 25°C that causes an inductance drop of 30% (typ) from
its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient.
This information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 179-1
Revised 09/25/12
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 179-2

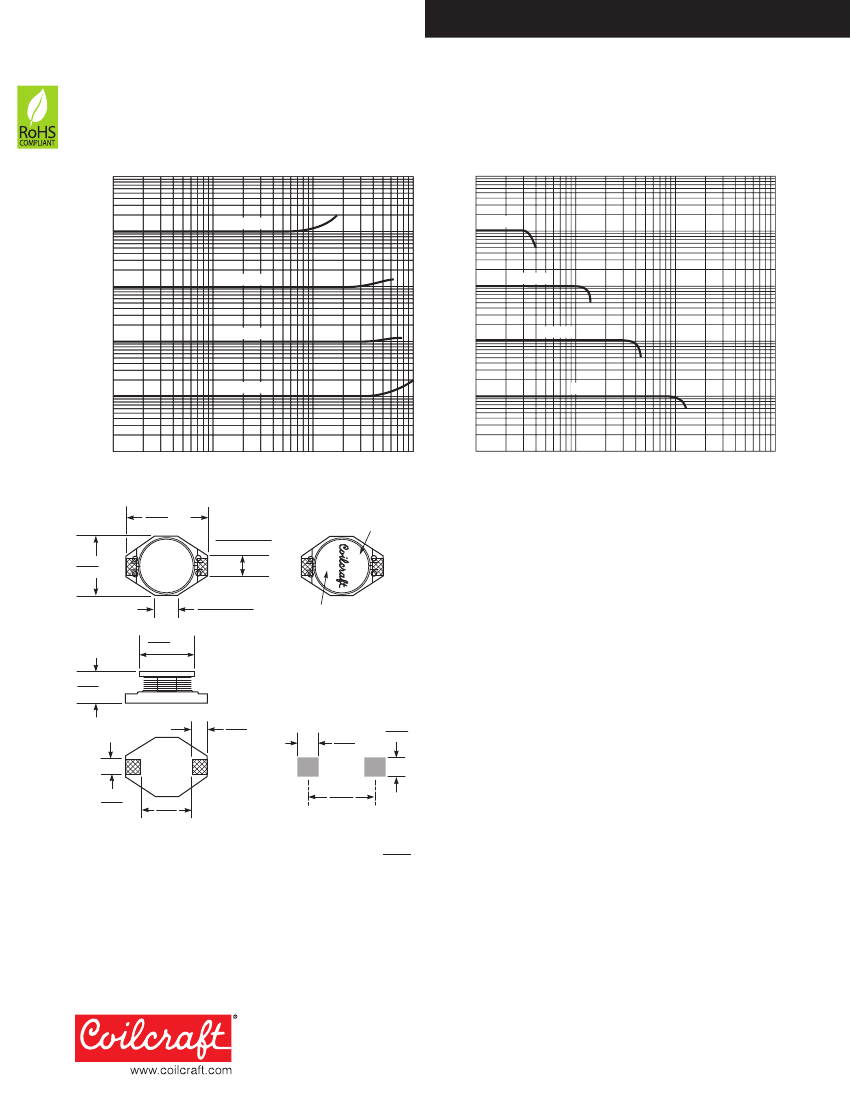

SMT Power Inductors – DO3316P Series
Typical L vs Frequency
10000
10000
Typical L vs Current
1000
1000 µH
1000
1000 µH
Inductance (µH)
Inductance (µH)
100
100 µH
100
100 µH
10
10 µH
10
10 µH
1
1 µH
1
1 µH
0.1
0.01
0.1
0.1
Frequency (MHz)
1
10
0.1
1
Current (A)
10
100
0.510
max
*
12,95
0.125 ±0.010
3,18 ±0,254
Dash number
XXX
0.370max
9,40
0.145 ±0.010
3,69 ±0,254
0.330
8,38 dia
0.205 max
*
5,21
0.100
2,54
Start
Finish
Internal code
Recommended
Land Pattern
0.115
2,92
0.110
2,79
X
0.100
2,54
0.300
7,62
0.405
10,29
Allow an additional 0.01/0,254
*
in length and 0.005/0,127 in
height for optional tin-lead and
tin-silver-copper application.
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 179-2
Revised 09/25/12
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
