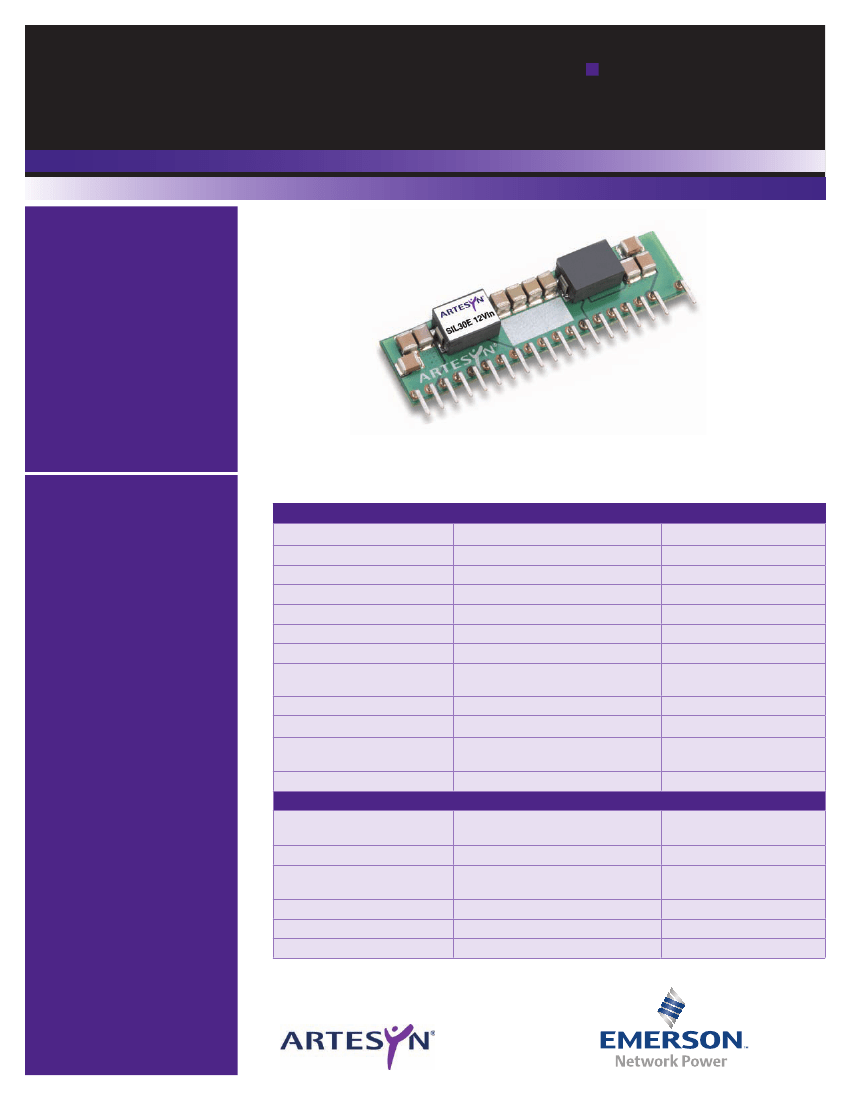

SIL30E Series
12 Vin
Single Output
Total Power:
99 W
Input Voltage:
8 - 14 VDC
# of Outputs:
Single
Rev.7.28.09_40
SIL30E Series
1 of 5
Special Features
• 30 A current rating
• Input voltage range: 8 Vdc to
14 Vdc
• Output voltage range: 0.8 Vdc
to 3.63 Vdc
• Ultra high efficiency: 93% @
12 Vin and 3.3 Vout
• Extremely low internal power
dissipation
• Minimal thermal design
concerns
• Designed in reliability:
MTBF of 9,200,000 hours per
Telcordia SR-332
• Ideal solution where board
space is at a premium or tighter
card pitch is required
• Available RoHS compliant
• 2 Year Warranty
Electrical Specifications
Output
Voltage adjustability:
Setpoint accuracy:
Line regulation:
Load regulation:
Total error band:
Minumum load:
Overshoot/undershoot:
Ripple and noise:
Temperature coefficient:
Transient response:
Slew rate:
Remote sense:
Vout = 1.5 V
= 0.5 A/µs
5 Hz to 20 MHz
0.8 - 3.63 Vdc
± 1.3% typ
± 0.2% typ
± 1.5% typ
± 3.0% typ
0 A
None
50 mV pk-pk
25 mV rms
±0.01%/°C
50% to 75% load step
3% max deviation
10 µs recovery to within ± 1%
10% Vo compensation
8 - 14 Vdc
No load (max.)
250 mA
9.2 A max. @ lo max.
and Vout = 3.3 V
220 mA rms
(See Note 1)
20 ms
Input
Input voltage range:
Safety
• UL/cUL : 60950-1 File No.
186249-A16-UL-1
• TÜV Product Service
(EN60950) Certificate No. B 07
07 13890 259
• CB report and certificate to
IEC60950
Input current:
Input current (max.):
Input reflected ripple:
Remote ON/OFF:
Start-up time:
Embedded Power for
Business-Critical Continuity
Electrical Specifications
All specifications are typical at 12 Vin and 1.5 Vout, full load at 25 °C unless otherwise stated.
Cout = 100 µF
Rev.7.28.09_40
SIL30E Series
2 of 5
EMC Characteristics
Electrostatic discharge:
Conducted immunity:
Radiated immunity:
EN61000-4-2, IBC801-2
EN61000-4-6
EN61000-4-3
General Specifications
Efficiency:
Insulation voltage:
Switching frequency:
Approvals and standards:
Material flammability:
Dimensions:
Pin length:
Weight:
MTBF (@40 ºC; 50% stress;
ground benign):
Telcordia SR-332
(L x W x H)
Fixed
@12 Vin, 3.3 Vout
93% typ
Non-isolated
1.3 MHz typ
EN60950-1
UL/cUL60950-1
UL94V-0
50.84 x 7.80 x 12.70 mm
2.000 x 0.307 x 0.500 inches
0.140 in (3.56 mm)
7.0 g (0.25 oz)
9,200,000 hours
Environmental Specifications
Thermal performance:
Operating ambient
Non-operating
-40
°
C to +85
°
C
-40
°
C to +125
°
C
Protection
Short-circuit:
Thermal:
Continuous
Automatic recovery
Embedded Power for
Business-Critical Continuity
Rev.7.28.09_40
SIL30E Series
3 of 5
Ordering Information
Output Power
(Max.)
99 W
Input Voltage
8 - 14 Vdc
Output Voltage
0.8 - 3.63 Vdc
Output Current
Min
0 A
Max
30 A
Efficiency
(typ)
93%
Regulation
Line
± 0.2%
Load
± 1.5%
Model Numbers
(2,3)
odel
SIL30E-12W3V3-VJ
Part Number System with Options
SIL30E-12W3V3-VJ
Packaging Options
J = Pb-free (RoHS 6/6 compliant)
(2)
Mounting Option
V = Vertical
Output Voltage
0.8 Vdc to 3.63 Vdc
Type of Output
W = Wide
Input Voltage
12 = 8 Vdc to 14 Vdc
Output Voltage Adjustment of the SIL30E-12W3V3 Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SIL30E-12W3V3. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 0.8 Vdc to 3.63 Vdc. When the SIL30E-12W3V3 converter
leaves the factory the output has been adjusted to the default voltage of 0.8 V.
Product Family
SIL = Single In Line
Rated Output Current
30 = 30 Amps
Performance
E = Enhanced Performance
Notes
1
The SIL30E features a ‘Positive Logic’ Remote ON/OFF operation. If not using
the Remote ON/OFF pin, leave the pin open (the converter will be on). The
Remote ON/OFF pin is referenced to ground.
The following conditions apply for the SIL30E:
Configuration
Remote pin open circuit
Remote pin pulled low [Von/off < 0.8 V]
Remote pin pulled high [Von/off >2.8 V]
Converter Operation
Unit is ON
Unit is OFF
Unit is ON
Notes
A The derating curve represents the condition at which internal components
are within the Artesyn derating guidelines.
B
Characteristic data has been developed from actual products tested at 25 °C.
This data is considered typical data for the converter.
A ‘Negative Logic’ Remote ON/OFF version is also possible with this
converter. Please consult the factory for details.
2 TSE RoHS 5/6 (non Pb-free) compliant versions may be available on special
request, please contact your local sales representative for details.
3 NOTICE: Some models do not support all options. Please contact your
local Emerson Network Power representative or use the on-line model
number search tool at http://www.PowerConversion.com to find a suitable
alternative.
Embedded Power for
Business-Critical Continuity
Rev.7.28.09_40
SIL30E Series
4 of 5
OUTPUT CURRENT (A)
OUTPUT CURRENT (A)
40
40
30
0m s
1m s
2m s
30
0ms
1ms
2ms
20
20
10
0
0
20
40
60
80
100
10
0
0
20
40
60
80
100
AMBIENT TEMPERATURE (°C)
AMBIENT TEMPERATURE (°C)

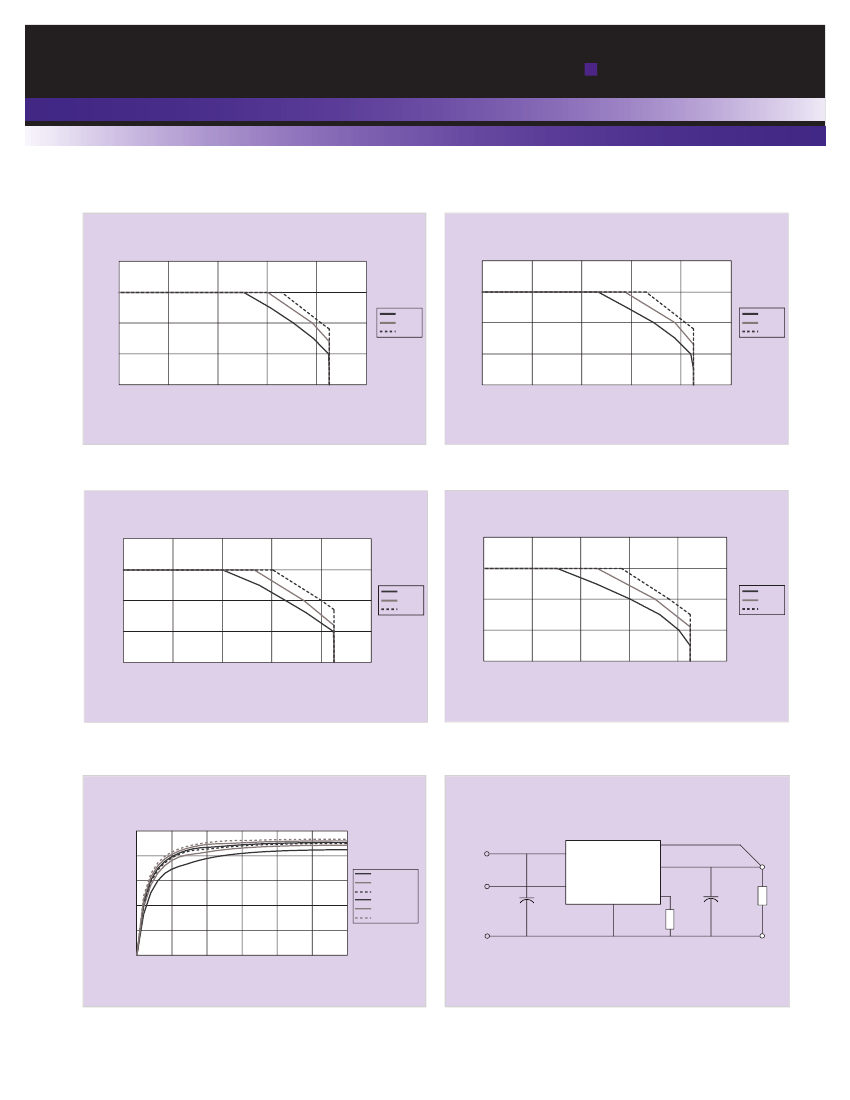

Figure 1 - Derating Curve
Vin = 12 V, Output Voltage = 1.5 V (See Note A)
Figure 2 - Derating Curve
Vin = 12 V, Output Voltage = 1.8 V (See Note A)
OUTPUT CURRENT (A)
OUTPUT CURRENT (A)
40
40
30
0ms
1ms
2ms
30
0ms
1ms
2ms
20
20
10
0
0
20
40
60
80
100
10
0
0
20
40
60
80
100
AMBIENT TEMPERATURE (°C)
AMBIENT TEMPERATURE (°C)
Figure 3 - Derating Curve
Vin = 12 V, Output Voltage = 2.5 V (See Note A)
Figure 4 - Derating Curve
Vin = 12 V, Output Voltage = 3.3 V (See Note A)
100
EFFICIENCY (%)
80
60
40
20
0
0
5
10
15
20
25
30
OUTPUT CURRENT (A)
Vout = 1V0
Vout = 1V5
Vout = 1V8
Vout = 2V0
Vout = 2V5
Vout = 3V3
Remote sense +
Vin
Remote
ON/OFF
Cin 47F
Gnd
SIL30E
Trim
Cout 100F
(Required)
Load
Vout
RTRIM
Figure 5 - Efficiency vs Load Current
Vin = 12 V (See Note B)
Figure 6 - Standard Application
Embedded Power for
Business-Critical Continuity
Mechanical Drawing
SIDE VIEW
0.3070.008
(7.800.20)
PCB
FRONT VIEW
0.5000.020
(12.70.50)
Rev.7.28.09_40
SIL30E Series
5 of 5
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Europe (UK)
0.140 (3.56)
1 2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18
20
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
0.025 (0.64) x 0.025 (0.64)
Connector 19 Places
0.050 (1.27)
0.132 (3.36)
0.1000.005
(2.540.127) typ.
1.900 (48.26)
2.0000.020 (50.840.50)
All dimensions in inches (mm)
All tolerance 0.010in (0.25mm)
unless otherwise stated
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.PowerConversion.com
techsupport.embeddedpower
@emerson.com
Pin Connections
Pin No.
1
2
3
4
5
6
7
8
9
10
Function
Vin
Vin
Ground
Ground
Trim
Remote Sense+
Ground
Ground
Vout
Vout
Pin No.
11
12
13
14
15
16
17
18
19
20
Function
Vout
Vout
Remote ON/OFF
Ground
Ground
Ground
Ground
Vin
N/C
Vin
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Surge Protection
EmersonNetworkPower.com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2009 Emerson Electric Co.
Figure 7 - Mechanical Drawing and Pinout Table
