1-Phase Line Filters
https://www.schurter.com /PG84
FMAB
AC Filter, Broad Band Attenuation
Approvals and Compliances

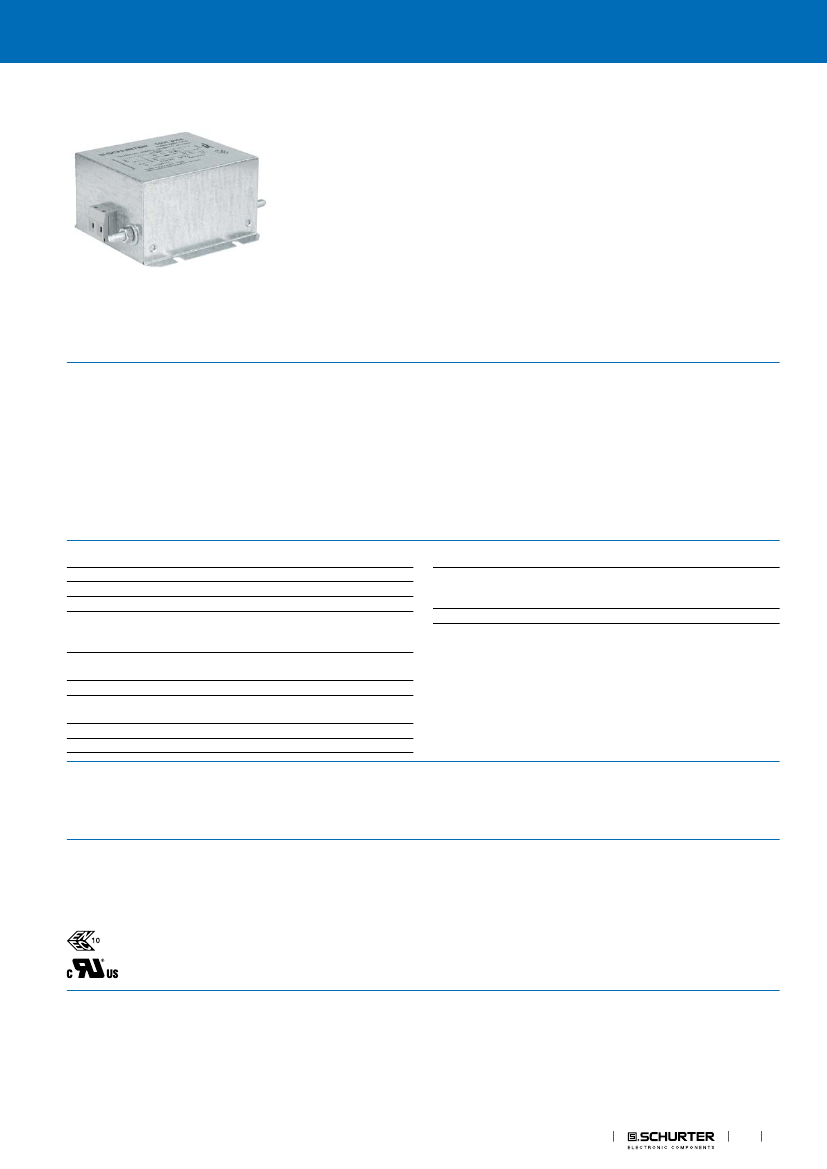

Description
- Line-filter in standard version
- 1-stage
- high attenuation
Characteristics
- Designed for high current applications
- High attenuation at maximum resp. asymmetric load independent from
the line impedance
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
12 - 50 A @ Ta 40 °C / 250 VAC; 50 Hz
12 - 50 A @ Ta 40 °C / 125 VAC; 60 Hz
industrial < 5.2 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Screw
Metal
Line Filter
Industrial Version, IEC 60939, UL 1283,
CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAB
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004673
UL File Number: E72928
EMC Products
1
FMAB
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

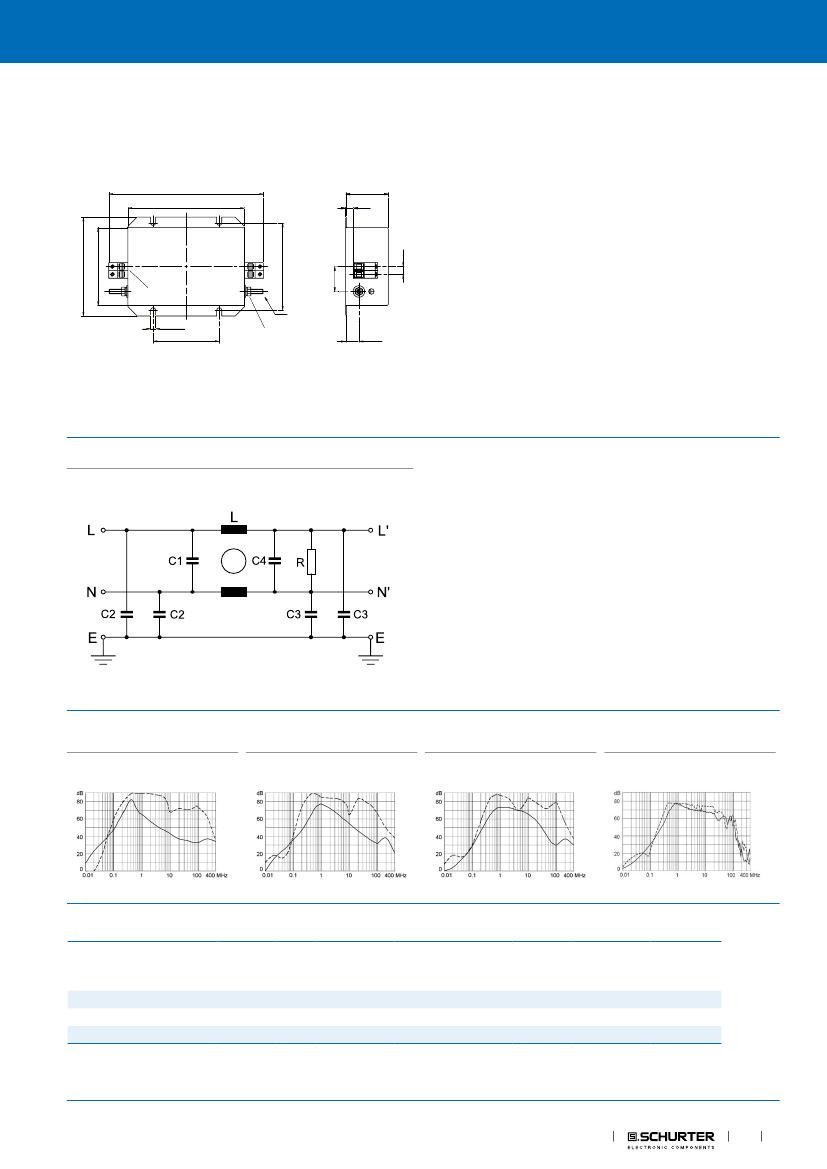

Dimension [mm]
Case 24-2
Case 24-6
max. 137
max. 100
max. 58
(7)
max. 137
max. 100
max. 58
(2)
max. 106
max. 106
95
-1
95
-1
1)
4)
2)
(29.5)
max. 86
1)
4)
2)
(29.5)
M6
5.3
±0.3
51
±0.3
3)
5.3
±0.3
(17)
51
±0.3
M6
3)
(17)
1) Line
2) Load
3) Nut torque 3...4 Nm
4) I/O Connections torque 0.6...0.8
1) Line
2) Load
3) Nut torque 3...4 Nm
4) I/O Connections torque 1.5...1.8
2
EMC Products
max. 86
+0
+0
1-Phase Line Filters
https://www.schurter.com /PG84
FMAB
Case 79-2
max. 201
max. 151
max. 56
(10)
max. 127
max. 101
1)
4)
2)
112
-1
6.5
±0.3
85
±0.3
M6
3)
(17)
1) Line
2) Load
3) Nut torque 3...4 Nm
4) I/O Connections torque 1.5...1.8
Diagrams
Standard version
1)
(32)
1) Line
2) Load
Attenuation Loss
Industrial version
(10)
+0
2)
- - - - 50Ω differential mode _____ 50Ω common mode
12 A
20 A
30 A
50 A
All Variants
Rated Cur-
rent [A]
12
20
30
50
Filter-Type
Industrial Version
Industrial Version
Industrial Version
Industrial Version
Leakage Cur-
rent [mA]
5.2
5.2
5.6
5.6
L [mH]
2 x 10
2 x 3.5
2 x 1.5
2 x 1.5
C1
(X2)
2.2
2.2
2.2
2.2
C2 (Y2)
[nF]
10
10
15
15
C3
(Y2)
47
47
47
47
C4
(X2)
1
1
1
1
R [MΩ]
1
1
1
1
Clamps
[mm
2
]
4
4
6
10
Weight
[g]
927 g
930 g
970 g
970 g
Hou-
sings
24-2
24-2
24-6
79-2
Order Number
5500.2064
5500.2065
5500.2066
5500.2067
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
EMC Products
3
FMAB
Packaging unit
2 Pcs
https://www.schurter.com /PG84
1-Phase Line Filters
4
EMC Products
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
14.12.2017
