FWC5012-760F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> FWC5012-760F

FWC5012-760F: DescriptionDesktop AC Adapters 12V 50W 4.15A; CategoryPower/power management; File Size203KB，5 Pages; ManufacturerInventus Power; Environmental Compliance

Download Datasheet Parametric Compare View All

FWC5012-760F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FWC5012-760F	-	-	View	Buy Now

FWC5012-760F Overview

Desktop AC Adapters 12V 50W 4.15A

FWC5012-760F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Inventus Power
Product Category	Desktop AC Adapters
RoHS	Details
Region	North America
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	50 W
Output Voltage-Channel 1	12 V
Output Current-Channel 1	4.15 A
Industry	Commercial
DC Output Connector	2.5 mm Barrel Plug
DC Output Cord Length	6 ft
AC Plug included/required	Included
Mounting Style	Desktop
Load Regulation	Regulated
Factory Pack Quantity	20
Unit Weight	12 oz

Preview

Download Datasheet

View All

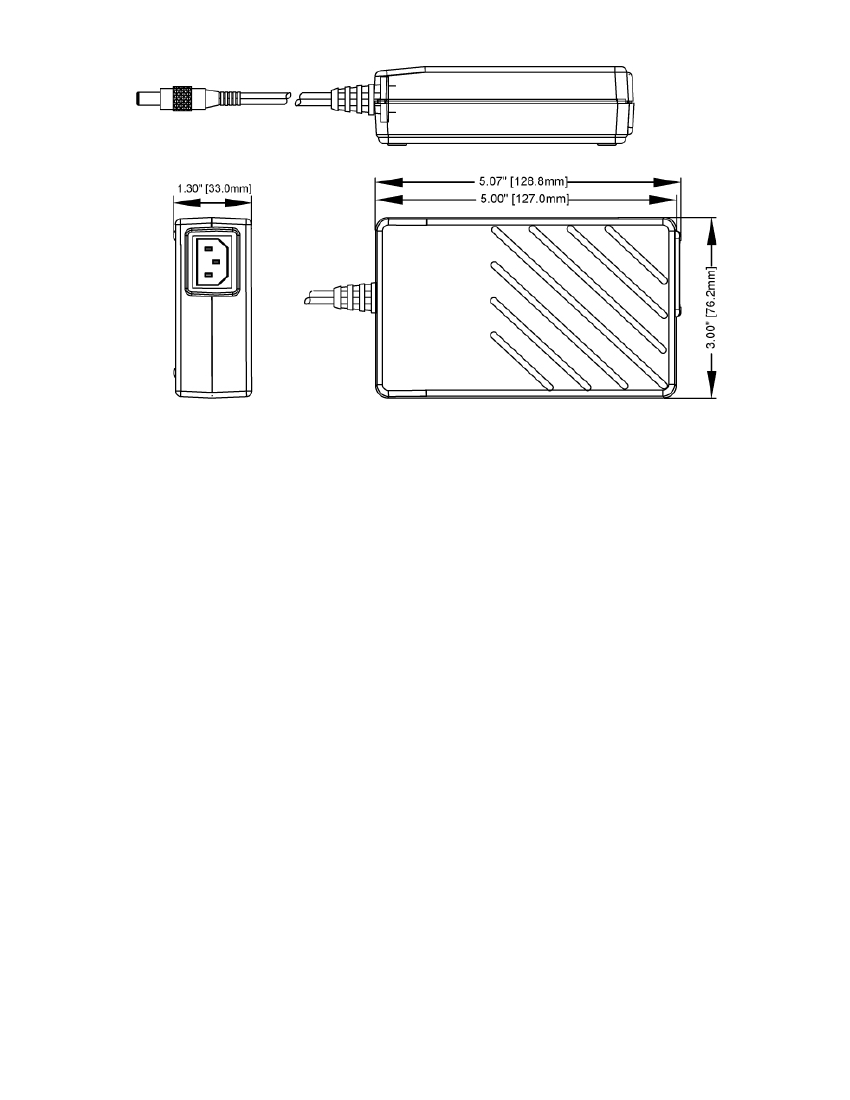

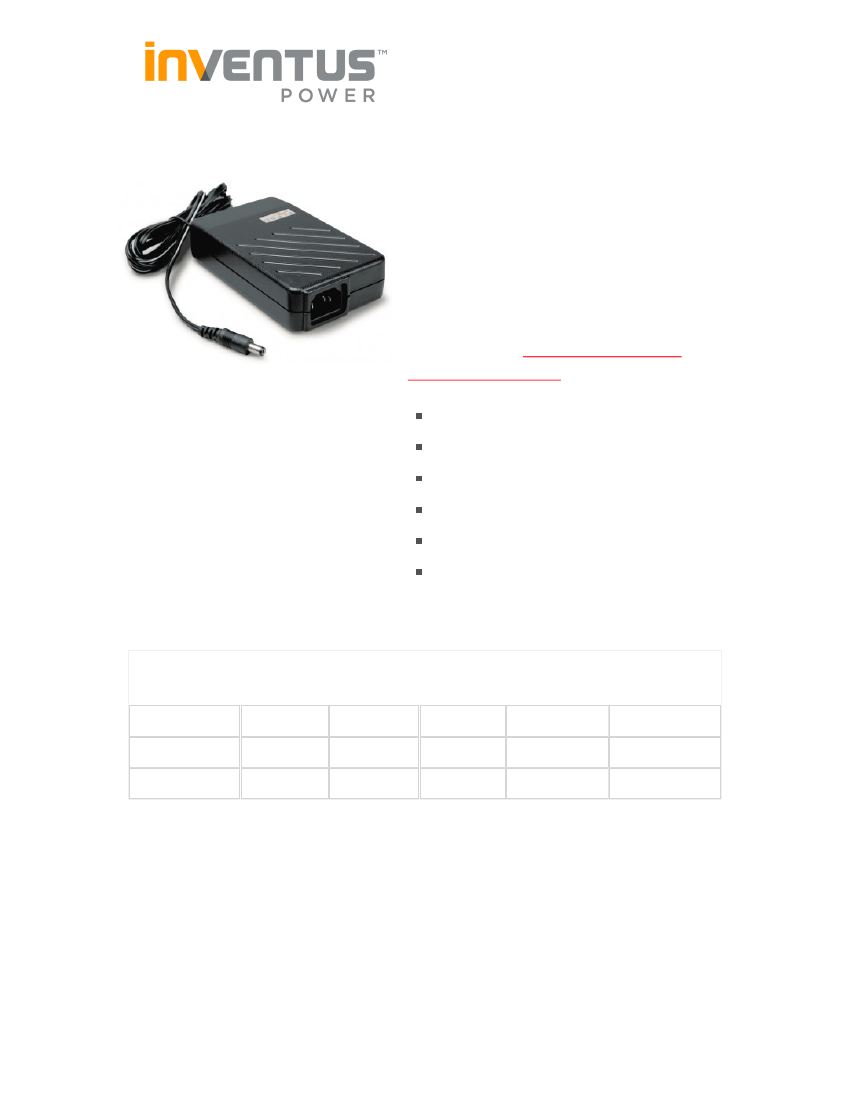

FWC50 Series

50W ITE Desktop Power Supply

FWC50 Is Not Recommended

For New Designs.

Not Level VI Compliant. Not for

Consumer / Household use for

units built after February, 2016.

Please Use FWE050 Class II or

FWE050 Class I As A

Replacement

High Efficiency

Fully Regulated DC Output

Lifetime Expectation >5 years

Holdup Time >14ms at full load

Safety Approval EN609501 Class I

CEC Compliant

Elpac Part

Number

FWC5012760F

FWC5018760F

FWC5024760F

Notes

Output

Voltage

12.0V

18.0V

24.0V

Output

Current

4.2A

2.8A

2.1A

Peak

Current

5.0A

3.3A

2.5A

Total

Regulation

±5%

Typical

Efficiency

83%

86%

87%

1 Maximum peak load (60W) lasting 500ms with a maximum 10% duty cycle.

2 Includes initial setting, line regulation, load regulation, and thermal drift.

3 Typical at 115VAC (including output cable).

FWC5012-760F Related Products

	FWC5012-760F	FWC5018-760F
Description	Desktop AC Adapters 12V 50W 4.15A	Desktop AC Adapters 18V 50W 2.75A
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Inventus Power	Inventus Power
Product Category	Desktop AC Adapters	Desktop AC Adapters
RoHS	Details	Details
Region	North America	North America
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	1 Output	1 Output
Output Power	50 W	50 W
Output Voltage-Channel 1	12 V	18 V
Output Current-Channel 1	4.15 A	2.75 A
Industry	Commercial	Commercial
DC Output Connector	2.5 mm Barrel Plug	2.5 mm Barrel Plug
DC Output Cord Length	6 ft	6 ft
AC Plug included/required	Included	Included
Mounting Style	Desktop	Desktop
Load Regulation	Regulated	Regulated
Factory Pack Quantity	20	20
Unit Weight	12 oz	12 oz
