M80-9463202 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Connector bracket> M80-9463202

M80-9463202: DescriptionAssembly Item,; CategoryConnector bracket; File Size844KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-9463202 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-9463202	-	-	View	Buy Now

M80-9463202 Overview

Assembly Item,

M80-9463202 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
Is Samacsys	N
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

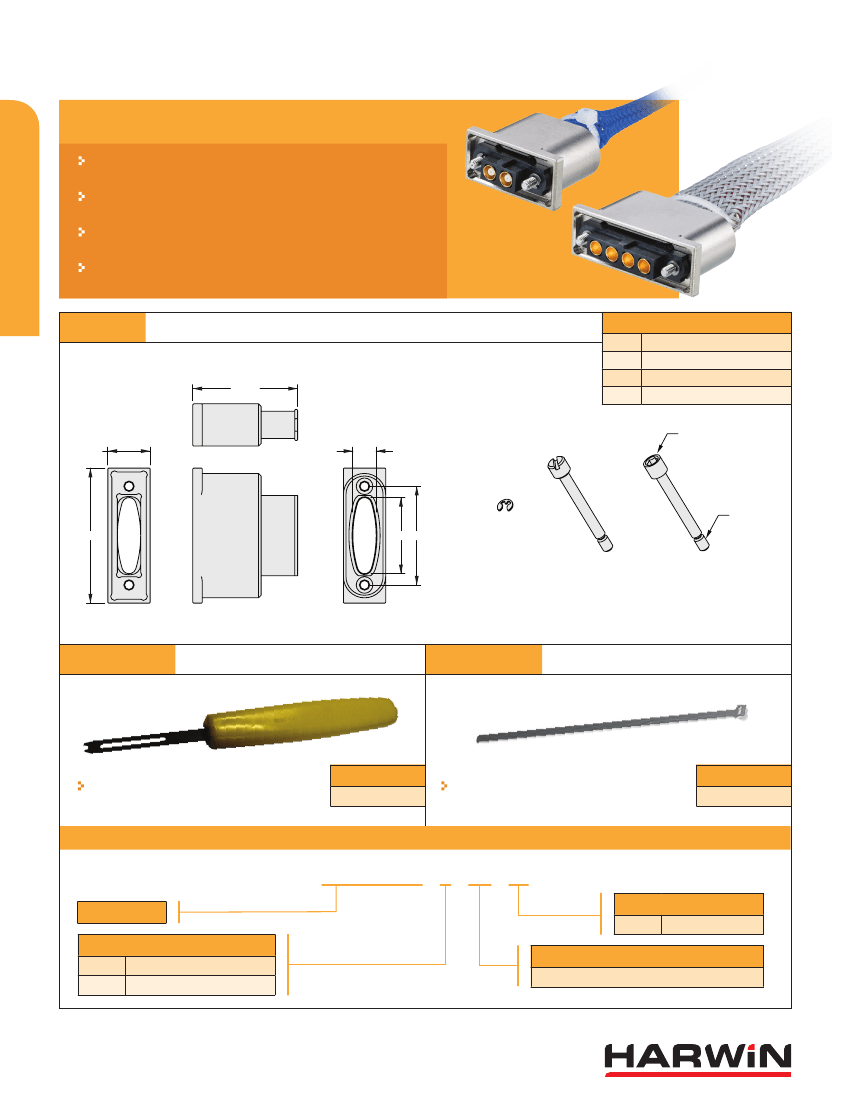

Datamate Mix-Tek Connectors

Female Metal Backshell

DATAMATE MIX-TEK

Supplied as an accessory kit, including metal backshell, e-clips

and the applicable jackscrews.

To be used with the appropriate size of Female Cable connector

kit without jackscrews (existing jackscrews can be removed).

Gives 360 degree shielding when used with conductive braid

and mated to a compatible male connector with metal backshell.

Instruction sheets available at

www.harwin.com/instructions.

FEMALE

1 x Metal

Backshell

CALCULATION

26.55

B + 16.2

Equivalent no. of contacts - 2

B+7

B + 0.8

2.00 A/F

10.70

5.90

4 x E-Clip

(2 spare)

2 x Slotted

Jackscrew

(M80-945 Kit)

2 x Hex Socket

Jackscrew

(M80-946 Kit)

E-CLIP TOOL

BAND-IT TIE

For assembling E-Clips supplied with kit.

ORDER CODE

Z80-300

For fixing braid to rear collar (requires

Tie Dex II A30199 Micro Band tool).

ORDER CODE

M80-9470000

HOW TO ORDER

M80

SERIES CODE

TYPE

With Slotted Jackscrews

With Hex Socket Jackscrews

FINISH

Nickel

EQUIVALENT NO. OF SIGNAL CONTACTS

08, 10, 12, 14, 16, 18, 20, 22, 24, 28, 32

All dimensions in mm.

www.harwin.com
