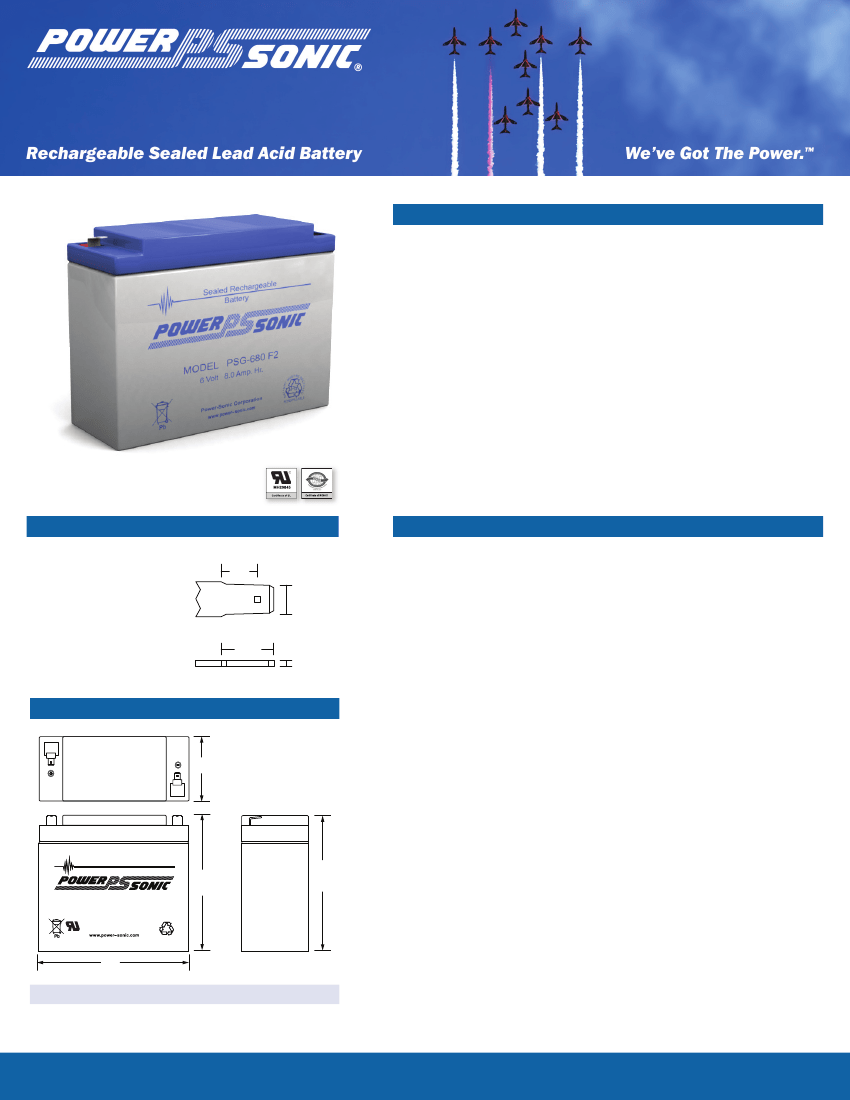

PSG-680
6 Volt 8.0 AH
Features
• Absorbent Glass Mat (AGM) technology for superior
performance
• Valve regulated, spill proof construction allows safe
operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged impact resistant ABS case and cover (UL94-HB)
• Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certified
•
U.L. recognized under file number MH 20845
Terminals
(mm)
3.4
•
F2 - Quick disconnect
tabs, 0.250” x 0.032”
- Mate with AMP. INC
FASTON “250” series
Performance Specifications
N
ominal Voltage
...........................................................................6 volts (3 cells)
Nominal Capacity
6.35
7.95
20-hr.
10-hr.
5-hr.
1-hr.
(400mA to 5.25 volts)
.......................................................... 8.00 AH
(700mA to 5.25 volts)
........................................................... 7.00 AH
(1.62A to 5.10 volts)
............................................................
6.50 AH
(4.8A to 4.50 volts)
.............................................................. 4.80 AH
0.8
Approximate Weight
...........................................................
3.19 lbs. (1.45 kg)
Physical Dimensions: in (mm)
Energy Density
(20-hr. rate) .................................. 1.18 W-h/in
3
(71.85 W-h/l)
Specific Energy
(20-hr. rate) ..............................
15.05 W-h/lb (33.17 W-h/kg)
Internal Resistance
(approx.) ...................................................... 17 milliohms
Max Discharge Current
(7 Min.) ................................................... 24 amperes
Max Short-Duration Discharge Current
(10 Sec.) .................. 80.0 amperes
Shelf Life
(% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
W
Sealed Rechargeable
Battery
HT
MODEL PSG-680
6 Volt 8.0 Amp. Hr.
TTE
RY
H
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ...........................................................
-4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case
...................................................................................................... ABS Plastic
Power-Sonic Chargers
................................................................................... n/a
®
MH20845
ST
B
E
R
MU
YCL
ED
EC
L
L:
5.28 (134)
W:
1.94 (49)
H:
3.98 (101)
HT:
3.98 (101)
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
BA
Pb
NONSPILLABLE
www.power-sonic.com
®
PSG-680 6 Volt 8.0 AH

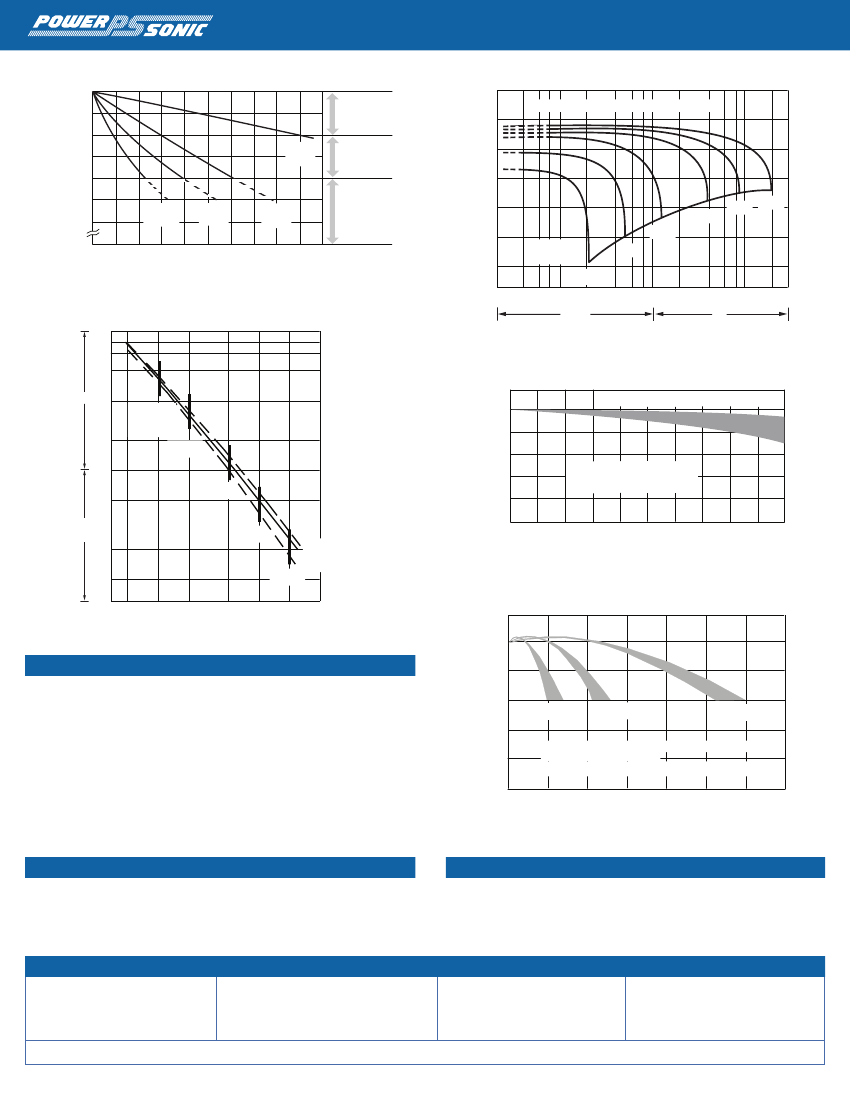

Discharge Characteristics
Charging is not
necessary unless
100% of capacity
is required.
Shelf Life & Storage
Capacity Retention Ratio (%)
100
7.0
6.5
Ambient Temperature 20 C (68 F)
o
o
5
o
C
(41
o
F)
60
Charging before
use is necessary
to help recover
full capacity.
Charge may fail
to restore full
capacity. Do not
let batteries reach
this state.
Terminal Voltage (V)
80
6.0
5.5
5.0
4.5
4.0
40
0
0
2
4
40
o
C
(104
o
F)
6
8
30 C
o
(86 F)
o
20
o
C
(68
o
F)
12
14
16
18
20
10
Standing Period (Months)
Final
Voltage
16.0
2.4
6
12
4.0
8.0
1.6
0.80 0.40
Discharge Time vs. Discharge Current
20
15
10
h
1.2
24 36 48 1
2
4 6 8 10
20 4 0
min
Discharge Time
h
Life Characteristics in Stand-By Use
Retention Capacity (%)
Final
Voltage
5.25V
5.10V
Discharge Time
5
2
1
30
100
80
60
40
20
0
0
1
Ambient Temperature 20˚C (68˚F)
4.80V
Float Charging Voltage
2.25 - 2.30 V/Cell
min
10
5
0.40
0.80
1.6
4.0
4.50V
4.05V
40 C (104 F)
o
o
20 C (68 F)
o
o
0 C (32 F)
o
o
2
3
4
Years
Life Characteristics in Cyclic Use
120
100
80
60
40
20
0
1. Discharge Current 0.2C (Final Voltage 1.7V/Cell)
2. Charge Current: 0.1C
3. Ambient Temperature: 20
o
C to 25
o
C (68
o
F to 77
o
F)
Discharge
Depth 100%
Discharge
Depth 50%
Discharge
Depth 30%
8.0
16.0
Discharge Current (A)
Charging
Cycle Applications:
Limit initial current to 2.4A. Charge until battery voltage
(under charge) reaches 7.20 to 7.35 volts at 68°F (20°C). Hold at 7.20 to 7.35
volts until current drops to under 80A. Battery is fully charged under these
conditions, and charger should be disconnected or switched to “float” voltage.
“Float” or “Stand-By” Service:
Hold battery across constant voltage source of
6.75 to 6.90 volts continuously. When held at this voltage, the battery will seek its
own current level and maintain itself in a fully charged condition.
Note:
Due to the self-discharge characteristics of this type of battery, it is
imperative that they be charged within 6 months of storage, otherwise permanent
loss of capacity might occur as a result of sulfation.
Retention Capacity (%)
0
200
400
600
800
1000
1200
Number of Cycles
Chargers
Power-Sonic offers a wide range of chargers suitable for batteries up to 100AH.
Please refer to the Charger Selection Guide in our specification sheets for “C-Series
Switch Mode Chargers” and “Transformer Type A and F Series”. Please contact our
Technical department for advice if you have difficulty in locating suitable models.
Further Information
Please refer to our website www.power-sonic.com for a complete range of useful
downloads, such as product catalogs, material safety data sheets (MSDS), ISO
certification, etc..
Contact Information
DOMESTIC SALES
Tel: +1-619-661-2020
Fax: +1-619-661-3650
national-sales@power-sonic.com
CUSTOMER SERVICE
Tel: +1-619-661-2030
Fax: +1-619-661-3648
customer-service@power-sonic.com
TECHNICAL SUPPORT
Tel: +1-619-661-2020
Fax: +1-619-661-3648
support@power-sonic.com
www.power-sonic.com
INTERNATIONAL SALES
Tel: +1-650-364-5001
Fax: +1-650-366-3662
international-sales@power-sonic.com
0111 1M
CORPORATE OFFICE
•
7550 Panasonic Way • San Diego, CA 92154 • USA • Tel: +1-619-661-2020 • Fax: +1-619-661-3650
© 2011. Power-Sonic Corporation. All rights reserved. All trademarks are the property of their respective owners.
