ISL6127IR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> ISL6127IR

ISL6127IR: Description4-CHANNEL POWER SUPPLY SUPPORT CKT, PQCC24; Categorysemiconductor Analog mixed-signal IC; File Size1MB，23 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

ISL6127IR Overview

4-CHANNEL POWER SUPPLY SUPPORT CKT, PQCC24

ISL6127IR Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5 V
Minimum supply/operating voltage	1.5 V
Rated supply voltage	3.3 V
Processing package description	4 X 4 MM, ROHS COMPLIANT, PLASTIC, QFN-24
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	SQUARE
Package Size	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
surface mount	Yes
Terminal form	NO LEAD
Terminal spacing	0.5000 mm
terminal coating	MATTE TIN
Terminal location	QUAD
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
Number of channels	4
Adjustable threshold	Yes
Analog IC other types	POWER SUPPLY SUPPORT CKT

Preview

Download Datasheet

View All

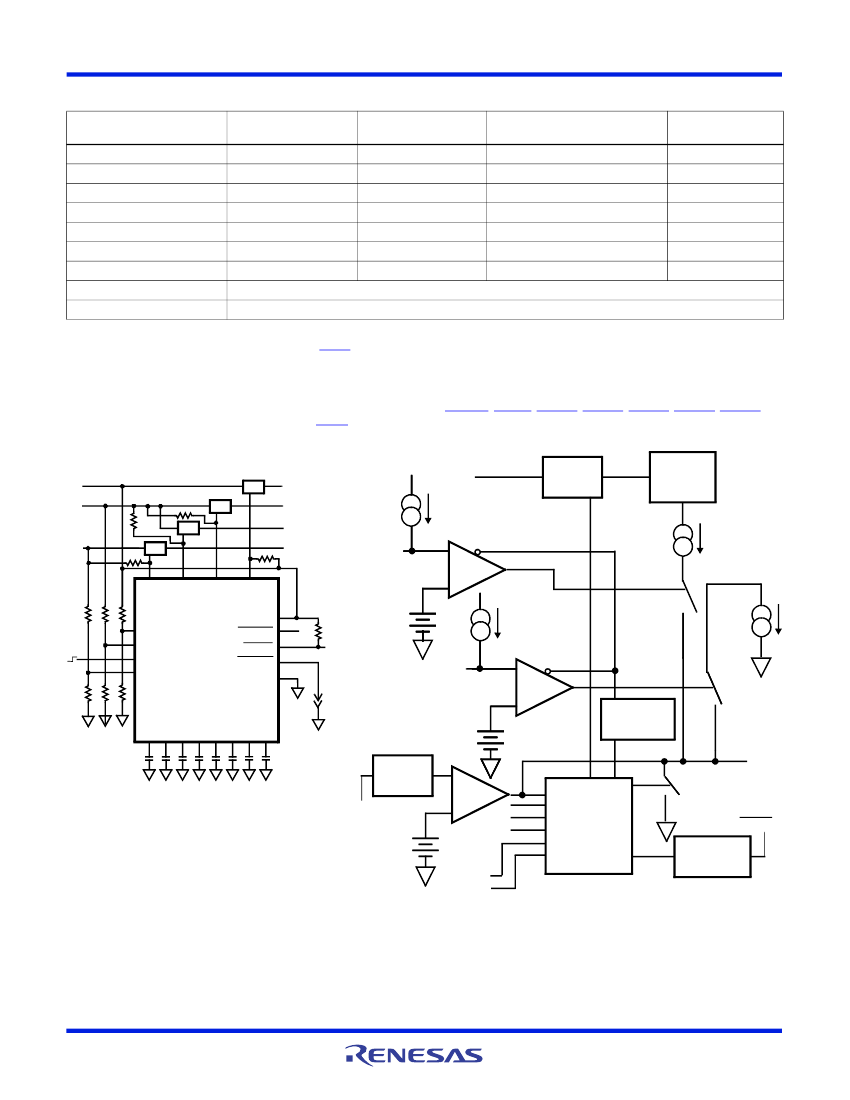

DATASHEET

ISL6123, ISL6124, ISL6125, ISL6126, ISL6127, ISL6128,

ISL6130

The Intersil ISL6123, ISL6124, ISL6125, ISL6126, ISL6127,

ISL6128 and ISL6130 are integrated 4-channel

controlled-on/controlled-off power-supply sequencers with

supply monitoring, fault protection and a “sequence completed”

signal (RESET). For larger systems, more than four supplies can

be sequenced by simply connecting a wire between the

SYSRESET pins of cascaded ICs. The ISL6125 uses four active

open-drain outputs to control the on/off sequencing of four

supplies. The other sequencers use a patented, micropower 7x

charge pump to drive four external low-cost NFET switch gates

above the supply rail by 5.3V. These ICs can be biased from 5V

down to 1.5V by any supply.

The 4-channel ISL6123 (ENABLE input), ISL6124 (ENABLE

input) and ISL6125 offer the designer 4-rail control when all

four rails must be in minimal compliance before turn-on and

during operation. The ISL6123 and ISL6130 have a low-power

standby mode when disabled, which is suitable for

battery-powered applications.

The ISL6125 operates like the ISL6124, but instead of

charge-pump-driven gate drive outputs, it has open-drain logic

outputs for direct interface to other circuitry.

In contrast, for the ISL6126 and ISL6130, each of the four

channels operates independently. Each GATE turns on once its

individually associated input voltage requirements are met.

The ISL6127 is a pre-programmed A-B-C-D turn-on and D-C-B-A

turn-off sequenced IC. Once all inputs are in compliance and

ENABLE is asserted, sequencing begins. Each subsequent GATE

turns on after the previous one turns on.

The ISL6128 has two groups of two channels, each with its

independent I/O. It is ideal for voltage sequencing into

redundant capability loads. All four inputs must be satisfied

before turn-on, but a single group fault is ignored by the other

group.

External resistors provide flexible voltage threshold

programming of monitored rail voltages. Delay and

sequencing are provided by external capacitors for ramp-up

and ramp-down.

Additional I/O is provided for indicating and driving the RESET

state in various configurations.

For volume applications, other programmable options and

features are available. Contact

Intersil sales support

with your

needs.

FN9005

Rev 1.00

September 26, 2012

Features

• Enables Arbitrary Turn-on and Turn-off Sequencing of Up to Four

Power Supplies (0.7V to 5V)

• Operates From 1.5V to 5V Supply Voltage

• Supplies V

+5.3V of Charge Pumped Gate Drive

• Adjustable Voltage Slew Rate for Each Rail

• Multiple Sequencers Can be Daisy-Chained to Sequence an

Infinite Number of Independent Supplies

• Glitch Immunity

• Undervoltage Lockout for Each Supply

• 1µA Sleep State (ISL6123, ISL6130)

• Active High (ISL6123, ISL6130) ENABLE or Low (ISL6124,

ISL6125, ISL6126, ISL6127, ISL6128) ENABLE Input

• Active Open Drain Version Available (ISL6125)

• Voltage-determined Sequence (ISL6126, ISL6130)

• Pre-programmed Sequence Available (ISL6127)

• Dual Channel Groupings (ISL6128)

• QFN Package

• Pb-free (RoHS-compliant)

Applications

• Graphics Cards

• FPGA/ASIC/Microprocessor/PowerPC Supply Sequencing

• Network Routers

• Telecommunications Systems

V1OUT

V2OUT

V3OUT

V4OUT

GATE D

GATE C

GATE B

UVLO_A

UVLO_B

UVLO_C

UVLO_D

DLY_OFF_A

DLY_OFF_B

DLY_ON_A

DLY_ON_B

DLY_ON_C

ENABLE

SYSRST

RESET

GROUND

DLY_OFF_C

DLY_OFF_D

DLY_ON_D

FIGURE 1. TYPICAL ISL6123 APPLICATION

FN9005 Rev 1.00

September 26, 2012

GATE A

Page 1 of 23
