DPT53 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DPT53

DPT53: DescriptionDesktop AC Adapters 50W +5/+15/-15VDC; CategoryPower/power management; File Size606KB，2 Pages; ManufacturerArtesyn Embedded Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

DPT53 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DPT53	-	-	View	Buy Now

DPT53 Overview

Desktop AC Adapters 50W +5/+15/-15VDC

DPT53 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Artesyn Embedded Technologies
Product Category	Desktop AC Adapters
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC, 127 VDC to 300 VDC
Number of Outputs	3 Output
Output Power	50 W
Output Voltage-Channel 1	15 V
Output Current-Channel 1	8 A
Industry	Commercial
DC Output Connector	5 Pin DIN
DC Output Cord Length	6.5 ft
Efficiency	80 %
AC Plug included/required	Required
Height	1.62 in
Length	5.24 in
Operating Temperature Range	0 C to + 40 C
Width	2.39 in
Mounting Style	Desktop
Input Voltage, Max	264 VAC, 300 VDC
Input Voltage, Min	90 VAC, 127 VDC
Load Regulation	Regulated
Maximum Operating Temperature	+ 40 C
Mechanical Style	External
Minimum Operating Temperature	0 C
Output Current-Channel 2	2.4 A
Output Current-Channel 3	500 mA
Output Voltage V1, Nominal	5 VDC
Output Voltage V2, Nominal	15 VDC
Output Voltage V3, Nominal	- 15 VDC
Output Voltage-Channel 2	- 15 V
Output Voltage-Channel 3	5 V
Factory Pack Quantity	200
Unit Weight	1.433 lbs

Preview

Download Datasheet

View All

Embedded Power for

Business-Critical Continuity

DPT50 Series

50 Watts

Total Power:

Input Voltage:

# of Outputs:

30 - 50 Watts

127 - 300 VDC

90 - 264 VAC

Triple

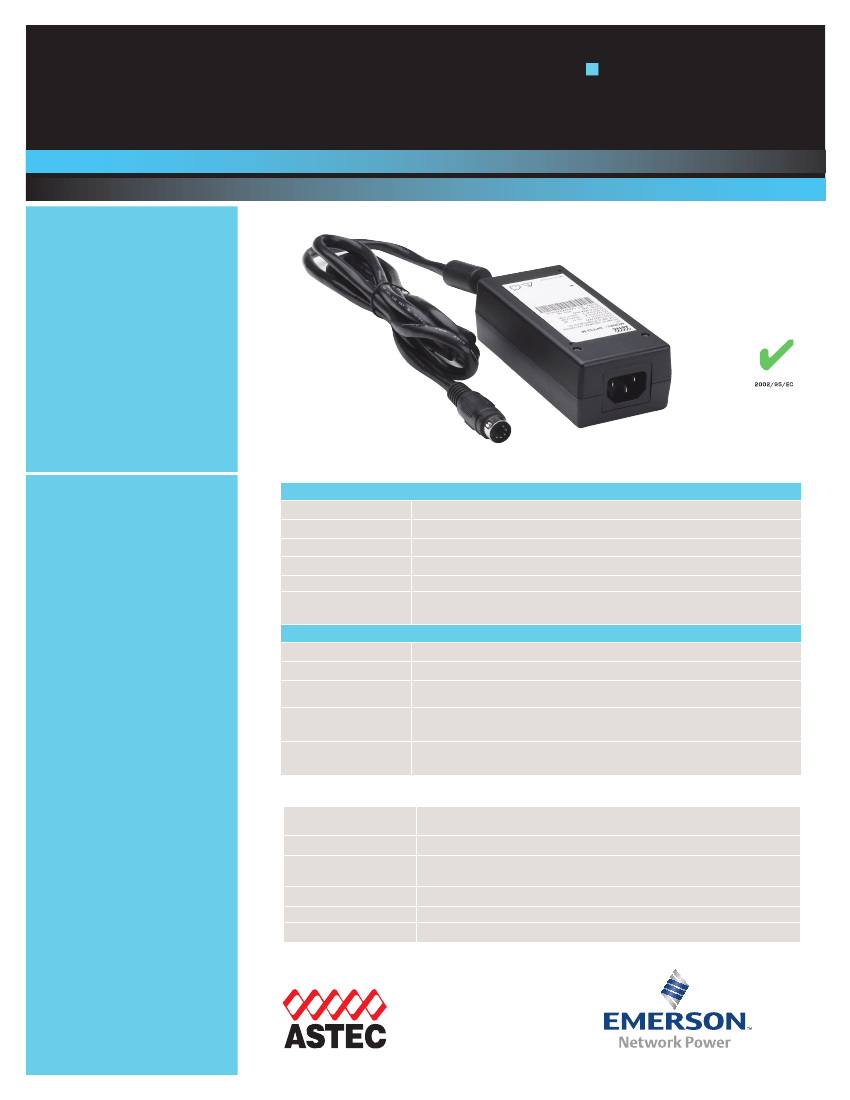

Rev. 10.2.08_126

DPT50 Series

1 of 2

RoHS

Electrical Specifications

Input

Special Features

• CE Mark EMC & LVD

• Universal AC input

• Fully regulated output

• Overpower and short circuit

protection

• Constant voltage

• High efficiency

• High MTBF

• IEC320 AC receptacle,

3 pin (type C14)

• Built in EMI filter

(CISPR 22 Class B)

• LED power good indicator

• Input power <74 watts

• Complies with EN61000-3-2

Input range:

Frequency:

Inrush current:

Efficiency:

EMI RFI:

Safety ground

leakage current:

90-264 VAC (wide range) 127-300 VDC

47-440 Hz

<60 A peak @ 230 VAC, cold start @ 25°C

80% @ typical full load, @115VAC

FCC Part 15, Subpart B Class B & EN55022 (CISPR22) Class B

0.5mA @ 50/60 Hz, 264 VAC input

Output

Maximum power:

50 W (DPT51, 30W)

Hold-up time:

10 ms typical at full load @ 115VAC

Overpower protection: Output short circuit protection auto recover.

Overpower protected @ 110 - 160% above maximum rating

Overvoltage

20-45% above nominal output maximum

protection:

Cable/2 meter

DC cable with 5 pin Din

connector:

Safety

UL60950-1

CSA

CSA-C22.2 NO. 60950-1

VDE

EN60950-1

EMC & LVD

Certificate and report

Environmental Specifications

Operating temperature: 0°C to +40°C ambient. Derate each output as 2.5% per degree from 40°

to 60°C. -20°C start up.

Storage temperature: -40°C to +85°C

Electromagnetic

susceptibility:

Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3

Humidity:

Vibration:

MTBF demonstrated:

Operating; non-condensing 10% to 95% RH

IEC68-2-6 to the levels of IEC721-3-2

>550,000 hours at full load and 25°C ambient conditions

DPT53 Related Products

	DPT53	DPT51-M
Description	Desktop AC Adapters 50W +5/+15/-15VDC	Desktop AC Adapters 30W +3.3/+5/+12VDC
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Artesyn Embedded Technologies	Artesyn Embedded Technologies
Product Category	Desktop AC Adapters	Desktop AC Adapters
RoHS	Details	Details
Region	Universal	Universal
Input Voltage	90 VAC to 264 VAC, 127 VDC to 300 VDC	90 VAC to 264 VAC, 127 VDC to 300 VDC
Number of Outputs	3 Output	3 Output
Output Power	50 W	50 W
Output Voltage-Channel 1	15 V	12 V
Output Current-Channel 1	8 A	9 A
Industry	Commercial	Medical
DC Output Connector	5 Pin DIN	5 Pin DIN
DC Output Cord Length	6.5 ft	6.5 ft
Efficiency	80 %	80 %
AC Plug included/required	Required	Required
Height	1.62 in	1.62 in
Length	5.24 in	5.24 in
Operating Temperature Range	0 C to + 40 C	0 C to + 40 C
Width	2.39 in	2.39 in
Mounting Style	Desktop	Desktop
Input Voltage, Max	264 VAC, 300 VDC	264 VAC, 300 VDC
Input Voltage, Min	90 VAC, 127 VDC	90 VAC, 127 VDC
Load Regulation	Regulated	Regulated
Maximum Operating Temperature	+ 40 C	+ 40 C
Mechanical Style	External	External
Minimum Operating Temperature	0 C	0 C
Output Current-Channel 2	2.4 A	3 A
Output Current-Channel 3	500 mA	500 mA
Output Voltage V1, Nominal	5 VDC	3.3 VDC
Output Voltage V2, Nominal	15 VDC	5 VDC
Output Voltage V3, Nominal	- 15 VDC	12 VDC
Output Voltage-Channel 2	- 15 V	5 V
Output Voltage-Channel 3	5 V	3.3 V
Factory Pack Quantity	200	200
Unit Weight	1.433 lbs	1.433 lbs
