Works over 105% of rating and recovers automatically
Works at 115 - 140% of rating
Provided
Between RC and -side of input:short - 1.2V
---
output ON, 2.4 - 5.5V(or open)
---
output OFF, Compatible TTL
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature) AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature) AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA max, DC500V 50M
W
min (At Room Temperature)
-10 to +85
C
(Aluminum base plate), 20 - 95%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-40 to +85
C
, 20 - 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 49.0m/s
2
(5G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, EN60950-1, CSA C22.2 No.60950-1 Complies with DEN-AN Complies with UL60950-1, CSA C22.2 No.60950-1 and EN60950-1
58
X
12.7
X
115mm (W
X
H
X
D) / 120g max
Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
*1
Measured by attaching the electrolytic capacitor of 220mF at output.
*2
Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C, with the input voltage held constant at the rated input/output.
*
Parallel operation with other model is not possible.
Works over 105% of rating and recovers automatically
Works at 115 - 140% of rating
Provided
Between RC and -side of input:short - 1.2V
---
output ON, 2.4 - 5.5V(or open)
---
output OFF, Compatible TTL
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature) AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature) AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA max, DC500V 50M
W
min (At Room Temperature)
-10 to +85
C
(Aluminum base plate), 20 - 95%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-40 to +85
C
, 20 - 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 49.0m/s
2
(5G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, EN60950-1, CSA C22.2 No.60950-1 Complies with DEN-AN Complies with UL60950-1, CSA C22.2 No.60950-1 and EN60950-1
58
X
12.7
X
130mm (W
X
H
X
D) / 150g max
Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
*1
Measured by attaching the electrolytic capacitor of 220mF at output.
*2
Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,with the input voltage held constant at the rated input/output.
*
Parallel operation with other model is not possible.
DAS-4
DAS100
External view
DC OUT
TRM
+
S
+
V
+
V
- V
- V
- S
CB
Name Plate
3†5.08
=15.24
3†5.08
=15.24
¶Recomending
size for processing PCB
(TOP VIEW)
5.3
±1
7.62 22.86 7.62
(0.3) (0.9) (0.3)
5.3
±1
12.7
±0.5
3.5
±0.5
5.3
±1
58
±0.5
5.08 15.24 5.08
119.38
(4.7)
118.11
(4.65)
119.38
130
±1
118.11
119.38
Outline
2-º4.5
Name Plate
RC
0.5
2-M3(Depth:6mm)
Mounting Hole
for Heat Sink
2-M4(Depth:6mm)
Mounting Hole for FG
5.08
5.08
(0.2) 15.24 (0.2)
5.08 (0.6) 5.08
(0.2)
(0.2)
5.08
5.08
(0.2)
(0.2)
12-º1.7
1.2
22.86
7.62
+ +
-
7.62
DC IN
Input/Output Pin
3.5
±0.5
1.2
t = 0.5
¶Weight: 150g or less.
¶Tolerance:
±
0.3
¶Case: PBT
¶Base Plate: Aluminum
¶Dimensions
in mm.
¶Mounting torque
• Mounting Hole for Heat Sink:
0.4N·m( 5.0kgf·cm)max
• Mounting Hole for FG:
1.2N·m(12.8kgf·cm)max
mm
(inch)
¶
Div.0.2inch
¶
Unit :

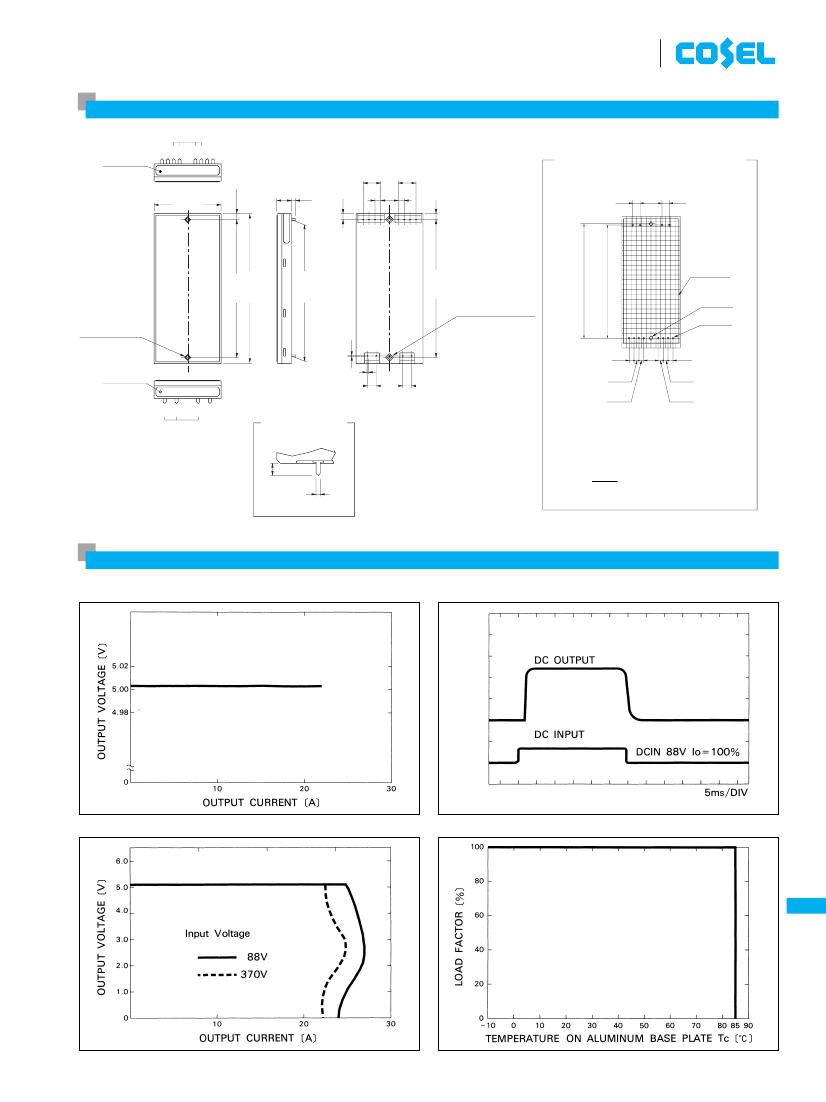

Performance data
¡
STATIC CHARACTERISTICS (DAS100F05)
¡
RISE TIME & FALL TIME (DAS100F05)
¡
OVERCURRENT CHARACTERISTICS (DAS100F05)
¡
DERATING CURVE
DAS
DAS-5
