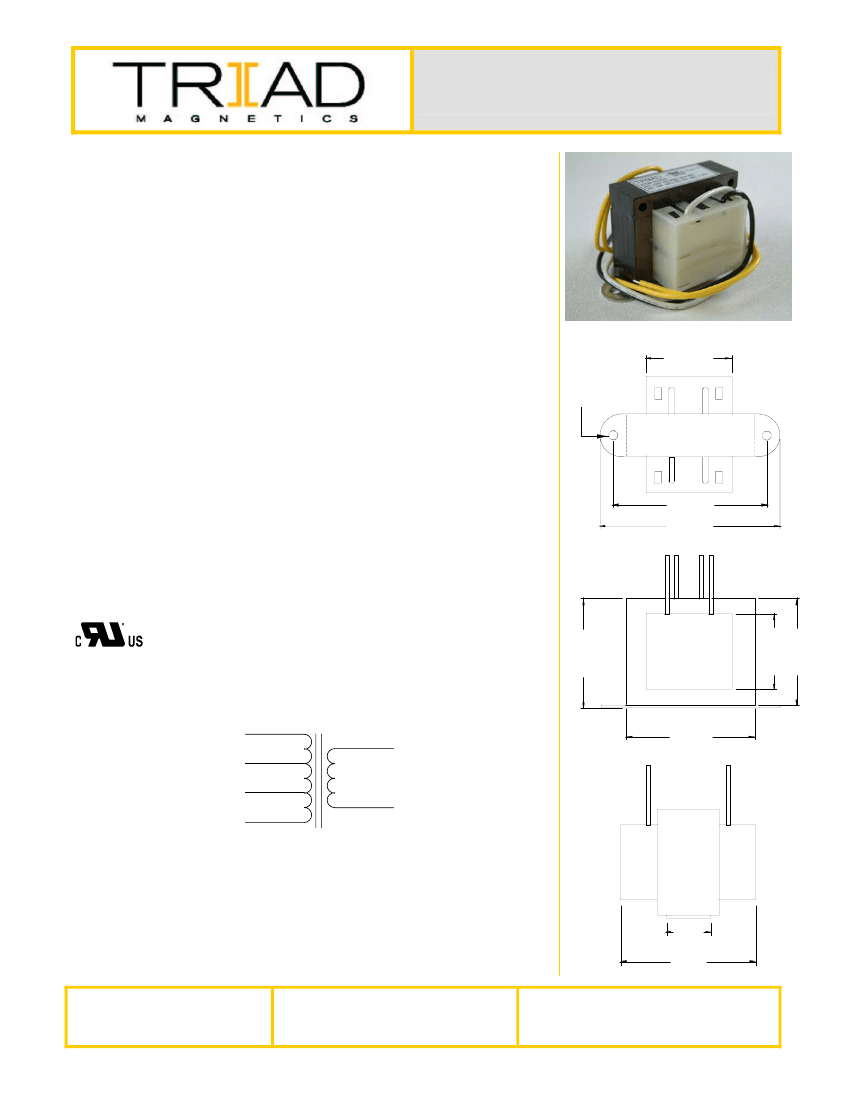

Control Transformer
Class 2
TCT50-05E07K
Description:
Triad control transformers come with tamper resistant shrouds for safety and a
steel bracket welded to the bottom of the transformer for ease of mounting. These
transformers are design and have the safety agency recognition for application
where a Class 2 transformer is necessary. Some of the applications would include,
but not limited to HVAC, Control boards, Lighting, etc.
Electrical Specifications (@25C):
1. Maximum Power: 50VA
2. *Input (BLK-WHT): 120V, 50/60 Hz, (Fuse: 0.800A Max)
(BLK-BLU): 208V, 50/60Hz, (Fuse: 0.400A Max)
(BLK-RED): 240V, 50/60Hz, (Fuse: 0.375A Max)
3. Output (YEL-YEL): 24V @ 2.08Amps, (Fuse: 3.0A Max)
4. Voltage Regulation: 15% TYP @ full load to no load
5. Temperature Rise: <40°C TYP
6. Hipot: 1500VAC – Input to Output, Input & Output to Core
7. Recommended Fusing: UL Listed, 3AG time-delay type. Fuse can be use on
primary or secondary.
* Only one input voltage to be applied to primary at any time.
Picture for illustration only!!
1.80±.0.04
0.19+0.01,-0
3.13±0.02
Construction:
Three flange bobbin construction with primaries and secondaries wound side by
side for low capacitive coupling. Unit weight is 2.0lbs.
3.64±0.02
Agency File:
UL: File E65390, UL 5085-3 (1585), Class 2 Transformer
cUL: File E65390, UL 5085-3 (1585) For Canadian Use (CSA 22.2, No.66.3-06)
1.55±0.02
2.17±0.04
2.22±0.04
Connections:
Input: 12±1” insulated leads, stripped and tinned 0.20±0.08”, 18AWG stranded
Output: 12±1” insulated leads, stripped and tinned 0.20±0.08”, 18AWG stranded
Schematic:
BLK
WHT
BLU
2.6±0.02
YEL
YEL
RED
RoHS Compliance:
As of manufacturing date February 2005, all standard
products meet the requirements of 2011/65/EU, known as the RoHS initiative.
As of April 7, 2008, UL standards 506 and 1585 will be migrated to UL 5085-2 and
5085-3, respectively.
* Upon printing, this document is considered “uncontrolled”. Please contact
Triad Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
0.87±0.04
2.74±0.04
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
