ZWS100BAF-24/CO2 datasheet, PDF

Datasheet> All Categories > Power/power management> ZWS100BAF-24/CO2

ZWS100BAF-24/CO2: DescriptionSwitching Power Supplies 103W 24V 4.3A; CategoryPower/power management; File Size458KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

ZWS100BAF-24/CO2 Overview

Switching Power Supplies 103W 24V 4.3A

ZWS100BAF-24/CO2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK-LAMBDA
Product Category	Switching Power Supplies
RoHS	Details
Output Voltage-Channel 1	24 VDC
Output Power	103 W
Open Frame/Enclosed	Open Frame
Input Voltage	115 VAC to 230 VAC
Output Current-Channel 1	4.3 A
Industry	Commercial
Length	3.74 in
Width	8.27 in
Height	1.97 in
Approvals	EN60950-1, UL60950-1
Factory Pack Quantity	1
Unit Weight	1.543 lbs

Preview

Download Datasheet

View All

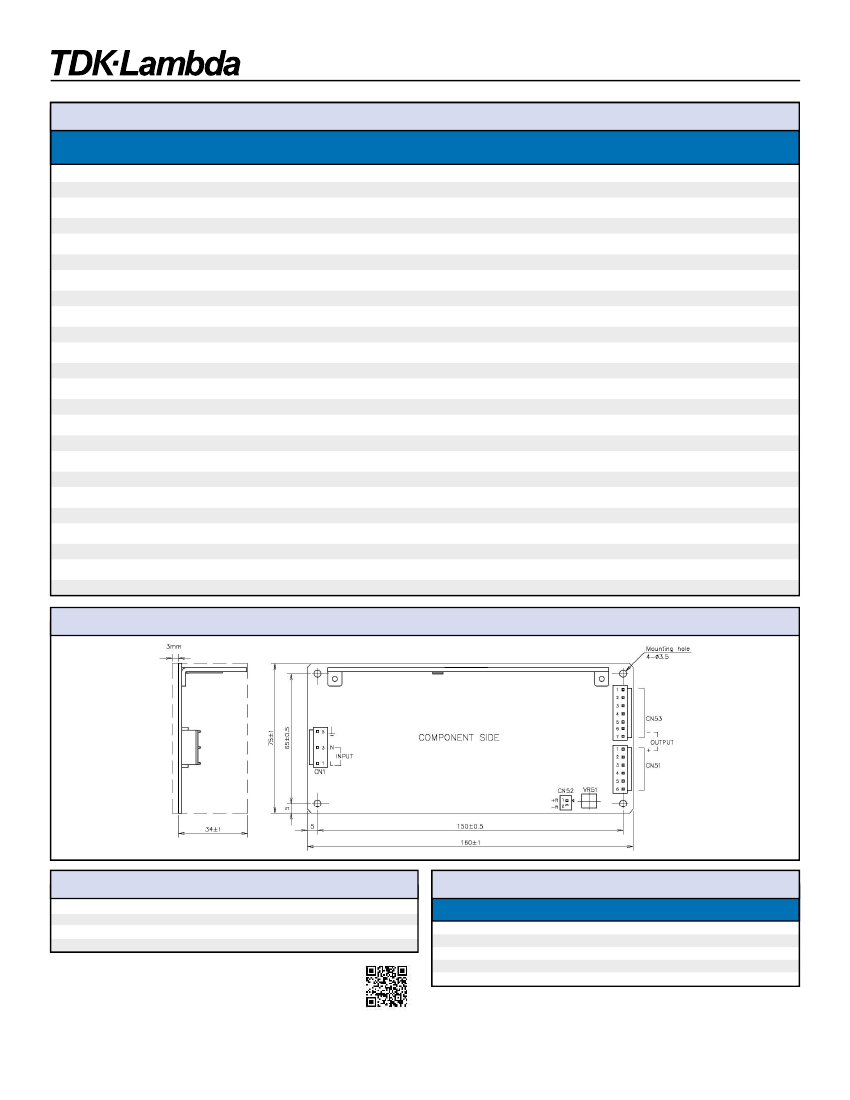

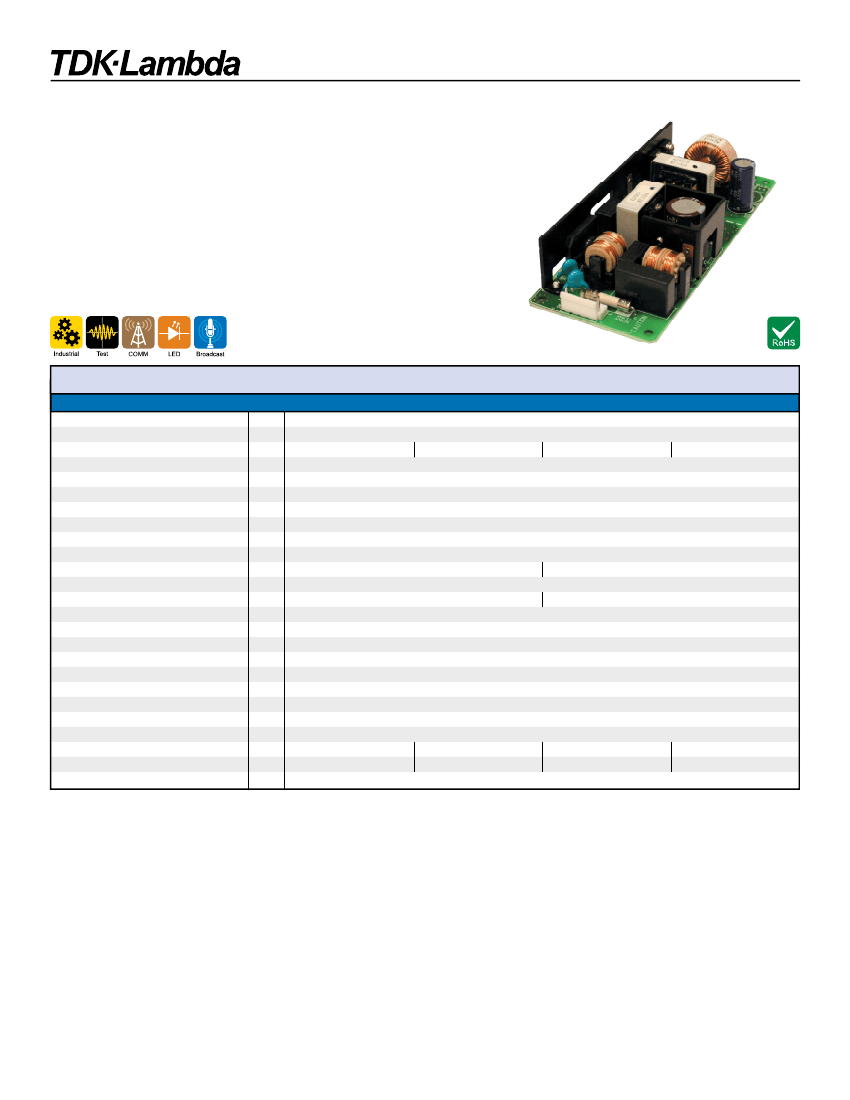

ZWS50-150BAF Series

33-150W Single Output, High Reliability AC-DC Power Supplies

Features



33W to 150W



Universal Input (85 - 265VAC)



Power factor Corrected



Convection Cooled



5 year warranty



Compact Design

Key Market Segments & Applications

Speciﬁcations

Model

AC Input Voltage range

DC Input Voltage range

Input Current (Typical)

Inrush Current

Power Factor (Active)

Maximum Ripple and Noise

Temperature Coeﬃcient

Overcurrent Protection (1)

Hold Up Time (Typ) at 100VAC

Leakage Current

Remote On / Oﬀ

Operating Temperature (Convection)

Operating Temperature (Forced Air)

Storage Temperature

Humidity (non condensing)

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (W x H x D)

Warranty

°C

yrs

ZWS75BAF

ZWS100BAF

ZWS150BAF

85-265VAC (47-63Hz)

120 - 370VDC*

0.65 / 0.35

0.95 / 0.5

1.3 / 0.65

1.9 / 0.95

14 / 28 25°C ambient, cold start

Meets EN61000-3-2 (Typically 0.97/0.91)

3.3 & 5V: 120mV, 12 to 24V: 150mV, 48V: 200mV

<0.02%/°C

>105% of maximum output current

20ms

0.5mA max, 0.4mA typ at 230VAC

None

Optional

-10 to +70°C, derate linearly to 50% load from 50 to 70°C

N/A

-10 ~+70°C, derate linearly to 75% load from 60 ~70°C

-30 to +75°C

Operating: 30 - 90%RH, storage: 10 - 90%RH

I/P to Grnd 2kVAC (10mA), I/P to O/P 3kVAC (10mA), O/P to Grnd 500VAC (20mA) for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 (OV II), CE Mark

EN55011/EN55022-B, FCC-B, VCCI-B

IEC61000-4-2 (lv 2,3), -3 (lv3), -4 (lv 3), -5 (lv 3,4), -6 (lv 3), -8 (lv 4), -11

165

230

290

390

1.97 x 1.02 x 5.2”

1.97 x 1.3 x 5.9”

2.44 x 1.3 x 6.1”

2.95 x 1.46 x 6.3”

Five Years

*Safety certiﬁed for AC input only

ZWS50BAF

Notes:

(1) Avoid prolonged operartion in overload

(2) 100 / 200VAC Input

(3) 60°C: 70% load

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
