182H117 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 182H117

182H117: DescriptionPower Transformers Dual Secondary, Open 80VA, 234V CT @342ma; CategoryPower management transformer; File Size340KB，2 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Parametric View All

182H117 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	182H117	-	-	View	Buy Now

182H117 Overview

Power Transformers Dual Secondary, Open 80VA, 234V CT @342ma

182H117 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Certification	CE, CSA, UL
high	38.61 mm
Nominal input voltage	234 V
Insulation voltage	4000 V
Installation features	CHASSIS MOUNT
Number of primary windings	2
Number of secondary windings	2
physical size	94.74mm x 38.61mm
surface mount	NO
Transformer type	TOROIDAL POWER TRANSFORMER
VA rating	80 VA
Base Number Matches	1

Preview

Download Datasheet

View All

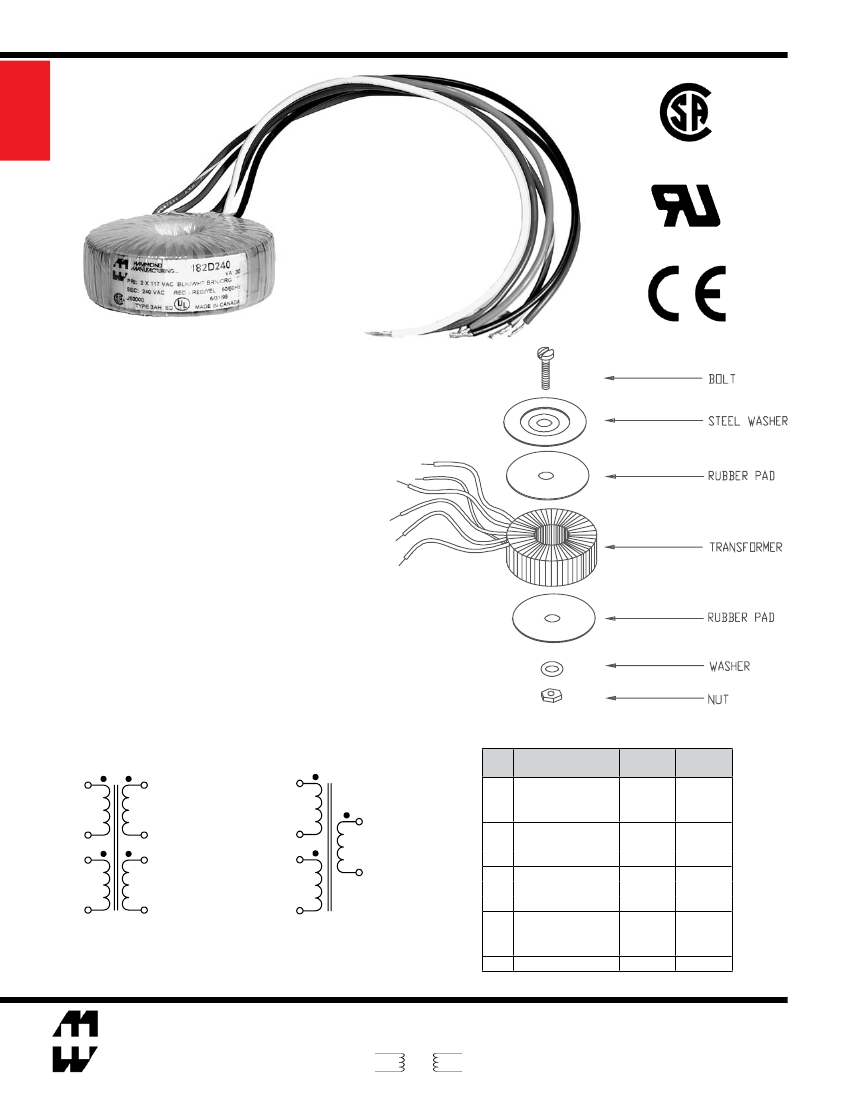

Toroidal (182 Series)

Power

TOROIDAL POWER

TRANSFORMERS

• Low profile, lightweight, cool running - due to high

efficiency toroidal design

•

Dual 117/234 VAC primary, 50/60 Hz. operation

•

Center single hole mounting

•

Supplied with two rubber insulating pads, one metal

centering washer and all mounting hardware

• Center bolt size is 10-24 x 3 inch RHMS zinc plated

• Minimum 8" long flexible leads

•

Due to toroid design - no electrostatic shield required

• Hi-Pot test of 4,000V RMS between primary &

secondary

• CSA certified to C22.2 #66 - CSA file #209651

• UL recognized to UL506 - UL file #E207860

• CE certified to IEC950

Transformer Schematics

Dual Secondary

Schematic

Primary

Blk

Secondary

Red

Single Secondary

Schematic

Primary

Blk

Secondary

Dimension Table

Dim. Outside Diameter

Ref.

(Inches)

3.20

2.95

3.63

3.73

3.98

4.43

4.97

5.06

5.50

6.10

6.40

6.50

7.20

Height

(Inches)

1.25

1.60

1.73

1.52

1.68

1.73

1.90

2.27

2.21

3.10

3.50

Weight

(Lbs.)

0.76

1.12

1.67

2.15

2.84

3.87

4.96

5.58

8.46

10.38

13.53

16.49

24.97

Wht

Brn

Blu

Gry

Wht

Brn

Red

Blu

Orn

Yel

Orn

For wiring diagrams - visit our website:

www.hammondmfg.com

Guelph, Ontario (519) 822-2960

St. Laurent, Quebec (514) 343-9010

Cheektowaga, NY (716) 630-7030

CANADA

USA

www.hammondmfg.com

Basingstoke, UK 01256 812812

Queenstown, Australia 61-8-8240-2244

EUROPE

AUSTRALIA
