SPACE SAVING WIRELESS LED SINGLE CHANNEL
LIGHT CONTROLLER WITH REMOTE CONTROL
FEATURES
Ten Brightness Levels
Eight Speed/Fade Modes
Space Saving Control
5V-24VDC Operation
Standard 2.1mm barrel input and output
connectors
Power-Fail memory
PARAMETERS
Output: 1 channel
Connection mode: common anode
Static Power: <0.5W
Load Current Maximum: 6A
Output power: 5V<30W, 12V < 72W, 24V <144W
Operating Temperature: -20-60°C
OPTIONAL ACCESSORIES
ZCH-1830PLUG-1
ZCH-915SOCK-1
ZPS-20
24V 2A POWER SUPPLY
ZPS-12
24V .5A POWER SUPPLY
ZPS-1235
12V 3A POWER SUPPLY
ZPS-1260
12V 5A POWER SUPPLY
OTHER POWER SUPPLIES AVAILABLE
INPUT DC FEMALE: 5.5 X 2.1mm
OUTPUT DC MALE: 5.5 X 2.1mm
CONTROLLER DIMENSIONS
CONTROLLER TO POWER SUPPLY SET UP
JKL PART NO.: ZCTR-08
METRIC
THIRD ANGLE
PROJECTION
DIMENSIONS ARE
IN mm (INCHES)
TOLERANCE UNLESS
OTHERWISE SPECIFIED
TITLE
COMPONENTS CORPORATION
LED REMOTE CONTROLLER
1 PL +/-
2 PL +/-
ANGLE +/-
REF.
A
REV.
NO.
ADD & DELETE ACCESSORIES
RELEASE
DESCRIPTION/ECO
NUMBER
2/24/16
L. WENGSTROM
L.R.
2/4/16
APPV'D
DATE
DRAWN BY
APPV'D BY
DATE
SIZE
2/24/16
MANUAL REVISIONS NOT PERMITTED
- CAD DRAWING -
SCALE
A
55335
NONE
FSCM NO.
DRAWING
NO.
RELEASED
DATE
ZCTR-08
REVISION
DATE
2/4/16
2/24/16
REV.
NO.
A
1
SHEET
OF
2

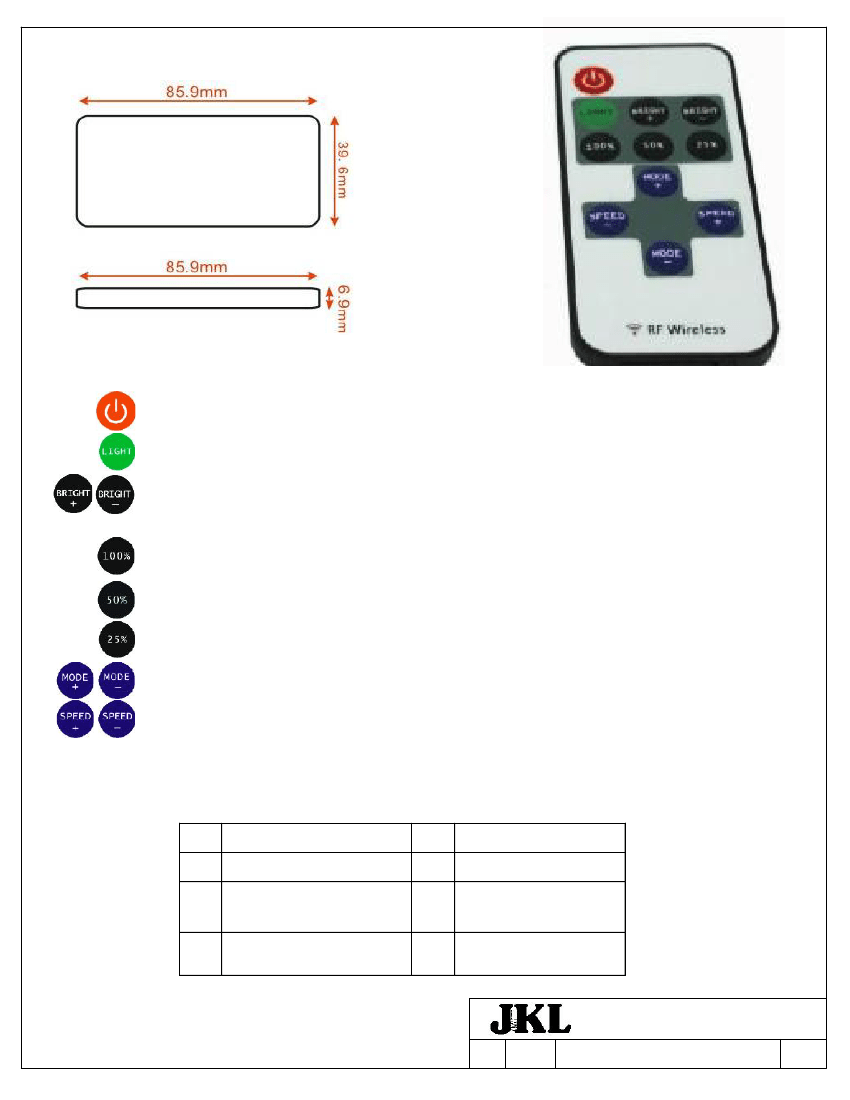

REMOTE DIAMENSIONS
REMOTE INSTRUCTIONS
On/ off key.
Switch to static mode from dynamic mode.
Switch to static mode from dynamic mode, and change the brightness forward/ reverse direction,
it has 10 levels.
Switch to static mode full brightness.
Switch to static mode half brightness.
Switch to static mode quarter brightness.
Switch to dynamic mode from static mode, and change the dynamic mode forward/reverse direction.
Switch to dynamic mode from static mode, and change the speed forward/reverse
direction, it has 10 levels.
REMOTE MODES TABLE
1
2
3
4
Quick flash
Breathing mode
Fading bright and fading
out
Fading bright and fading
dark
5
6
7
8
Half stroboflash
Two-thirds stroboflash
A third stroboflash
Flash
COMPONENTS CORPORATION
SIZE
A
55335
FSCM NO.
DRAWING
NO.
ZCTR-08
2
OF
2
SHEET
