RBM-0515S Overview

Isolated DC/DC Converters 1W DC/DC MICRO 3kV UNREG 5Vin 15Vout

RBM-0515S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	RECOM
package instruction	, SIP5/6,.23
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PSMA-P5
length	16.55 mm
Maximum load regulation	10%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.066 A
Maximum output voltage	15.75 V
Minimum output voltage	14.25 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP5/6,.23
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	8.2 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	6 mm

Preview

Download Datasheet

View All

Features

Unregulated

Converters

Description

●

Micro Size SIP 6 Package

Industry Standard Pinout

Power Sharing on Dual Output Version

3kVDC Isolation

Optional Continuous Short Circuit Protected

Efficiency to 85 %

ECONOLINE

DC/DC-Converter

with 3 year Warranty

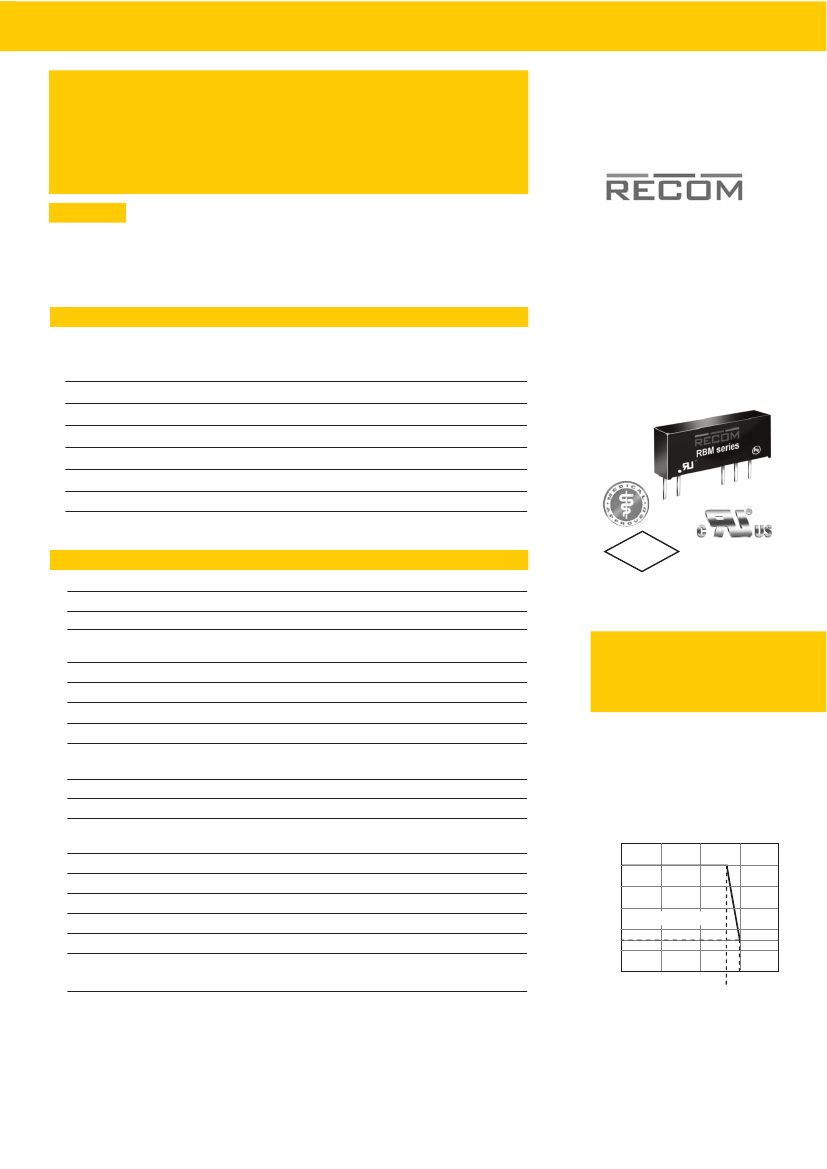

The RBM Micro Size DC/DC-Converter complements Recom’s industrial range of

converters. This range is widely used for pcb distributed power systems and combines

small package size, high efficiency, 3kVDC isolation and low output ripple.

The extended operating temperature range covering –40°C to +85°C is a standard

feature. The full rated power can be taken from a single pin of this dual output converter,

provided this does not exceed 1 Watt

Selection Guide

Part

Number

SIP 6 Micro Size

RBM-xx05S

RBM-xx12S

RBM-xx15S

RBM-xx05D

RBM-xx12D

Input

Voltage

(VDC)

5, 12

Output

Voltage

(VDC)

±5

±12

Output

Current

(mA)

200

±100

±41

Efficiency

(%)

70-78

78-80

80-84

74-78

80-82

Max

Capacitive

Load

(1)

1000µF

470µF

±470µF

±220µF

1 Watt

SIP 6 Micro

Size, Single

Dual Output

RBM-xx15D

5, 12

±15

±33

80-84

±220µF

xx = Input Voltage. Other input and output voltage combinations available on request.

* add Suffix “P” for Continuous Short Circuit Protection, e.g.

RBM-0505S/P, RBM-0505D/P

Specifications

(

measured at TA = 25°C, nominal input voltage, full load and after warm-up)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation

(10% to 100% full load)

Output Ripple and Noise (20MHz limited)

Operating Frequency

Efficiency at Full Load

Minimum Load = 0%

Isolation Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

P-Suffix

Operating Temperature Range (free air convection)

Storage Temperature Range

Relative Humidity

Package Weight

Packing Quantity

MTBF (+25°C)

(+85°C)

Certifications

CB Test Report

UL General Safety

EN General Safety

EN Medical Safety

Report: US/15348/UL

Report: E358085

Report: SPCLVD1109103

IEC 60950-1:2005 2nd Ed.

UL 60950-1 2nd Ed.

EN60950-1:2001 + A11:2004

(tested for 1 second)

(rated for 1 minute**)

5V output type

12, 15V output types

±10%

±5%

1.2%/1% of Vin typ.

15% max

10% max

100mVp-p max.

50kHz min. / 100kHz typ. / 105kHz max.

70% min. / 80% typ.

Specifications valid for 10% minimum load only.

3000VDC

1500VAC / 60Hz

20pF min. / 65pF max.

15 GΩ min.

1 Second

Continuous

-40°C to +85°C (see Graph)

-55°C to +125°C

Output Power (%)

100

2011/65/EU

6/6

RoHS

E-358085

EN-60950-1 Certified

UL-60950-1 Certified

EN-60601-1 Certified

RBM

Derating-Graph

(Ambient Temperature)

95% RH

1.3g

30 pcs per Tube

Detailed Information see

Application Notes chapter "MTBF"

Safe Operating Area

}

using MIL-HDBK 217F

1005 x 10

hours

195 x 10

hours

Operating Temperature °C

-40

100

150

**Any data referred to in this datasheet are of indivative nature and

based on our practical experience only. For further details, please refer

to our Application Notes.

Report: MDD1205098-4 + RM1205098-4IEC/EN 60601-1 3rd Edition

Medical Report + ISO14971 Risk Assessment

Refer to Application Notes

E-43

www.recom-power.com

REV: 0/2015
