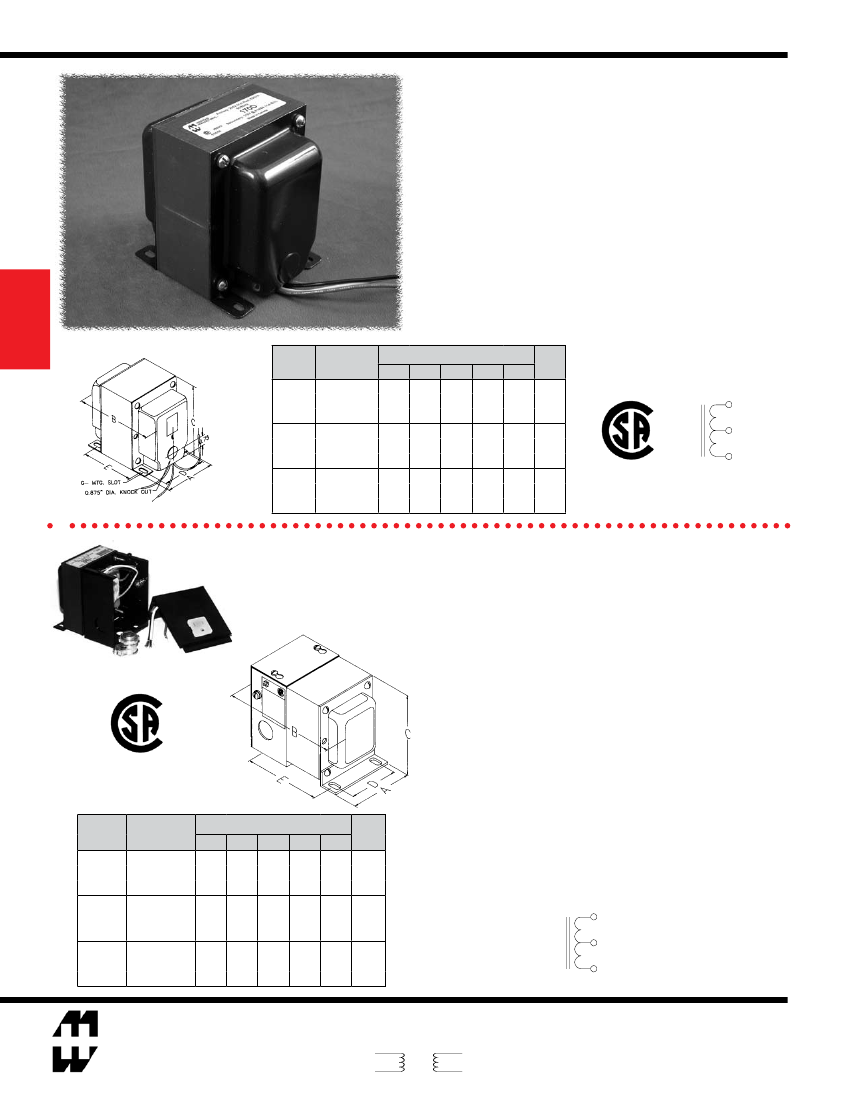

"Auto"
- Hard Wired (170 Series)
HARD WIRED
LINE AUTOTRANSFORMERS
•
Single winding, does not provide isolation, for use where
equipment is already isolated and only voltage change
is required.
•
Flexible world wide applications, 50 or 60 Hz. operation,
step down (230VAC to 115 VAC) or step up
(115VAC to 230VAC).
• Connection by flexible leads, 8" minimum length.
• Models 170A, 170B, 170C & 170D are CSA certified
(# LR 3902).
•
Remember
- These units do NOT convert line
frequency.
Line
Part
No.
170
170A
170B
170C
170D
170E
170F
170G
170J
Capacity
VA
50
100
200
300
500
750
1000
1500
2000
Dimensions (Inches)
A
2.19
2.50
3.13
3.13
3.75
3.75
3.75
4.38
4.38
B
2.63
3.00
3.50
4.00
4.50
5.50
5.50
6.63
6.63
C
2.63
3.06
3.81
3.81
4.56
4.56
4.56
5.30
5.25
D
1.75
2.00
2.50
2.50
3.00
3.00
3.00
3.50
3.50
E
1.56
2
1.94
3
2.19 4.5
2.69
6
3.31 10
4.31 14
4.31 14.5
5.10 22
5.10 23
Wt.
Lbs.
230V Red
115V Blk
0V Yel
HARD WIRED
LINE AUTOTRANSFORMERS
•
Single winding, does not provide isolation, for use
where equipment is already isolated and only voltage
change is required.
•
Flexible world wide applications, 50 or 60 Hz.
operation, step down (230VAC to 115 VAC) or step up
(115VAC to 230VAC).
•
Totally enclosed rear case, includes handy internal
grounding bolt.
•
Extra vacuum varnish for use in high humidity.
•
Includes a rear mounted (but not wired), standard
115VAC, 3-wire receptacle.
•
Enclosed case with convenient knockouts and includes
two cable clamps allowing for easy wire connections.
•
Models 170SE, 170AE, 170BE, 170CE & 170DE are
CSA certified (# LR3902)
• Connection by flexible leads, 8" minimum length
•
Remember
- These units do NOT convert line
frequency.
230V Red
115V Blk
0V Yel
Part
No.
170SE
170AE
170BE
170CE
170DE
170EE
170FE
170GE
170JE
Capacity
VA
50
100
200
300
500
750
1000
1500
2000
Dimensions (Inches)
A
3.13
3.13
3.13
3.13
3.75
3.75
3.75
4.38
4.38
B
4.00
4.00
4.25
4.75
5.00
6.00
6.00
7.00
7.00
C
4.13
4.13
4.13
4.13
4.88
4.88
4.88
5.50
5.50
D
2.25
2.25
2.25
2.25
2.75
2.75
2.75
3.25
3.25
E
3.13 3.5
3.13
4
3.38
5
3.88 6.5
4.13 10
5.13 15
5.13 15.5
5.88 23.5
5.88 24.0
Wt.
Lbs.
Guelph, Ontario (519) 822-2960
St. Laurent, Quebec (514) 343-9010
©
Cheektowaga, NY (716) 630-7030
CANADA
USA
www.hammondmfg.com
Basingstoke, UK 01256 812812
Queenstown, Australia 61-8-8240-2244
EUROPE
64
AUSTRALIA

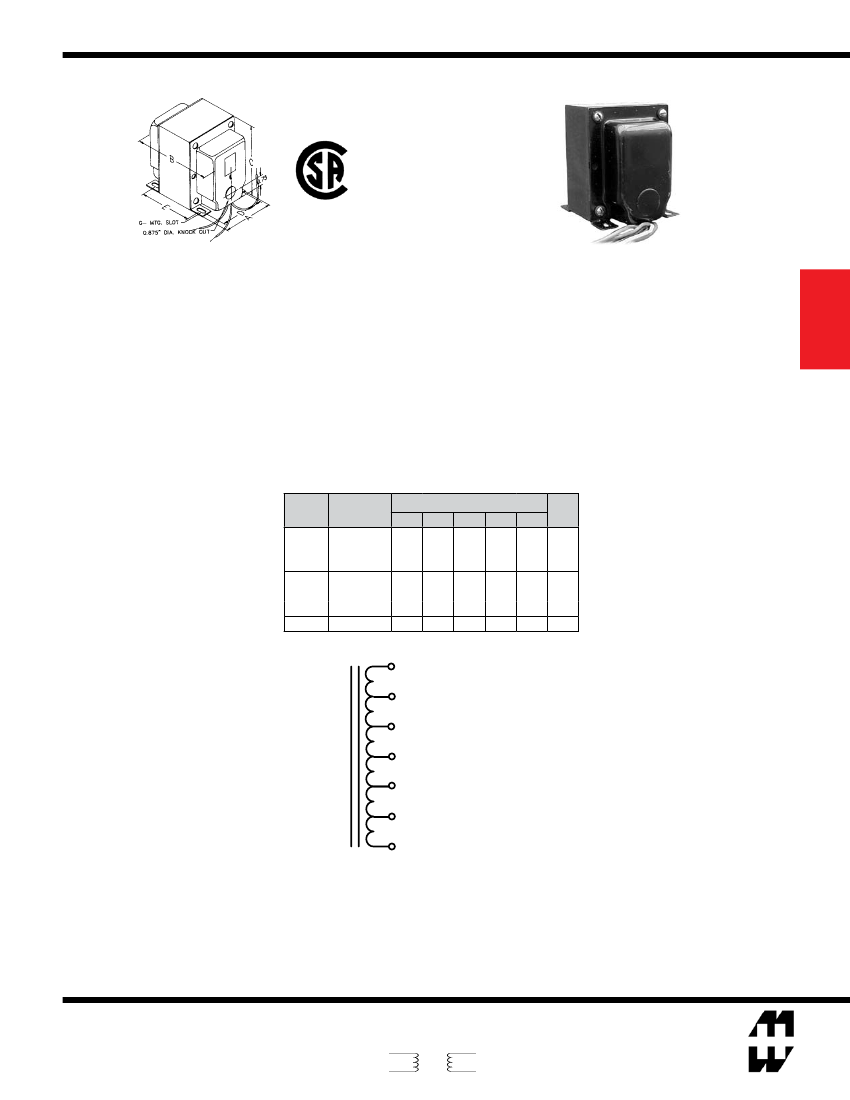

"Auto"
- Hard Wired (168 Series)
HARD WIRED
LINE AUTOTRANSFORMERS
•
Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is
required.
•
Flexible world wide applications, 50 or 60 Hz. operation, 115VAC input.
•
Output taps @ 85, 95, 105, 110, 115 and 125VAC.
•
Ideal for manual line voltage adjustment for electronic equipment or small appliance operation.
• Models 168B, 168C & 168D are CSA certified (# LR3902)
• Connection by flexible leads, 8" minimum length.
•
Remember
- These units do NOT convert line frequency.
Part
No.
168B
168C
168D
168E
168F
168H
168J
Capacity
VA
200
350
500
750
1000
1500
2000
Dimensions (Inches)
A
3.13
3.13
3.75
3.75
3.75
4.38
4.38
B
3.25
4.00
4.00
4.50
5.50
6.13
6.63
C
3.81
3.81
4.56
4.56
4.56
5.25
5.25
D
2.50
2.50
3.00
3.00
3.00
3.50
3.50
E
1.94
2.69
2.81
3.31
4.31
4.50
5.10
Wt.
Lbs.
4.3
6.5
8
10
14
20
23
Line
125V Orn
115V Yel
110V Red
105V Grn
95V Brn
85V Wht
0V Common Blk
Basingstoke, UK 01256 812812
Queenstown, Australia 61-8-8240-2244
EUROPE
www.hammondmfg.com
AUSTRALIA
Guelph, Ontario (519) 822-2960
St. Laurent, Quebec (514) 343-9010
Cheektowaga, NY (716) 630-7030
CANADA
USA
65
©
