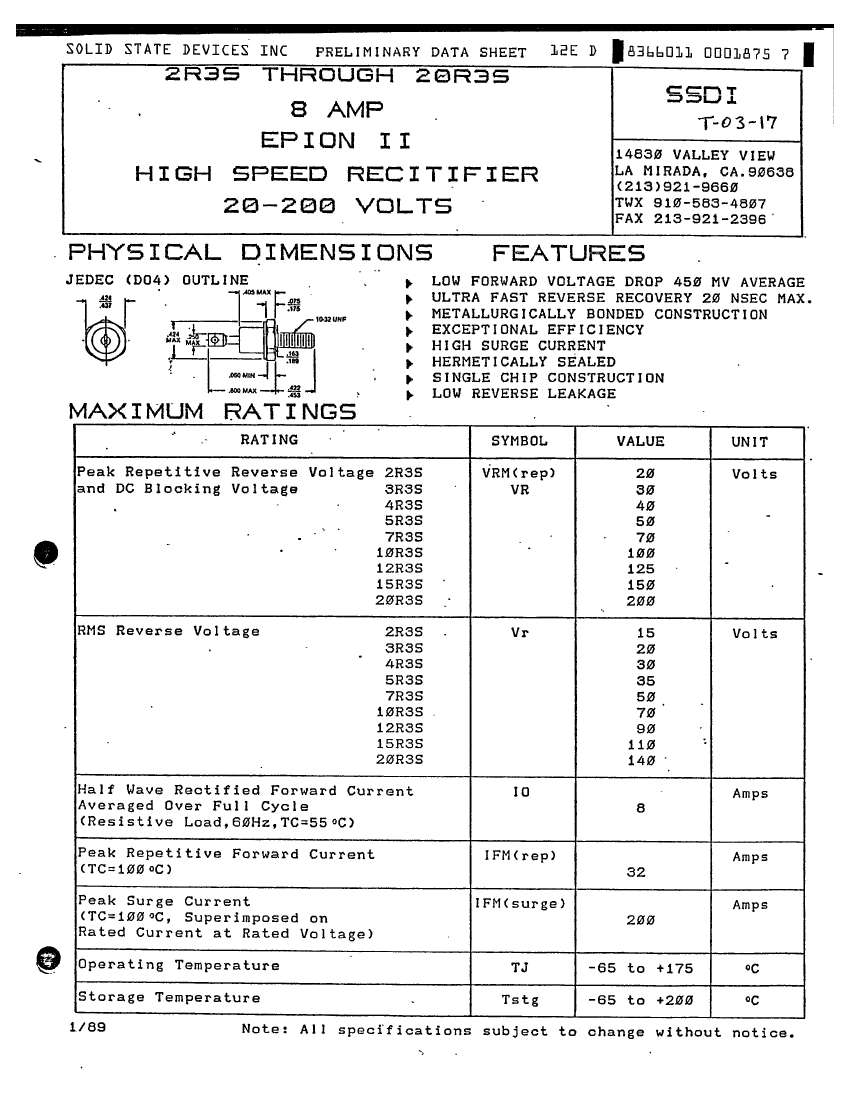

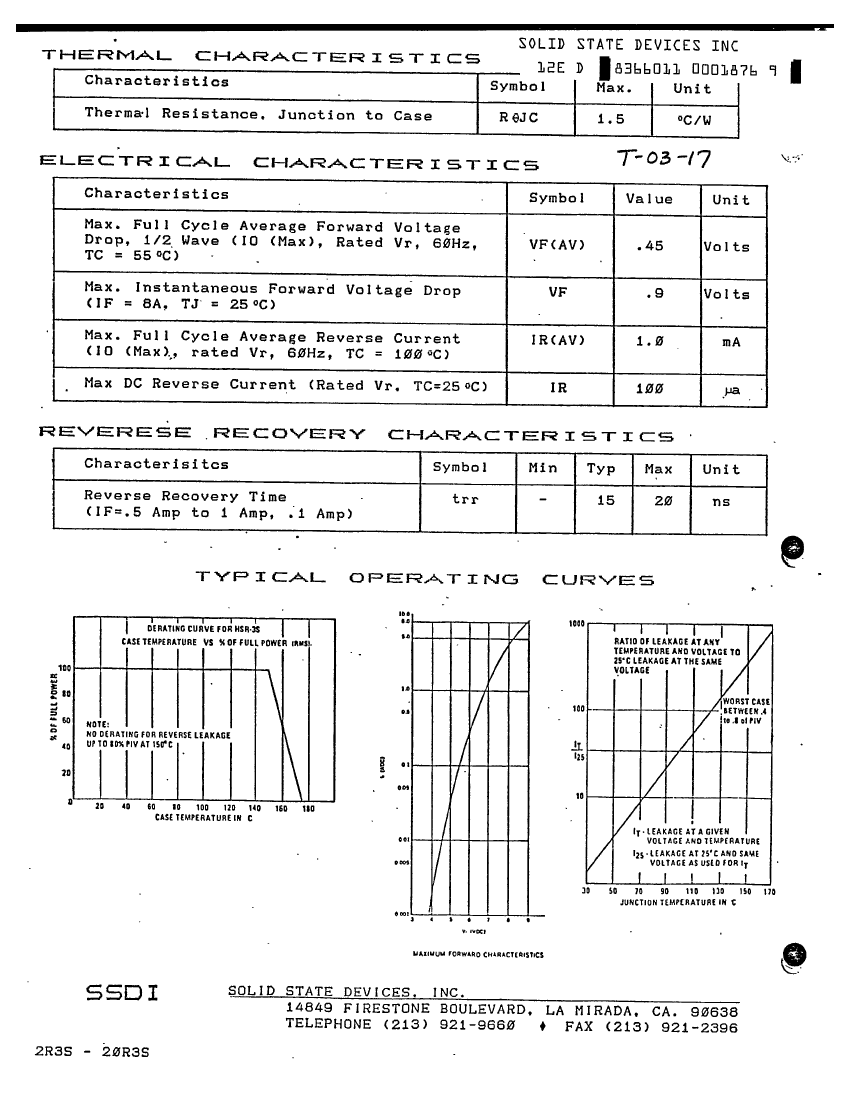

Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, DO-4,
| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| application | HYPER FAST RECOVERY |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.9 V |
| JEDEC-95 code | DO-4 |
| JESD-30 code | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 200 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 8 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V |
| Maximum reverse recovery time | 0.02 µs |
| surface mount | NO |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| 10R3S | 15R3S | 12R3S | 20R3S | 7R3S | 4R3S | 5R3S | 2R3S | 3R3S | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 150V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 125V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 70V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 40V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 20V V(RRM), Silicon, DO-4, | Rectifier Diode, 1 Phase, 1 Element, 8A, 30V V(RRM), Silicon, DO-4, |
| Reach Compliance Code | compli | compli | compli | compli | compliant | compliant | compliant | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY | HYPER FAST RECOVERY |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 | DO-4 |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 200 A | 200 A | 200 A | 200 A | 200 A | 200 A | 200 A | 200 A | 200 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Maximum output current | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V | 150 V | 125 V | 200 V | 70 V | 40 V | 50 V | 20 V | 30 V |
| Maximum reverse recovery time | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs | 0.02 µs |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maximum forward voltage (VF) | 0.9 V | 0.9 V | 0.9 V | - | 0.9 V | 0.9 V | 0.9 V | 0.9 V | 0.9 V |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - | - |
| Maker | - | - | - | - | SSDI | SSDI | SSDI | SSDI | SSDI |
