P8208T: DescriptionCurrent Transformers SMD Current Sense 2000uH 5.5Ohms; CategoryPower/power management; File Size402KB，2 Pages; ManufacturerPulse

Download Datasheet Parametric Compare View All

P8208T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P8208T	-	-	View	Buy Now

P8208T Overview

Current Transformers SMD Current Sense 2000uH 5.5Ohms

P8208T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse
Product Category	Current Transformers
RoHS	No -; RoHS Version Available
Mounting Style	SMD/SMT
Inductance	2 mH
Current Rating	10 A
Turns Ratio	1:100
Secondary Resistance	5.5 kOhms
Termination Style	SMD/SMT
Length	8.38 mm
Width	7.21 mm
Height	5.5 mm
Frequency Range	50 kHz to 1 MHz
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Factory Pack Quantity	900
Unit Weight	0.011993 oz

Preview

Download Datasheet

View All

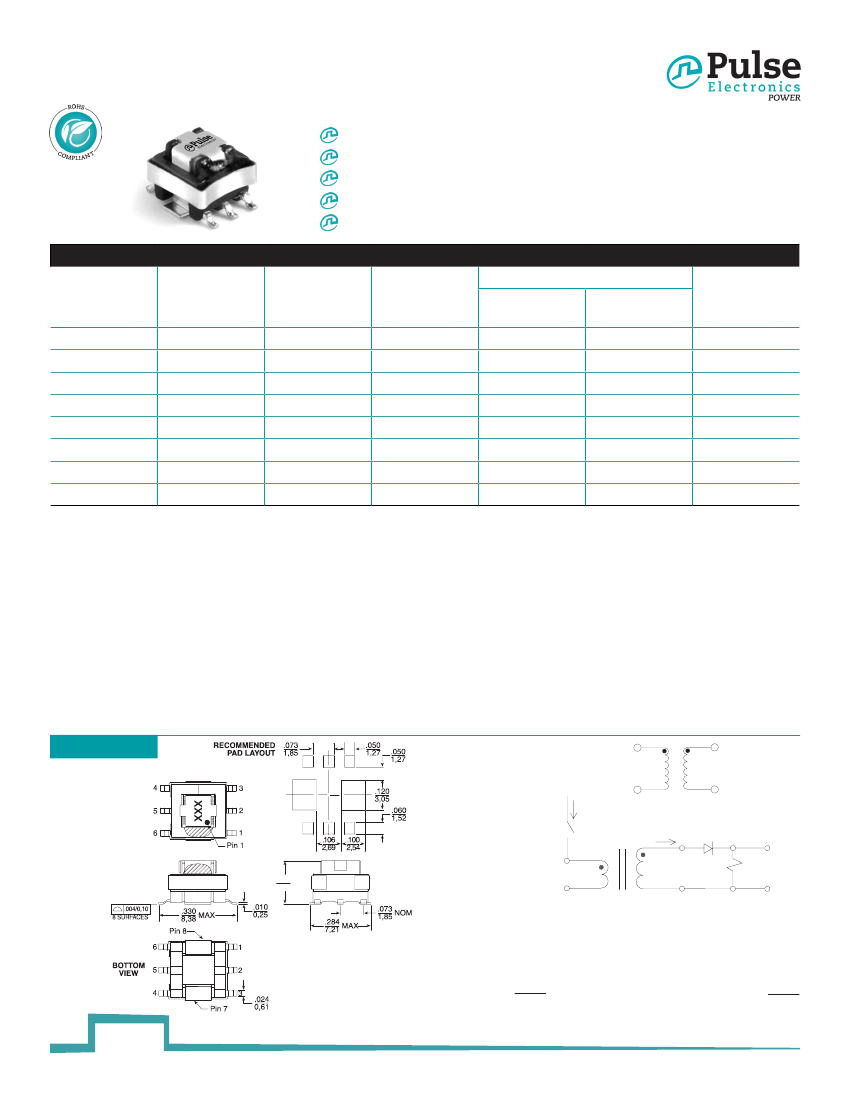

SMT Current Sense Transformer

P820X Series

Height:

5.5mm Max

Footprint:

8.4mm x 7.2mm Max

Current Rating:

up to 10A

Frequency Range:

20kHz to 1MHz

Lower Primary DCR version available: PA1005.XXX series

Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C

Part

Number

6, 7

Turns

Ratio

1:20

1:30

1:40

1:50

1:60

1:70

1:100

1:125

Current

Rating

(A)

Secondary

Inductance

(mH MIN)

0.08

0.18

0.32

0.50

0.72

0.98

2.00

3.00

DCR

(mΩ MAX)

Primary

(8-7)

Secondary

(1-3)

550

870

1140

1500

2250

4700

5500

6500

Hipot

RMS

)

500

P8202NL

P8203NL

P8204NL

P8205NL

P8206NL

P8207NL

P8208NL

P8209NL

Notes:

1. The temperature of the component (ambient temperature plus temperature rise) must be

within the specified operating temperature range.

2. The maximum current rating is based upon temperature rise of the component and

represents the DC current which will cause a typical temperature rise of 40C with no airflow.

3. To calculate the value of the terminating resistor (Rt) use the following formula:

Rt (Ω) = Vref * N / (Ipeak_primary)

4. The peak flux density of the device must remain below 2000 Gauss. To calculate the peak

flux density for uni-polar current use following formula:

= 37.59 * V

REF

* (Duty_Cycle_Max) * 10

/ (N * Freq_kHz)

* for bi-polar current applications divide B

(as calculated above) by 2.

5. Part number

P8222

P8229

are reverse polarity versions of

P820X.

6. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. P8202NL becomes P8202NLT). Pulse complies to industry standard

tape and reel specification EIA481.

7. The “NL” suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are

not necessarily RoHS compliant, but are electrically and mechanically equivalent to

NL versions. If a part number does not have the “NL” suffix, but an RoHS compliant

version is required, please contact Pulse for availability.

Mechanical

PXXXXNL

Schematic

Iprimary

Isecondary

Vref

.215

5.50 MAX

APPLICATION CIRCUIT

Weight

............................0.34 grams

Tray

.......................................120/tray

Tape & Reel

.........................900/reel

Coplanarity

..................0.004 inches

Dimension:

power.pulseelectronics.com

Inches

Unless otherwise specified, all tolerances are

.010

0,25

PC2005 (02/18)

http://www.power.pulseelectronics.com/contact

P8208T Related Products

	P8208T	P8205	P8206
Description	Current Transformers SMD Current Sense 2000uH 5.5Ohms	Current Transformers SMD Current Sense 500uH 1.5Ohms	Current Transformers SMD Current Sense 720uH 2.25Ohms
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Pulse	Pulse	Pulse
Product Category	Current Transformers	Current Transformers	Current Transformers
RoHS	No -; RoHS Version Available	In Transition	N
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT
Inductance	2 mH	500 uH	720 uH
Current Rating	10 A	10 A	10 A
Turns Ratio	1:100	1:50	1:60
Secondary Resistance	5.5 kOhms	1.5 kOhms	1.75 kOhms
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT
Length	8.38 mm	8.38 mm	8.38 mm
Width	7.21 mm	7.21 mm	7.21 mm
Height	5.5 mm	5.5 mm	5.5 mm
Frequency Range	50 kHz to 1 MHz	50 kHz to 1 MHz	50 kHz to 1 MHz
Factory Pack Quantity	900	120	120
Packaging	Reel	Tray	Tray
Unit Weight	0.011993 oz	0.011993 oz	-
