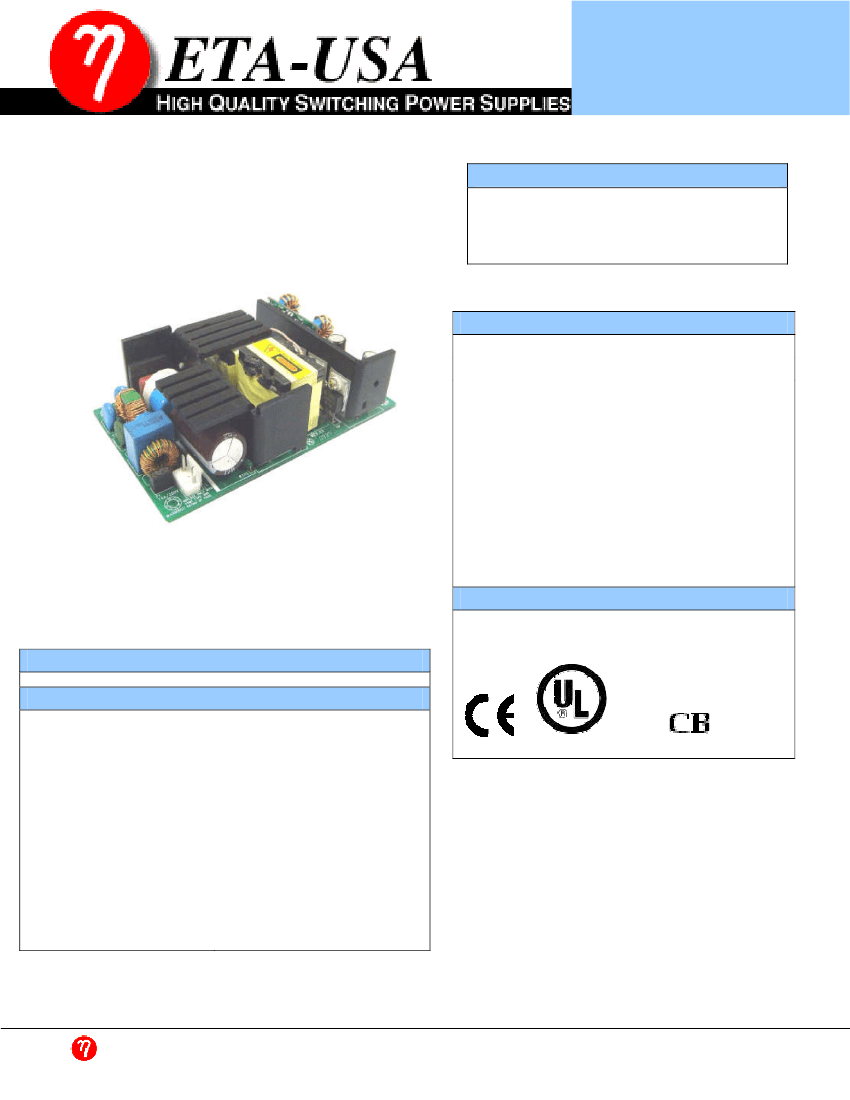

AC/DC SWITCHING POWER SUPPLY
TRIPLE OUTPUT
120 WATTS
UNIVERSAL INPUT
ZWD120-3X-W SERIES
General Description
Features
High reliability
Burn-in and hi-pot tested
Flexible DC output combination from 3.3V to 48V
Safety approvals (Pending), EMC compliance
Overload protection
Short-circuit protection
Over temperature protection
Options
Pending certification:
Application
Broad needs
Input
Input Voltage:
Input Voltage Range:
AC100-240V
AC90~264V
TUV
RoHS
Input current:
Frequency:
Frequency Range:
Phase:
Inrush Current:
*1
2.5A(RMS) @ 115VAC
50/60 Hz
47~63Hz
Single
<40A(max.) at AC115VAC
<80A (max.) 230VAC ,
cold start at 25°C
2.5A @ 115VAC
Input Current (RMS)
ETA USA
16170 Vineyard Blvd. Suite 180, Morgan Hill, CA 95037
Phone: 1-800-ETA-POWR, (408) 778-2793 Fax: (408) 779-2753
Visit us at: www.eta-usa.com
email at: sales@eta-usa.com
Output
Characteristic
Output Voltage
Output Current
Voltage Adjust
Range
Ripple &Noise(max)
Rise time
Hold up time
Models
Unit
Vdc
A
V
mVpp
mS
mS
ZWD120-3X1-W
ZWD120-3X2-W
ZWD120-3X3-W
5
12
24
3.3
5
12
3.3
5
24
10
6
3.5
10
10
3
10
10
3.5
±5%
of Rated Output Voltage(at no load within the input range)
50
120
50
50
120
50
No information available
16 mS at full load and 115VAC nominal line
240
50
240
Efficiency
*1
%
80% typical

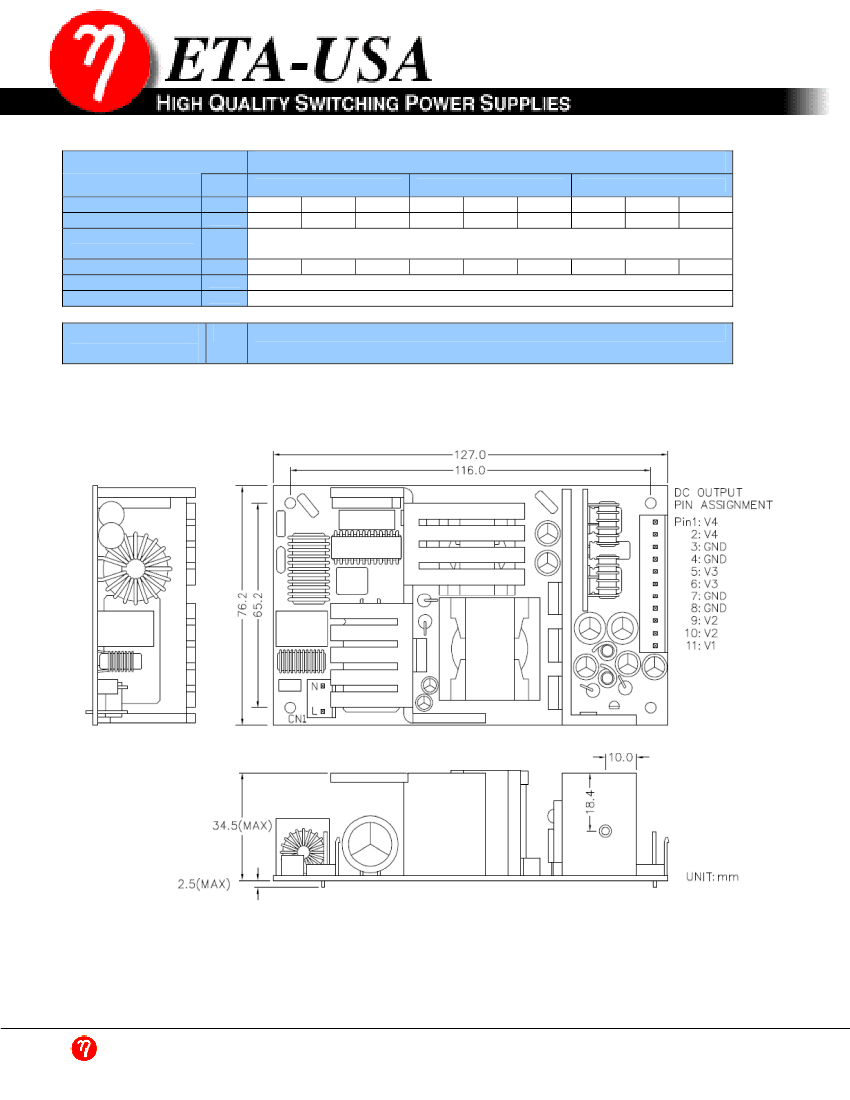

DIMENSIONS
ETA USA
16170 Vineyard Blvd. Suite 180, Morgan Hill, CA 95037
Phone: 1-800-ETA-POWR, (408) 778-2793 Fax: (408) 779-2753
Visit us at: www.eta-usa.com
email at: sales@eta-usa.com
Environmental Specification
Operating Temperature*3
Derating Curve
Operating Humidity
Storage Temperature
Storage Humidity
Temperature Coefficient
0 to +40°C ambient derate after 40°C
-2.5%/°C (from 40°C to 60°C), not available at > 60°C
5~95[%RH] (non-condensing)
-40 to +85°C
5~95%/RH(non-condensing)
±0.05%
/
°C
FCC Class B; CISPR22 Class B; EN55022 Class B CE
No information available
Environmental Agencies
Line Conducted Noise [EMI]
Line Harmonic
Distortion/Current
Safety
Cooling
Complies with
UL: UL60950-1
pending
C-UL: 22.2 CSA60950-1 pending
TUV: EN60950-1
pending
CB: IEC60950-1 (Pending)
Convection
Function/Protection
Over current Protection
Over temperature Protection
Short circuit Protection
Remote Sense
Remote Control
Series Operation
Parallel Operation
Input Fuse
MTBF
Overload protected @110% to 160% above following maximum
rating
Automatic shutdown. Located at HS1 with threshold of
88
±4
°C
typical
Auto-recovery
Not available
Not Available
No information
No information
No information
>100,000 hours
available
available
available
at full load and room temperature
Mechanical
Dimension [mm]
76W
×
127L
×
34.5H
Conditions:
*1 Rated input and Rated output
*2 at Output current quick change 25% to 75%
*3 At 100% load (convection cooling)
