BPD2FF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> BPD2FF

Preview

BPD2FF: DescriptionPower Transformers Class2, Energy Limit 120VAC, 18V, 20VA; CategoryPower/power management; File Size235KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BPD2FF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BPD2FF	-	-	View	Buy Now

BPD2FF Overview

Power Transformers Class2, Energy Limit 120VAC, 18V, 20VA

BPD2FF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Hammond
Product Category	Power Transformers
RoHS	Details
Product	Class 2 Transformers
Primary Voltage Rating	120 VAC
Secondary Voltage Rating	18 VAC
Power Rating	20 VA
Secondary Current Rating	1.11 A
Mounting Style	Plug
Primary Winding	Single Primary Winding
Secondary Winding	Single Secondary Winding
Length	69.85 mm
Width	61.92 mm
Height	53.97 mm
Operating Frequency	60 Hz
Termination Style	Screw Terminals
Type	Energy Limiting Transformers
Factory Pack Quantity	1
Unit Weight	1.100 lbs

Preview

Download Datasheet

View All

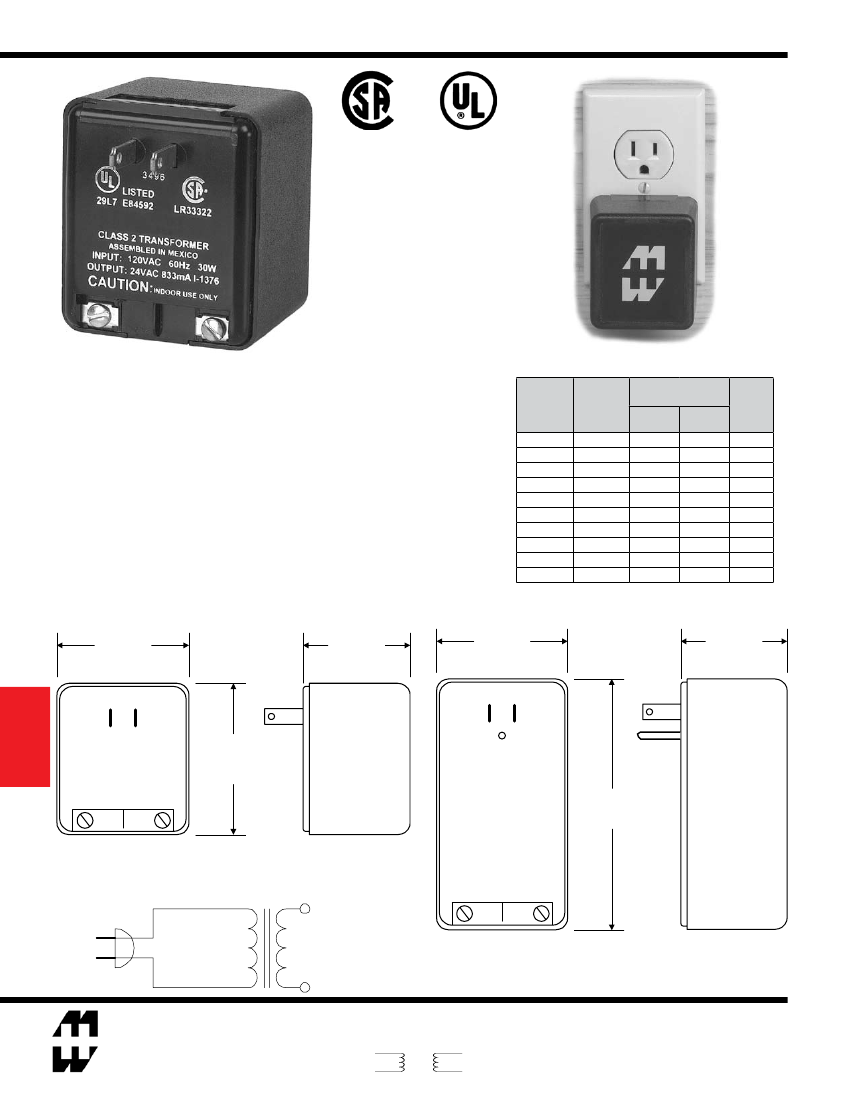

Energy Limiting (BP Series)

CLASS 2 - PLUG IN

ENERGY LIMITING TRANSFORMERS

•

Used in AC powered chimes, door bells, security systems, decorative

lighting, furnaces, humidifiers, appliances, vending machines and

intercom system type applications.

•

Enclosed in an attractive plug in black plastic case.

•

For indoor use only

•

Input 120VAC - 20VA units are inherently limited - no fuses or circuit

breakers.

•

40VA units use an internal slow blow fuse.

•

Secondary - 2 recessed slot head screw terminals (on plug side).

•

All models are 60 Hz.

• CSA certified (#LR 113601) and UL listed (#E 184936)

2.438

2.125

2.80

Part No.

BPD2E

BPD2EE

BPD2F

BPD2FF

BPD2G

BPE2E

BPE2EE

BPE2F

BPE2FF

BPE2G

A.C.

A.C. Output

Power

Input

Secondary (RMS)

Rating

(Primary)

VA

V

A

V (RMS)

120

12

1.67

20

120

14

1.43

20

120

16

1.25

20

120

18

1.11

20

120

24

0.83

20

120

12

3.33

40

120

14

2.86

40

120

16

2.50

40

120

18

2.22

40

120

24

1.67

40

2.13

Class 2

2.75

3.58

20 VA

PRI

(LINE)

CANADA

USA

SEC

(LOAD)

40 VA

Guelph, Ontario (519) 822-2960

St. Laurent, Quebec (514) 343-9010

©

Cheektowaga, NY (716) 630-7030

www.hammondmfg.com

Basingstoke, UK 01256 812812

Queenstown, Australia 61-8-8240-2244

EUROPE

102

AUSTRALIA
