1-Phase Line Filters
https://www.schurter.com /PG84
FPP-01

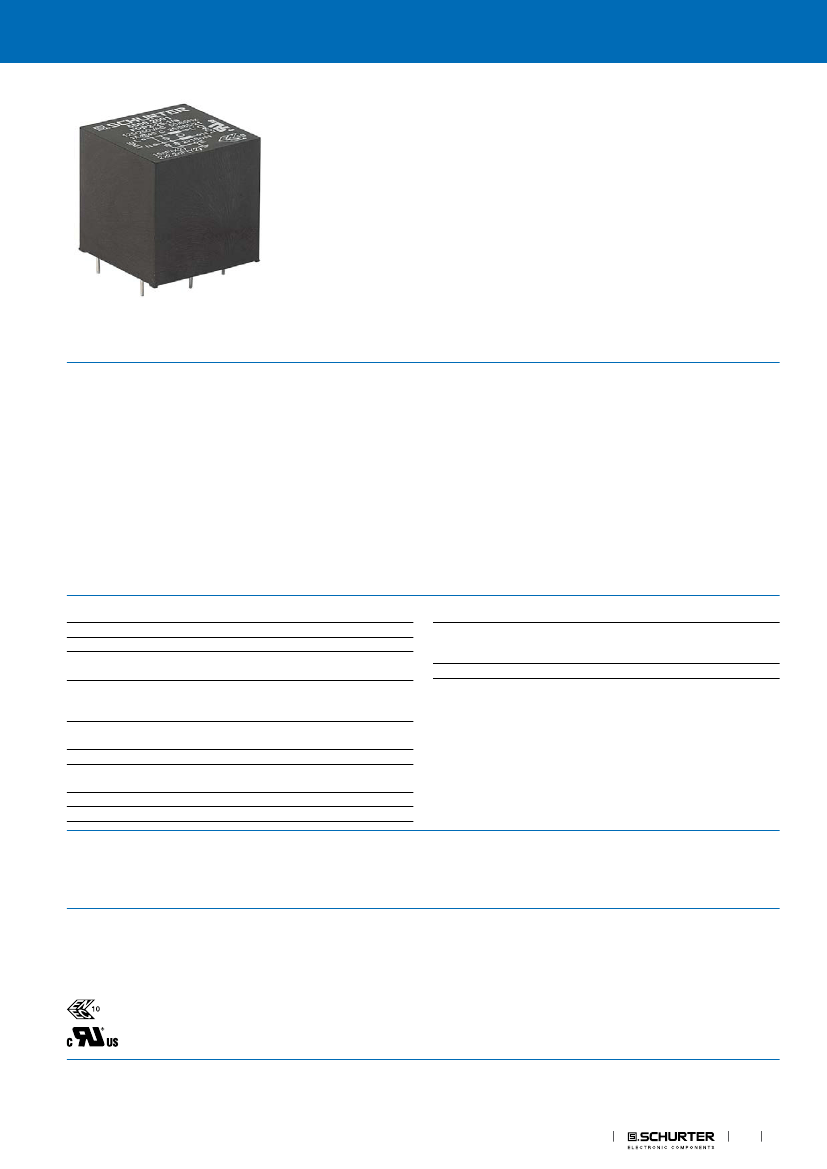

AC Filter for PCB Mounting Cost Optimized
Approvals and Compliances
Description
- Line filter in standard and medical version
- 1-stage
- standard attenuation
Characteristics
- Cost-saving plastic housing
Designed for standard applications
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- For standard applications
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Version with wire connection
- Medical version M80
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
0.6 - 6 A @ Ta 40 °C / 250 VAC; 50 Hz
0.6 - 6 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.25 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting , tin-plated
Thermoplastic, black, UL 94V-0
Line Filter
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FPP2
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004673
UL File Number: E72928
EMC Products
1
FPP-01
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
Dimension [mm]
Case 13P
Case 18P
25
2.5
25
30
5
25
15
25
ø 0.6
30
15
5 2.5
10
10
4.5
±0.5
10
10
7.5 2.5
2
EMC Products
ø 0.6
4.5
±0.5
2)
1)
2)
1)
1-Phase Line Filters
https://www.schurter.com /PG84
FPP-01
Case 24P
40
5
30
20
10 5
15
15
1) Line
2) Load
Diagrams
S1 standard version
S2 medical version
1)
ø 1.0
4.5
±0.5
40
2)
1)
2)
1)
2)
1) Line
2) Load
1) Line
2) Load
EMC Products
3
FPP-01

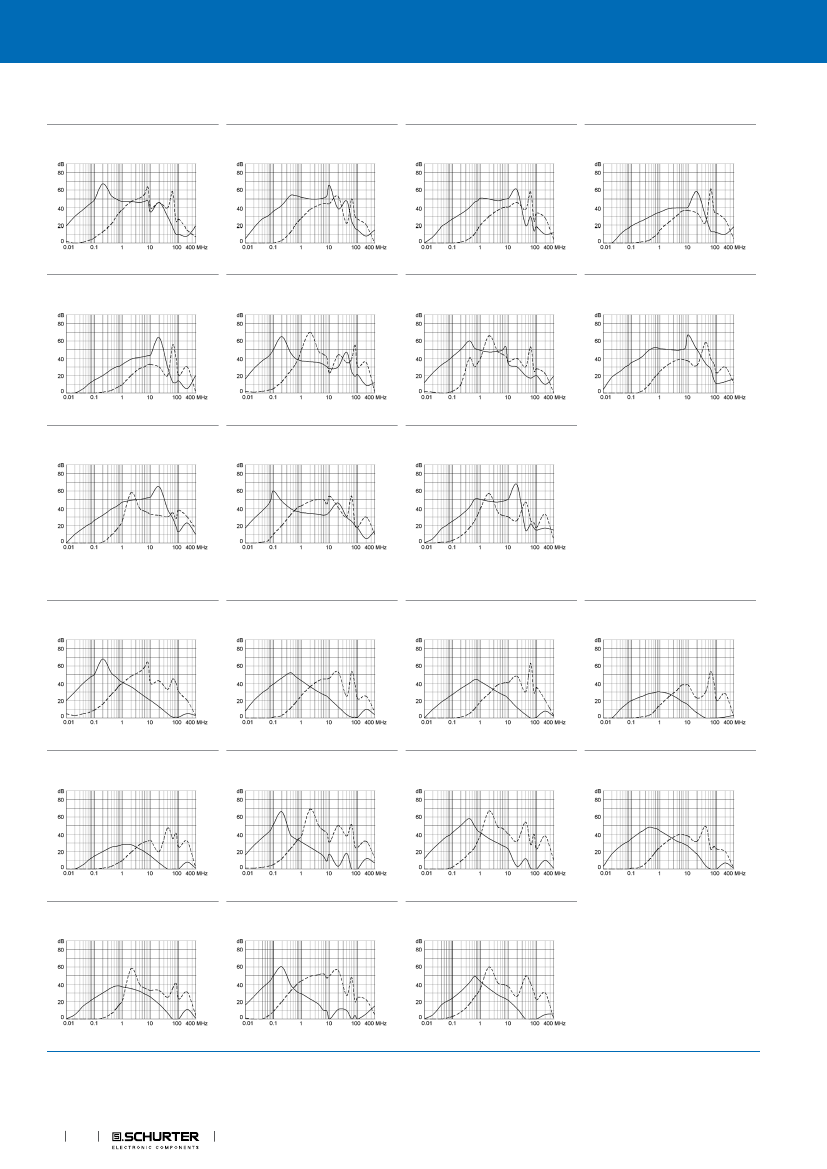

Attenuation Loss
Standard version
https://www.schurter.com /PG84
1-Phase Line Filters
- - - - 50Ω differential mode _____ 50Ω common mode
0.6 A
1A
2A
4A
6A
0.7 A
1A
2A
3A
1A
3A
Medical version (M5)
0.6 A
1A
2A
4A
6A
0.7 A
1A
2A
3A
1A
3A
4
EMC Products
1-Phase Line Filters
https://www.schurter.com /PG84
FPP-01
All Variants
Rated Current
[A]
0.6
1
2
4
6
0.7
1
2
3
1
3
0.6
1
2
4
6
0.7
1
2
3
1
3
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
L [mH]
2 x 40
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 40
2 x 20
2x6
2x3
2 x 30
2x4
2 x 40
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 40
2 x 20
2x6
2x3
2 x 30
2x4
Co / C2 (X2)
[µF]
0.015
0.015
0.015
0.015
0.015
0.015
0.022
0.022
0.022
0.047
0.047
0.015
0.015
0.015
0.015
0.015
0.015
0.022
0.022
0.022
0.047
0.047
C1 (Y2)
[nF]
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
-
-
-
-
-
-
Diagram
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
S2
S2
S2
S2
S2
S2
S2
S2
S2
S2
S2
Weight [g]
27 g
27 g
27 g
27 g
35 g
32 g
32 g
32 g
32 g
78 g
78 g
35 g
35 g
25.5 g
35 g
35 g
45 g
45 g
45 g
45 g
78 g
78 g
Hou-
sings
13P
13P
13P
13P
13P
18P
18P
18P
18P
24P
24P
13P
13P
13P
13P
13P
18P
18P
18P
18P
24P
24P
Order Number
5500.2000
5500.2001
5500.2002
5500.2003
5500.2004
5500.2005
5500.2006
5500.2007
5500.2008
5500.2009
5500.2010
5500.2116
5500.2117
5500.2118
5500.2119
5500.2120
5500.2121
5500.2122
5500.2123
5500.2124
5500.2125
5500.2126
█
█
█
█
Packaging unit
50 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
14.12.2017
