40W Single Output Switching Power Supply
Features :
HLG-40H
series
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet location
5 years warranty (Note.10)
F
110
M
M
SELV
IP65 IP67
( for 48V,54V only)
( except for 48V,54V )
HLG-40H-12 A
Blank : IP67 rated. Cable for I/O connection.
A : IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance
D (option) : IP67 rated. Timer dimming function, contact MEAN WELL for details.

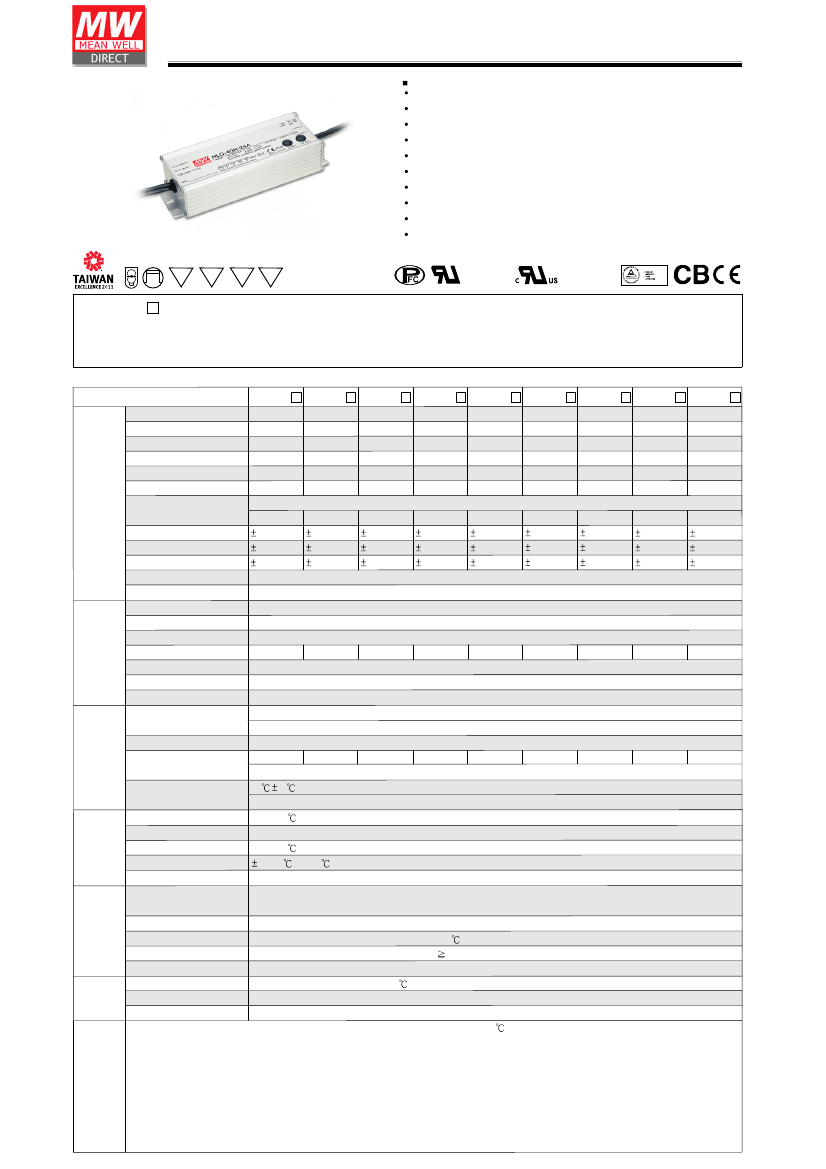

SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLG-40H-12
12V
3.33A
39.96W
CONSTANT CURRENT REGION
Note.4
7.2 ~12V
HLG-40H-15
15V
9 ~ 15V
2.67A
40.05W
150mVp-p
HLG-40H-20
20V
12 ~ 20V
2A
40W
150mVp-p
17 ~ 22V
1.2 ~ 2A
1.0%
0.5%
HLG-40H-24
24V
14.4 ~ 24V
1.67A
40.08W
200mVp-p
22 ~ 27V
1 ~ 1.67A
1.0%
0.5%
0.5%
HLG-40H-30
30V
18 ~ 30V
1.34A
40.2W
200mVp-p
27 ~ 33V
0.8 ~ 1.34A
1.0%
0.5%
0.5%
HLG-40H-36
36V
21.6 ~ 36V
1.12A
40.32W
200mVp-p
33 ~ 40V
HLG-40H-42
42V
25.2 ~ 42V
0.96A
40.32W
200mVp-p
40 ~ 46V
HLG-40H-48
48V
28.8 ~ 48V
0.84A
40.32W
300mVp-p
44 ~ 53V
HLG-40H-54
54V
32.4 ~ 54V
0.75A
40.5W
300mVp-p
49 ~ 58V
0.45 ~ 0.75A
1.0%
0.5%
0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
OUTPUT
VOLTAGE ADJ. RANGE
Note.6
10.8 ~ 13.5V 13.5 ~ 17V
CURRENT ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT(Typ.)
LEAKAGE CURRENT
OVER CURRENT
SHORT CIRCUIT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
Note.7
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS

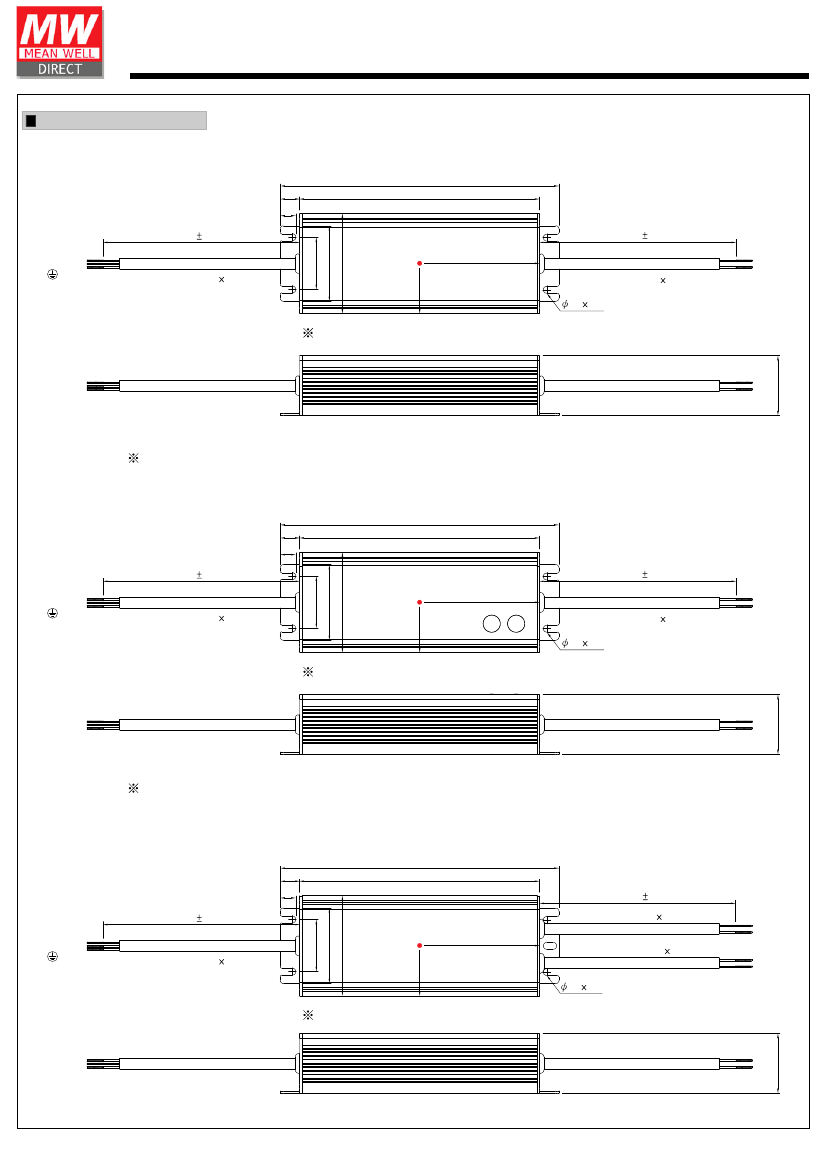

DIMENSION
PACKING
NOTE
Note.4
Can be adjusted by internal potentiometer or through output cable
2 ~ 3.33A
2.5%
0.5%
1.6 ~ 2.67A
2.0%
0.5%
0.67 ~ 1.12A 0.58 ~ 0.96A 0.5 ~ 0.84A
1.0%
1.0%
1.0%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
1.5%
1.0%
2.0%
Note.8
1500ms, 80ms / 115VAC at full load
16ms/230VAC
Note.5
90 ~ 305VAC
1000ms, 80ms / 230VAC at full load
16ms/115VAC at full load
127 ~ 431VDC
47 ~ 63Hz
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
88%
86.5%
0.43A / 115VAC
0.24A / 230VAC
COLD START 70A/230VAC
<0.75mA / 277VAC
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
41 ~ 49V
15 ~ 21V
18 ~ 24V
23 ~ 30V
35 ~ 43V
48 ~ 58V
28 ~ 35V
Protection type : Shut down o/p voltage, re-power on to recover
85
10 (RTH2)
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +70
-40 ~ +80
0.03%/

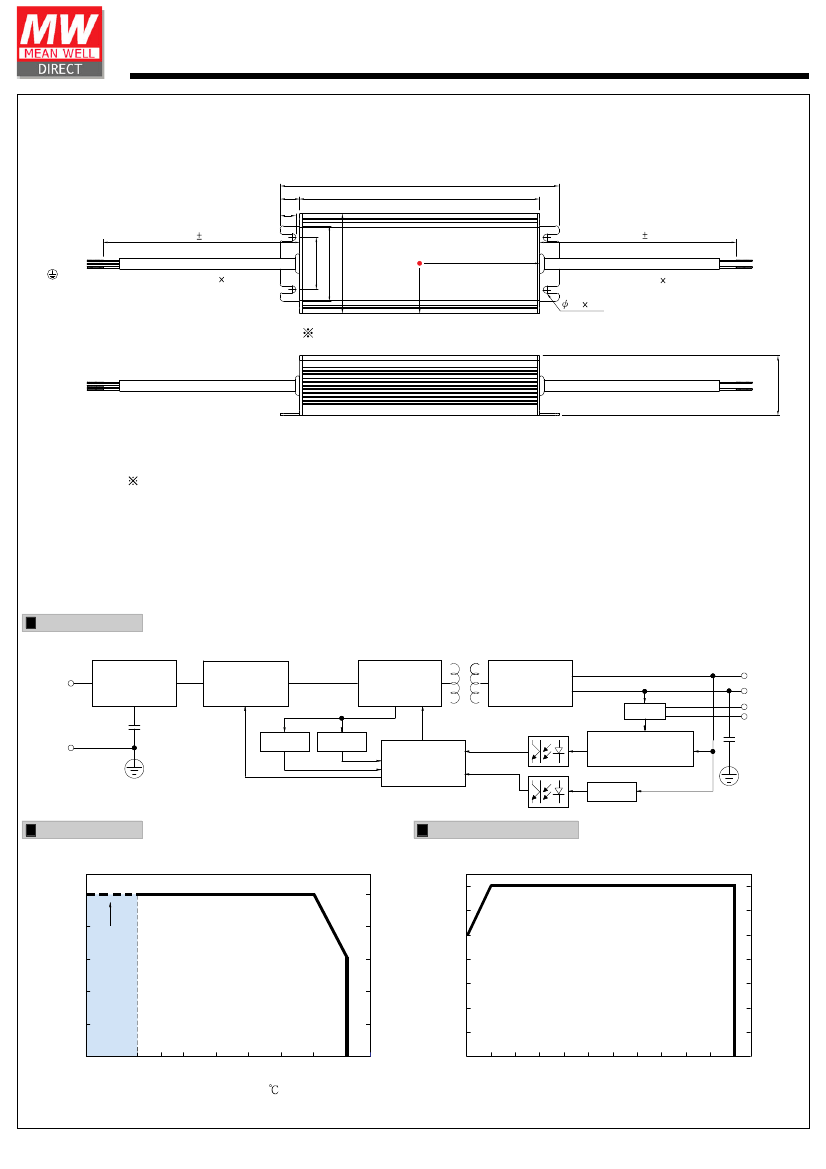

(Refer to "Derating Curve")
, 10 ~ 95% RH
(0 ~ 60
)
20 ~ 95% RH non-condensing
86.5%
88.5%
88%
0.23A / 277VAC
88.5%
88.5%
89.5%
89.5%
54 ~ 63V
59 ~ 68V
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP65 or IP67 approved ;
Design refer to UL60950-1, TUV EN60950-1, EN60335-1
I/P-O/P:3.75KVAC
I/P-FG:1.88KVAC
O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Compliance to EN55015, EN61000-3-2 Class C ( 60% load) ; EN61000-3-3
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A
336.5Khrs min. MIL-HDBK-217F (25 )
171*61.5*36.8mm (L*W*H)
0.73Kg; 20pcs/15.6Kg/0.8CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please
reconfirm special electrical requirements for some specific system design.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Type A only.
7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.
MeanWell Direct Tel: +44 (0)118 970 3858 E-mail: sales@meanwelldirect.co.uk
40W Single Output Switching Power Supply

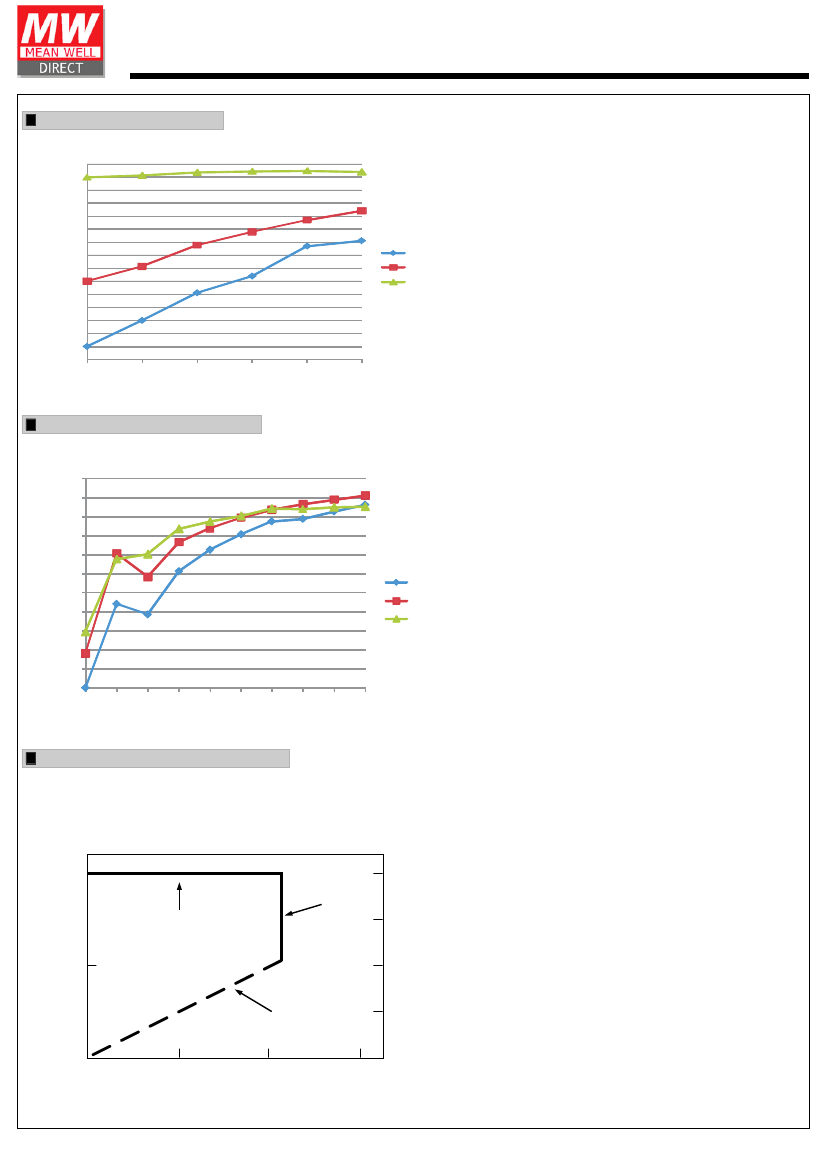

Power Factor Characteristic
Constant Current Mode
1
0 .9 9
0 .9 8
0 .9 7
0 .9 6
0 .9 5
0 .9 4
0 .9 3
0 .9 2
0 .9 1
0 .9
0 .8 9
0 .8 8
0 .8 7
0 .8 6
0 .8 5
50%
60%
70%
80%
90%
100%
277VAC
230VAC
115VAC
HLG-40H
series
PF
LOAD
(40W)
EFFICIENCY vs LOAD (48V Model)
HLG-40H series possess superior working efficiency that up to 89.5% can be reached in field applications.
92
90
88
EFFICIENCY (%)
86
84
82
277VAC
80
78
76
74
72
70
10%
20%
30%
40%
50%
60% 70%
80%
90% 100%
230VAC
115VAC
LOAD
DRIVING METHODS OF LED MODULE
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B).
100
(B)
Constant
Current area
(A) Constant
Voltage area
60
(max.)
(C)
Hiccup
Protection
50
95
Io (%)
Vo(%)
Typical LED power supply I-V curve
File Name:HLG-40H-SPEC 2011-08-31
MeanWell Direct Tel: +44 (0)118 970 3858 E-mail: sales@meanwelldirect.co.uk
40W Single Output Switching Power Supply
DIMMING OPERATION
HLG-40H
series
AC/L(Brown)
AC/N(Blue)
FG (Green/Yellow)
+V(Red)
-V(Black)
HLG-40H
DIM+(Blue)
DIM-(White)
Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
Please DO NOT connect "DIM-" to "-V".
Reference resistance value for output current adjustment (Typical)
Single driver
100K
60K
10K
20K
30K
40K
50K
70K
80K
90K
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
/N 20K /N 30K /N 40K /N 50K /N 60K /N 70K /N 80K /N 90K /N 100K /N
dimming operation)
OPEN
-----
95%~105%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
95%~105%
10V PWM signal for output current adjustment (Typical): Frequency range :100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
95%~105%
Using the built-in dimming function on B-type model can't turn the lighting fixture totally dark. Please refer to the connection method below to
achieve 0% brightness of the lighting fixture connecting to the LED power supply unit.

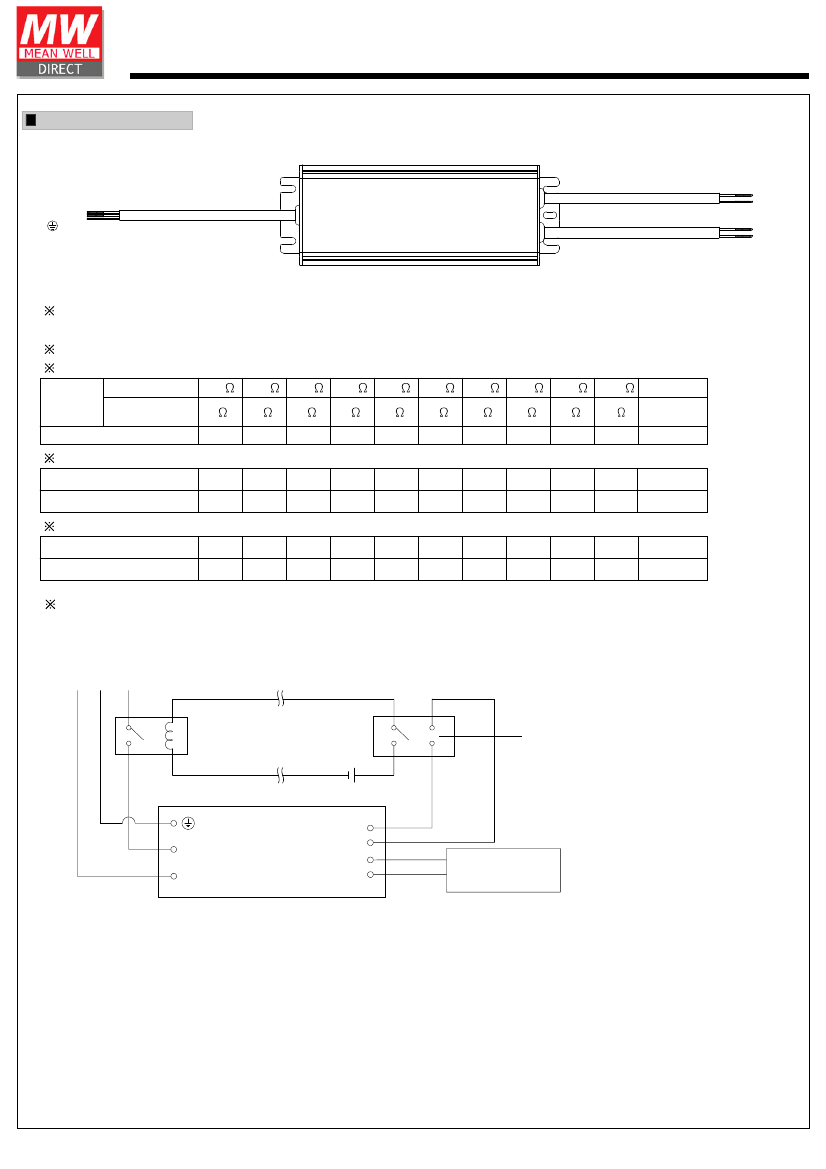

Dimming connection diagram for turning the lighting fixture ON/OFF :
N
FG
L
Relay
Switch
Adjuster
0~100K Ohms resistance
1~10V DC Voltage
10V PWM Signal
Green/
Yellow
Brown
Blue
AC/L
AC/N
HLG-40H
B Type
DIM+
DIM-
V(-)
V(+)
Blue
White
Black
Red
LED Lighting Fixture
Using a switch and relay can turn ON/OFF the lighting fixture.
1.Output constant current level can be adjusted through output cable by connecting a resistance or 1~10Vdc or 10V PWM signal between DIM+ and DIM-.
2.The LED lighting fixture can be turned ON/OFF by the switch.
File Name:HLG-40H-SPEC 2011-08-31
MeanWell Direct Tel: +44 (0)118 970 3858 E-mail: sales@meanwelldirect.co.uk
