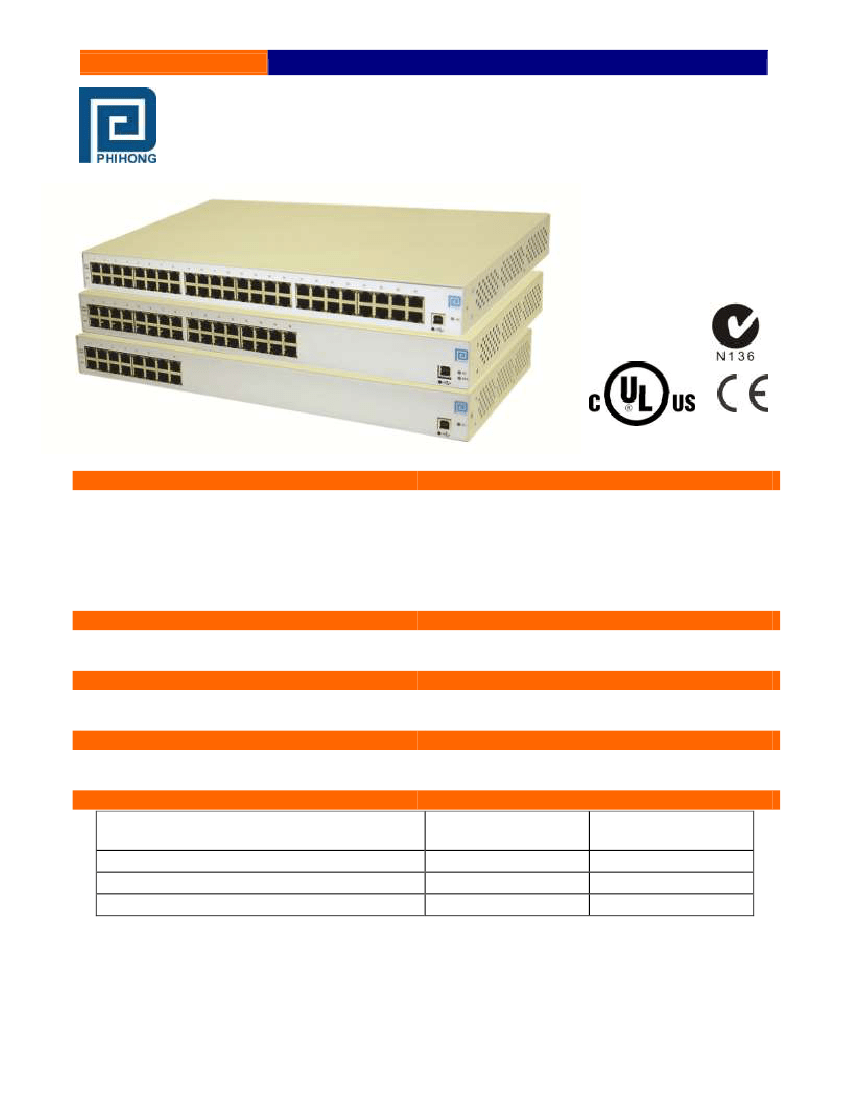

8/16/24 Port Gigabit Power over Ethernet Midspan
POE370U for 10/100/1000 Base-T Networks
Features
IEEE 802.3af Detection, Disconnect and
Overload Protection
NIC Interface (Optional)
SSL Option with SNMPv3
10/100/1000 base T Compatible
Limited Lifetime Warranty
Applications
VoIP Phones
Access Point
Safety Approvals
cUL/UL
CE
Mechanical Characteristics
Length: 438mm (17.25in)
Width: 228mm (8.98in)
Output Specifications
Model
POE370U-480-8(x)*
POE370U-480-16(x)*
Full Power of 370W--15.4W per Port No
Power Management required
Full Protection OTP, OCP, OVP
48V RPS Input (Optional)
Cisco Legacy Detection
1U Rack Mounting Kit Ships with Unit
Security Systems
Lighting Systems with Single UPS
SAA
C-Tick
Height: 44.5 mm (1.75in)
Weight: 3.8Kg (8.5lbs)
Maximum Output
Power
125W
250W
370W
Number of Ports
8
16
POE370U-480-24(x)*
24
*Optional code (x) =
Blank for standard product with no options
“N” includes SNMP, Simple Network Management Protocol
“R” RPS DC Input
“RN” for RPS input and SNMP
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for
the most up-to-date specifications and contact information.
Revision 3/2/2015
POE370U Characteristics
INPUT:
AC Input Voltage Range
90 to 264VAC
WWW.PHIHONG.COM
Isolation Test
Primary to Secondary: 4242VDC for 1 minute
Primary to Ground: 2121VDC for 1 minute
Secondary to Ground: 2121VDC for 1 minute
AC Input Voltage Rating
100 to 240VAC
Immunity EN50082-1
ESD:
RS:
EFT:
Surge:
CS:
Voltage Dips
Harmonic:
EN61000-4-2. Level 3
EN61000-4-3. Level 2
EN61000-4-4. Level 2
EN61000-4-5. Level 3
EN61000-4-6. Level 2
EN61000-4-11
EN61000-3-2 Class A
AC Input Current
5.5A (RMS) maximum for 90VAC
2.75A (RMS) maximum for 240VAC
Leakage Current
3.5mA maximum @ 254VAC 60Hz
AC Input Frequency
47-63Hz
IEEE 802.3af Interoperability
UNH Interoperability report available on request
AC Inrush Current
30A (RMS) maximum for 115VAC
60A (RMS) maximum for 230VAC
FEATURE:
Cisco Legacy detection
No extern parts required for Legacy devices:
VoIP Phones:
7910, 7912, 7940, 7960
Access Points:
350, 1100, 1200
OUTPUT:
Total Output Power
15.4W per port
Ripple and Regulation
100mV maximum
Over Voltage/Current, Short Circuit Protection
Outputs equipped with short circuit protection and
overload protection as per 802.3af specifications
The output can be shorted permanently without damage
Efficiency
75% (typical) at maximum load, and 120VAC 60Hz
Over Temperature Protection
Automatic shutdown without damage
Hold-up Time
16mS min. 120VAC at maximum load
Indicators
Green LED: Power detected “ON”
Yellow LED: Fault detected
Transient O/P Voltage Protection
60V maximum at switch on and off at any AC line Phase
USB Diagnostics Port
Turn-On Delay Time
3 sec maximum at maximum load, and 120VAC 60Hz,
25Hz
USB “B” port for diagnostics and manual port control
Windows GUI
Input Connector
ENVIRONMENTAL:
Temperature
Operation
Non-operation
0 to +40°C
-25 to +65°C
AC
IEC320 inlet 3 pin
DC for RPS option
Molex Minifit
Shell 39-01-20-65
Pins 39-00-0077
Humidity
Operation
Non-Operation
5 to 90%
5 to 90%
Warranty
Limited Lifetime Warranty
EMC
En55022 Class B, FCC Class B with FTP cabling
EN55022 Class A, FCC Class A with UTP cabling
DSP and ARM Processors
