WWW.PHIHONG.COM

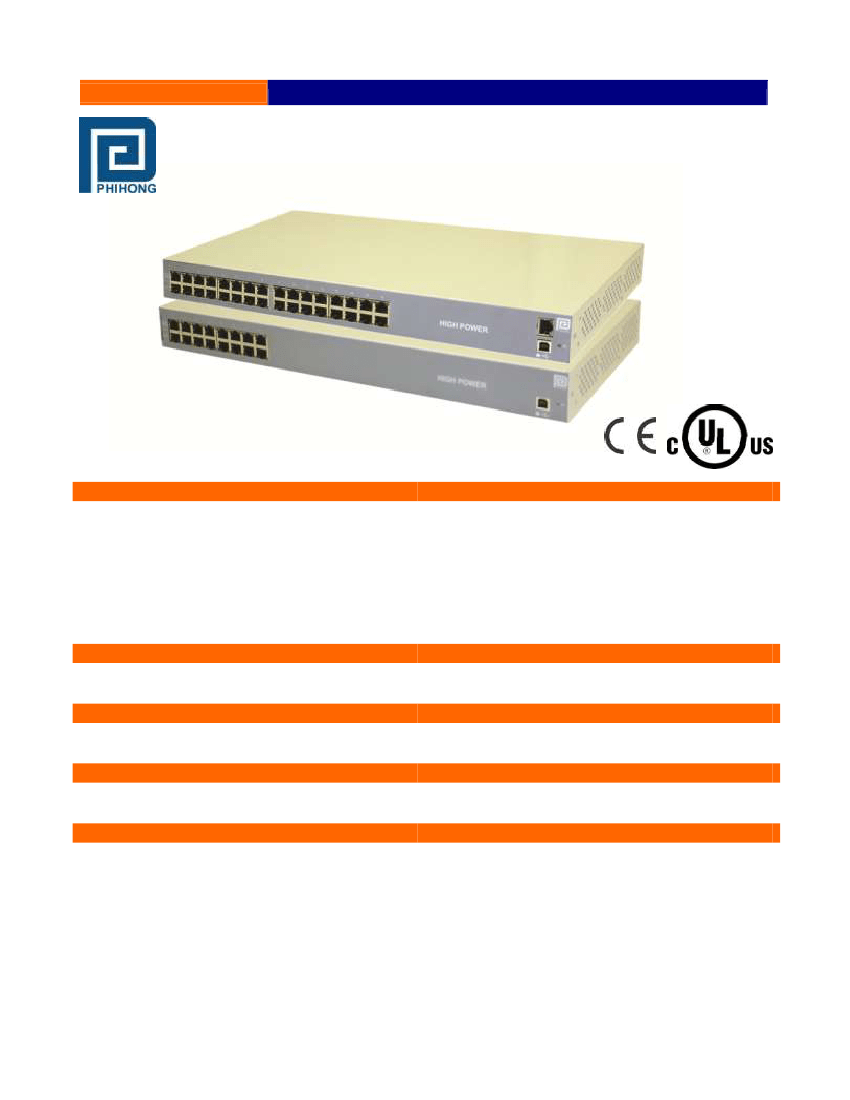

8/16 Port IEEE802.3at/PoEPLUS Midspans
PoE576U for 10/100/1000 Base-T Networks
Features
Compliant with the IEEE802.3at Standard
2 finger classification
SNMP Management Option
Optional SSL with SNMPv3
Windows GUI
May power Cisco AP1250 with
ACCY125X dongle
Applications
VoIP Phones
Access Point
Safety Approvals
cUL/UL
CE
Mechanical Characteristics
Length: 438mm (17.25in)
Width: 228mm (8.98in)
Output Specifications
Model
POE576U-16AT(y)
POE576U-8AT (y)
Options: y= N to add SNMP
Full Power of 576W—30W per Port, No
Power Management required
Full Protection OTP, OCP, OVP
1U Rack Mountable (Mounting Kit Ships
with Unit)
Limited Lifetime Warranty
10/100/1000 Base-T Compatible
Security Systems
IP Cameras
Height: 44.5 mm (1.75in)
Weight: 3.8Kg (8.5lbs)
Number of Ports
16
8
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at
www.phihong.com for the most up-to-date specifications and contact information.
Revision 3/2/2015
POE576U Characteristics
INPUT:
AC Input
Voltage Range 90 to 264VAC
Input Frequency 47-63Hz
Input Current:
9A (RMS) maximum for 90VAC
4.5A (RMS) maximum for 230VAC
Leakage Current: 3.5mA maximum @ 264VAC 60Hz
AC Inrush Current:
30A (RMS) maximum for 115VAC
60A (RMS) maximum for 230VAC
WWW.PHIHONG.COM
Immunity EN50082-1
ESD:
RS:
EFT:
Surge:
CS:
Voltage Dips
Harmonic:
EN61000-4-2. Level 3
EN61000-4-3. Level 2
EN61000-4-4. Level 2
EN61000-4-5. Level 3
EN61000-4-6. Level 2
EN61000-4-11
EN61000-3-2 Class A
IEEE 802.3at Interoperability
UNH Interoperability report available on request
FEATURE:
Cisco Legacy detection
No extern parts required for Legacy devices:
VoIP Phones:
7910, 7912, 7940, 7960
Access Points:
1040, 1140, 1260, 3500
Over Voltage/Current, Short Circuit Protection
Outputs equipped with short circuit protection and
overload protection as per 802.3at specifications
The output can be shorted permanently without damage
OUTPUT:
Total Output Power
33.6W per port
Total Power 269W (8 ports) -538W (16 ports)
Ripple and Regulation
100mV maximum
Efficiency
75% (typical) at maximum load, and 120VAC 60Hz
Hold-up Time
16mS min. 120VAC and maximum load
Over Temperature Protection
Automatic Shutdown without damage
Transient O/P Voltage Protection
60V maximum at switch on and off at any AC line Phase
Indicators
Green LED: Power detected “CONNECT”
Flashing GREEN: IEEE802.3af detected “CONNECT”
at 15.4W
Yellow LED: Fault detected
Turn-On Delay Time
20 sec maximum at maximum load, and 120VAC 60Hz,
60Hz
ENVIRONMENTAL:
Temperature
Operation
Non-operation
0 to +40°C
-25 to +65°C
USB Diagnostics Port and NIC Interface
USB “B” port for diagnostics and manual port control
Windows GUI
NIC interface for remote management via secure IP
access
Humidity
Operation
Non-Operation
5 to 90%
5 to 90%
Input Connector
AC Input IEC320 C14
Warranty
EMC
EN55022 Class A, FCC Class A with UTP cabling
EN55022 Class B, FCC Class B with FTP cabling
Limited Lifetime
Isolation Test
Primary to Secondary: 4242VDC for 1 minute
Primary to Ground: 2121VDC for 1 minute
Secondary to Ground: 2121VDC for 1 minute
