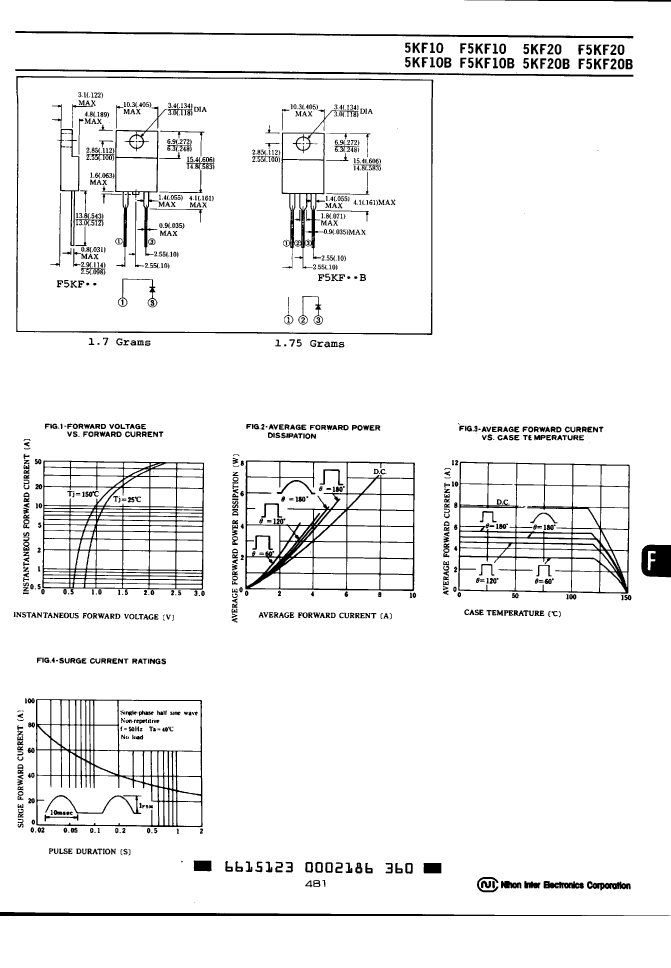

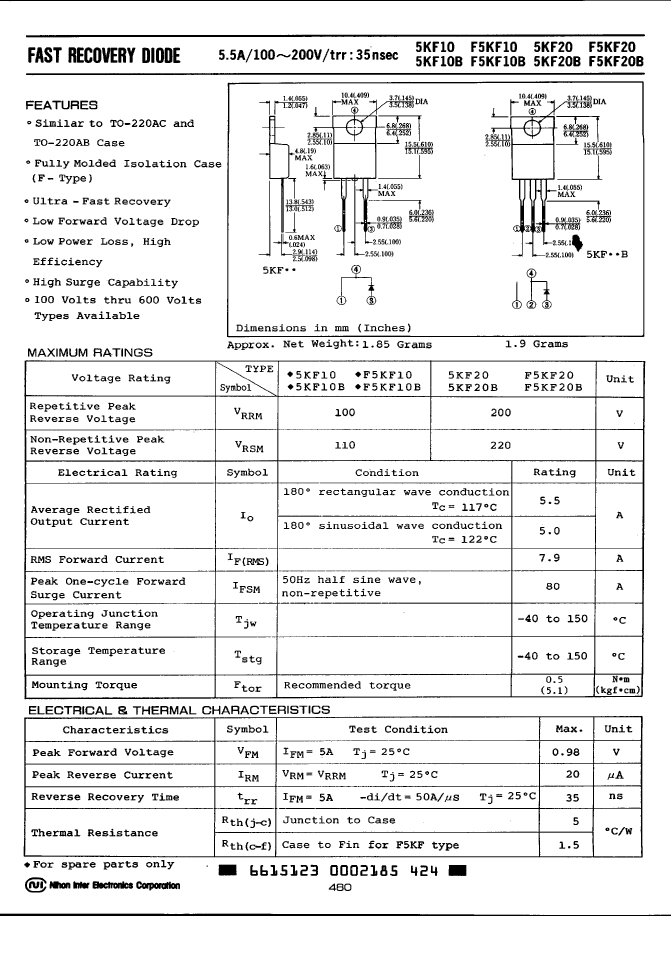

Rectifier Diode, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN
| Parameter Name | Attribute value |
| Maker | Nihon Inter Electronics Corporation |
| Parts packaging code | TO-220AB |
| package instruction | R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| application | ULTRA FAST RECOVERY |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.98 V |
| JESD-30 code | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 80 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V |
| Maximum reverse current | 20 µA |
| Maximum reverse recovery time | 0.035 µs |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Base Number Matches | 1 |
| 5KF10B | 5KF10 | 5KF20B | F5KF20 | F5KF20B | F5KF10 | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN | Rectifier Diode, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN | Rectifier Diode, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2 | Rectifier Diode, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3 | Rectifier Diode, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2 |
| Parts packaging code | TO-220AB | TO-220AC | TO-220AB | TO-220AC | TO-220AB | TO-220AC |
| package instruction | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T3 | R-PSFM-T2 |
| Contacts | 3 | 2 | 3 | 2 | 3 | 2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Is Samacsys | N | N | N | N | N | N |
| application | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY | ULTRA FAST RECOVERY |
| Shell connection | CATHODE | CATHODE | CATHODE | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.98 V | 0.98 V | 0.98 V | 0.98 V | 0.98 V | 0.98 V |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T3 | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 80 A | 80 A | 80 A | 80 A | 80 A | 80 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 2 | 3 | 2 | 3 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V | 100 V | 200 V | 200 V | 200 V | 100 V |
| Maximum reverse current | 20 µA | 20 µA | 20 µA | 20 µA | 20 µA | 20 µA |
| Maximum reverse recovery time | 0.035 µs | 0.035 µs | 0.035 µs | 0.035 µs | 0.035 µs | 0.035 µs |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | - |
