ZPSA100-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZPSA100-48

ZPSA100-48: DescriptionSwitching Power Supplies 100W 48V 2.1A; CategoryPower/power management The power supply circuit; File Size503KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

ZPSA100-48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZPSA100-48	-	-	View	Buy Now

ZPSA100-48 Overview

Switching Power Supplies 100W 48V 2.1A

ZPSA100-48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK-LAMBDA
package instruction	MODULE-10
Reach Compliance Code	compliant
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Certification	CE, CSA, EN, UL
Efficiency (main output)	84%
high	26.6 mm
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X10
length	127 mm
Maximum grid adjustment rate	0.5%
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	40 °C
Minimum operating temperature
Maximum output current	2.1 A
Maximum output voltage	48.48 V
Minimum output voltage	47.52 V
Nominal output voltage	48 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	100 W
Fine-tuning/adjustable output	NO
width	76.2 mm

Preview

Download Datasheet

View All

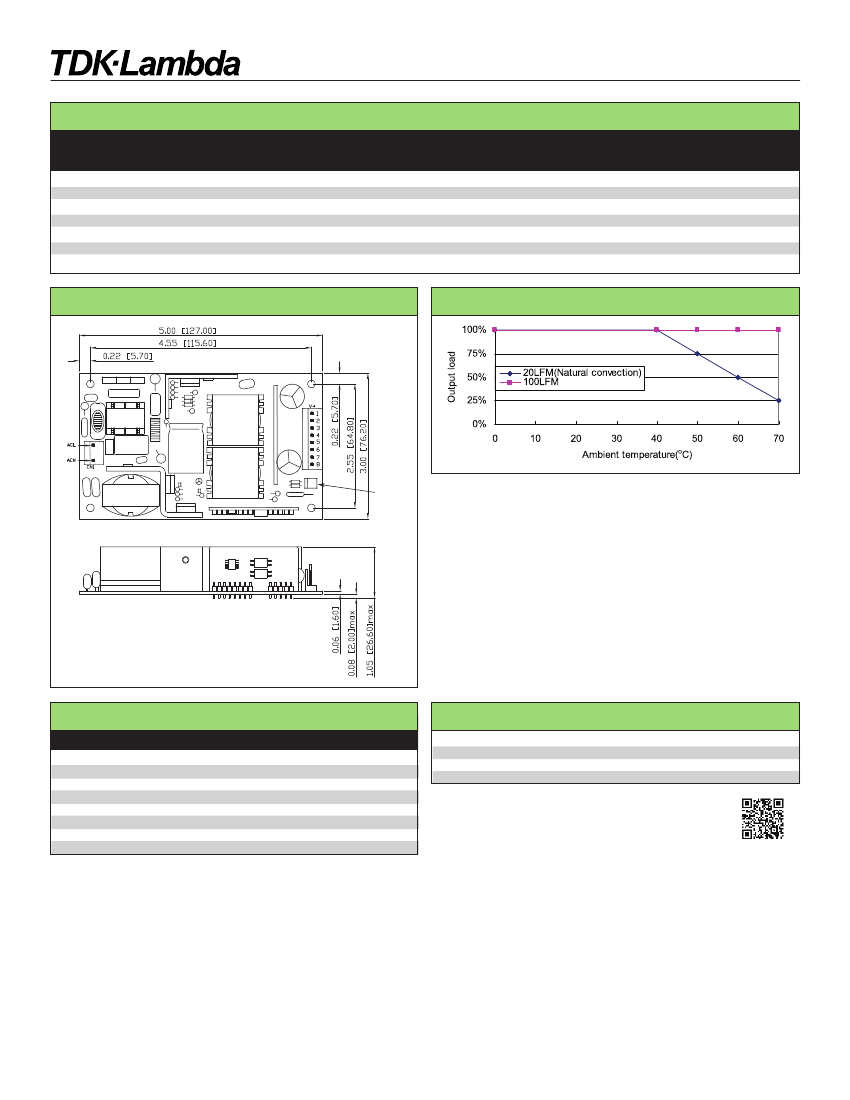

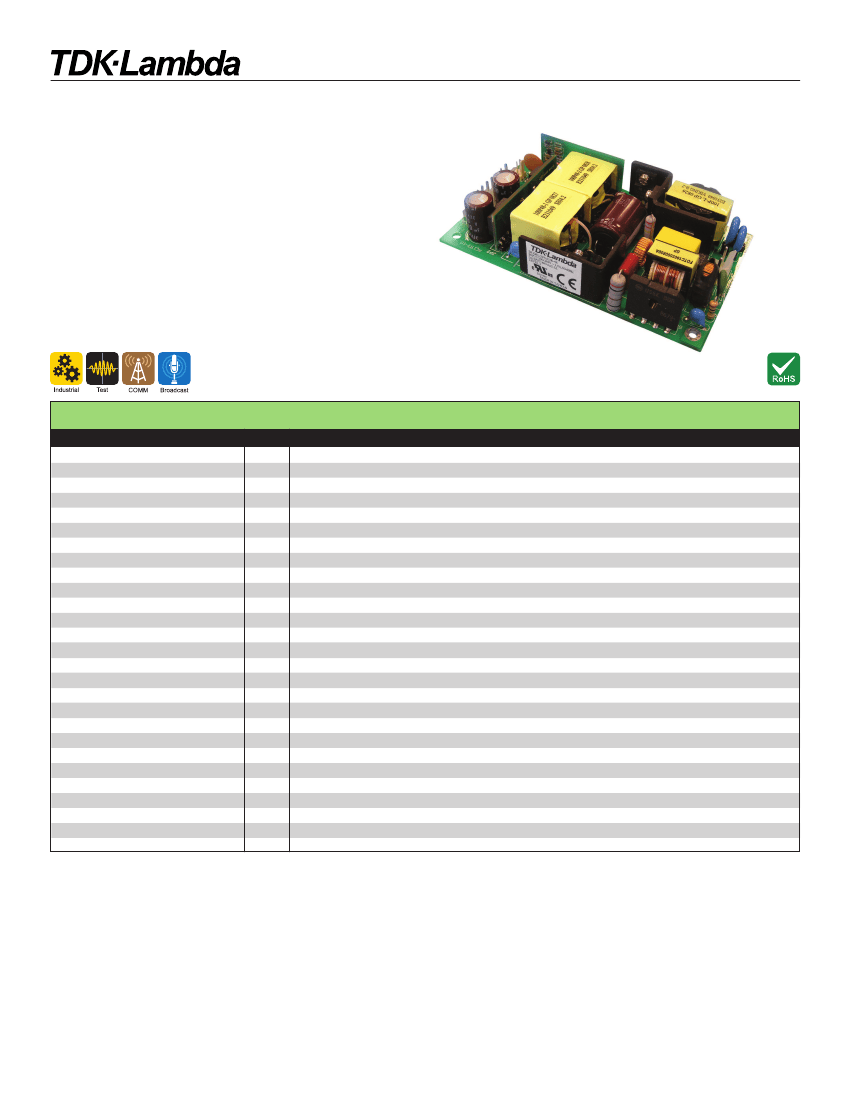

ZPSA100 Series

3” x 5” 100W AC-DC Power Supplies

Features

PFC

Wide Range AC Input

Low Proﬁle, Industry Standard Footprint

Global Safety Agency Compliance

RoHS Compliant

Up to 84% efﬁciency

Meets EN61000-4 Immunity

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

Inrush Current

Input Current (115/230VAC)

Temperature Coefﬁcient

Voltage Accuracy

Minimum Load

Load Regulation

Line Regulation

Ripple & Noise (1)

Short Circuit Protection

Overvoltage Protection

Hold Up Time (Typ)

LED Indicator

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxLxH)

Warranty

(1)

°C

in(mm)

yrs

ZPSA100

90 - 264VAC (47 - 440Hz) or 120 - 370VDC

25 / 50 (cold start)

1.1 / 0.6

±0.05%/°C

±1%

None

±1%

±0.5%

5V: 2%, others 1%

Foldback

Typically 110-130% of nominal, auto recovery

16ms at 115VAC input

Green LED = OK

0 to +70°C with derating/air ﬂow

-20 to +85

10 - 95% RH

Convection/air ﬂow

Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

23.52m/s

(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

< 196.1 m/s

(20G)

UL/CSA/EN60950-1 (2nd Ed) Class I , CE Mark (LVD)

EN55022-B, FCC Class B

EN61000-4-2,-3,-4,-6,-8

385

3 x 5 x 1.05 in. (76.2 x 127 x 26.6 mm) including underside components

2 Years

5V measured with 0.1uF ceramic & 220uF electrolytic at 20MHz BW,

all other models measured with 0.1uF & 10uF ceramic electrolytic at 20MHz BW

1-800-526-2324 • www.us.tdk-lambda.com/lp/

109

Disclaimer: us.tdk-lambda.com/lp/legal.htm

ZPSA100-48 Related Products

	ZPSA100-48	ZPSA100-12	ZPSA100-24
Description	Switching Power Supplies 100W 48V 2.1A	Switching Power Supplies 100W 12V 8.4A	Switching Power Supplies 100W 24V 4.2A
Is it Rohs certified?	conform to	-	conform to
Maker	TDK-LAMBDA	-	TDK-LAMBDA
package instruction	MODULE-10	-	PACKAGE-12
Reach Compliance Code	compliant	-	compliant
Other features	REMOTE SHUTDOWN	-	ALSO OPERATES IN 120 TO 370VDC
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE	-	AC-DC POWER FACTOR CORRECTION MODULE
Certification	CE, CSA, EN, UL	-	CE, CSA, EN, UL
Efficiency (main output)	84%	-	84%
high	26.6 mm	-	26.6 mm
Maximum input voltage	264 V	-	264 V
Minimum input voltage	90 V	-	90 V
Nominal input voltage	115 V	-	115 V
JESD-30 code	R-XXMA-X10	-	R-XXMA-X12
length	127 mm	-	127 mm
Maximum grid adjustment rate	0.5%	-	0.5%
Maximum load regulation	1%	-	1%
Number of functions	1	-	1
Output times	1	-	1
Number of terminals	10	-	12
Maximum operating temperature	40 °C	-	40 °C
Maximum output current	2.1 A	-	4.2 A
Maximum output voltage	48.48 V	-	24.24 V
Minimum output voltage	47.52 V	-	23.76 V
Nominal output voltage	48 V	-	24 V
Package body material	UNSPECIFIED	-	UNSPECIFIED
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	-	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
surface mount	NO	-	NO
technology	HYBRID	-	HYBRID
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal form	UNSPECIFIED	-	UNSPECIFIED
Terminal location	UNSPECIFIED	-	UNSPECIFIED
Maximum total power output	100 W	-	100 W
Fine-tuning/adjustable output	NO	-	NO
