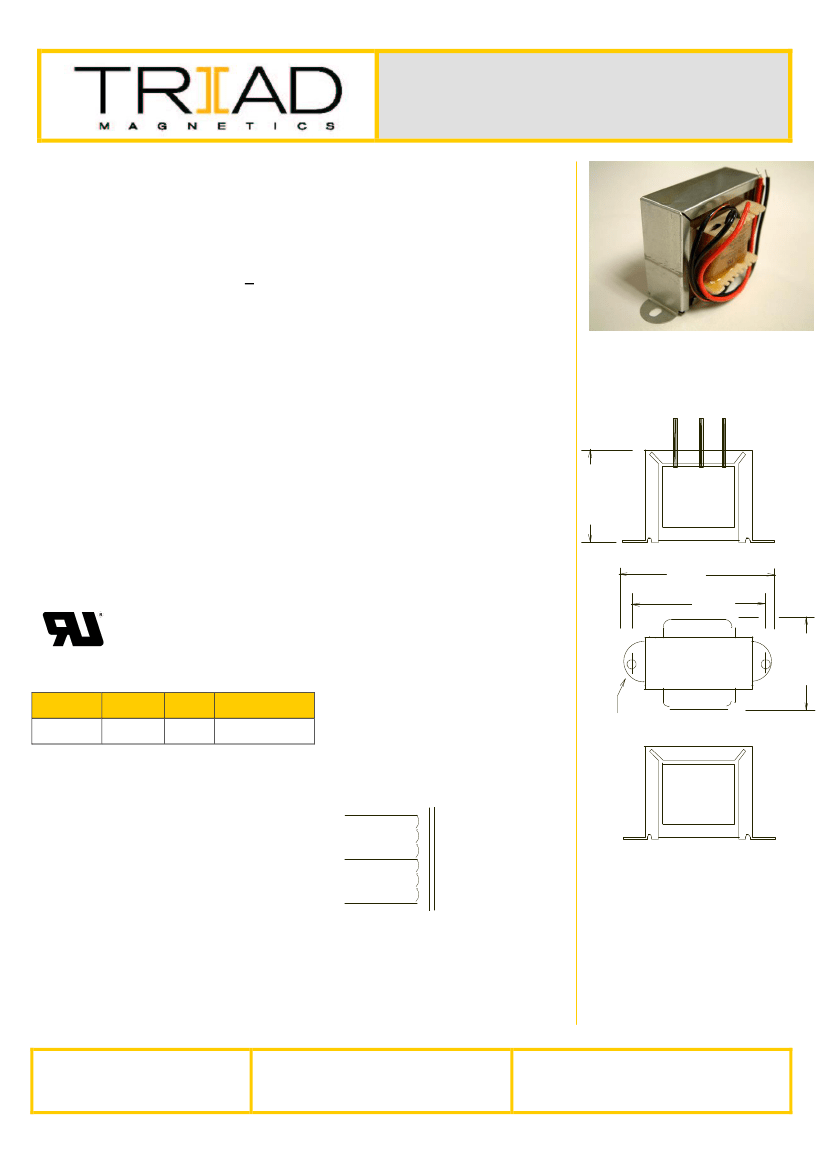

P
OWE R
T
RAN S FO R M E R
C
HASSIS
M
OUNT :
Autotransformer
N-1X
Electrical Specifications (@25ºC)
1. Maximum Power:
50 VA
2. Input Voltage:
230 V, 50 / 60 Hz
3. Output Voltage:
115V + 5%
4. Full Secondary Load: 0.435 Amps RMS
Construction:
Single winding on a double wall, nylon bobbin. This chassis mount design
comes in a channel frame with 0.187” x 0.295” diameter holes in the
mounting ears.
BLK
BLK /RED
RED
Description:
Secondary coil is a fraction of the entire winding for voltage step-down.
This causes part of the power to be transferred conductively through the
windings, rather than all of the power being transferred by induction.
Safety:
These units are designed with 1500V isolation between the winding and the
core. Materials and construction are rated for Class B insulation system.
A
B
UL: File E50476, UL 1446, Electrical Insulation System
D
E50476
C
Dimensions:
A
2.33
B
3.69
Unit: In inches
.187 DIA (REF)
C
2.00
D
3.125 ± 0.030
Weight: 1.5 lbs
Connections: 7.0±1” leads, 0.250±0.062” Stripped & Tin
Schematic:
230V
RED
115V
BLK/RED
OV
BLK
For 230V input:
Blk to Red
For 115 output:
Blk to Blk/Red
RoHS Compliance:
As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact
Triad Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: August 31, 2016
2 HO LES
