CC30-2415SRP-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> CC30-2415SRP-E

CC30-2415SRP-E: DescriptionIsolated DC/DC Converters 30W 15V 2A; CategoryPower/power management The power supply circuit; File Size416KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

CC30-2415SRP-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CC30-2415SRP-E	-	-	View	Buy Now

CC30-2415SRP-E Overview

Isolated DC/DC Converters 30W 15V 2A

CC30-2415SRP-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMD-17
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-MDMA-G17
JESD-609 code	e3
length	38.4 mm
Number of functions	1
Output times	1
Number of terminals	17
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15.75 V
Minimum output voltage	14.55 V
Nominal output voltage	15 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	8.3 mm
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	30 W
Fine-tuning/adjustable output	NO
width	33.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

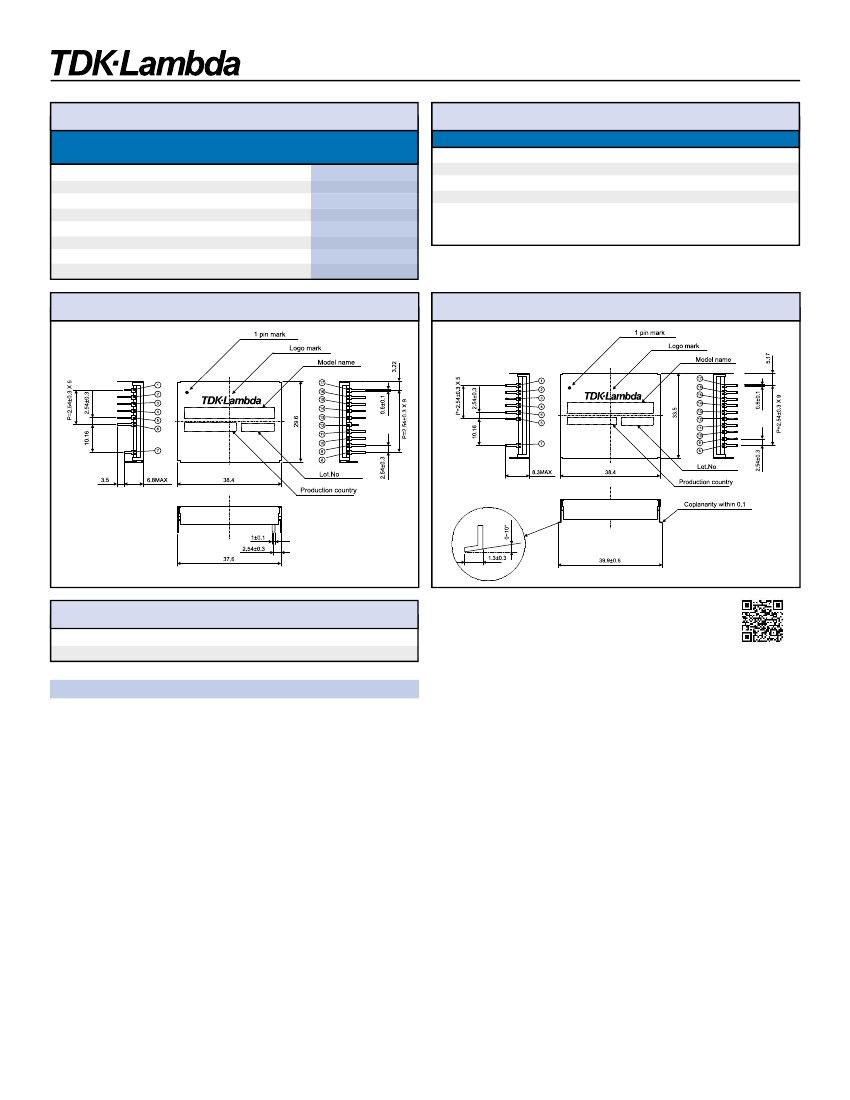

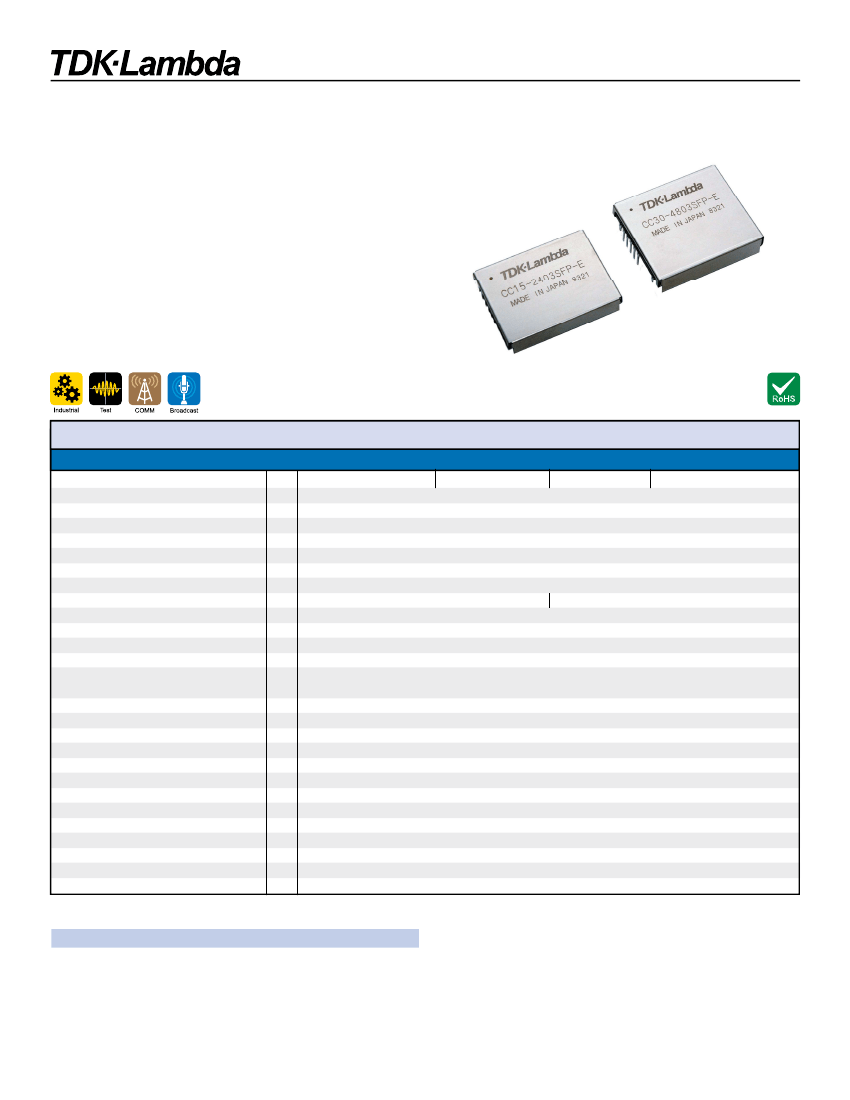

CC-P-E Series

Ultra Compact, 15W to 30W Single Output DC-DC Converters

Features



Compact Footprint / Low Proﬁle



24V & 48V* Inputs



3.3V to 15V Outputs



Five Sided Shielding (Cased Version)



Input - Output Isolation



Parallel Operation



Through Hole or SMT Versions



DC OK signal



Sequencing pin

Key Market Segments & Applications

Speciﬁcations

Model

Nominal Output Voltage

DC Input

Eﬃciency

Initial set accuracy

Total Regulation limits

Output Adjustment

Temperature Coeﬃcient

Preload

Output Ripple

Overcurrent Protection

Overvoltage protection

Remote On/Oﬀ (RC)

Alarm (ALM)

Sequencing (PO)

VDC

%/°C

12V

15V

24V Nominal: 18-36V, 48V Nominal: 36-76V

89 to 92% model dependant

±1%

+5%, -3%

None

<0.02%/°C

None

50mV

150mV

> 103% of nominal rating

Operates at 115 - 145% of nominal voltage

Logic high (pull high to shutdown), referenced to -Vin

Low On Fail, referenced to -Vin. 20 units maximum

Connecting PO terminals on multiple power supplies ensures all simultaneously

start up (20 units maximum)

Convection

-40 to 85°C, see derating curves on website

-40 to 85°C

5 - 95%RH

1000VDC 1 min. Input-Output, Input-Chassis, Output-Chassis

1500VDC 1 min. Input-Output

>50M at 25°C and 70%RH, 500 VDC Input-Output, Input-Case, Output-Case

980m/s

(100G), 6ms, 6 directions, 3 times

10-55-10 Hz (sweep for 15 min.) 1.52mm amplitude, 2 hour X, Y, Z

UL60950-1, CSA C22.2 No.60950-1 (c-UL), EN60950-1

With case: CC15 15g, CC30 20g. Without case: CC15 10g, CC30 15g

CC15: 38.4 x 6.8 x 29.6mm, CC30: 38.4 x 8.3 x 33.5mm

5 years

3.3V

Cooling

Operating Temp. Range

°C

Storage Temperature

°C

Humidity (Non condensing)

%RH

Isolation Voltage (Cased version)

VDC

Isolation Voltage (Uncased version) VDC

Isolation Resistance

Shock (Non operating)

Vibration (non operating)

Safety Certiﬁcations

Weight

Size (LxWxH) (Thru hole ver., w/ case) mm

Warranty

yrs

Note: See Installation Manual for full speciﬁcations, test methods of parameters and application notes

*CC15 & CC30 48Vin models - last time buy March 2019.

1-800-526-2324 • www.us.tdk-lambda.com/lp/

190

Disclaimer: us.tdk-lambda.com/lp/legal.htm

CC30-2415SRP-E Related Products

	CC30-2415SRP-E	CC30-4805SFH-E	CC30-4805SFP-E	CC30-2405SFH-E	CC30-2403SRP-E	CC30-2403SFH-E	CC30-4815SRP-E
Description	Isolated DC/DC Converters 30W 15V 2A	Isolated DC/DC Converters 30W 5V 6A	Isolated DC/DC Converters 30W 5V 6A	Isolated DC/DC Converters 30W 5V 6A	Isolated DC/DC Converters 30W 3.3V 9A	Isolated DC/DC Converters 30W 3.3V 9A	Isolated DC/DC Converters 30W 15V 2A
Product Attribute	-	Attribute Value	-	-	Attribute Value	Attribute Value	Attribute Value
Manufacturer	-	TDK-LAMBDA	-	-	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
Product Category	-	Isolated DC/DC Converters	-	-	Isolated DC/DC Converters	Isolated DC/DC Converters	Isolated DC/DC Converters
RoHS	-	Details	-	-	Details	Details	Details
Number of Outputs	-	1 Output	-	-	1 Output	1 Output	1 Output
Output Power	-	30 W	-	-	30 W	30 W	30 W
Input Voltage	-	36 V to 76 V	-	-	18 V to 36 V	18 V to 36 V	36 V to 76 V
Output Voltage-Channel 1	-	5 V	-	-	3.3 V	3.3 V	15 V
Output Current-Channel 1	-	6 A	-	-	9 A	9 A	2 A
Isolation Voltage	-	0.5 kV	-	-	500 V	0.5 kV	500 V
Mounting Style	-	Through Hole	-	-	PCB	Through Hole	PCB
Length	-	1.51 in	-	-	1.51 in	1.51 in	1.51 in
Width	-	0.33 in	-	-	0.33 in	0.33 in	0.33 in
Height	-	1.32 in	-	-	1.32 in	1.32 in	1.32 in
Industry	-	Commercial	-	-	Commercial	Commercial	Commercial
Product	-	Isolated	-	-	Isolated	Isolated	Isolated
Factory Pack Quantity	-	10	-	-	10	10	10
Unit Weight	-	0.705479 oz	-	-	0.705479 oz	0.705479 oz	0.705479 oz
