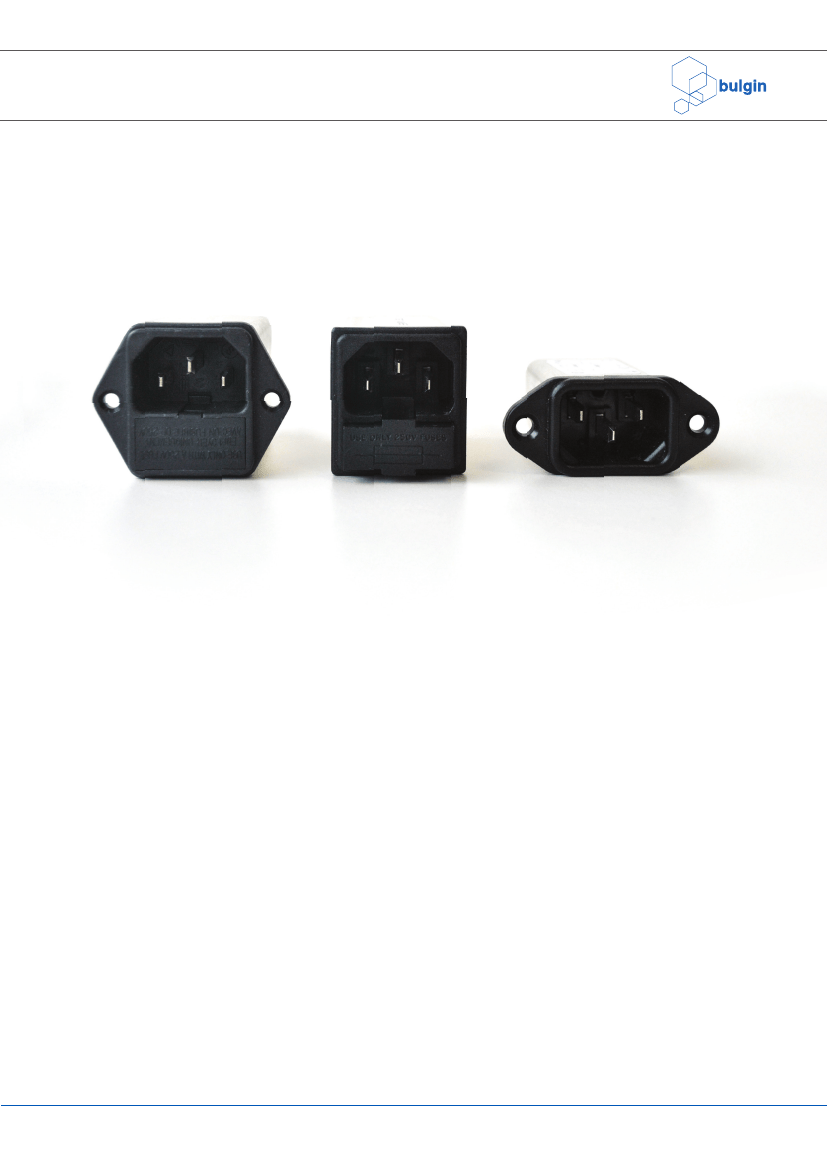

Mains Filters
IEC Connectors
Designed to reduce conducted mains borne EMI, this extensive range
provides many solutions to EMI problems. To meet individual design
requirements the filters are available with two attenuation options –
standard and medical. Current ratings are from 1 to 10 amps
with single or twin fused types also available.
The choice of mounting options will suit most applications
with flange, snap to panel or base/bulkhead.
Flange and Snap Fit
PS00 Series
PS01 Series
Base Mounting and Bulkhead
PS02 Series
PS03 Series
Fused Inlets
PS20 Series
PS21 Series
PS25 Series
PS26 Series
294-295
294-295
296-297
296-297
298-299
298-299
300-301
300-301

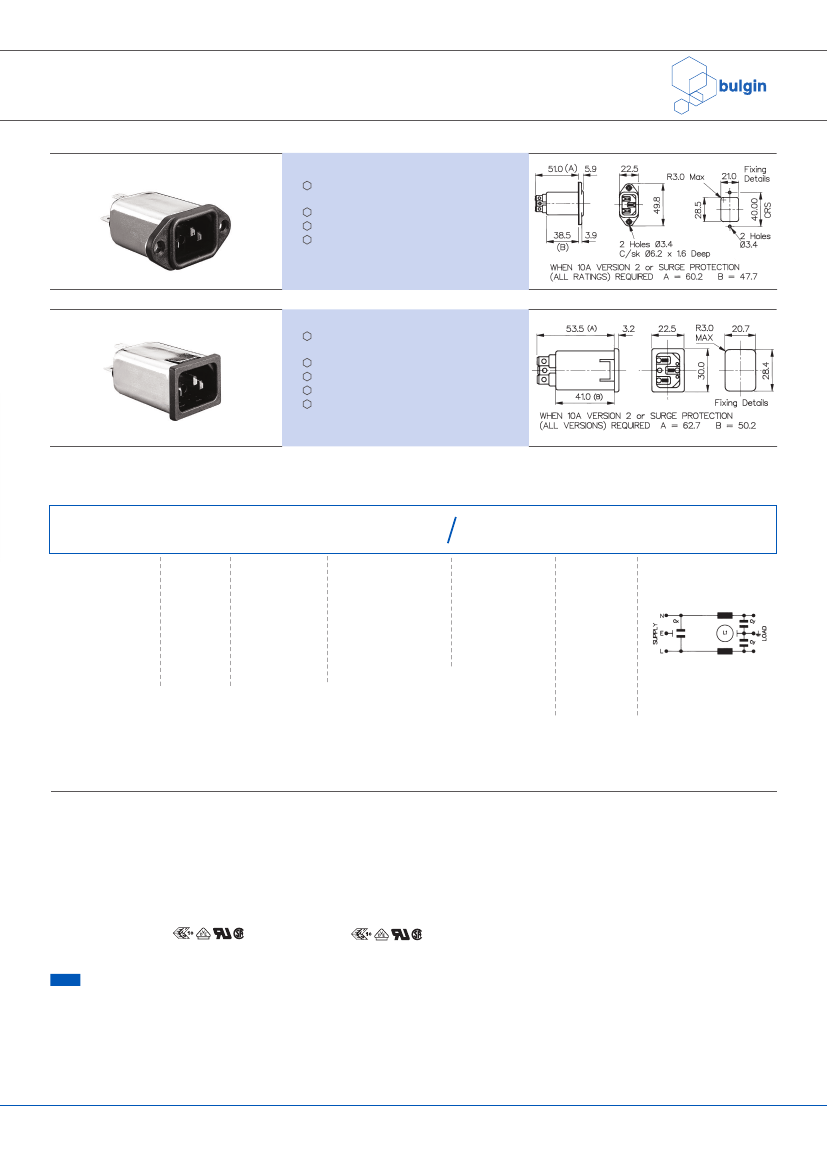

300 IEC Connectors
IEC Power Inlets Flange and Snap Fit
Panel Mounting
1, 3, 6 or 10 Amp Current
Rating
3 Alternative Circuits
No additional components
6.3mm tabs
Flange PS00/A
Snap Fit
1, 3, 6 or 10 Amp Current
Rating
3 Alternative Circuits
No additional components
6.3mm tabs
1, 1.5, 2 or 3mm panels
Snap Fit PS01/A
Mains Filters
How to order -
PS00/A
or
PS01/A
XX
Rating
01 = 1A
03 = 3A
06 = 6A
10 = 10A
X
L/C Circuit
1 = Version 1
2 = Version 2
3 = Version 3
0
Additional
Components
0 = None
63
Tag Type and
Configuration
63 = 6.3mm tabs
XX
Panel
Thickness
00 = Flange
10 = 1.0mm
15 = 1.5mm
20 = 2.0mm
30 = 3.0mm
Circuit Board
Diagram
Series
PS00/A
PS01/A
Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
Max. Ambient Temp:
(@ Full Load)
Test Voltage:
Approvals:
Mating Connectors:
RoHS
PS00/Axxxx/xx00
250V a.c. 50-400Hz
<0.35mA (250V, 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
PS01/Axxxx/xxxx
250V a.c. 50-400Hz
<0.35mA (250V, 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Part No. Example
PS00/A0120/6300
PS00 series, flange fitting,
standard filtered IEC power inlet,
rated at 1 ampere. L/C circuit
version 2, i.e. L1 = 2 x 10mH,
Cx = 15nF, Cy = 2 x 2.2nF.
6.3mm tabs.
PX0587, PX0587/SE, PX0588
Compliant
PX0587, PX0587/SE, PX0588
Compliant
IEC Connectors 301
PS00/Axxxx/xx00 & PS01/Axxxx/xxxx
Rating & Version Tables
Rating
1 AMP
“
“
3 AMP
“
“
6 AMP
“
“
10 AMP
“
“

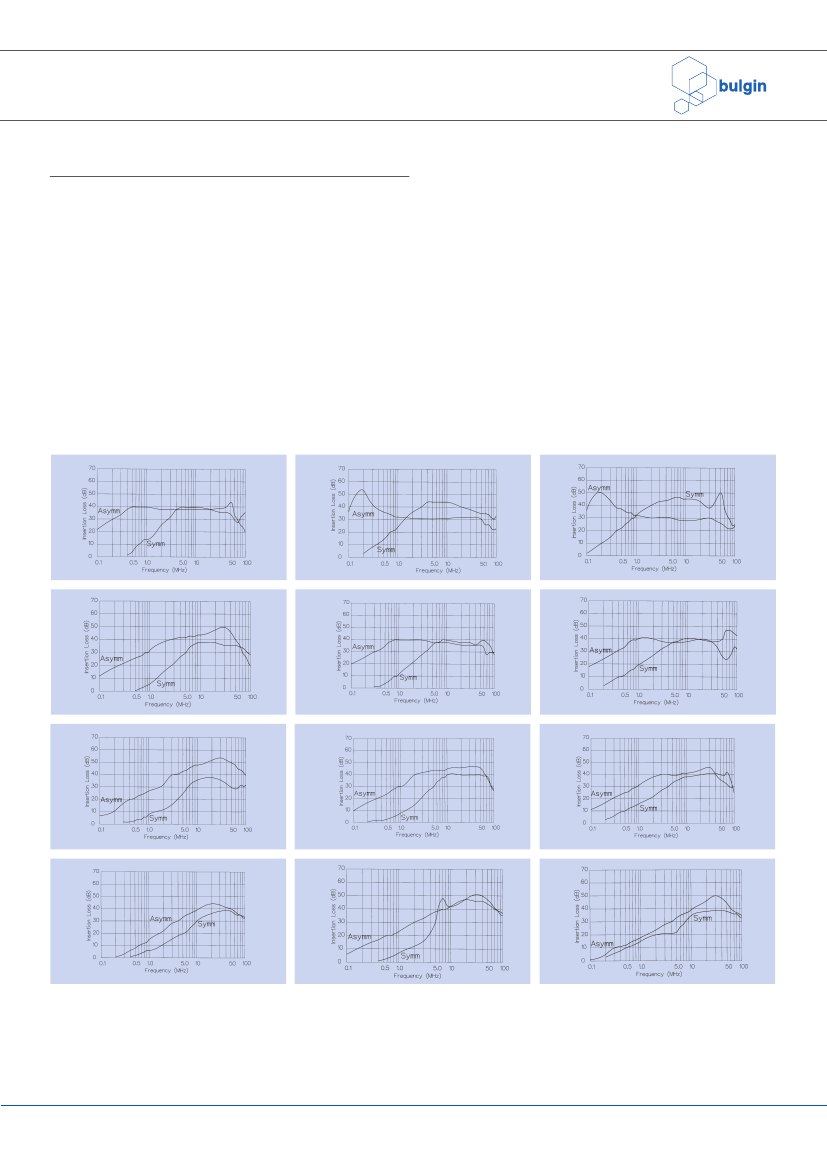

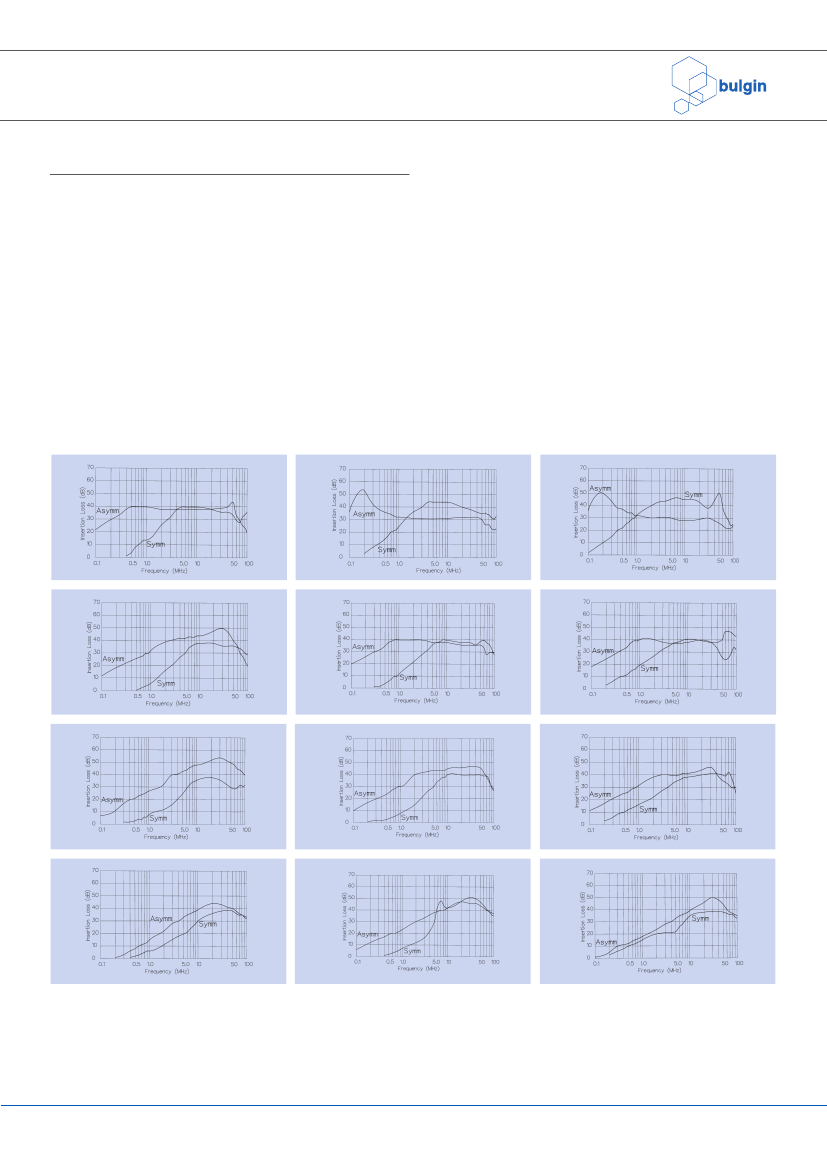

Mains Filters
Version
1
2
3
1
2
3
1
2
3
1
2
3
L1
2 x 2.8mH
2 x 10mH
2 x 10mH
2 x 0.75mH
2 x 1.8mH
2 x 1.8mH
2 x 0.3mH
2 x 0.7mH
2 x 0.7mH
2 x 0.17mH
2 x 0.35mH
2 x 0.17mH
Cx
1 x 15nF
1 x 15nF
1 x 47nF
1 x 15nF
1 x 15nF
1 x 47nF
1 x 15nF
1 x 15nF
1 x 47nF
1 x 15nF
1 x 15nF
1 x 47nF
Cy
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
Version 1
Version 2
Version 3
302 IEC Connectors

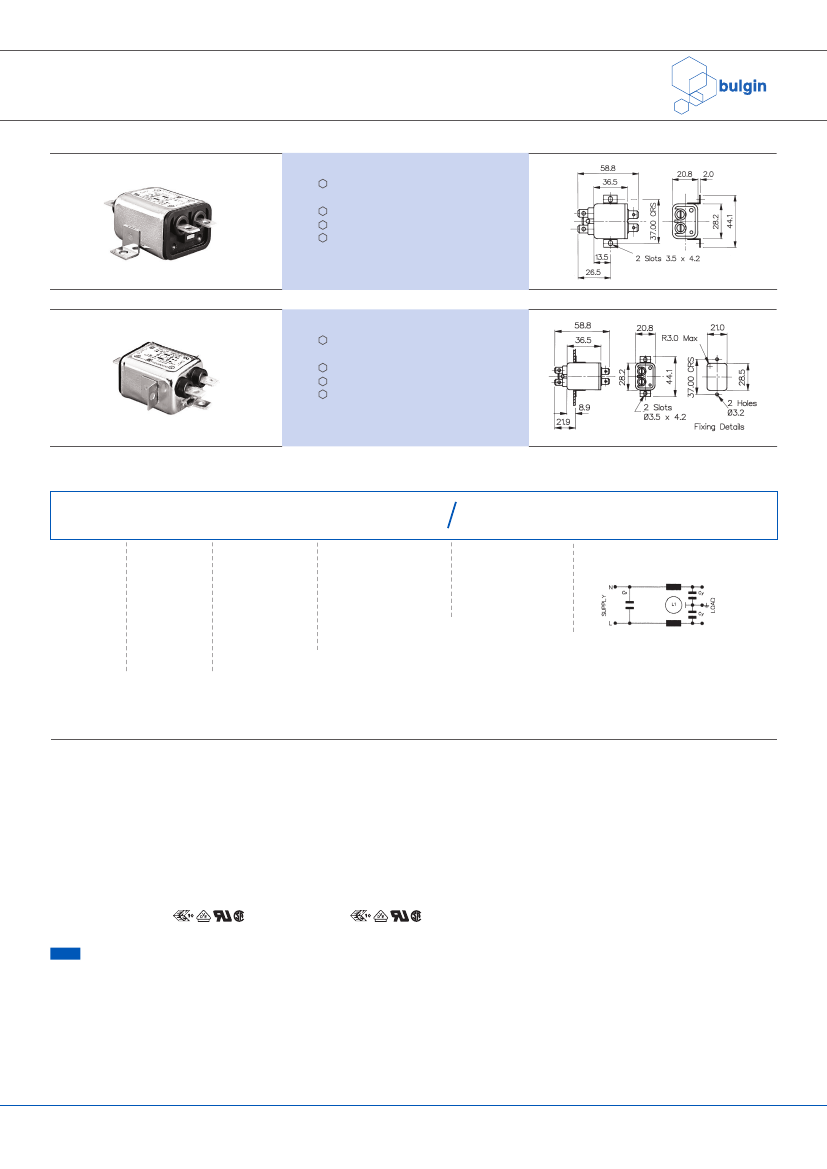

Base Mounting and Bulkhead
Base Mounting
1, 3, 6 or 10 Amp Current
Rating
3 Alternative Circuits
No additional components
6.3mm tabs
Base Mounting PS02/A
Bulkhead Mounting
1, 3, 6 or 10 Amp Current
Rating
3 Alternative Circuits
No additional components
6.3mm tabs
Bulkhead Mounting PS03/A
Mains Filters
How to order -
PS02/A
or
PS03/A
XX
Rating
01 = 1A
03 = 3A
06 = 6A
10 = 10A
X
L/C Circuit
1 = Version 1
2 = Version 2
3 = Version 3
0
Additional
Components
0 = None
63
Tag Type and
Configuration
63 = 6.3mm tabs
Circuit Board
Diagram
Series
PS02/A
PS03/A
Specification
Max. Working Voltage:
Earth Leakage Current:
Temperature Range:
Max. Ambient Temp:
(@ Full Load)
Test Voltage:
Approvals:
RoHS
PS02/Axxxx/xx
250V a.c. 50-400Hz
<0.35mA (250V, 50Hz)
–25ºC to +85ºC
PS03/Axxxx/xx
250V a.c. 50-400Hz
<0.35mA (250V, 50Hz)
–25ºC to +85ºC
Part No. Example
PS02/A0120/63
PS02 series, standard base
mounting filter, rated at 3
amperes. L/C circuit version 1,
i.e. L1 = 2 x 0.75mH, Cx =
15nF, Cy = 2 x 2.2nF with 2.8mm tabs.
40ºC (derate linearly to 0A @ 85ºC) 40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Compliant
Compliant
IEC Connectors 303
PS02/Axxxx/xx & PS03/Axxxx/xx
Rating & Version Table
Rating
1 AMP
“
“
3 AMP
“
“
6 AMP
“
“
10 AMP
“
“
Version
1
2
3
1
2
3
1
2
3
1
2
3
L1
2 x 2.8mH
2 x 10mH
2 x 10mH
2 x 0.75mH
2 x 1.8mH
2 x 1.8mH
2 x 0.3mH
2 x 0.7mH
2 x 0.7mH
2 x 0.17mH
2 x 0.35mH
2 x 0.17mH
Cx
1 x 15nF
1 x 15nF
1 x 47nF
1 x 15nF
1 x 15nF
1 x 47nF
1 x 15nF
1 x 15nF
1 x 47nF
1 x 15nF
1 x 15nF
1 x 47nF
Cy
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
2 x 2.2nF
Mains Filters
Version 1
Version 2
Version 3
304 IEC Connectors
