Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for
video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers
with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
Maximum supported video resolutions and number of monitors depend on your graphics card. Check graphics
card specifications to determine its capabilities.
Highlights
Supports UHD video resolutions
up to 3840 x 2160 (4K x 2K) @
24/30Hz
Built-in 6 in. cable connects
2-Port DisplayPort 1.2 to HDMI Multi-Stream
Transport (MST) Hub, 3840 x 2160 (4K x 2K) @
24/30Hz UHD, TAA

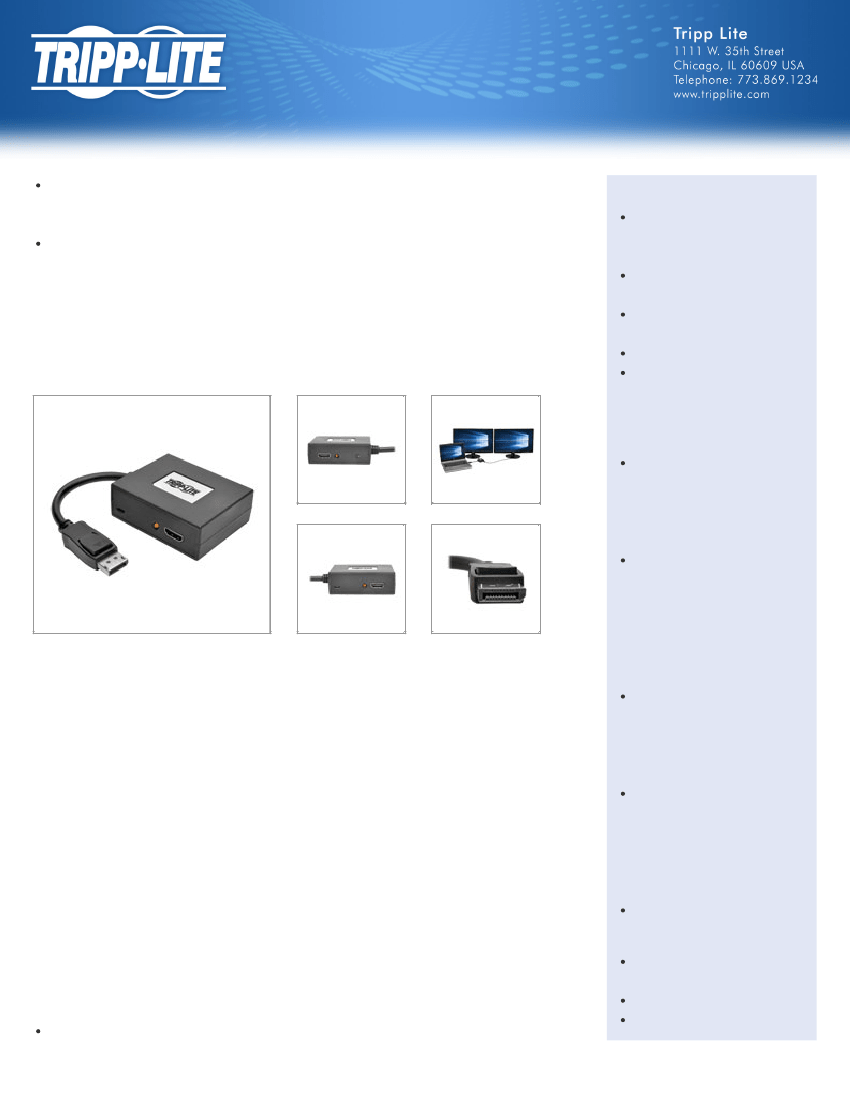

MODEL NUMBER:
B156-002-HD-V2
directly to DisplayPort source
Supports up to 48-bit Deep Color
(16 bits per channel)
Works with all operating systems
Supports DTS-HD, Dolby
TrueHD and 7.1-channel
surround sound
System Requirements
Computer with DisplayPort
1.2-compatible graphics card
(e.g. AMD Radeon with AMD
Eyefinity) required for video wall
mode
Backward compatible with most
DisplayPort 1.1a equipment
running current graphics drivers
with feature set limited to that of
your equipment. Compatibility
Description
The B156-002-HD-V2 2-Port DisplayPort 1.2 to HDMI MST Hub connects two HDMI televisions, projectors or
monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference
rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors,
extend the desktop across them, or combine both into one large monitor in video wall mode.
with older graphics cards not
guaranteed.
Mac OS X does not support MST
for NVIDIA and Intel Graphics
Processor Units, limiting video
display on connected monitors to
mirror mode.
The B156-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with
the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions
up to 3840 x 2160 (4K x 2K) at 24/30 Hz. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color
(16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.
Maximum supported video
resolutions and number of
monitors depend on your
graphics card. Check graphics
card specifications to determine
The B156-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers
or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from
the connected computer. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when
the monitors are receiving a signal. The B156-002-HD-V2 complies with the Federal Trade Agreements Act
(TAA) for GSA Schedule purchases.
its capabilities.
Monitor with HDMI input
Package Includes
B156-002-HD-V2 2-Port
DisplayPort 1.2 to HDMI MST Hub
USB Micro-B cable, 3 ft.
Owner’s manual
Features
Connects 2 HDMI Displays to Your Computer’s DisplayPort Output
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
1/3
Displays same image on 2 monitors simultaneously in mirror mode
Extends desktop across 2 monitors in extended mode
Combines 2 monitors into one large monitor in video wall mode
Built-in 6 in. cable connects directly to DisplayPort source
LEDs indicate when monitors are receiving a signal
Meets the Latest Performance Standards
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio
Backward compatible with DisplayPort 1.1 and 1.1a
Easy to Use Almost Anywhere
Works with all operating systems
Plug and play—no software, drivers or external power supply required
Bus-powered via included USB Micro-B cable
TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
AC Adapter
N/A
PHYSICAL
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
1 x 3 x 2.4
2.54 x 7.62 x 6.15
0.2
0.09
Black
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
2
DISPLAYPORT (MALE)
(2) HDMI (FEMALE)
CERTIFICATIONS
Approvals
CE, FCC, RoHS, and REACH
2/3
