CONNECTOR P/N
NOTES:
1. ALL PARTS TO BE BULK PACKED.
2. SEE DRAWING HPMIMIX FOR HOLE PATTERN.
3. DIMENSIONS ARE FOR REFERENCE ONLY.
W8C80-6PG-513
W8C80-6PG-516
W8C80-6PG-519
W8C80-6PG-522
W8C80-6PG-528
W8C82-6PG-513
W8C82-6PG-516
W8C82-6PG-519
W8C82-6PG-522
2-#16 PIN CONTACTS, CRIMP
MAT'L: GOLD PLATED COPPER ALLOY
SUPPLIED UNASSEMBLED
4-#20 PIN CONTACTS, CRIMP
MAT'L: GOLD PLATED COPPER ALLOY
SUPPLIED UNASSEMBLED
0.63 16.0
KEY
3
POSITION 1-#16
INDICATOR
6
0.60 15.1
0.94 23.9
1.06 27.0
0.19 4.8
W8C82-6PG-528
POSITIONS
#16
#20
CONTACT
STYLE
CRIMP
CRIMP
CRIMP
CRIMP
CRIMP
SOLDER
SOLDER
SOLDER
SOLDER
SOLDER
CABLE O.D. RANGE
0.13-0.15" (3.3 -3.8 mm)
0.16-0.18" (4.1 -4.6 mm)
0.19-0.21" (4.8 -5.3 mm)
0.22-0.25" (5.6 -6.3 mm)
0.26-0.285" (6.6 -7.2 mm)
0.13-0.15" (3.3 -3.8 mm)
0.16-0.18" (4.1 -4.6 mm)
0.19-0.21" (4.8 -5.3 mm)
0.22-0.25" (5.6 -6.3 mm)
0.26-0.285" (6.6 -7.2 mm)
2
4
CUSTOMER PRINT
1.03 26.2
KEY
6
3
POSITION 1-#16
INDICATOR
2
4
5
2
5
0.68 17.3
CABLE-TO-CABLE HOUSING
MAT'L: THERMOPLASTIC, BLACK
4
ASSY: W8C80-6PG-522 SHOWN
MATING FACE
0.75 19.1
GROMMET
MAT'L: ELASTOMER, BLACK
BACKSHELL
MAT'L: THERMOPLASTIC, BLACK
CABLE GRIP
MAT'L: THERMOPLASTIC, BLACK
ASSY: W8C80-6PG-522 SHOWN
WIRING END
1.05 26.6
W8C8X-6PG-5XX_CD
2-#16 PIN CONTACTS, SOLDER
MAT'L: GOLD PLATED COPPER ALLOY
SUPPLIED ASSEMBLED
CUSTOMER APPROVAL
THIS DOCUMENT CONTAINS CONFIDENTIAL
INFORMATION PROPRIETARY TO CONXALL
CORPORATION. ANY REPRODUCTION,
DISCLOSURE, OR USE OF THIS
DOCUMENT /INFORMATION IS EXPRESSLY
PROHIBITED UNLESS AUTHORIZED IN
WRITING BY CONXALL CORPORATION.
4-#20 PIN CONTACTS, SOLDER
MAT'L: GOLD PLATED COPPER ALLOY
SUPPLIED ASSEMBLED
2.0 51
APPROVED BY:
DATE:
PART
NUMBER:
PRELIMINARY
0.63 16.0
0A
PNK
01-19-16
DATE
PDR 14001 PRELIMINARY
DESCRIPTION
ORIG. DRAWN BY:
REV. INIT.
ALL INFORMATION ILLUSTRATED IS
THE PROPERTY OF "CONXALL
CORPORATION." UNAUTHORIZED
DUPLICATION OR DISTRIBUTION OF
THIS DOCUMENT IS PROHIBITED.
ALL UNITS ARE IN FEET,
INCHES, FRACTION OF INCHES
AND DECIMALS.
UNLESS OTHERWISE SPECIFIED
TOLERANCES:
3 PLACE DECIMALS ±.005
ANGLES ±1°
FRACTIONS ±1/16
= CRITICAL CHARACTERISTIC
FLAG PER SPEC. XXXX
PNK
DATE:
01-19-16
601 E. WILDWOOD VILLA PARK, IL 60181
CHECKED BY:
SHOWN ASSEMBLED
APPROVED BY:
TITLE:
SCALE
FILE:
RoHS COMPLIANT
NTS
SIZE
B
1 OF 1
DIRECTORY:
SHEET

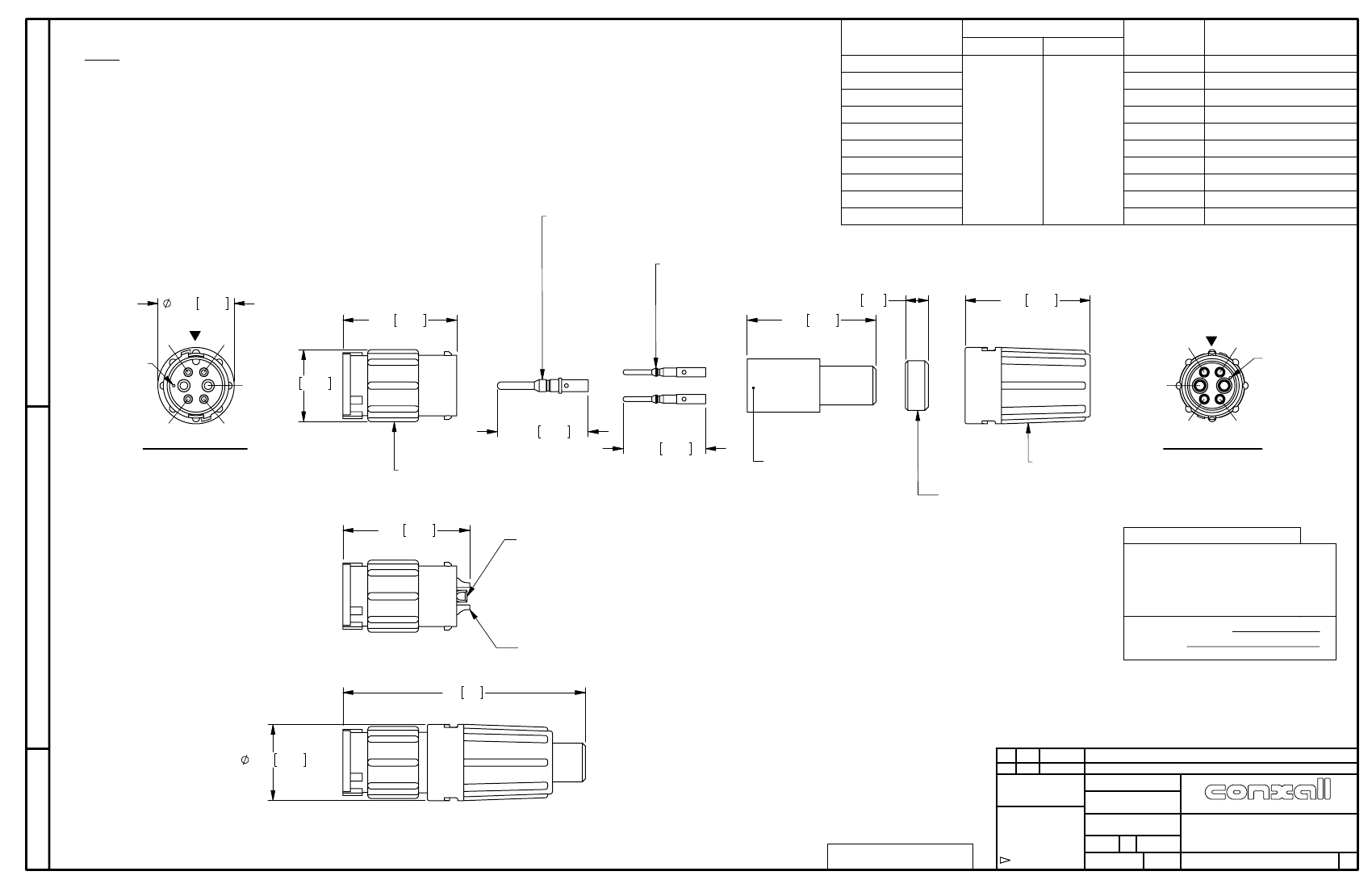

CABLE-TO-CABLE CONNECTOR
2-16 + 4-20 PIN CONTACTS
MINI-CON-X POWER/SIGNAL
CUSTOMER:
STANDARD PRODUCT
PART
NUMBER:
W8C8X-6PG-5XX_CD
SLW
W8C8X-6PG-5XX_CD
0A
REV
