HD SERIES SOLDER TYPE D SUBMINIATURE CONNECTOR
General

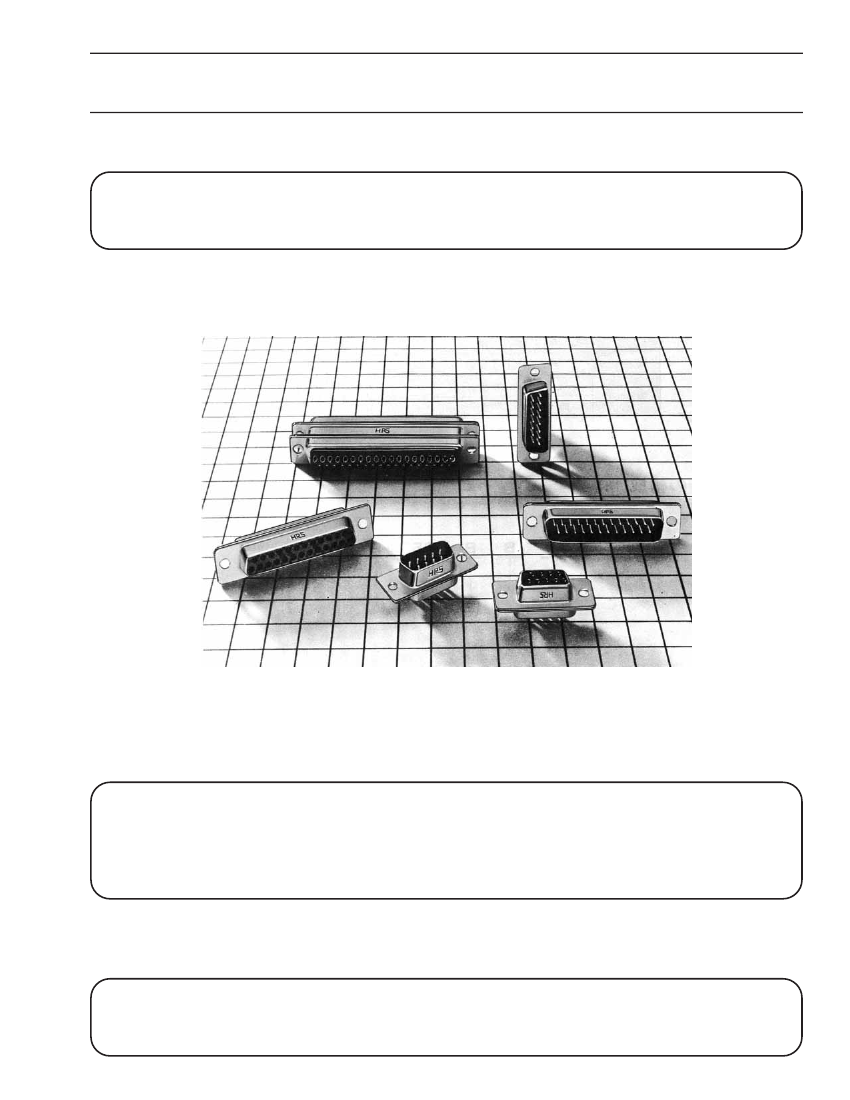

H D Series subminiature connectors with stamped contacts are easy to solder to a wide variety of stranded and
single conductor cables. 9, 15, 25, 37 and 50-contact models available.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(4) Available in various plug cases such as CTF and
CTH. A wide variety of combinations available,
such as straight dipping (SD), right angle dipping
(RD), crimping (CD), and ribbon IDC termination
(FD).
Application
Computers, peripherals and terminals, control equipment, radio equipment, and measuring instruments.
04/2009
51
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Electrical and Environmental
Electrical and Environmental Characteristics
Current capacity
Rated voltage
Insulation
resistance
Contact
resistance
Withstand
voltage
3A
400V AC
5000mΩ min.
at 500V DC
7mΩ max.
at 100mA DC
1250Vrms AC for 1 minute
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Material and finish
Shell
Insulator
Male
Contact
Female Phosphor bronze
Steel
PBT
（GE Valox）
Coppor alloy
Selective Gold + Nickel
Nickel plating
Black
Ordering Informations
HD
B
B
−
25
P
F
（05）
Model number symbol HD: D sub-soldering type
Shell size: E, A, B, C and D
Serial symbols by type of connector unit:
Number of poles: 9, 15, 25, 37 and 50
Terminal opening shape symbol
P: male terminal
S: female terminal
(6) F: shell dimple machined
(7) Specification contents
(05): Shell: Nickel plating
Termination of contact: Nickel plating＋gold flash
plating
(1)
(2)
(3)
(4)
(5)
(1)
(2) (3)
(4) (5) (6) (7)
52
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

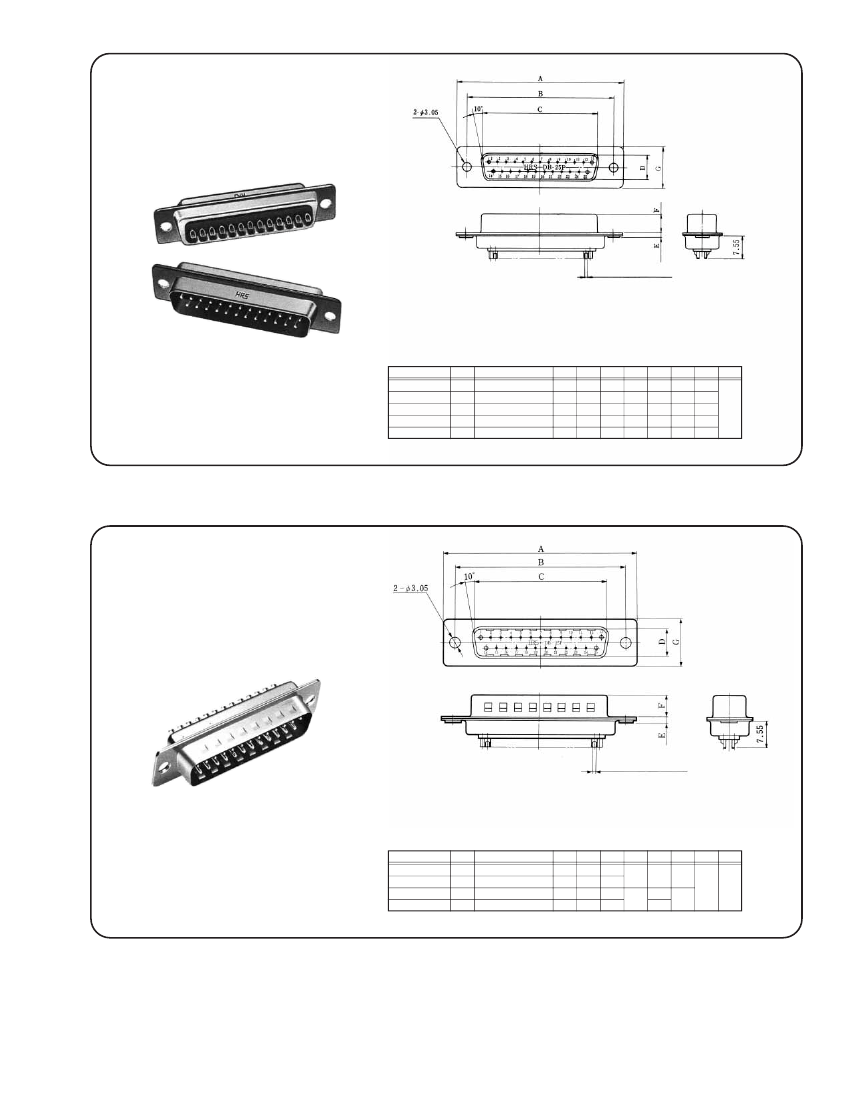

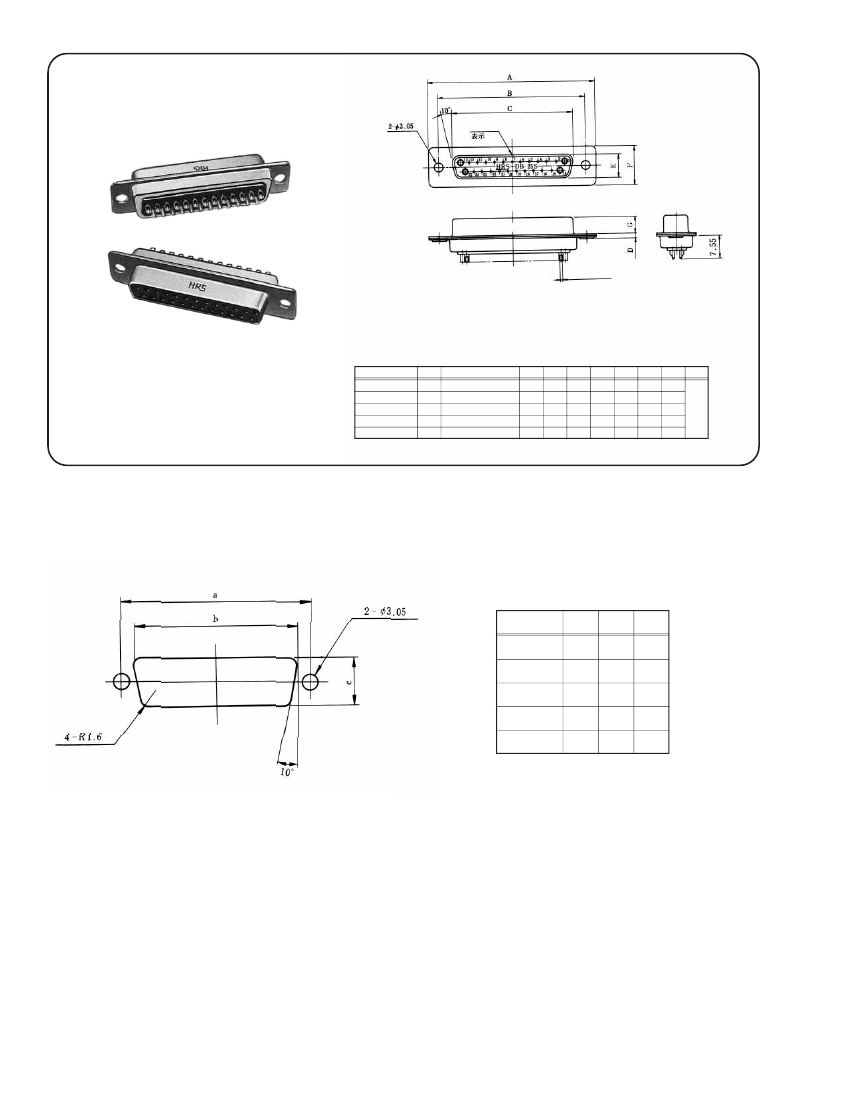

Solder Cup dimension: φ1.1
Note 1: Soldering should be made within 4 seconds using
a soldering iron of 40 W or less.
Note 2: The figure shows a 25-contact model (HDBB-25P
(05))
Unit: mm
HRS No
No.of pin
9
15
25
37
50
Part No.
HDEB-9P
（05）
HDAB-15P
（05）
HDBB-25P
（05）
HDCB-37P
（05）
HDDB-50P
（05）
A
B
C
D
8.34
8.34
8.4
E
1.2
1.2
1.3
1.4
1.5
F
5.99
5.99
5.87
5.87
5.87
G
RoHS
HDBB-25P
（05）
CL211-0232-6-05
CL211-0234-1-05
CL211-0215-7-05
CL211-0236-7-05
CL211-0393-5-05
30.81 24.99 16.9
39.14 33.32 25.24
53.04 47.04 39.01
12.55
12.55
12.55 YES
12.55
15.37
69.32 63.5 55.47 8.4
66.93 61.11 52.85 11.13
Solder Cup dimension: φ1.1
Note 1: Soldering should be made within 4 seconds using
a soldering iron of 40 W or less.
Note 2: The figure shows a 25-contact model (HDBB-25PF
(05))
HDBB-25PF
（05）
Unit: mm
HRS No
CL211-0566-1-05
CL211-0563-3-05
CL211-0564-6-05
CL211-0567-4-05
No.of pin
9
15
25
37
Part No.
HDEB-9PF
（05）
HDAB-15PF
（05）
HDBB-25PF
（05）
HDCB-37PF
（05）
A
B
C
D
8.34
8.4
E
1.2
1.3
1.4
F
5.99
12.55 YES
5.87
G
RoHS
30.81 24.99 16.9
39.14 33.32 25.24
53.04 47.04 39.01
69.32 63.5 55.47
04/2009
53
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Solder Cup dimension: φ1.1
Note 1: Soldering should be made within 4 seconds using
a soldering iron of 40 W or less.
Note 2: The figure shows a 25-contact model (HDBB-25S
