354397 datasheet, PDF - EEWORLD Datasheet

354397: DescriptionERNI Electronics 48P 2.54MM VERT MALE R/2 TRANSZONE 13MM; File Size66KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric View All

354397 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354397	-	-	View	Buy Now

354397 Overview

ERNI Electronics 48P 2.54MM VERT MALE R/2 TRANSZONE 13MM

354397 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	ERNI Electronics
RoHS	Details
Factory Pack Quantity	30

Preview

Download Datasheet

View All

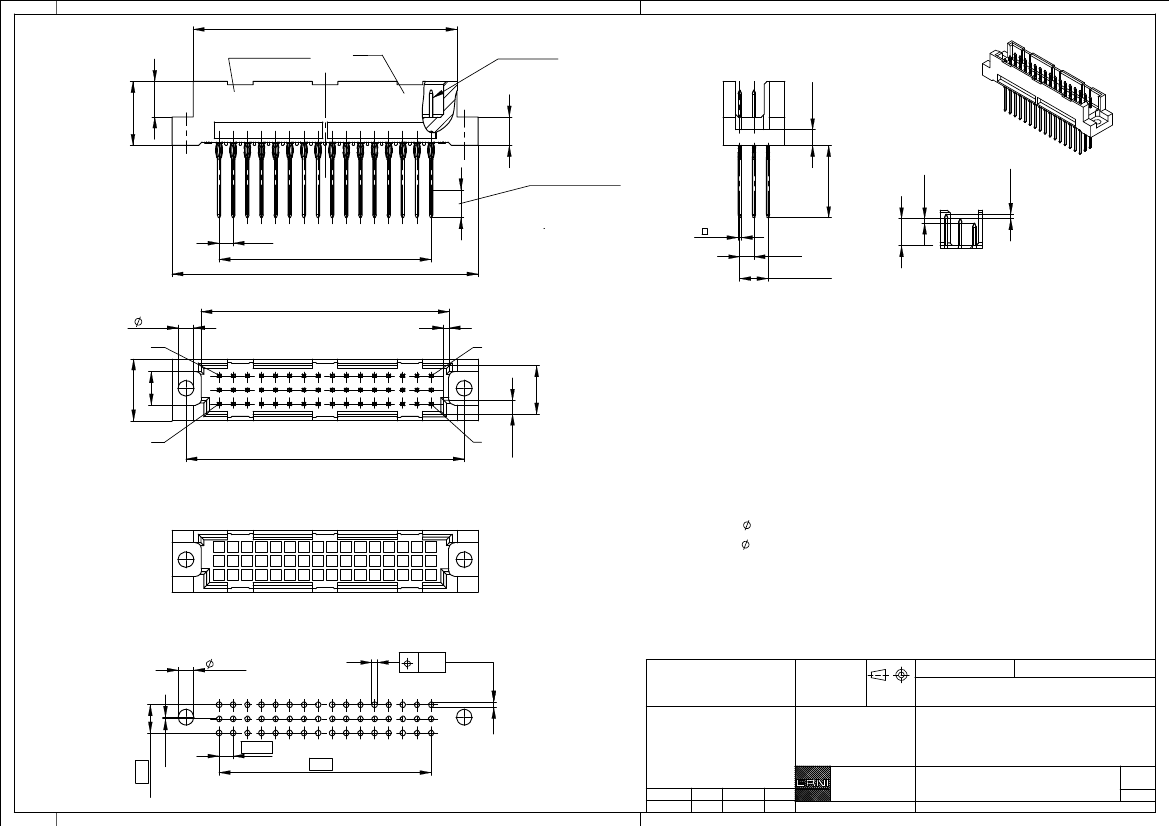

47,4

-0,2

Anforderungsstufe

Datum

class

date

Stecklänge

mating length

6,4

-0,1

max.11,6

XXXXXXX

5,2

-0,1

a b c

2,9

-0,3

±0,2

0,8

±0,1

mating transfer zone

E S L

15x2,54=38,1

max.55

44,6

+0,2

2,54

2x2,54=5,08

4,8

2,54

0,6

+0,2

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

2,8

+0,1

a16

max.11,1

8,7

+0,1

c16

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

compliant pressfit zone with mating transfer zone

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Schichtaufbau im metalisierten Loch siehe Zeichnung 164062 / Nr. 6

diameter of drilled hole see drawing 164062 / No. 6

1,0

+0,09

-0,06

Elastische Einpresszone mit Übergabesteckzone /

2,5

-0,2

Durchmesser des metallisierten Loches

1,0

-0,06

Diameter of finished plated-through hole

Bedruckung siehe Zeichnung 294905

+0,09

Marking see drawing 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

Alle Löcher

0,05

all holes

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

2x 2,54 =5,08

0,3

2,54

15x 2,54 =38,1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

10.03.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste R / 2, 48 EE

Male Con. R/2, 48 Pressfit

www.ERNI.com

Class

354397

STVR/2

0,8

±0,1

ERNI

RC 2

Übergabesteckzone

Stecklänge /

mating length
