Low Voltage Transient Suppression
F5B Series Metallized Polyester Film
with Integrated Suppression Diode 18 – 63 VDC
Overview
The F5B Series is a metallized polyester (MKT) film capacitor
with an integrated suppression diode encapsulated in a
thermosetting resin-filled plastic box with tinned wire leads. Box
material is solvent resistant and flame retardant meeting the
requirements of UL 94 V–0.
Applications
Typical applications include worldwide use as EMI/RFI and
advanced transient voltage suppressors for automotive motors
and other suppression applications such as engine blower
fans, central locking systems, heating/air-conditioning blowers,
electric sun roofs, electric window regulators, fuel/oil pumps,
electric windshield wipers and electrically operated seats. This
through-hole EMI/RFI suppression element is mainly used for
automotive applications without a printed circuit board, e.g.,
motor suppression or mixed through-hole and surface mount
printed circuit boards.
Benefits
• Low inductive MKT capacitors in parallel construction with a
high power bidirectional transient voltage suppressor diode in
a single case provide superior suppression results
• Approvals: AEC–Q200 (in progress), ISO7637
• Rated voltage: 18 – 63 VDC
• Capacitance range: 0.1 μF to 2.2 μF
•
•
•
•
•
•
Lead spacing: 5 mm
Capacitance tolerance: ±10%, ±20%
Climatic category: 55/125/56, IEC 60068-1
Tape and reel packaging in accordance with IEC 60286-2
RoHS Compliant and lead-free terminations
Operating temperature range: -55˚C to +125˚C
Part Number System
F5B
Series
Film
Capacitor/
Diode Unit
H
Rated Voltage
(VDC)
B = 18
H = 25
J = 30
N = 45
C = 50
D = 63
C
Lead Spacing
(mm)
C=5
4100
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value. First
digit indicates the number
of zeros to be added.
DQ
Lead and
Packaging Code
See Ordering
Options Table
A
Diode Breakdown
Voltage V
BR
@ 1 mA
See Diode
Breakdown Voltage
Table
7
Size Code
See Dimension
Table
K
Capacitance
Tolerance
K = ±10%
M = ±20%

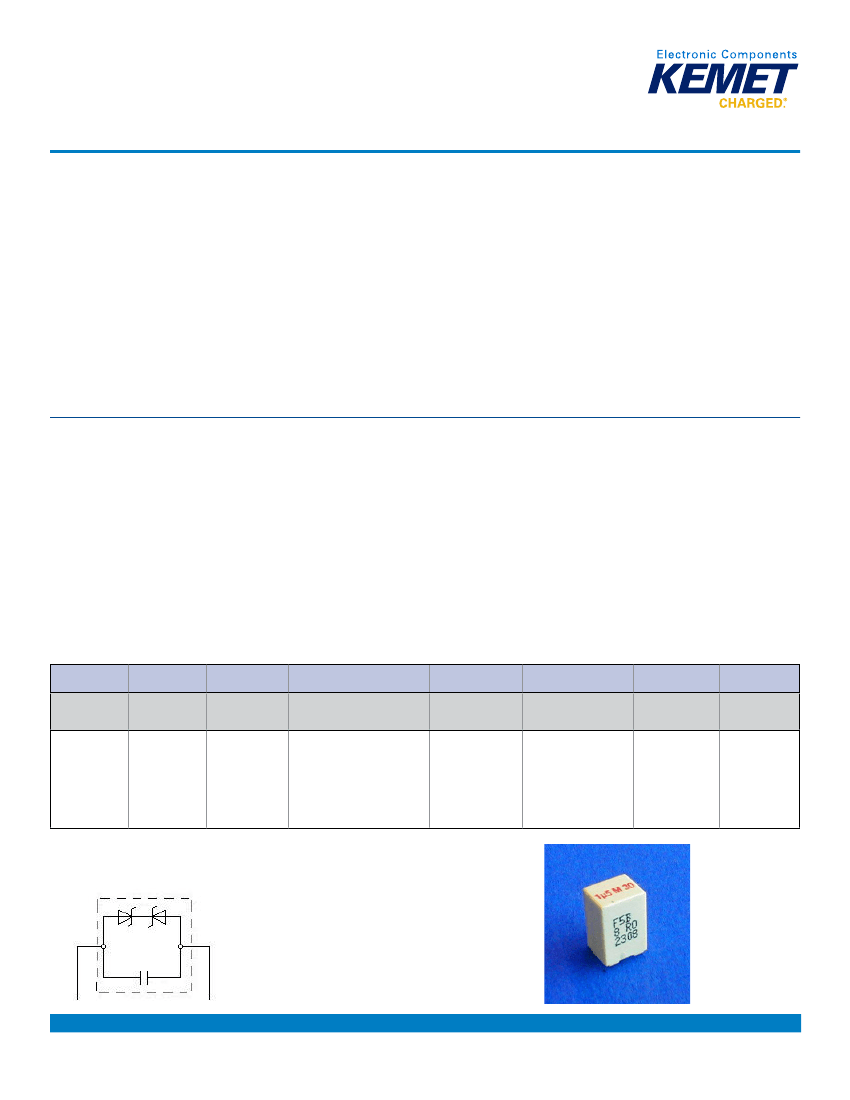

Circuit Diagram
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3069_F5B • 7/21/2014
1
Low Voltage Transient Suppression
F5B Series Metallized Polyester Film with Integrated Suppression Diode, 18 – 63 VDC
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Lead Length
(mm)
4 +2/-0
H
0
= 18.5 +/-0.5
17 +1/-2
H
0
= 18.5 +/-0.5
Lead and
Packaging
Code
AA
DQ
Z3
CK
5
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
Dimensions – Millimeters
L
H
d
p
Rated
Capacitance µF
0.1 – 1.2
1.5 – 2.2
B
0.5
LL
Size Code
7
8
p
Nominal
5
5
Tolerance
+/-0.4
+/-0.4
Nominal
6.1
7.3
B
Tolerance
Maximum
Maximum
Nominal
11.1
13.1
H
Tolerance
Maximum
Maximum
Nominal
7.5
7.5
L
Tolerance
Maximum
Maximum
Nominal
0.6
0.6
d
Tolerance
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3069_F5B • 7/21/2014
2
Low Voltage Transient Suppression
F5B Series Metallized Polyester Film with Integrated Suppression Diode, 18 – 63 VDC
Diode Breakdown Voltage & Clamping Voltage Table
Part Number
Digit 4
Letter
B
B
H
H
J
J
J
N
C
D
V
r
(VDC)
18
18
25
25
30
30
30
45
50
63
Part Number
Digit 12
Letter
B
E
A
C
D
I
N
B
C
C
V
BR
(VDC)
22
27
30
33
36
39
44
53
68
78
Clamping Voltage
(Pulse 10/700 µs)
V
C
(V)
28
33
36
40
43
46
52
62
78
89
I
p
(A)
24
31
20
19
18
17
16
14
12
11
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3069_F5B • 7/21/2014
3
Low Voltage Transient Suppression
F5B Series Metallized Polyester Film with Integrated Suppression Diode, 18 – 63 VDC
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
Leakage Current
Approvals
Dissipation Factor
Test Voltage Between Terminals
Insulation Resistance
Diode
Peak Current Pulse
Peak Current
18 – 63 VDC
(For temperature over 100°C a decreasing factor of 2% per degree has
to be applied on the rated voltage V
R
)
0.1 – 2.2 µF
±10%, ±20%
-55°C to +125°C
55/125/56, IEC 60068–1
≤ 50 µA at V
R
AEC–Q200 (in progress), ISO 7637–2
0.01 (1 kHz at 25ºC ± 5ºC)
100 VDC
V
R
< 24 V 1MΩ @ 12 V, V
R
≥ 24 V 1MΩ @ 24 V
600 W TVS diode, bidirectional
10/700 µs
See Diode Breakdown Voltage & Clamping Voltage Table

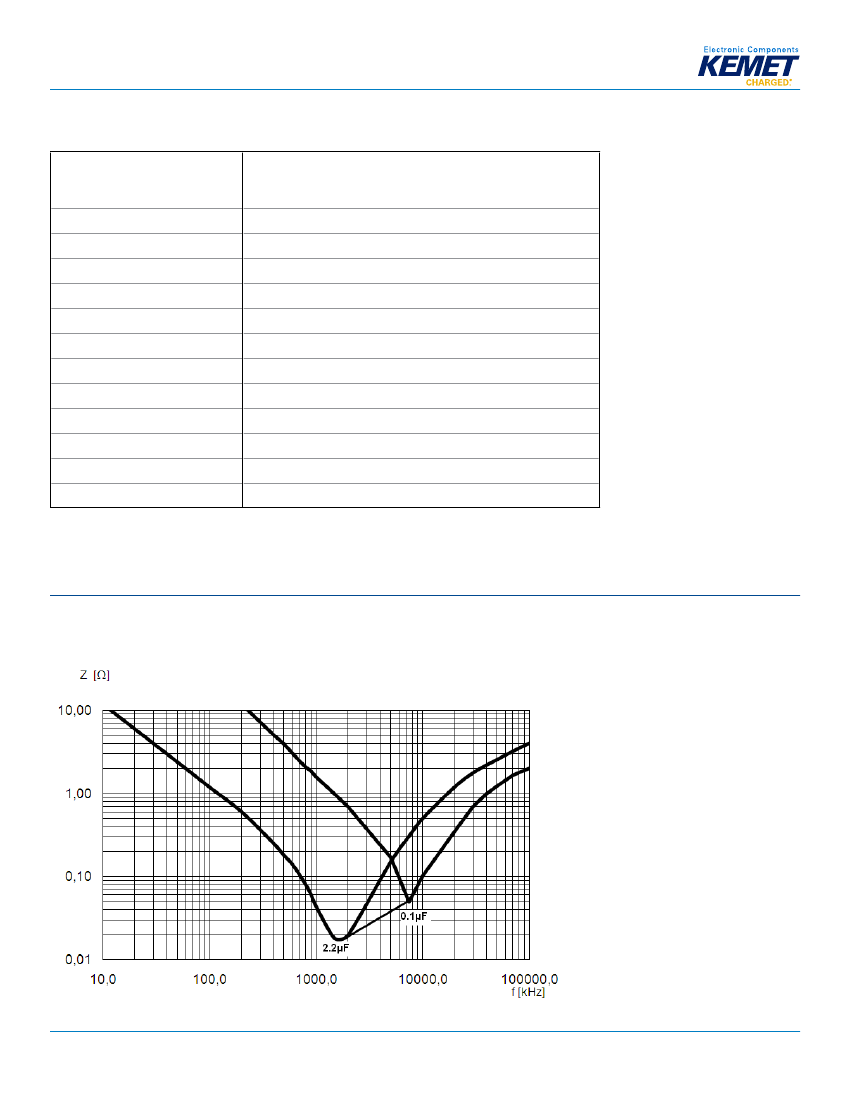

Impedance Graph
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3069_F5B • 7/21/2014
4
Low Voltage Transient Suppression
F5B Series Metallized Polyester Film with Integrated Suppression Diode, 18 – 63 VDC
Environmental Test Data
Test
Conditions
Δ C/C
Damp Heat Steady State
+40°C ±2°C and 93% ±2% RH,
56 days
V
BR
change
DF change
Leakage current at V
R
Δ C/C
Endurance
+125°C ±2°C/100°C ±2°C,
0.5 x V
R
/1.0 x V
R
, 1,000 hours
V
BR
change
DF change
Leakage current at V
R
Δ C/C
Resistance to Soldering Heat
+260°C ±5°C, 10 ±1 second
V
BR
change
DF change
Leakage current at V
R
Δ C/C
Peak Current Derating
Pulse 10/700 µs, 300 V
p
, 100 cycles
with alternating polarity, 120 seconds
between each current peak
V
BR
change
DF change
Leakage current at V
R
Δ C/C
Long Term Stability
(After 2 Years)
-40°C to +80°C, ≤ 70% humidity
V
BR
change
DF change
Leakage current at V
R
Δ C/C
Reliability Failure Criteria
Reference MIL HDB 217
+40°C ±2°C, 0.5 x V
R
, ≤ 5 FIT
V
BR
change
DF change
Leakage current at V
R
Performance
≤ 5%
≤ 10%
≤ 50 x 10
-4
@ 1 kHz
≤ 100 µA
≤ 10%
≤ 10%
≤ 50 x 10
-4
@ 1 kHz
≤ 100 µA
≤ 3%
≤ 5%
≤ 30 x 10
-4
@ 1 kHz
≤ 50 µA
≤ 10%
≤ 10%
≤ 30 x 10
-4
@ 1 kHz
≤ 100 µA
≤ 3%
≤ 5%
≤ 20 x 10
-4
@ 1 kHz
≤ 50 µA
> 10%
≤ 10%
≤ 20 x 10
-4
@ 1 kHz
≤ 200 µA
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3069_F5B • 7/21/2014
5
