Doc No.
TT4-EA-12784
Revision.
3
Product Standards
Schottky Barrier Diode

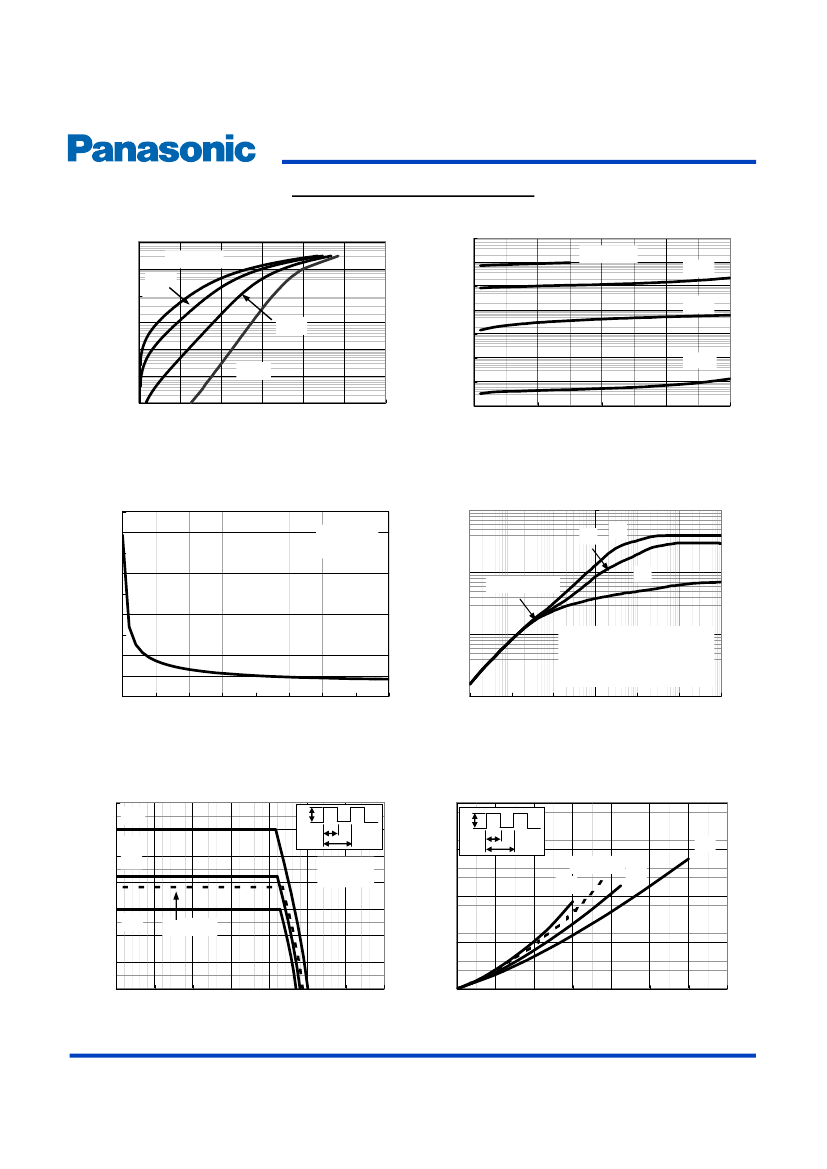

DB2W40900L
DB2W40900L
Silicon epitaxial planar type
For high frequency rectification
DB2X415 in Mini2 clip type package
Features
Low forward voltage VF
Forward current (Average) IF(AV) = 3 A rectification is possible
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL:Level 1 compliant)
1
Unit: mm
1.6
2
0.13
Marking Symbol: AB
0.9
2.6
3.5
0.8
Packaging
Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard)
1. Cathode
2. Anode
Panasonic
JEITA
Code
Mini2-F3-B
SC-109B
―
Absolute Maximum Ratings Ta = 25
C
Parameter
Symbol
Reverse voltage
Forward current (Average)
*1
Non-repetitive peak forward surge current
Junction temperature
*1
Operating ambient temperature
Storage temperature
Note:
*2
Rating
40
3
30
150
-40 to +85
-55 to +150
Unit
V
A
A
°C
°C
°C
VR
IF(AV)
IFSM
Tj
Topr
Tstg
Internal Connection
2
*1 Tl = 80 °C
*2 50 Hz sine wave 1 cycle (Non-repetitive peak current)
1
Page 1 of 4
Established : 2010-10-29
Revised
: 2013-04-27
