NC7SZ66 — Low Voltage Single SPST Normally Open Bus Switch
September 2013
NC7SZ66
Low Voltage Single SPST Normally Open Bus Switch
Features
Broad V
CC
Operating Range: 1.65 V to 5.5 V
Rail-to-Rail Signal Handling
Power Down High-Impedance Inputs/Outputs
5
Ω
Switch Connection between Two Ports
Minimal Propagation Delay through the Switch
Low I
CC
Zero Bounce in Flow-Through Mode
Control Input Compatible with CMOS Input Levels
Ultra-Small MicroPak™ Packages
Space-Saving SOT23 and SC70 Packages
Description
The NC7SZ66 is a ultra high-speed (UHS) CMOS
compatible single-pole/single-throw (SPST) bus switch.
The LOW on resistance of the switch allows inputs to be
connected to outputs with minimal propagation delay
and without generating additional ground bounce noise.

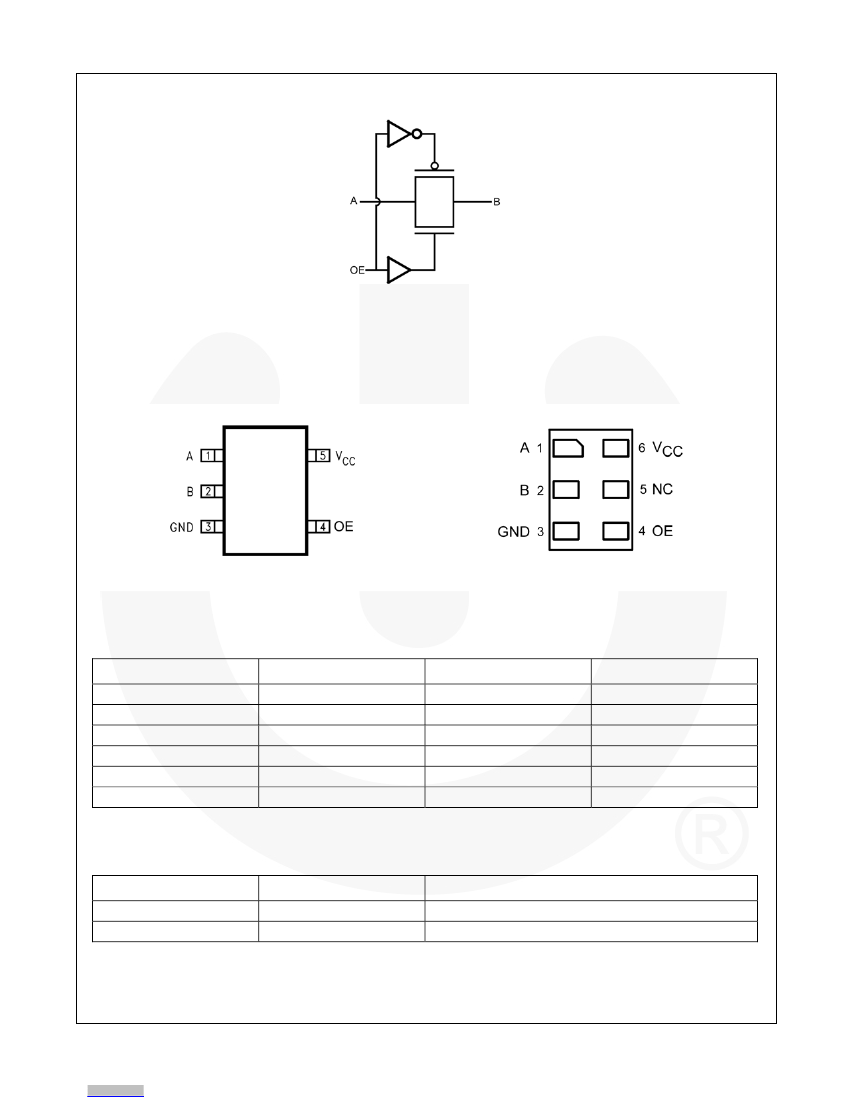

The device is organized as a 1-bit switch with a switch
enable (OE) signal. When OE is HIGH, the switch is on
and port A is connected to port B. When OE is LOW, the
