BUK9Y12-100E,115

Description
MOSFET N-channel TrenchMOS logic level FET
Categorysemiconductor    Discrete semiconductor
File Size723KB,13 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

BUK9Y12-100E,115 Overview

MOSFET N-channel TrenchMOS logic level FET

BUK9Y12-100E,115 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerNXP
Product CategoryMOSFET
RoHSDetails
TechnologySi
Mounting StyleSMD/SMT
Package / CaseLFPAK56-5
Number of Channels1 Channel
Transistor PolarityN-Channel
Vds - Drain-Source Breakdown Voltage100 V
Id - Continuous Drain Current85 A
Rds On - Drain-Source Resistance9.5 mOhms
Vgs th - Gate-Source Threshold Voltage1.7 V
Vgs - Gate-Source Voltage15 V
Qg - Gate Charge64 nC
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 175 C
ConfigurationSingle
Pd - Power Dissipation238 W
Channel ModeEnhancement
PackagingCut Tape
PackagingMouseReel
PackagingReel
Transistor Type1 N-Channel
Fall Time74 ns
Rise Time39 ns
Factory Pack Quantity1500
Typical Turn-Off Delay Time117 ns
Typical Turn-On Delay Time22 ns
Unit Weight0.002995 oz
BUK9Y12-100E
4 November 2016
N-channel 100 V, 12 mΩ logic level MOSFET in LFPAK56
Product data sheet
1. General description
Logic level N-channel MOSFET in an LFPAK56 (Power SO8) package using TrenchMOS
technology. This product has been designed and qualified to AEC Q101 standard for use
in high performance automotive applications.
2. Features and benefits
Q101 compliant

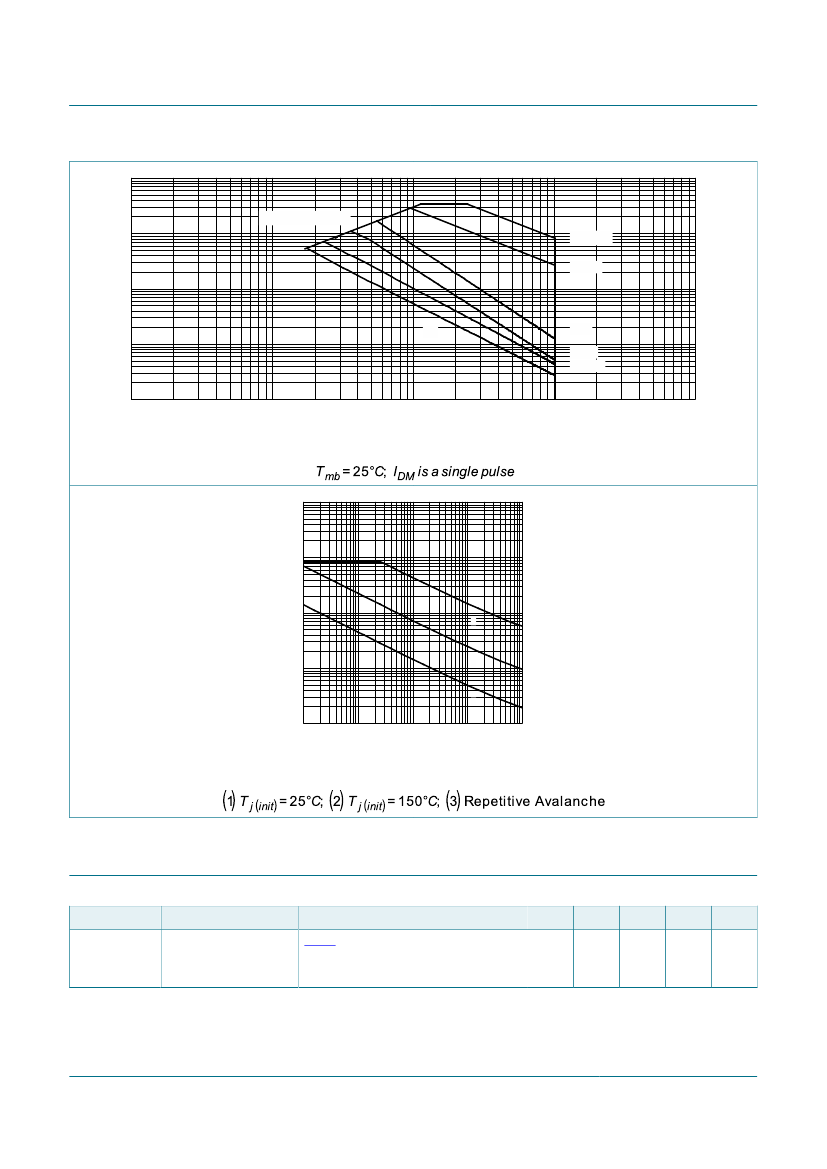

Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with V
GS(th)
rating of greater than 0.5 V at 175 °C
3. Applications
12 V, 24 V and 48 V Automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
4. Quick reference data
Table 1.
Symbol
V
DS
I
D
P
tot
R
DSon
Quick reference data
Parameter
drain-source voltage
drain current
total power dissipation
Conditions
25 °C ≤ T
j
≤ 175 °C
V
GS
= 5 V; T
mb
= 25 °C;
Fig. 2
T
mb
= 25 °C;
Fig. 1
V
GS
= 5 V; I
D
= 25 A; T
j
= 25 °C;
Fig. 11
Min
-
-
-
Typ
-
-
-
Max
100
85
238
Unit
V
A
W
Static characteristics
drain-source on-state
resistance
gate-drain charge
-
9.5
12
Dynamic characteristics
Q
GD
I
D
= 25 A; V
DS
= 80 V; V
GS
= 5 V;
T
j
= 25 °C;
Fig. 13; Fig. 14
-
24
-
nC
