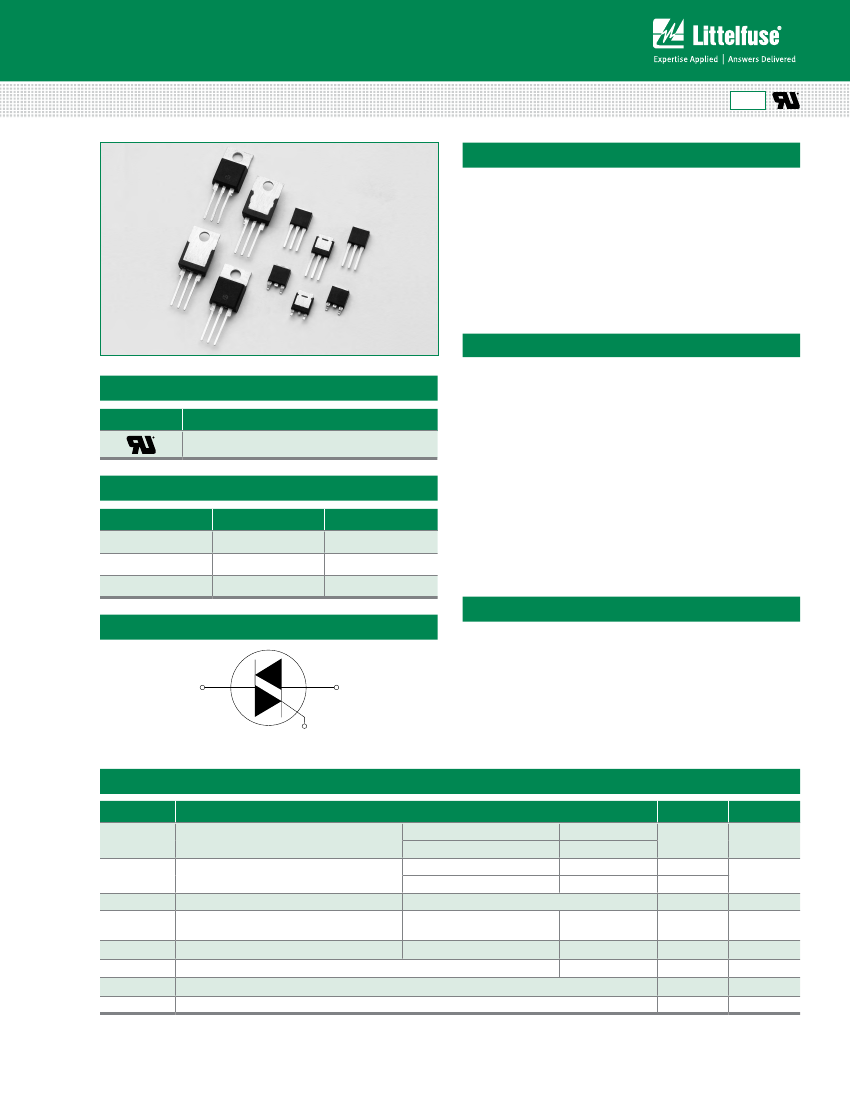

Teccor
®
brand Thyristors
4 Amp Sensitive & Standard Triacs
Lxx04xx & Qxx04xx Series
Description
RoHS
4 Amp bi-directional solid state switch series is designed
for AC switching and phase control applications such as
motor speed and temperature modulation controls, lighting
controls, and static switching relays.
Sensitive
type devices guarantee gate control in Quadrants
I & IV needed for digital control circuitry.
Standard
type devices normally operate in Quadrants I & III
triggered from AC line.
Features & Benefits
• RoHS Compliant
Agency Approval
Agency
Agency File Number
L Package : E71639
• Glass – passivated
junctions
• Voltage capability up to
1000 V
• Surge capability up to
55 A
contact bounce that
create voltage transients
• No contacts to wear out
from reaction of switching
events
• Restricted (or limited) RFI
generation, depending on
activation point of
sine wave
• Requires only a small gate
activation pulse in each
half-cycle
Main Features
Symbol
I
T(RMS)
V
DRM
/ V
RRM
I
GT (Q1)
Value
4
400 to 1000
3 to 25
Unit
A
V
mA
• Electrically isolated
“L-Package” is UL
Recognized for 2500Vrms
• Solid-state switching
eliminates arcing or
Applications
Schematic Symbol
Typical applications are AC solid-state switches, power
tools, home/brown goods and white goods appliances.
MT2
MT1
Sensitive gate Triacs can be directly driven by
microprocessor or popular opto-couplers/isolators.
Internally constructed isolated packages are offered for
ease of heat sinking with highest isolation voltage.
G
Absolute Maximum Ratings — Sensitive Triacs
(4 Quadrants)
Symbol
I
T(RMS)
I
TSM
I
2
t
di/dt
I
GTM
P
G(AV)
T
stg
T
J
RMS on-state current
(full sine wave)
Non repetitive surge peak on-state current
(full cycle, T
J
initial = 25°C)
I
2
t Value for fusing
Critical rate of rise of on-state current
(I
G
= 50mA with
≤
0.1μs rise time)
Peak gate trigger current
Average gate power dissipation
Storage temperature range
Operating junction temperature range
Parameter
Value
Lxx04Ly
T
C
= 90°C
T
C
= 95°C
t = 20 ms
t = 16.7 ms
4
33
40
6.6
T
J
= 110°C
T
J
= 110°C
T
J
= 110°C
50
1.2
0.3
-40 to 150
-40 to 110
Unit
A
A
A
2
s
A/μs
A
W
°C
°C
Lxx04Ry/Lxx04Vy/Lxx04Dy
f = 50 Hz
f = 60 Hz
t
p
= 8.3 ms
f = 120 Hz
t
p
≤
10 μs
Note: xx = voltage, y = sensitivity
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/03/16
Teccor
®
brand Thyristors
4 Amp Sensitive & Standard Triacs
Absolute Maximum Ratings — Standard Triacs
Symbol
I
T(RMS)
RMS on-state current
(full sine wave)
Non repetitive surge peak on-state current
(full cycle, T
J
initial = 25°C)
I
2
t Value for fusing
Critical rate of rise of on-state current
(I
G
= 50mA with
≤
0.1μs rise time)
Peak gate trigger current
Average gate power dissipation
Storage temperature range
Operating junction temperature range
Parameter
Qxx04Ly
Qxx04Ry/Qxx04Vy/Qxx04Dy
f = 50 Hz
f = 60 Hz
t
p
= 8.3 ms
f = 120 Hz
t
p
≤
10 μs;
I
GT
≤
I
GTM
T
J
= 125°C
T
J
= 125°C
T
J
= 125°C
T
C
= 105°C
T
C
= 110°C
t = 20 ms
t = 16.7 ms
46
55
12.5
50
1.2
0.3
-40 to 150
-40 to 125
A
A
2
s
A/μs
A
W
°C
°C
Value
4
Unit
A
I
TSM
I
2
t
di/dt
I
GTM
P
G(AV)
T
stg
T
J
Note: xx = voltage, y = sensitivity
Electrical Characteristics
(T
J
= 25°C, unless otherwise specified)
— Sensitive Triac
(4 Quadrants)
Symbol
I
GT
V
GT
V
GD
I
H
dv/dt
(dv/dt)c
t
gt
Test Conditions
V
D
= 12V R
L
= 60
Ω
V
D
= 12V R
L
= 60
Ω
V
D
= V
DRM
R
L
= 3.3 kΩ T
J
= 110°C
I
T
= 100mA
V
D
= V
DRM
Gate Open T
J
= 100°C
(di/dt)c = 2.16 A/ms T
J
= 110°C
I
G
= 2 x I
GT
PW = 15μs I
T
= 5.6 A(pk)
400V
600V
IV
ALL
ALL
Quadrant
I – II – III
MAX.
MAX.
MIN.
MAX.
TYP
.
TYP
.
TYP
.
5
25
15
0.5
2.8
10
25
15
1
3.0
Lxx04x3
3
3
Lxx04x5
5
5
1.3
0.2
10
30
20
1
3.0
15
35
25
1
3.2
Lxx04x6
5
10
Lxx04x8
10
20
Unit
mA
V
V
mA
V/μs
V/μs
μs
Electrical Characteristics
(T
J
= 25°C, unless otherwise specified)
— Standard Triac
Symbol
I
GT
V
GT
V
GD
I
H
Test Conditions
V
D
= 12V R
L
= 60
Ω
V
D
= 12V R
L
= 60
Ω
V
D
= V
DRM
R
L
= 3.3 kΩ T
J
= 125°C
I
T
= 200mA
400V
dv/dt
V
D
= V
DRM
Gate Open T
J
= 125°C
V
D
= V
DRM
Gate Open T
J
= 100°C
(dv/dt)c
t
gt
(di/dt)c = 2.16 A/ms T
J
= 125°C
I
G
= 2 x I
GT
PW = 15μs I
T
= 5.6 A(pk)
600V
800V
1000V
TYP
.
TYP
.
2
2.5
MIN.
IV
I – II – III
ALL
Quadrant
I – II – III
MAX.
TYP
.
MAX.
MIN.
MAX.
Qxx04x3
10
25
1.3
0.2
20
40
30
Qxx04x4
25
50
1.3
0.2
30
75
50
40
50
2
3.0
V/μs
μs
V/μs
Unit
mA
V
V
mA
Note: xx = voltage, x = package
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/03/16
Teccor
®
brand Thyristors
4 Amp Sensitive & Standard Triacs
Static Characteristics
(T
J
= 25°C, unless otherwise specified)
Symbol
V
TM
I
TM
= 5.6A t
p
= 380 µs
Lxx04xy
I
DRM
I
RRM
V
DRM
= V
RRM
MAX.
Qxx04xy
Test Conditions
MAX.
T
J
= 25°C
T
J
= 110°C
T
J
= 25°C
T
J
= 125°C
T
J
= 100°C
400-600V
400-600V
400-1000V
400-800V
1000V
Value
1.60
5
200
10
2
3
Unit
V
μA
μA
μA
mA
Thermal Resistances
Symbol
Parameter
L/Qxx04Dy
R
θ(J-C)
Junction to case (AC)
L/Qxx04Ly
L/Qxx04Ry
L/Qxx04Vy
L/Qxx04Ly
R
θ(J-A)
Note: xx = voltage, x = package, y = sensitivity
Value
1.5
3.5
2.2
1.5
50
45
70
Unit
°C/W
Junction to ambient
L/Qxx04Ry
L/Qxx04Vy
°C/W
Figure 1: Definition of Quadrants
ALL POLARITIES ARE REFERENCED TO MT1
MT2 POSITIVE
(Positive Half Cycle)

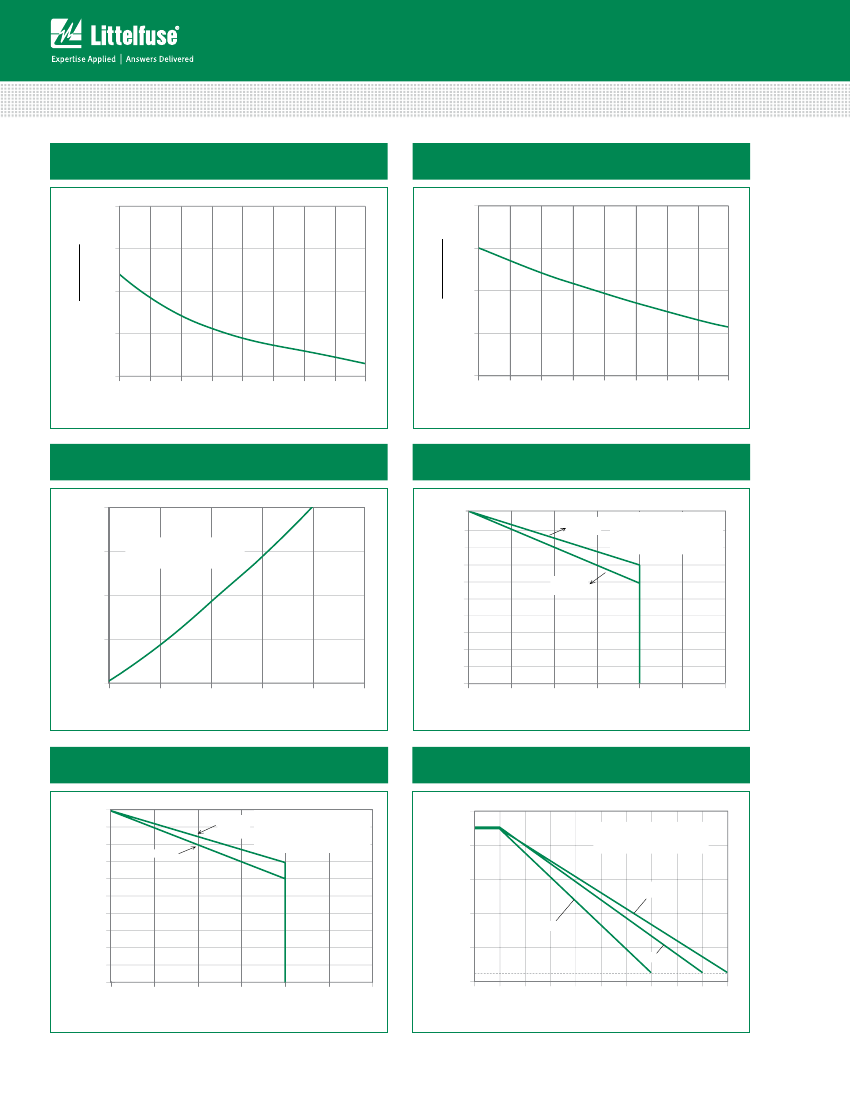

Figure 2: Normalized DC Gate Trigger Current for
All Quadrants vs. Junction Temperature
4.0
MT2
(
-
)
+
MT2
MT1
MT1
I
GT
REF
MT2
I
GT
GATE
(+)
I
GT
GATE
I
GT
(T
J
= 25°C)
3.0
2.0
I
GT
I
GT
MT2
(
-
)
Ratio of
-
I
GT
GATE
REF
QII QI
QIII QIV
(+)
+
1.0
I
GT
GATE
0.0
MT1
REF
MT2 NEGATIVE
(Negative Half Cycle)
-
MT1
REF
-65
-40
-40
10
35
60
85
110
125
Junction Temperature (T
J
)- ºC
Additional Information
Datasheet
Resources
Samples
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/03/16
Teccor
®
brand Thyristors
4 Amp Sensitive & Standard Triacs
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
4.0
Figure 4: Normalized DC Gate Trigger Voltage for
All Quadrants vs. Junction Temperature
2.0
V
GT
(T
J
= 25°C)
I
H
(T
J
= 25°C)
3.0
1.5
I
H
V
GT
2.0
1.0
Ratio of
Ratio of
1.0
0.5
0.0
-65
-40
-40
10
35
60
85
110
125
0.0
-65
-40
-40
10
35
60
85
110
125
Junction Temperature (T
J
)- ºC
Junction Temperature (T
J
)- ºC
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
4.0
Figure 6: Maximum Allowable Case Temperature
vs. On-State Current
125
120
Average On-State
Power Dissipation (P
D(AV)
) - Watts
3.0
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
Maximum Allowable
Case Temperature (T
C
) - °C
CURRENT WAVE FORM: Sinusoidal
Qxx04Ry
Qxx04Vy
Qxx04Dy
115
110
105
100
95
90
85
80
CURRENT WAVE FORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
CASE TEMPERATURE: Measured
as shown on Dimensional Drawing
Qxx04Ly
2.0
1.0
0.0
0.0
1.0
2.0
3.0
4.0
5.0
75
0
1
2
3
4
5
6
RMS On-State Current (I
T(RMS)
) - Amps
RMS On-State Current (I
T(RMS)
) - Amps
Figure 7: Maximum Allowable Case Temperature
vs. On-State Current
110
105
Figure 8: Maximum Allowable Ambient Temperature
vs. On-State Current
120
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
FREE AIR RATING – NO HEATSINK
Maximum Allowable
Ambient Temperature (T
A
) - °C
Lxx04Ry
Lxx04Vy
Lxx04Dy
Lxx04Ly
Maximum Allowable
Case Temperature (T
C
) - °C
100
95
90
85
80
75
70
65
60
0
1
2
3
CURRENT WAVE FORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 360°
CASE TEMPERATURE: Measured
as shown on Dimensional Drawing
100
80
Qxx04Ly
Qxx04Ry
60
L/Qxx04Vy
40
Lxx04Ly
20
4
5
6
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
RMS On-State Current (I
T(RMS)
) - Amps
Note: xx = voltage, y = sensitivity
RMS On-State Current [I
T(RMS)
] - Amps
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/03/16
Teccor
®
brand Thyristors
4 Amp Sensitive & Standard Triacs
Figure 9: On-State Current vs. On-State Voltage (Typical)
20
18
T
J
= 25°C
Positive or Instantaneous
On-State Current (I
T
) - Amps
16
14
12
10
8
6
4
2
0
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Positive or Instantaneous
On-State Voltage (V
T
) - Volts
Figure 10: Surge Peak On-State Current vs. Number of Cycles
100
Peak Surge (Non-repetitive) On-State Current
(I
TSM
) – Amps
Qxx04Ry
Qxx04Ly
Qxx04Dy
Qxx04Vy
Supply Frequency: 60Hz Sinusoidal
Load: Resistive
RMS On-State [I
T(RMS)
]: Max Rated Value at
Specific Case Temperature
Notes:
1. Gate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
10
Lxx04Ry
Lxx04Ly
Lxx04Dy
Lxx04Vy
1
1
10
100
1000
Surge Current Duration – Full Cycles
Note: xx = voltage, y = sensitivity
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/03/16
stm32/stm8
京公网安备 11010802033920号
EEWORLD
