NCP4682DMU33TCG

Description
LDO Voltage Regulators 150 mA LDO Wide Voltage Input
CategoryPower/power management    The power supply circuit
File Size376KB,22 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

NCP4682DMU33TCG Online Shopping

Suppliers Part Number Price MOQ In stock
NCP4682DMU33TCG - - View Buy Now

NCP4682DMU33TCG Overview

LDO Voltage Regulators 150 mA LDO Wide Voltage Input

NCP4682DMU33TCG Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
Parts packaging codeDFN
package instructionHVSON, SOLCC4,.04,25
Contacts4
Manufacturer packaging code517BR
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time1 week
AdjustabilityFIXED
Maximum drop-back voltage 10.32 V
Nominal dropback voltage 10.24 V
Maximum absolute input voltage6 V
Maximum input voltage5.25 V
Minimum input voltage1.7 V
JESD-30 codeS-PDSO-N4
JESD-609 codee3
length1 mm
Maximum grid adjustment rate0.00396%
Maximum load regulation0.02%
Humidity sensitivity level1
Number of functions1
Output times1
Number of terminals4
Working temperatureTJ-Max150 °C
Working temperature TJ-Min-40 °C
Maximum output current 10.15 A
Maximum output voltage 13.3495 V
Minimum output voltage 13.2505 V
Nominal output voltage 13.3 V
Package body materialPLASTIC/EPOXY
encapsulated codeHVSON
Encapsulate equivalent codeSOLCC4,.04,25
Package shapeSQUARE
Package formSMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height0.6 mm
surface mountYES
technologyCMOS
Terminal surfaceMATTE TIN
Terminal formNO LEAD
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance1.5%
width1 mm
NCP4682, NCP4685
150 mA, Ultra Low Supply
Current, Low Dropout
Regulator
The NCP4682 and NCP4685 are CMOS Low Dropout Linear
voltage regulators with 150 mA output current capability. The devices
have high output voltage accuracy, a 1
mA
(typ.) ultra low supply
current and high ripple rejection. Current fold−back protection is
integrated in the devices to protect against over current and short
current conditions. A Chip Enable (NCP4682 only) function is
included to save power by further lowering supply current, which is
advantageous for battery powered applications. The NCP4685 is
optimized for the lowest quiescent current possible in applications
where the device is always on.
Features
http://onsemi.com
MARKING
DIAGRAMS
SOT−23−5
CASE 1212
XXX MG
G
Operating Input Voltage Range: 1.70 V to 5.25 V
Output Voltage Range: 1.2 V to 3.3 V (available in 0.1 V steps)
Output Voltage Accuracy:
±0.8%
Excellent Output Voltage Temperature Coefficient :
±40
ppm/°C
Supply Current: 1.0
mA
(excluding CE pull down current)
Standby Current: 0.1
mA
Dropout Voltage: 0.24 V (I
OUT
= 150 mA, V
OUT
= 2.8 V)
Line Regulation: 0.02%/V Typ.
Stable with Ceramic Capacitors: 0.1
mF
or more
Current Fold Back Protection
Available in UDFN4 1.0 x 1.0 mm, SC−82AB, SOT23 Packages
These are Pb−Free Devices
Battery−Powered Equipment
Networking and Communication Equipment
Cameras, DVRs, STB and Camcorders
Home Appliances
SC−82AB
CASE 419C
XXX M
G
1
1
UDFN4
CASE 517BR
1
XX
MM
XXX, XX = Specific Device Code
M, MM = Date Code
G
= Pb−Free Package
(*Note: Microdot may be in either location)
Typical Applications
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 19 of this data sheet.
VIN
NCP4682x
VIN
CE
C1
100n
VOUT
GND
VOUT
VIN
C1
100n
NCP4685x
VIN
VOUT
GND
VOUT
C2
100n
C2
100n

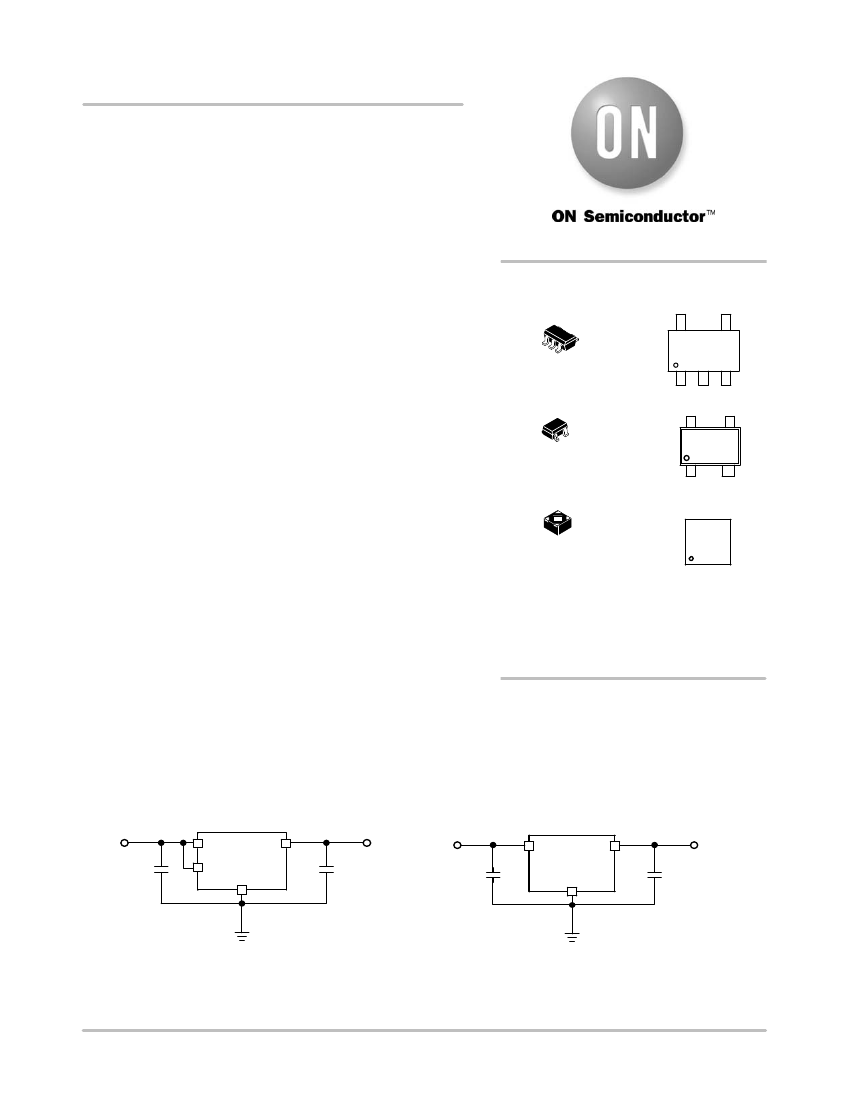

Figure 1. Typical Application Schematics
©
Semiconductor Components Industries, LLC, 2012
October, 2012
Rev. 3
1
Publication Order Number:
NCP4682/D
