System Power Supply for TV Series
FET Controller Type
3ch System Power Supply ICs
BD8621EFV
No.09034EAT03
●Description
BD8621EFV has realized the high performance and reliability required as a power supply for thin-screen TV.
With built-in FET 1ch current mode control, the DC/DC Converter series has the advantage of high-speed load response
and wide phase margin.
Due to the high-speed load response, it is most suitable for TV-purpose processors with increasingly high performance, and
due to the wide phase margin it leaves a good margin for board pattern & constant setting and so facilitates its application
design.
As a high-reliability design, it has various built-in protection circuits (overcurrent protection, output voltage abnormal
protection, thermal protection, and off-latch function at the time of abnormality etc.), therefore as an advantage it does not
easily damage in every possible abnormal condition such as all-pin short circuit test etc. and hence most suitable for
thin-screen TV which requires the high reliability.
●Features
1) 3A output current
2) Low RDS(ON) internal switches (PchMOS:75mΩ,NchMOS:55mΩ)
3) ±1% reference voltage accuracy
4) Programmable frequency : 250kHz-1MHz
5) (Frequency in programmable by adjusting RT resistance or synchronizing with SYNCLK terminal.)
6) Terminal RT OPEN/SHORT detecting function
7) Over current protection function
8) Output over voltage/low voltage protection function (over : FB > VREF +60mV , low : FB < VREF -60mV)
9) Timer off latch function in abnormal circumstances
10) Thermal shutdown function
11) Under voltage protection
12) Soft start/start delay circuit
13) Soft start time out function
14) Protecting BUS function with terminal PDET
15) HTSSOP-B20 package
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
1/14
2009.05 - Rev.A
BD8621EFV
●Electrical
characteristics
(Unless otherwise noted Ta=25℃, VIN=3.3V, GND=0V)
Specification value
Parameter
Symbol
MIN
TYP
VIN supply current (operating)
I
Q_active
-
220
VIN supply current (standby)
I
Q_stby
-
0
Reference voltage (VREF)
V
REF
0.792
0.8
60
Output rise detection voltage
V
OVP
30
Output decrease detection voltage
V
LVP
-90
-60
Technical Note
MAX
350
1
0.808
90
-30
UNIT
μA
μA
V
mV
mV
Condition
V
FB
= 0.83V, V
FC
= 1V
V
EN
= 0V
Monitoring FB
terminal
Monitoring FB
terminal
V
PDET
< 0.3V
R
RT
= 220kΩ
I
SW
= 1A
I
SW
= 1A
Terminal PDET output current
I
PDET
0.4
-
-
mA
Oscillation frequency
f
OSC
500
550
600
kHz
Pch FET ON resistance
R
PFET
-
75
110
mΩ
mΩ
Nch FET ON resistance
R
NFET
-
55
90
UVLO voltage
V
UVLO
2.35
2.50
2.65
V
SW leak current
I
LSW
-
0
1
μA
V
EN
= 0V, V
IN
= 5.5V
EN terminal H threshold voltage
V
ENH
1.1
-
-
V
EN terminal L threshold voltage
V
ENL
-
-
0.4
V
FC sink current
I
FCSI
10
20
-
μA
FC source current
I
FCSO
-
-20
-10
μA
SS/DELAY terminal source current I
SSSO
2
4
6
μA
Terminal PDET pull-up resistor
R
PDET
100
170
250
kΩ
V
FB
:FB terminal voltage, V
EN
:EN terminal voltage, V
FC
:FC terminal voltage, V
PDET
: PDET terminal voltage
Current capability should not exceed Pd.
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
2/14
2009.05 - Rev.A
BD8621EFV
●Block
Diagram
Technical Note

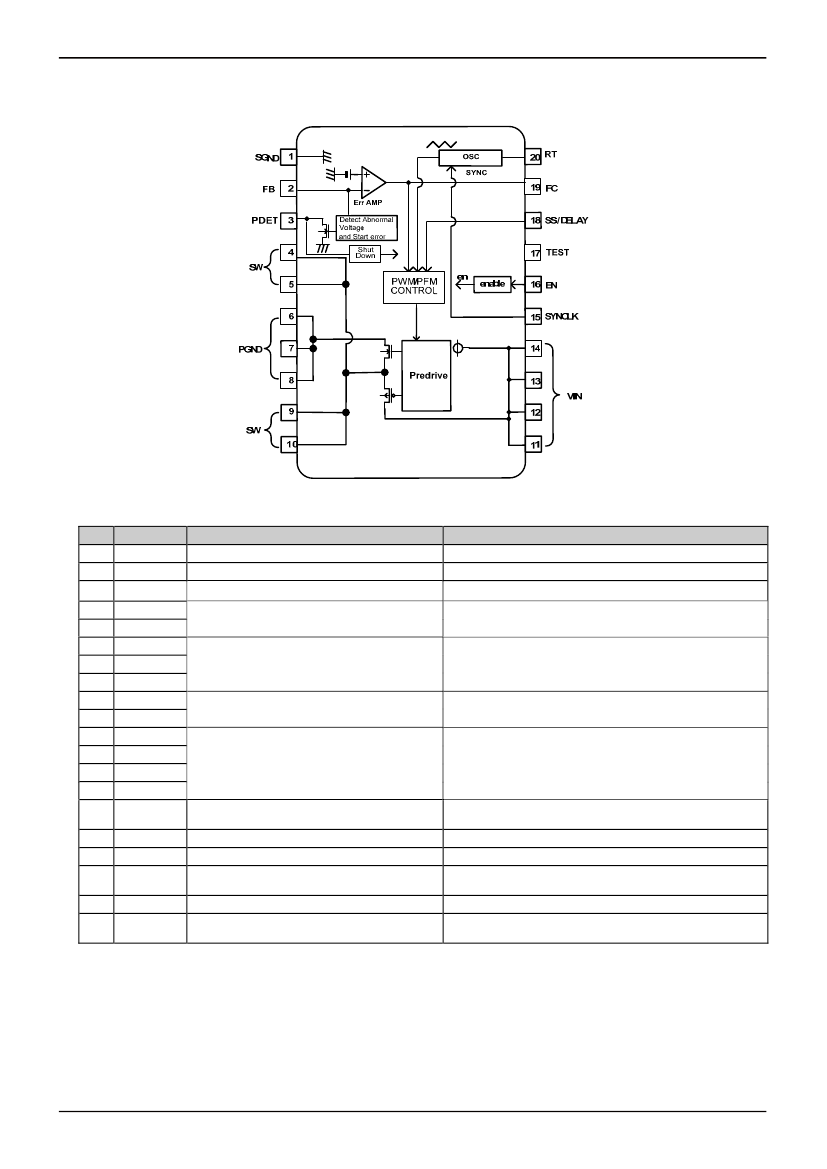

Fig1 Block diagram
●Pin
Description
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Symbol
SGND
FB
PDET
SW
SW
PGND
PGND
PGND
SW
SW
VIN
VIN
VIN
VIN
REG
Description
Signal GND terminal
Feed back terminal
Off latch signal output
Output terminal
Explanation
Small signal system GND
Output voltage detection
Protecting BUS communication terminal
Switching output
Power GND terminal
GND for power MOSFET
Output terminal
Power Mos output
Power supply input terminal
Power supply input. The decoupling is done to PGND
Synchronizable switching output terminal frequency with
external clock
EN
Enable input
ON/OFF control for device operation
TEST
Terminal for test
SGND short in the set.
Soft start adjustment capacity connection
The soft start time is adjusted with the connected
SS/DELAY
terminal
capacitor
FC
Error amplifier output
Error amplifier phase compensation point
Frequency adjustment resistance connection The switching frequency is set by the connected
RT
terminal
resistance
Internal Regulator
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
3/14
2009.05 - Rev.A
BD8621EFV
●Pin
equivalence circuit diagram
No.
Symbol
1
SGND
Technical Note
Explanation
Terminal equivalent circuit diagram
GND (connected 0V)
VIN
2
FB
Output voltage detection terminal
2
SGND
3
PDET
Protecting BUS I/O terminal
VIN
4,5,9,10
SW
Output terminal
4
5
5
6
9
7
10
PGND
6,7,8
PGND
Power GND
(Same voltage as SGND)
11,12,13,14
VIN
Power supply input terminal
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
4/14
2009.05 - Rev.A
BD8621EFV
Technical Note
No.
Symbol
Explanation
Terminal equivalent circuit diagram
15
REG
Internal Regulator output voltage
16
EN
Enable terminal
17
TEST
Using at test mode
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
5/14
