S300B

Description
Rectifiers 100V 300A Std. Recovery
Categorysemiconductor    Discrete semiconductor
File Size661KB,4 Pages
ManufacturerGeneSiC Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

S300B Online Shopping

Suppliers Part Number Price MOQ In stock
S300B - - View Buy Now

S300B Overview

Rectifiers 100V 300A Std. Recovery

S300B Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGeneSiC Semiconductor
Product CategoryRectifiers
RoHSDetails
Mounting StyleStud Mount
Package / CaseDO-9
Vr - Reverse Voltage100 V
If - Forward Current300 A
TypeStandard Recovery Rectifiers
Vf - Forward Voltage1.2 V
Max Surge Current6850 A
Ir - Reverse Current10 uA
PackagingBulk
ProductRectifiers
Factory Pack Quantity10
Unit Weight7.054792 oz

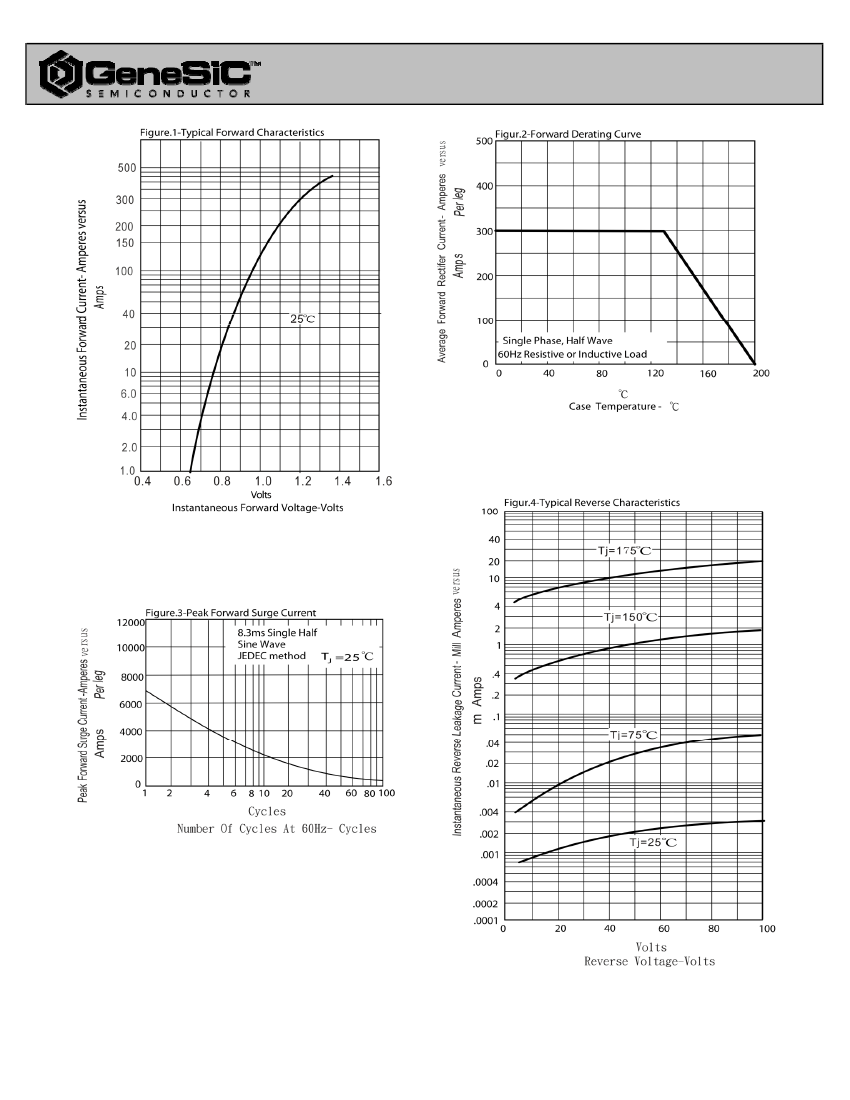

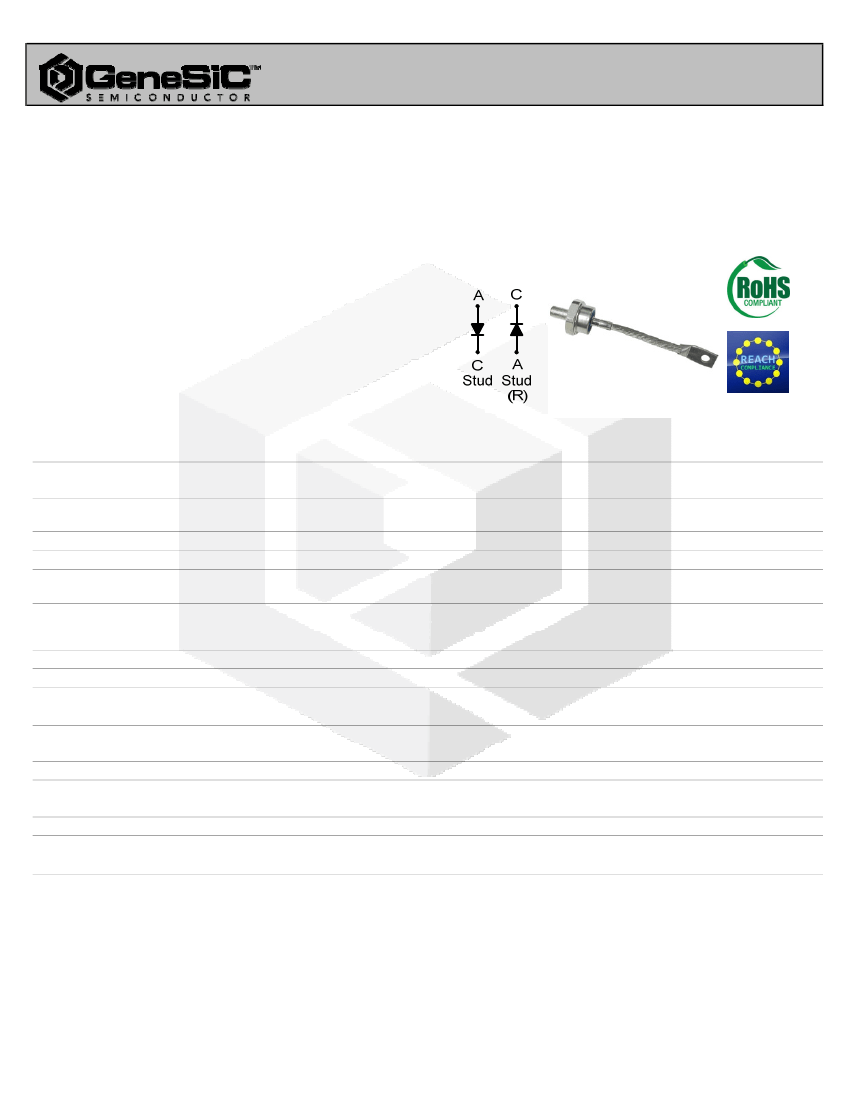

S300B thru S300JR
Silicon Standard
Recovery Diode
Features
• High Surge Capability
• Types up to 600 V V
RRM
• Not ESD Sensitive
Note:
1. Standard polarity: Stud is cathode.
2. Reverse polarity (R): Stud is anode.
3. Stud is base.

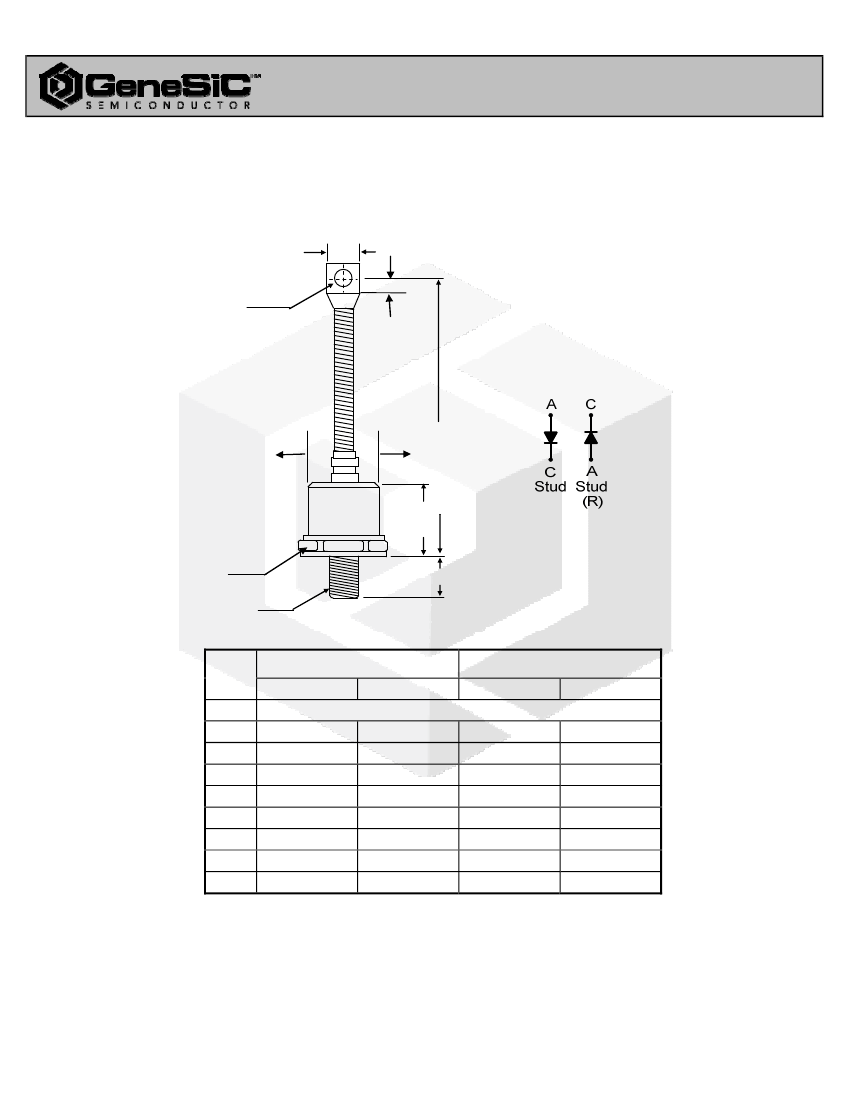

DO-9 Package
V
RRM
= 100 V - 600 V
I
F
= 300 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive p
p
peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Continuous forward
current
Surge non-repetitive
forward current, Half Sine
Wave
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
I
F
I
F,SM
T
j
T
stg
T
C
≤ 130 °C
T
C
= 25 °C, t
p
= 8.3 ms
Conditions
S300B (R)
100
70
100
300
6850
-55 to 150
-55 to 150
S300D (R)
200
140
200
300
6850
-55 to 150
-55 to 150
S300E (R)
300
212
300
300
6850
-55 to 150
-55 to 150
S300G (R)
400
280
400
300
6850
-55 to 150
-55 to 150
S300J (R)
600
420
600
300
6850
-55 to 150
-55 to 150
Unit
V
V
V
A
A
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Diode forward voltage
Reverse current
Symbol
V
F
I
R
Conditions
I
F
= 300 A, T
j
= 25 °C
V
R
= 100 V, T
j
= 25 °C
V
R
= 100 V, T
j
= 175 °C
S300B (R)
1.2
10
12
S300D (R)
1.2
10
12
S300E (R)
1.2
10
12
S300G (R)
1.2
10
12
S300J (R)
1.2
10
12
Unit
V
μA
mA
Thermal characteristics
Thermal resistance,
junction - case
R
thJC
0.16
0.16
0.16
0.16
0.16
°C/W
Feb 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/standard-recovery-rectifiers/
1

S300B Related Products

S300B S300J S300D S300JR S300DR
Description Rectifiers 100V 300A Std. Recovery Rectifiers 600V 300A Std. Recovery Rectifiers 200V 300A Std. Recovery Rectifiers 600V 300A REV Leads Std. Recovery Rectifiers 200V 300A REV Leads Std. Recovery
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer GeneSiC Semiconductor GeneSiC Semiconductor GeneSiC Semiconductor GeneSiC Semiconductor GeneSiC Semiconductor
Product Category Rectifiers Rectifiers Rectifiers Rectifiers Rectifiers
RoHS Details Details Details Details Details
Mounting Style Stud Mount Stud Mount Stud Mount Stud Mount Stud Mount
Package / Case DO-9 DO-9 DO-9 DO-9 DO-9
Vr - Reverse Voltage 100 V 600 V 200 V 600 V 200 V
If - Forward Current 300 A 300 A 300 A 300 A 300 A
Type Standard Recovery Rectifiers Standard Recovery Rectifiers Standard Recovery Rectifiers Standard Recovery Rectifiers Standard Recovery Rectifiers
Vf - Forward Voltage 1.2 V 1.2 V 1.2 V 1.2 V 1.2 V
Max Surge Current 6850 A 6850 A 6850 A 6850 A 6850 A
Ir - Reverse Current 10 uA 10 uA 10 uA 10 uA 10 uA
Packaging Bulk Bulk Bulk Bulk Bulk
Product Rectifiers Rectifiers Rectifiers Rectifiers Rectifiers
Factory Pack Quantity 10 10 10 10 10
Unit Weight 7.054792 oz 7.054792 oz 7.054792 oz 7.054792 oz 7.054792 oz
