IH5047CWE+T datasheet, PDF - EEWORLD Datasheet

IH5047CWE+T: DescriptionAnalog Switch ICs; Categorysemiconductor Other integrated circuit (IC); File Size2MB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

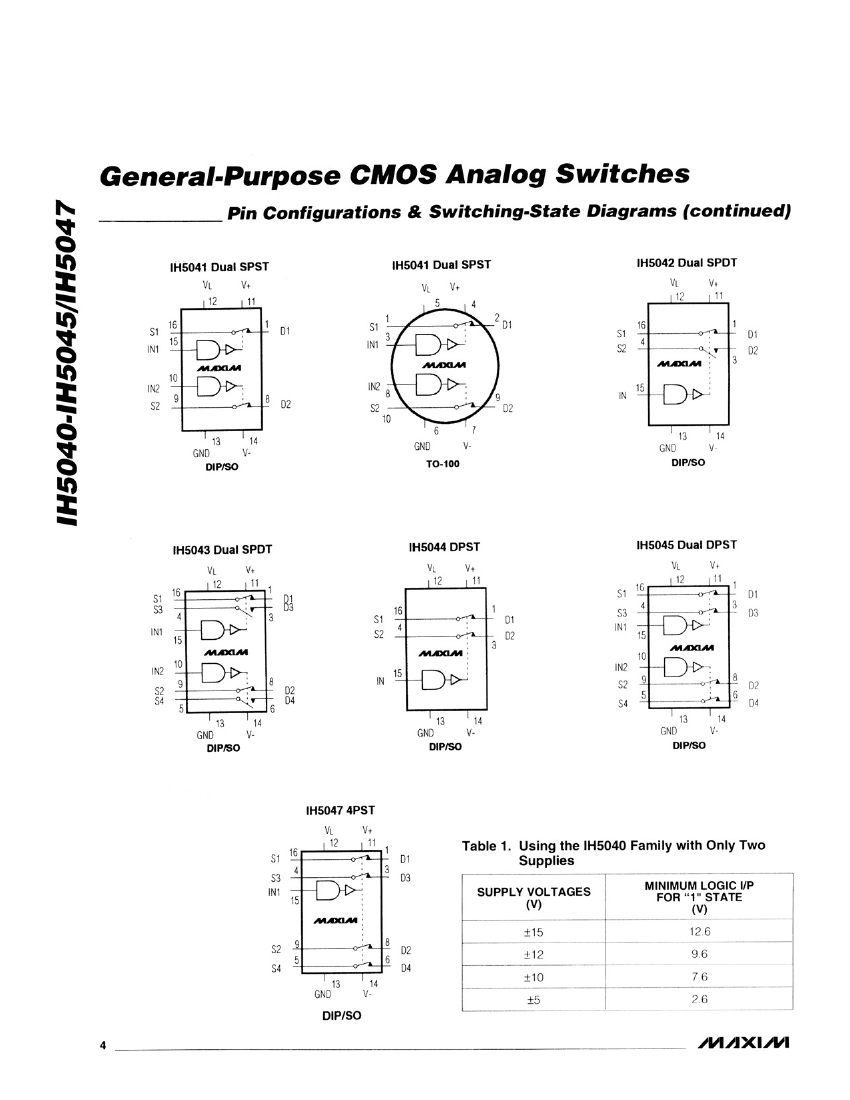

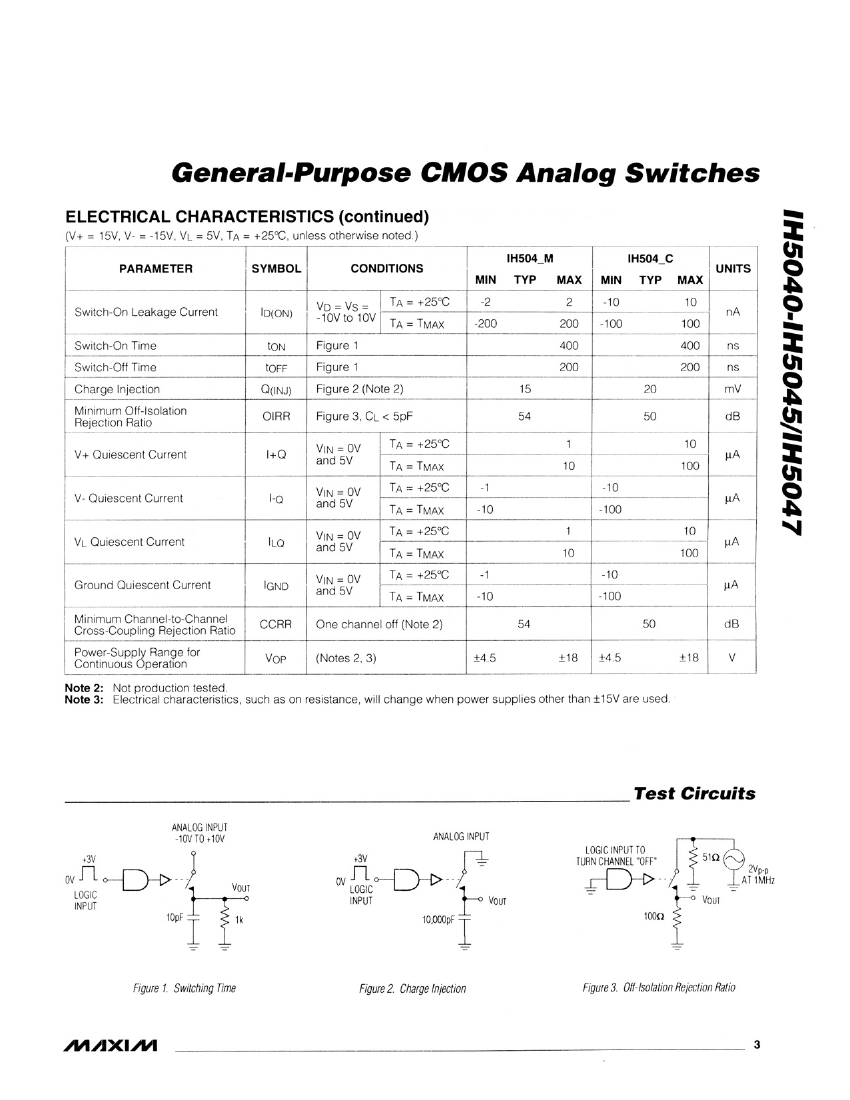

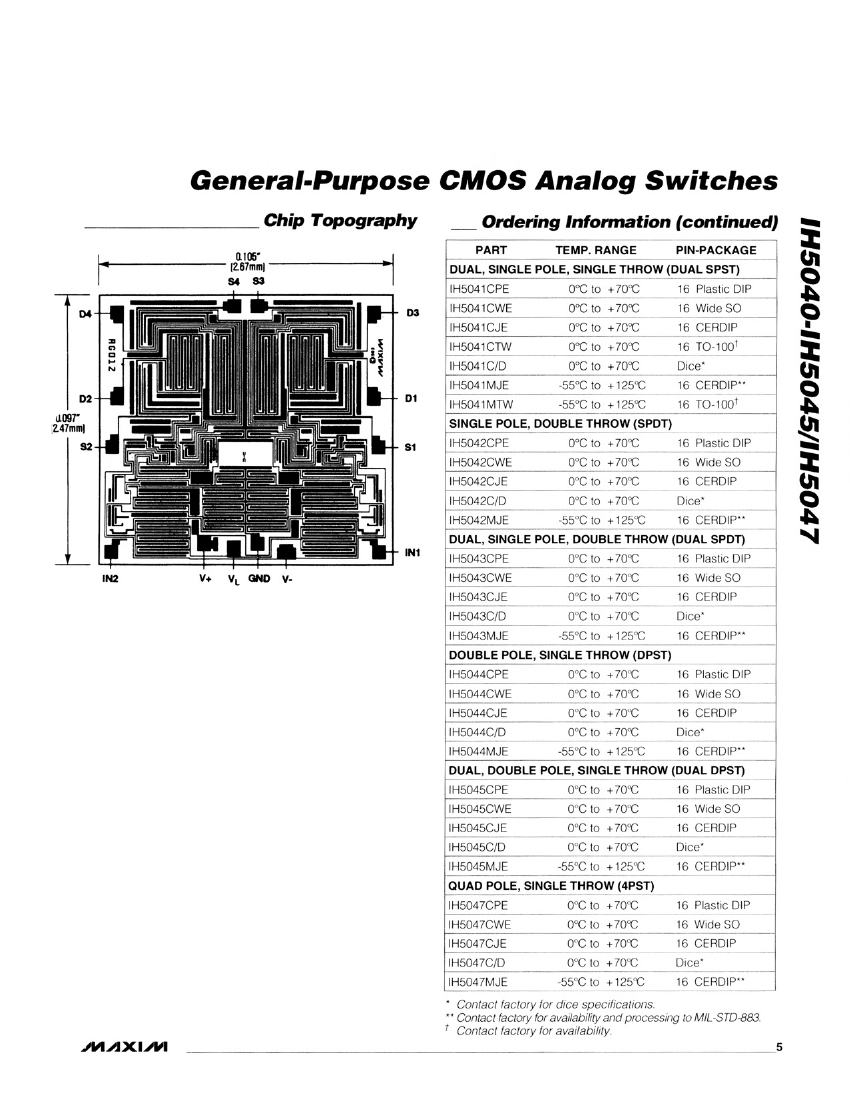

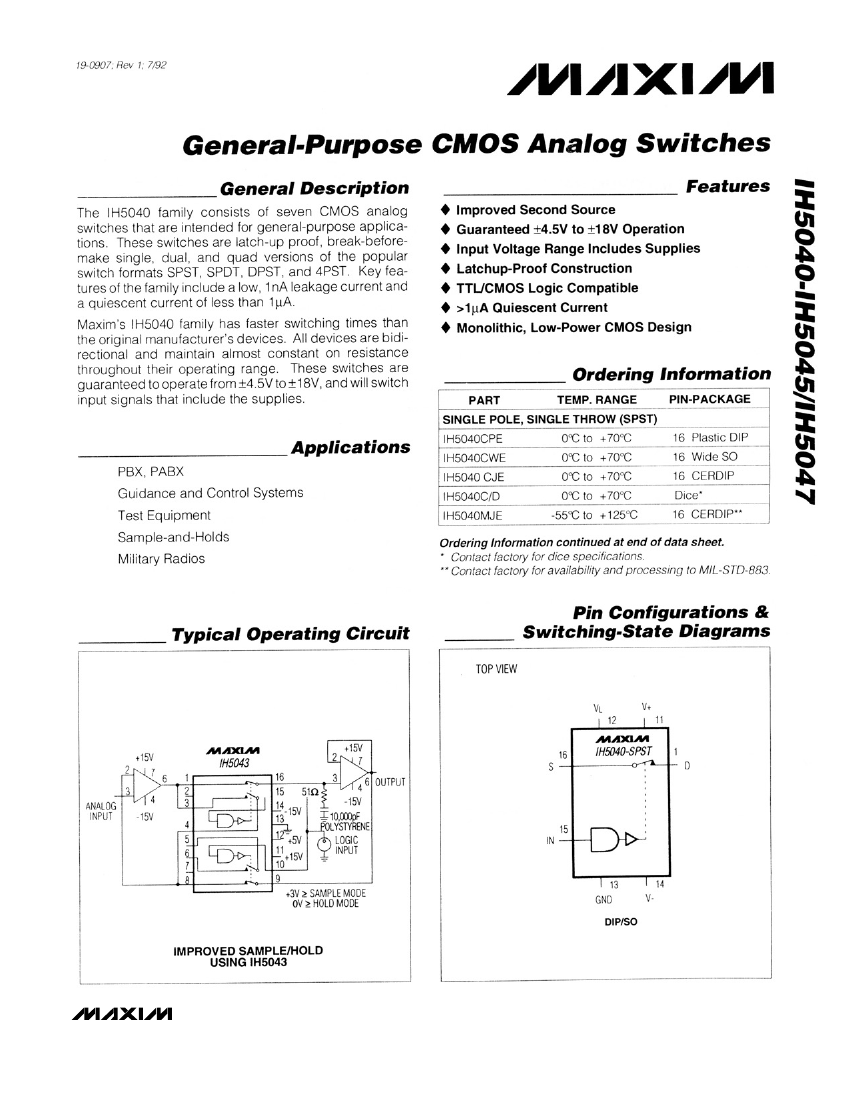

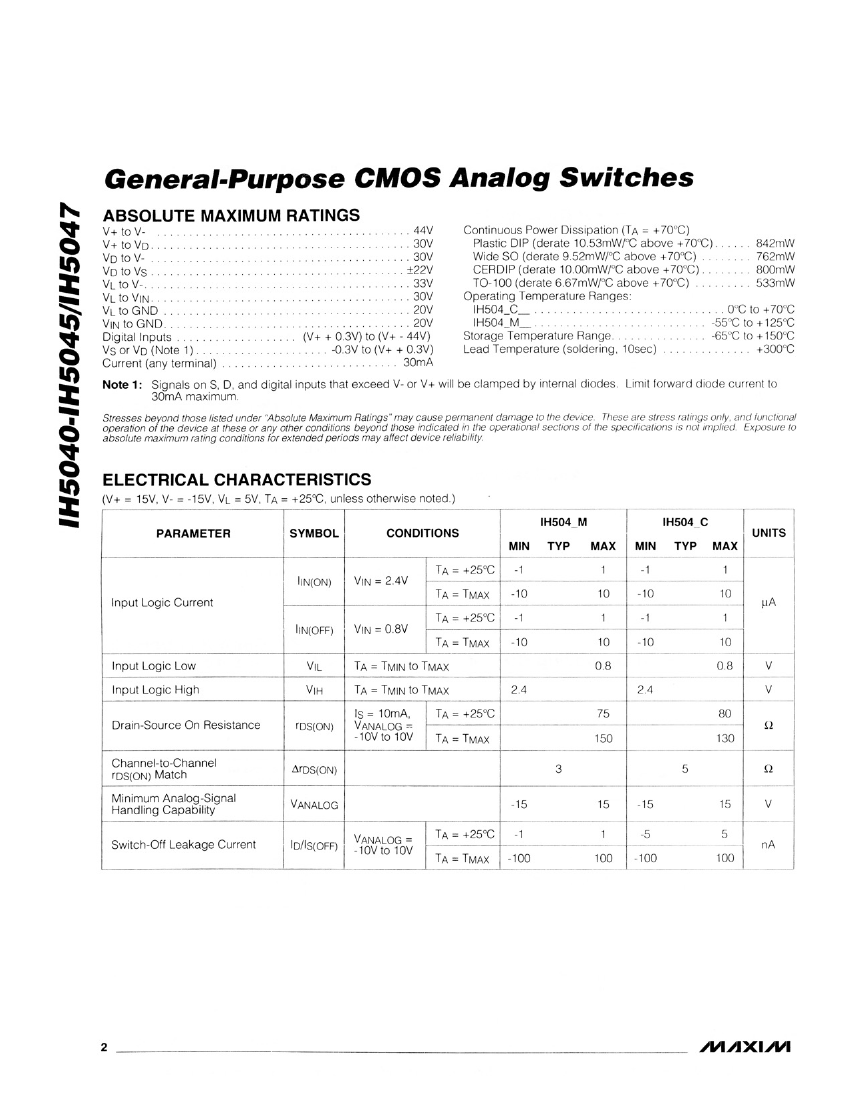

IH5047CWE+T Overview

Analog Switch ICs

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Maxim
Product Category	Analog Switch ICs
Number of Switches	1 Switch
Configuration	1 x 4PST
On Resistance - Max	80 Ohms
Switch Voltage - Max	+/- 15 V
On Time - Max	400 ns
Off Time - Max	200 ns
Operating Supply Voltage	+/- 15 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	SO-16
Height	2.35 mm (Max)
Length	10.5 mm (Max)
Supply Type	Dual Supply
Width	7.6 mm (Max)
Supply Current - Max	10 uA
Dual Supply Voltage	+/- 15 V
Maximum Dual Supply Voltage	+/- 18 V
Minimum Dual Supply Voltage	+/- 4.5 V
Pd - Power Dissipation	762 mW
Switch Continuous Current	30 mA
Unit Weight	0.007079 oz

____________________________________________________________________________

Maxim

Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
